Giant Stance

$1,999.00 $2,999.00
Colour
Size
Loading locations...

TAKE TO THE TRAIL WITH A NEW LEVEL OF CONFIDENCE.

With its grippy plus-sized tyres and smooth suspension, this fun-loving trail bike gobbles up rocks, roots and ruts with traction and control.

Key Performance Factors

Plus-Sized Compatible

27.5+ wheel and tyre compatibility give you added confidence and control on the trail.

Proven Suspension Setup

FlexPoint rear suspension offers 120mm of travel (plus 130mm fork up front) for smooth-riding confidence on climbs and descents.

High-Quality Aluminium Frame

The lightweight, stiff and durable ALUXX aluminium is hand-built and engineered in-house by the world leader in alloy bicycle technology.

TECHS & FEATURES

×

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

×

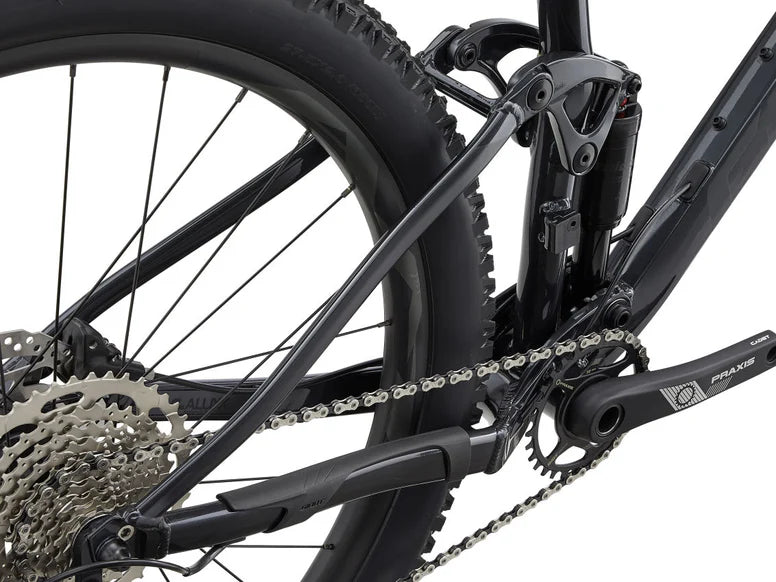

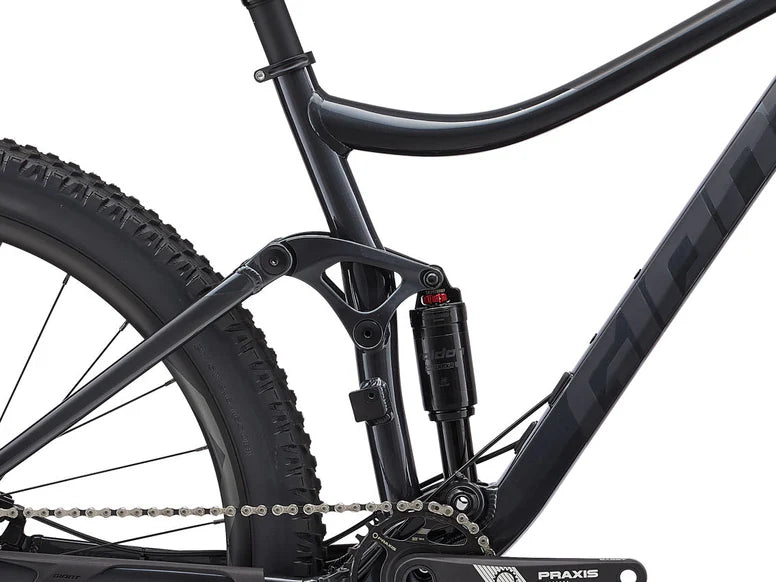

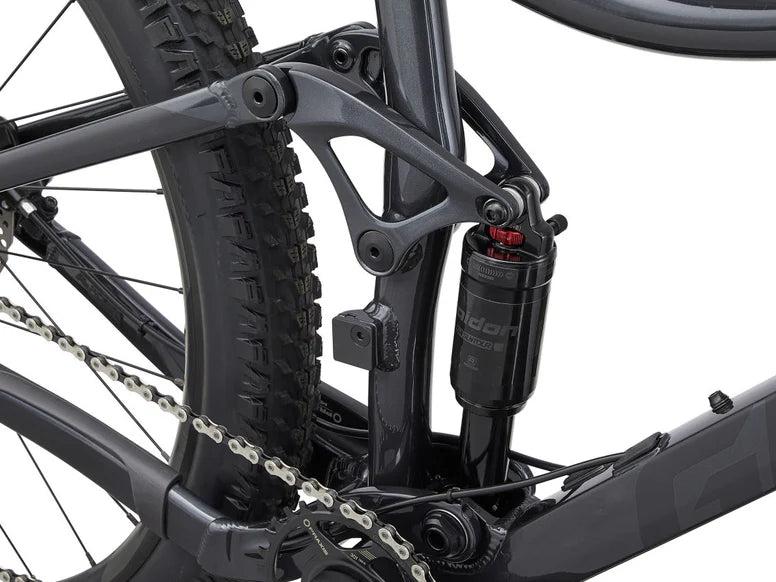

FLEXPOINT SUSPENSION TECHNOLOGY

A proven “single-pivot” design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.

READ MORE

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

×

POWERCORE

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
L
XL
XS
S
M
L
XL
A SEAT TUBE LENGTH (mm)
390
400
431
482
507
B SEAT TUBE ANGLE
74.0°
74.0°
74.0°
74.0°
74.0°
C TOP TUBE LENGTH (mm)
565
585
605
625
645
D HEAD TUBE LENGTH (mm)
100
100
105
130
145
E HEAD TUBE ANGLE
67.5°
67.5°
67.5°
67.5°
67.5°
F FORK RAKE (mm)
44
44
44
44
44
G TRAIL (mm)
103.6
103.6
103.6
103.6
103.6
H WHEELBASE (mm)
1110
1130
1151
1174
1195
I CHAIN STAY LENGTH (mm)
435
435
435
435
435
J BOTTOM BRACKET DROP (mm)
20
20
20
20
20
K STACK (mm)
566
566
571
594
608
L REACH (mm)
403
423
441
455
471
M STAND OVER HEIGHT (mm)
698
703
727
761
774
O STEM LENGTH (mm)
40
50
50
60
70
P CRANK LENGTH (mm)
165
165
170
170
170
Q WHEEL SIZE
27.5"
27.5"
27.5"
27.5"
27.5"
GRIPS
Giant Sole-O
HANDLEBAR
Giant Connect Trail, 31.8mm
SADDLE
Giant Romero
SEATPOST
Giant Contact Switch dropper, remote
STEM
Giant Contact XS:40mm, S:50mm, M:50mm, L:60mm, XL:70mm
BOTTOM BRACKET
Praxis, press fit
BRAKE LEVERS
Shimano BL-MT201
BRAKES
Shimano BR-MT200, hydraulic
BRAKES ROTOR
Shimano RT-26 rotors [F]180mm, [R]160mm
CASSETTE
Shimano Deore, 11-46
CHAIN
KMC X10
CRANKSET
Praxis Cadet M24, 30t XS: 165mm, S:165mm, M:170mm, L:170mm, XL:170mm
REAR DERAILLEUR
Shimano Deore M5120
SHIFTERS
Shimano Deore M4100, 1x10
FORK
Giant Crest 34 RCL, 130mm, Boost 15x110
FRAME
ALUXX-Grade Aluminium, 120mm FlexPoint suspension
SHOCK
Suntour Raidon R
EXTRAS
Tubeless prepared, max tyre size 2.6", max chainring size 30t
FRONT HUB
Alloy 15x110, loose ball
FRONT TYRE
Maxxis Recon Race 27.5x2.6 WT, wire, TLR, EXO, tubeless
REAR HUB
Alloy QR141, loose ball
REAR TYRE
Maxxis Recon Race 27.5x2.6 WT, wire, TLR, EXO, tubeless
RIMS
Giant AM 27.5 alloy, tubeless ready
SPOKES
Sapim
WHEEL SIZE
27.5
