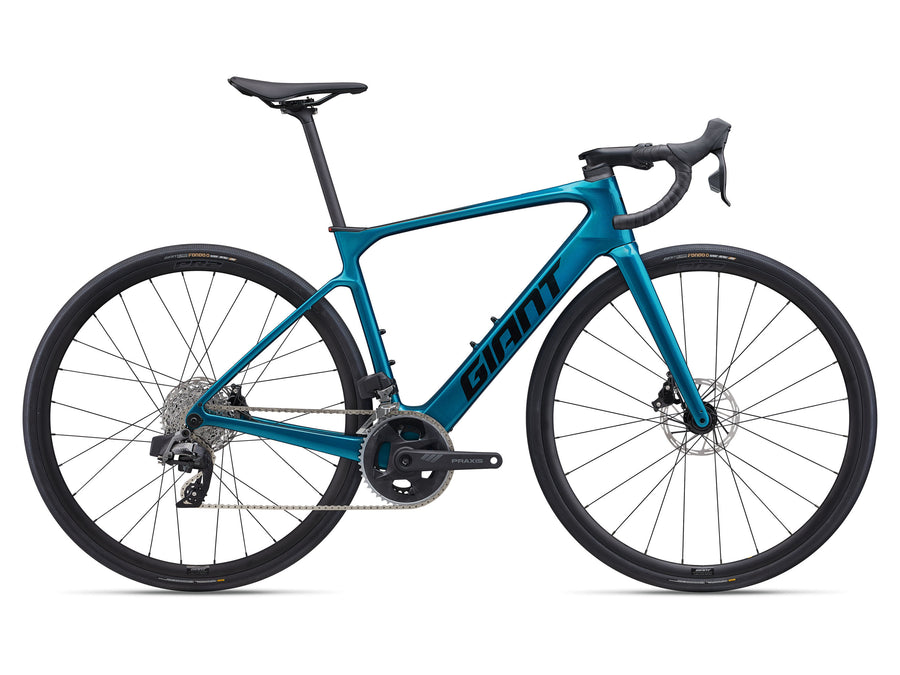

Giant Defy Adv E+ Elite 2 25KM/H M Sea Sparkle

$7,899.00 $10,999.00
Colour
Size
Loading locations...

With its smooth-riding composite frame, lightweight battery, and new SyncDrive Move Plus integrated rear hub motor, the Defy Advanced E+ is the ideal choice for performance-minded road riders who want to tackle steep hills, maintain higher speeds, and experience road riding with no limitations.

Key Performance Factors

Seamless Power

The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it's specially tuned for the pedalling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.

System Integration

The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.

Pure Road Performance

A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with tubeless tyres, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.

Highlights

With its composite frame, integrated pedal assistance, and high-quality components including wireless electronic shifting, the Defy Advanced E+ Elite is designed for performance-minded road riders seeking added capabilities to ride further and faster. The new SyncDrive Move Plus motor, which delivers up to 30Nm of support (equivalent to 75Nm with a mid-drive motor) in a lightweight, quiet system, is cleanly integrated into the rear hub and offers five support levels plus Smart Assist technology to determine optimal pedaling support for a smooth, natural riding experience. The system is powered by the EnergyPak 400 battery, which provides powerful support in an integrated, lightweight package.

TECHS & FEATURES

×

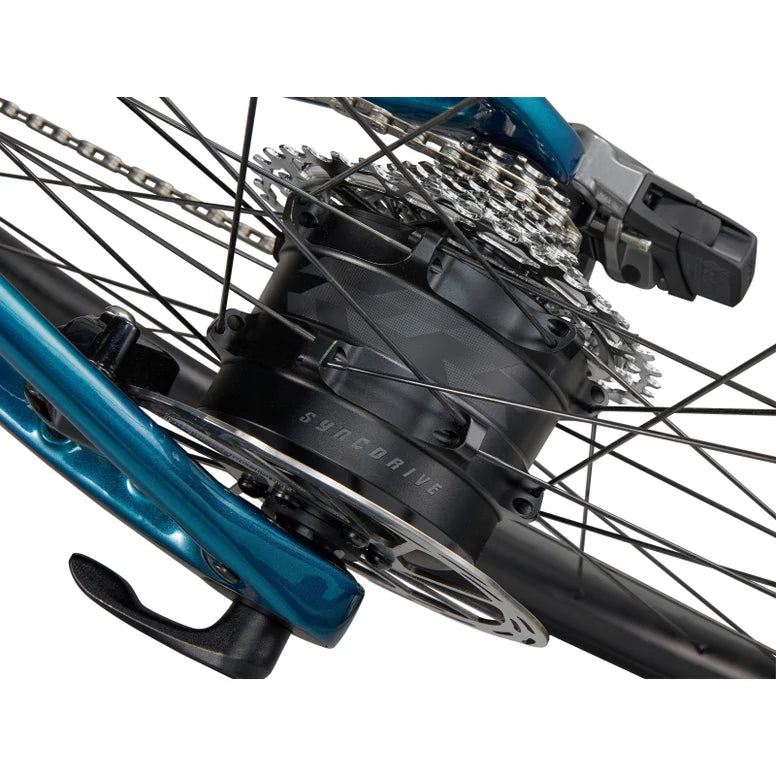

SyncDrive Move Plus

The new SyncDrive Move Plus motor delivers 30Nm of torque, which is comparable to 75Nm of torque in a mid-drive motor—all in a lightweight, quiet system that’s fully integrated into the rear hub. It features five support levels plus Smart Assist technology, which can automatically adjust pedaling support without having to change settings while riding. The motor uses sensors to constantly adjust output based on advanced algorithms.

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

D-FUSE TECHNOLOGY

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.absorbing road shocks and vibrations so you can ride further, faster.

READ MORE

×

ENERGYPAK

Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimise the E-bike experience for a specific style of riding.

READ MORE

×

RideControl App

The updated RideControl App expands the existing customization options for your SyncDrive motor. Now you choose exactly how you want the system to perform. You can use the app to adjust from the battery-saving Eco mode all the way up to Power mode, and collect all relevant ride metrics during your activity.

Read more

×

SMART ASSIST

All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.

READ MORE

×

E+ System

E+ System combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control units, EnergyPak battery systems and SyncDrive motors.

For more information, check out the link below.

Read more

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
ML
L
XL
S
M
ML
L
XL
A SEAT TUBE LENGTH (mm)
445
480
515
535
565
B SEAT TUBE ANGLE
74.0°
73.5°
73.0°
73.0°
73.0°
C TOP TUBE LENGTH (mm)
530
545
560
575
590
D HEAD TUBE LENGTH (mm)
130
145
167
187
205
E HEAD TUBE ANGLE
71.5°
72.5°
72.5°
72.5°
72.5°
F FORK RAKE (mm)
50
50
50
50
50
G TRAIL (mm)
65.1
58.6
58.6
58.6
58.6
H WHEELBASE (mm)
994.3
995.2
1007.5
1022.7
1037.9
I CHAIN STAY LENGTH (mm)
420
420
420
420
420
J BOTTOM BRACKET DROP (mm)
80
80
75
75
75
K STACK (mm)
542.2
560.2
576.1
595.2
612.4
L REACH (mm)
374.3
378.9
383.6
392.8
402.6
M STAND OVER HEIGHT (mm)
716
745.5
779
799
824
O STEM LENGTH (mm)
90
100
110
110
120
P CRANK LENGTH (mm)
170
172.5
172.5
175
175
Q WHEEL SIZE
700C
700C
700C
700C
700C
GRIPS / BARTAPE
Stratus Lite 3.0
HANDLEBAR
Giant Contact SL D-Fuse S:40/42cm, M:42/44cm, M/L:42/44cm, L:44/46cm, XL:44/46cm
PEDALS
N/A
SADDLE
Giant Approach
SEATPOST
Giant D-Fuse, composite, -5/+15mm offset
STEM
Giant Contact SL AeroLight S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
BOTTOM BRACKET
Giant E+ System BBSS
BRAKE LEVERS
SRAM Rival AXS hydraulic
BRAKES
SRAM Rival AXS hydraulic
BRAKES ROTOR
SRAM PaceLine rotors [F]160mm, [R]160mm
CASSETTE
SRAM Rival XG-1250, 12-speed, 10-36
CHAIN
SRAM Rival D1

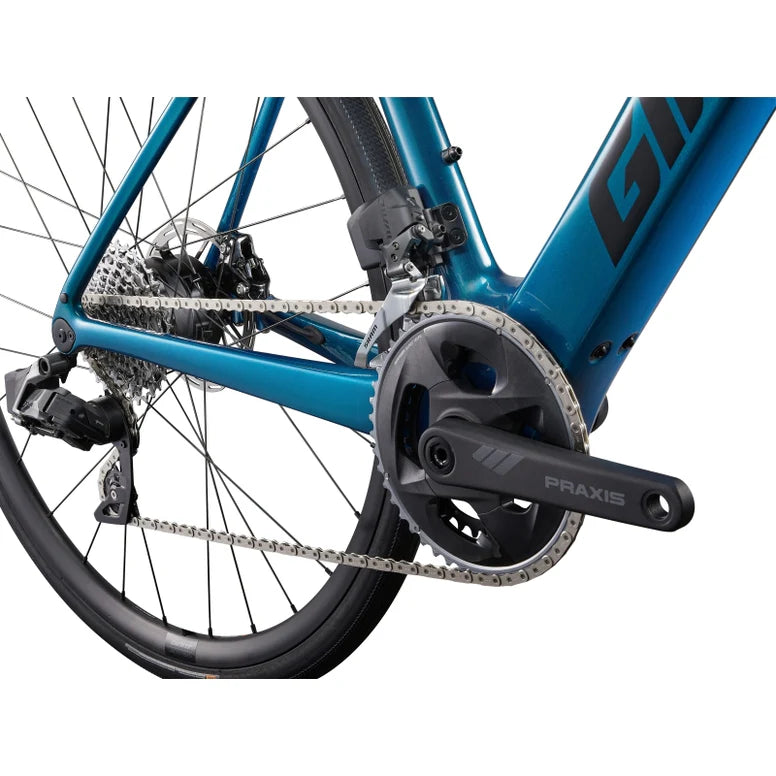

CRANKSET
SRAM Force X-SYNC 33/46T BCD107 chain ring Praxis E Crank Alloy ISIS, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
FRONT DERAILLEUR
SRAM Rival AXS
REAR DERAILLEUR
SRAM Rival AXS
SHIFTERS
SRAM Rival AXS
BATTERY
EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
CONNECTIVITY
Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
DISPLAY
RideControl GO, frame integrated LED display ANT+ Wireless display compatible
DISPLAY/CONTROLLER
Mode support switch from SRAM blips
E MOTOR
Giant SyncDrive Move Plus, Rear Hub, 30Nm
E MOTOR CHARGER
EnergyPak 4A smart charger compact
FORK
Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, disc, 12x100mm
FRAME
Advanced-Grade Composite, disc, 12x145mm
EXTRAS
Fender adapter; Seatpost clamp integrated tail light
FRONT HUB
Giant Alloy, 24H
REAR HUB
Giant SyncDrive Move Plus, 28H
RIMS
Giant P-R2 Alloy Disc Wheel System, Tubeless Ready
SPOKES
Sapim spoke E-Light [R] Race [F], e-bike optimised
TYRES
Giant Gavia Fondo 0, tubeless, 700x32c, folding

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

  • km
  • miles

Energypak 400 / SyncDrive Move

  • Range
  • Extreme: 40 km
  • Good: 70 km
  • Ideal: 100 km
