Giant Trance X Advanced E+ Elite 1 2024

$9,499.00 $14,999.00
Colour
Size
Loading locations...

ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, AND EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. THE ULTRA-SLIM BATTERY MINIMIZES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.

KEY PERFORMANCE FACTORS

Lighter Weight
The EnergyPak 400 battery system is ultra slim, delivering all the power you need in a smaller package that’s cleanly integrated into the lightweight composite frameset.

Advanced Cockpit Control

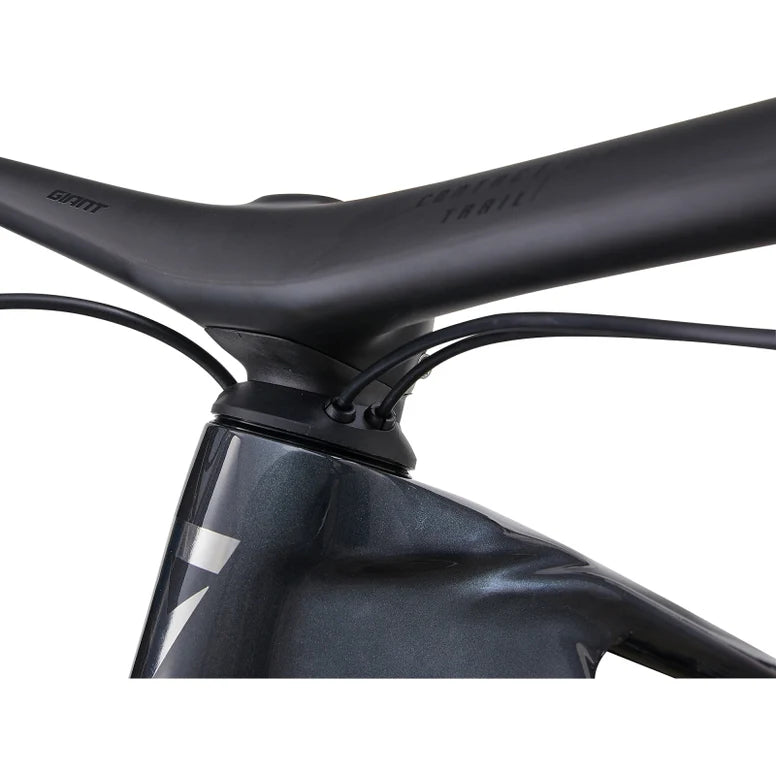

The RideControl Ergo 3 remote attaches to the composite Giant Contact handlebar. It can be mounted to either side, giving you a clean, customizable, and clutter-free cockpit.

More Power

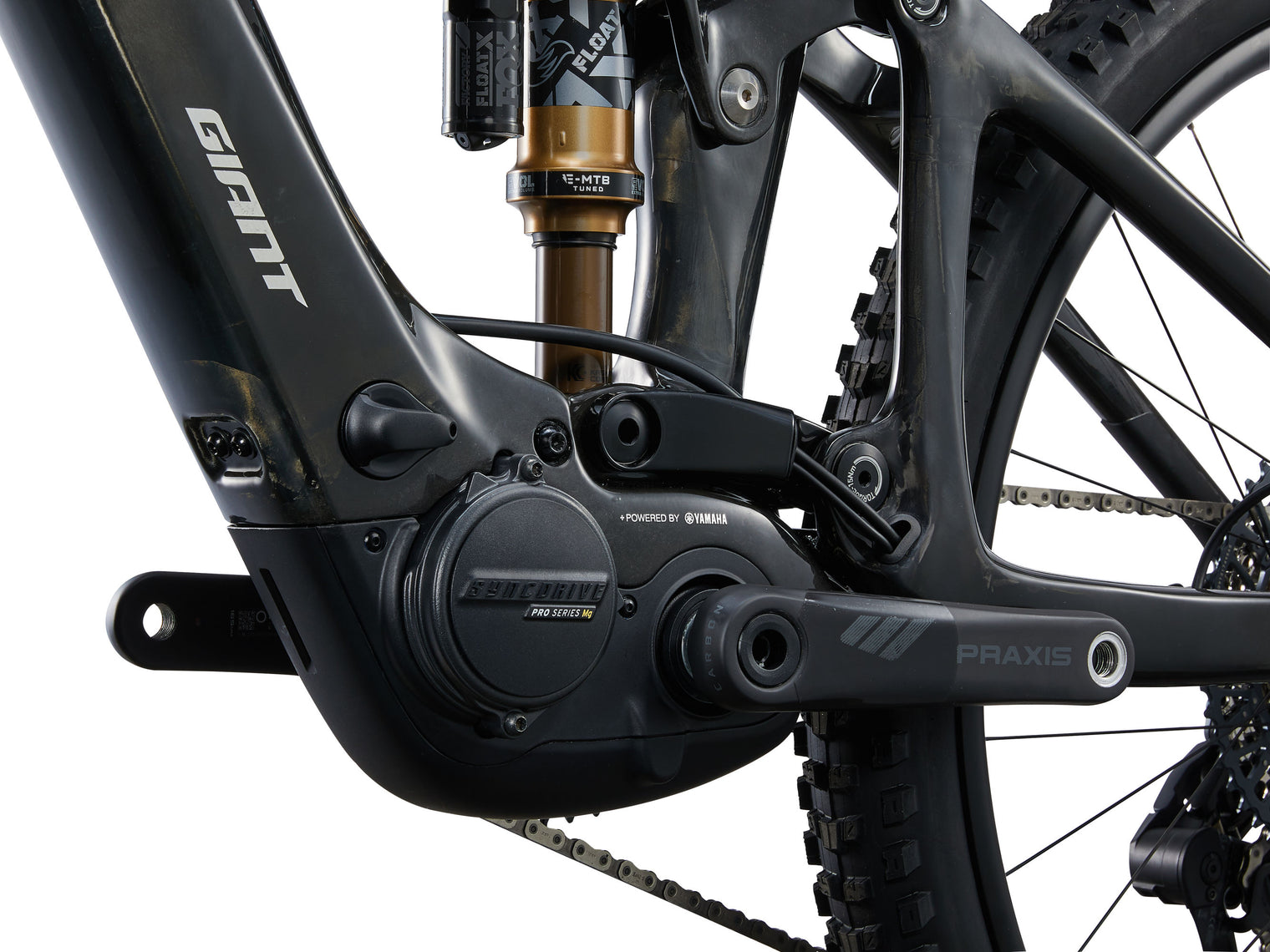

The new SyncDrive Pro Magnesium motor features a lightweight 2.5kg magnesium casing and delivers 85Nm of torque. It’s engineered for quiet performance and instant, responsive power.

  • TECHS & FEATURES

    ×

    ADVANCED COMPOSITE TECHNOLOGY

    Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

    ×

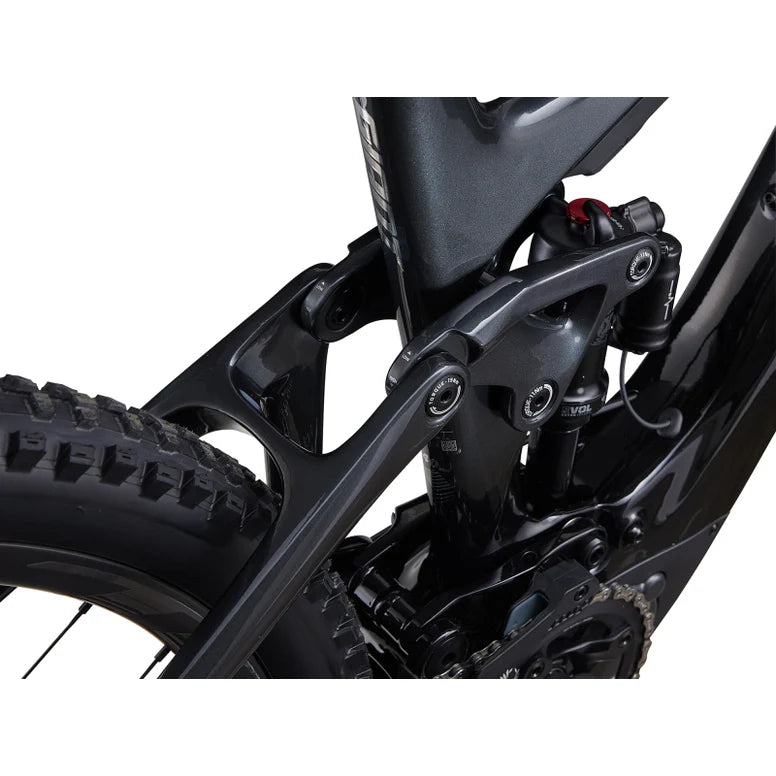

    A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.

    ×

    This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.

    READ MORE

    ×

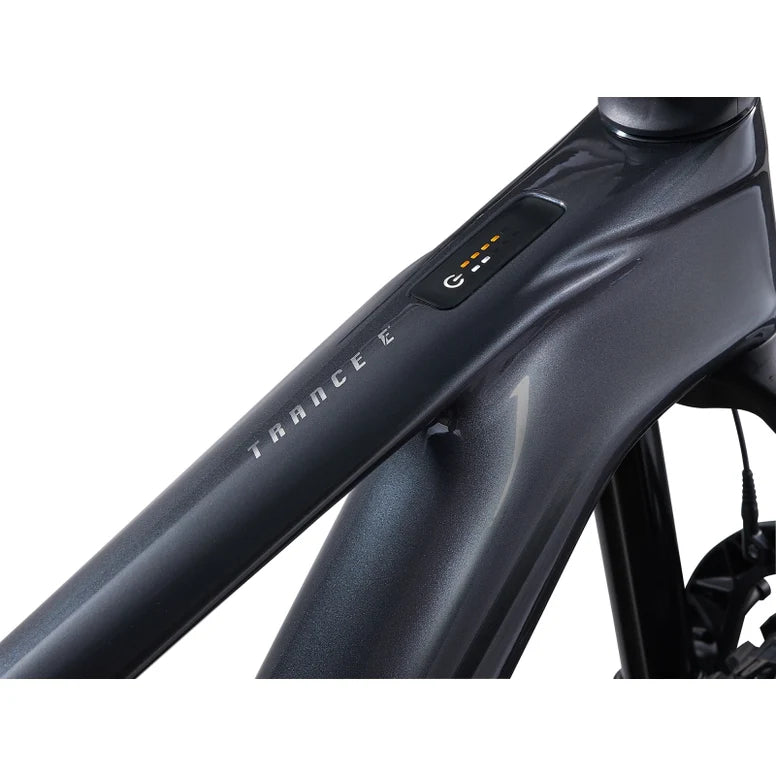

    Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Coloured LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

    READ MORE

    ×

    SYNCDRIVE PRO

    SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact SyncDrive Pro motor is used primarily on Giant’s high-performance models.

    Read more

    ×

    ENERGYPAK

    Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimise the E-bike experience for a specific style of riding.

    READ MORE

    • SIZING GUIDE AND GEOMETRY

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary from country to country.

    S
    M
    L
    XL
    S
    M
    L
    XL
    A SEAT TUBE LENGTH (mm)
    400
    425
    450
    565
    B SEAT TUBE ANGLE
    74.0°
    73.5°
    73.0°
    73.0°
    73.0°
    C TOP TUBE LENGTH (mm)
    530
    545
    560
    575
    590
    D HEAD TUBE LENGTH (mm)
    130
    145
    167
    187
    205
    E HEAD TUBE ANGLE
    71.5°
    72.5°
    72.5°
    72.5°
    72.5°
    F FORK RAKE (mm)
    50
    50
    50
    50
    50
    G TRAIL (mm)
    65.1
    58.6
    58.6
    58.6
    58.6
    H WHEELBASE (mm)
    994.3
    995.2
    1007.5
    1022.7
    1037.9
    I CHAIN STAY LENGTH (mm)
    420
    420
    420
    420
    420
    J BOTTOM BRACKET DROP (mm)
    80
    80
    75
    75
    75
    K STACK (mm)
    542.2
    560.2
    576.1
    595.2
    612.4
    L REACH (mm)
    374.3
    378.9
    383.6
    392.8
    402.6
    M STAND OVER HEIGHT (mm)
    716
    745.5
    779
    799
    824
    O STEM LENGTH (mm)
    90
    100
    110
    110
    120
    P CRANK LENGTH (mm)
    170
    172.5
    172.5
    175
    175
    Q WHEEL SIZE
    700C
    700C
    700C
    700C
    700C
    GRIPS
    Giant Tactal Pro-E, single lock-on
    HANDLEBAR
    Giant Contact SLR Integrated, composite, 35mm
    SADDLE
    Giant Romero
    SEATPOST
    TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm
    STEM
    Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
    BOTTOM BRACKET
    N/A
    BRAKE LEVERS
    SRAM Code R
    BRAKES
    SRAM Code R, 4-piston hydraulic disc
    BRAKES ROTOR
    220mm[F], 200mm[R]
    CASSETTE
    SRAM GX, T-Type 10x52, 12-speed
    CHAIN
    SRAM GX T-Type
    CRANKSET
    Praxis Performance Carbon e-crank arms SRAM Eagle T-Type steel 36T chain ring S:160mm, M: 160mm, L:165mm, XL:165mm
    FRONT DERAILLEUR
    MRP HD2 co-moulded chain guide
    REAR DERAILLEUR
    SRAM GX Eagle T-Type AXS
    SHIFTERS
    SRAM AXS Pod, 1x12
    BATTERY
    EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
    DISPLAY
    RideControl GO, frame integrated LED display ANT+ Wireless display compatible
    DISPLAY/CONTROLLER
    RideControl Ergo 3, grip integrated
    E MOTOR
    Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
    LIGHTS
    Optional:- Giant Recon series e-bike lights available and direct connectable
    FORK

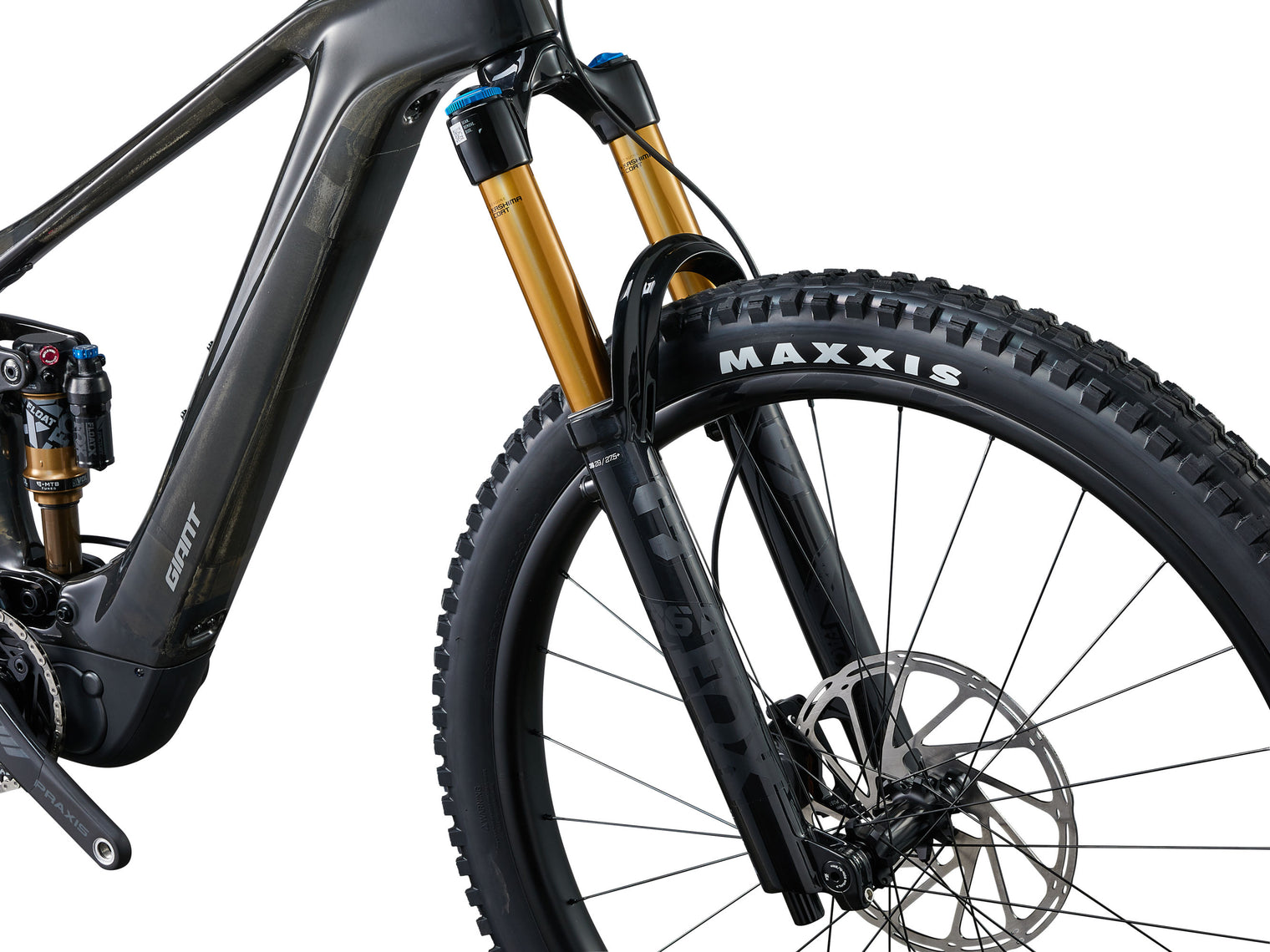

    Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
    FRAME
    Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
    SHOCK
    Fox Float X Factory, EVOL Large Volume sleeve, custom tuned
    EXTRAS
    Tubeless kit (liquid, valves, levers)
    FRONT TYRE
    Maxxis Minion DHF 29X2.50 Foldable, TLR, EXO
    HUBS
    E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
    REAR TYRE
    Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO
    RIMS
    E-TRX Hookless Tubeless ready Carbon 29 [F] / 27.5 [R] 30mm inner width
    SPOKES
    Sapim E-Lite [R] Race [F], e-bike optimised
