• Liv 2025 Avail Advanced 2

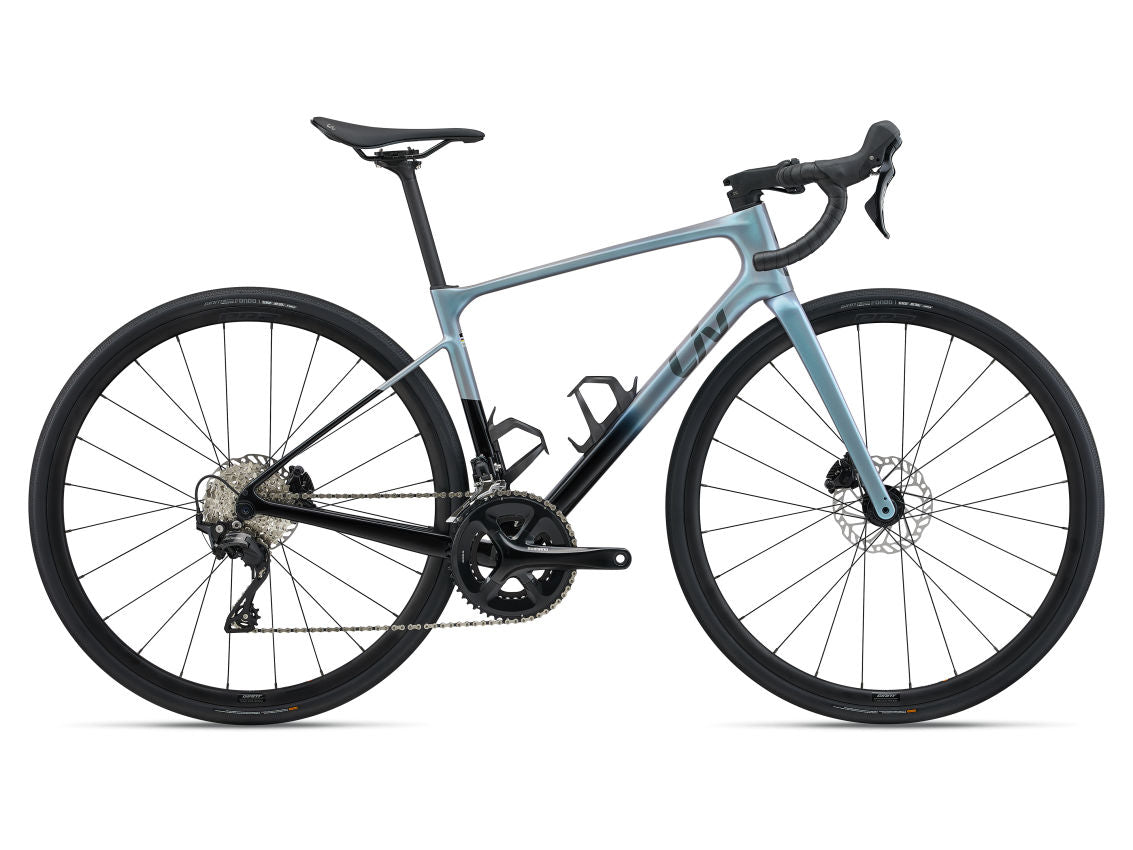

Liv 2025 Avail Advanced 2

$3,229.00 $3,799.00
Colour
Size
Loading locations...

THE AVAIL ADVANCED IS THAT RIDING BUDDY WHO’S UP FOR ANY ADVENTURE ON THE ROAD—FROM SOLO BACKROAD EXPLORATIONS TO AFTER-WORK SHOP RIDES TO ALL-DAY EPIC RIDES WITH FRIENDS. DESIGNED FOR PERFORMANCE AND CAPABLE ON ANY SURFACE, THIS ROAD WARRIOR IS READY TO TAKE YOU AS FAR AS YOU CAN GO, WHICH IS ALWAYS FURTHER THAN YOU THINK.

KEY PERFORMANCE FACTORS

Lightweight Advantage

The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced-grade composite fork, which boosts your climbing abilities and makes you virtually untouchable over long distances.

Superior Compliance

Ride longer without riding harder, with the reengineered frame and fork, optimised for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.

Maximum Control

The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those sunrise-to-sunset rides. Wide, alloy rims are designed for high-volume tubeless tyres (up to 38mm), providing predictable handling and stability from asphalt to pavé.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

×

COMPACT ROAD DESIGN

When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

×

D-FUSE SEATPOST

The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

×

OVERDRIVE

Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
L
XS
S
M
L
ASEAT TUBE LENGTH (mm)
405
435
465
495
BSEAT TUBE ANGLE
74.5°
74.5°
74.0°
74.0°
CTOP TUBE LENGTH (mm)
520
525
535
555
DHEAD TUBE LENGTH (mm)
125
145
165
185
EHEAD TUBE ANGLE
71.0°
71.0°
71.0°
72.0°
FFORK RAKE (mm)
50
50
50
50
GTRAIL (mm)
68
68
68
61
HWHEELBASE (mm)
995
1002
1007
1013
ICHAIN STAY LENGTH (mm)
420
420
420
420
JBOTTOM BRACKET DROP (mm)
75
73
73
73
KSTACK (mm)
528
547
568
589
K2STACK TO HANDLEBAR (mm)
606
626
647
668
LREACH (mm)
373
373
373
381
L2REACH TO HANDLEBAR (mm)
420
429
439
449
MSTAND OVER HEIGHT (mm)
712
737
762
789
NSTEM LENGTH (mm)
80
80
90
90
OCRANK LENGTH (mm)
165
170
170
172.5
PWHEEL SIZE
700C
700C
700C
700C
SIZES
XS, S, M, L
COLOURS
Prismatic Haze
FRAME
Advanced-grade composite, 12x142mm thru-axle, disc
FORK
Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
SHOCK
N/A
HANDLEBAR
Liv Contact SL D-Fuse, 31.8mm XS:38/40cm, S:40/42cm, M:40/42cm, L:42/44cm
GRIPS
Stratus Elite 2.0
STEM
Giant Contact Aerolight XS:70mm, S:80mm, M:90mm, L:90mm
SEATPOST
Giant D-Fuse, composite, -5/+15mm offset
SADDLE
Liv Approach
PEDALS
N/A
SHIFTERS
Shimano 105
FRONT DERAILLEUR
Shimano 105
REAR DERAILLEUR
Shimano 105
BRAKES
Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
BRAKE LEVERS
Shimano 105
CASSETTE
Shimano 105, 12-speed, 11x36
CHAIN
KMC X12
CRANKSET
Shimano FC-RS520, 34/50 XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
BOTTOM BRACKET
Shimano, press fit
RIMS
Giant P-R2 Disc wheelset, alloy
HUBS
Giant alloy, 12mm thru-axle
SPOKES
Sapim
TYRES
Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
EXTRAS
Water bottle cages, tubeless prepared, 38mm max tyre size
MAX TYRE CLEARANCE
38mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
