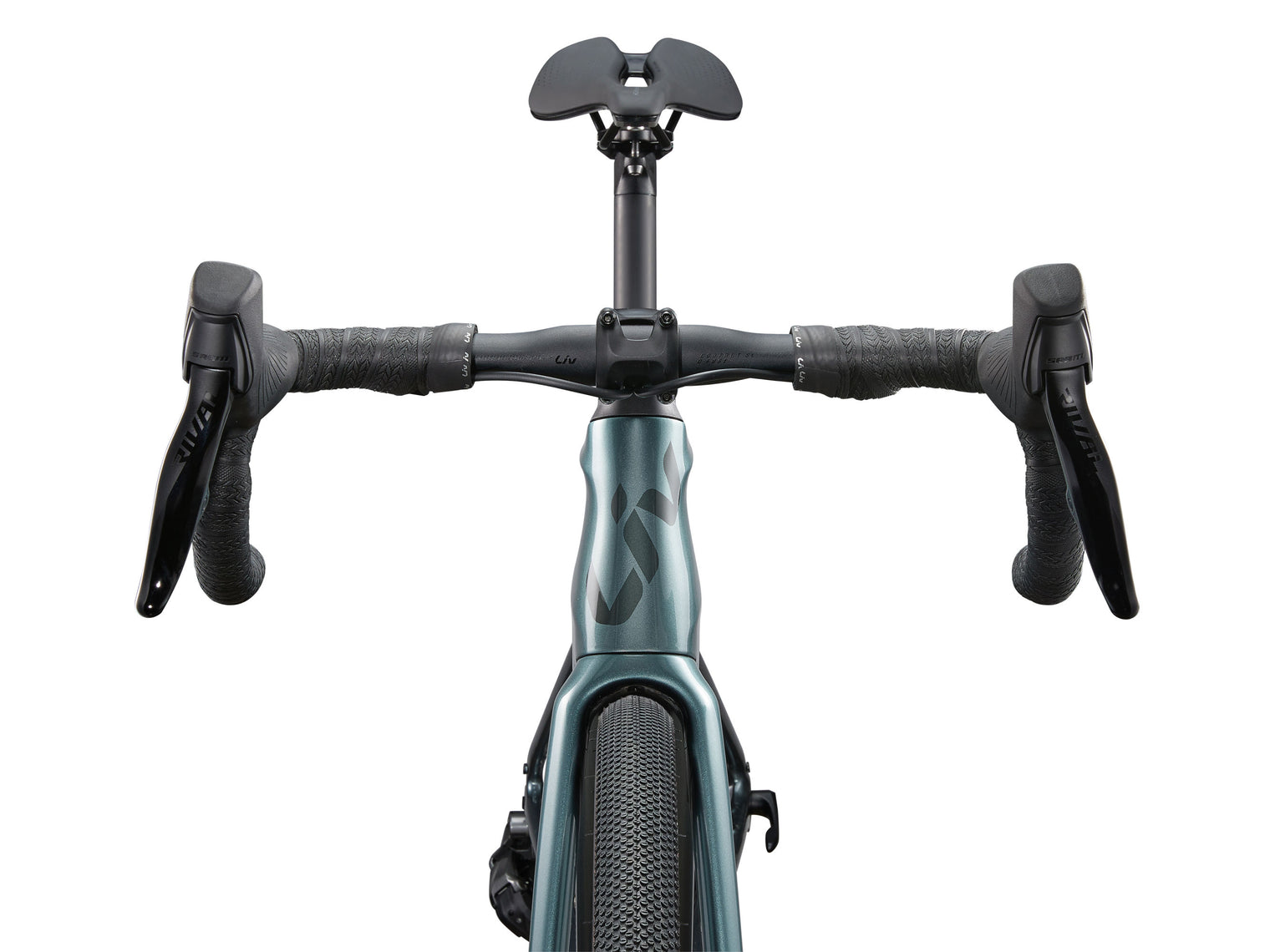

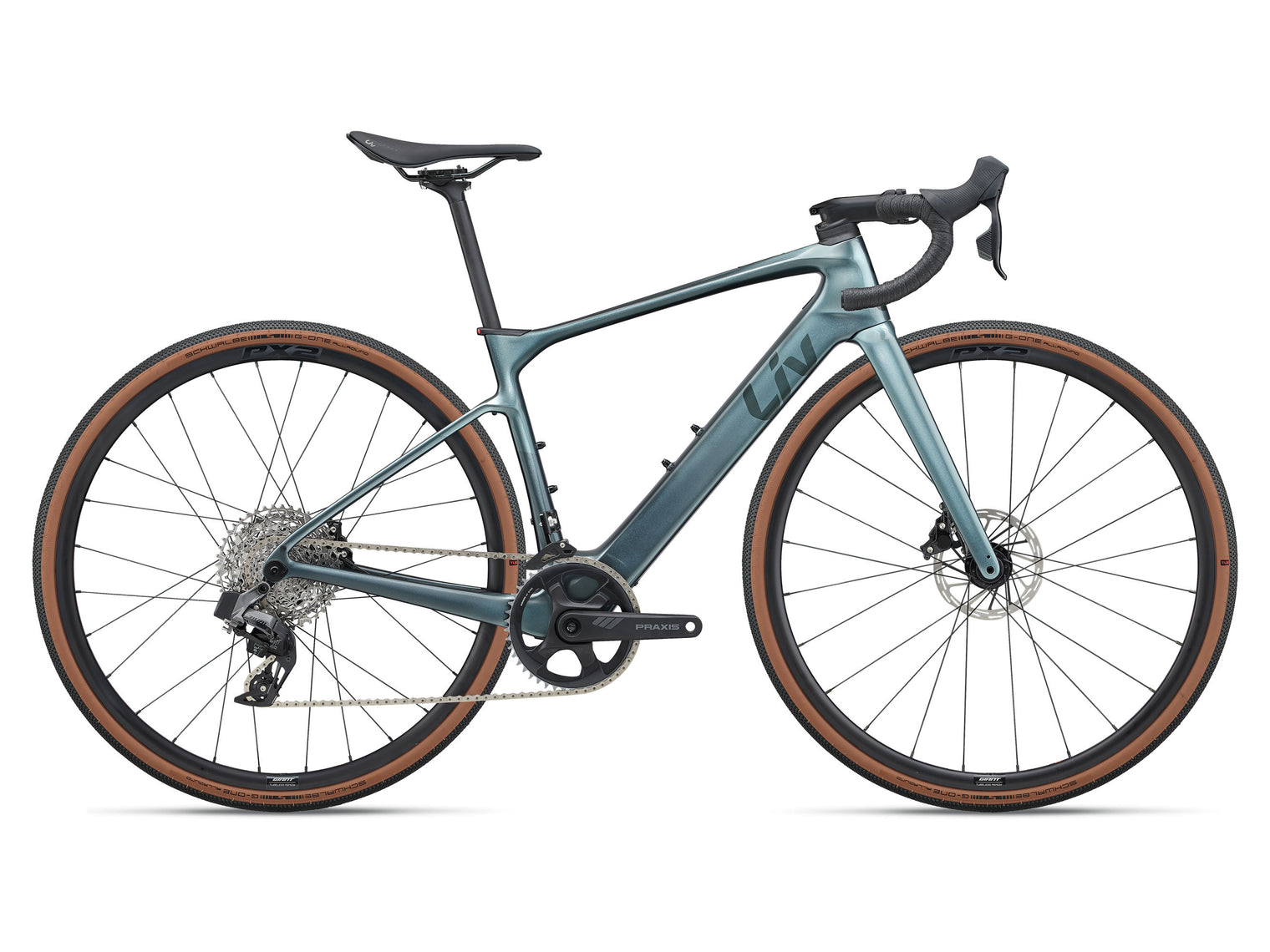

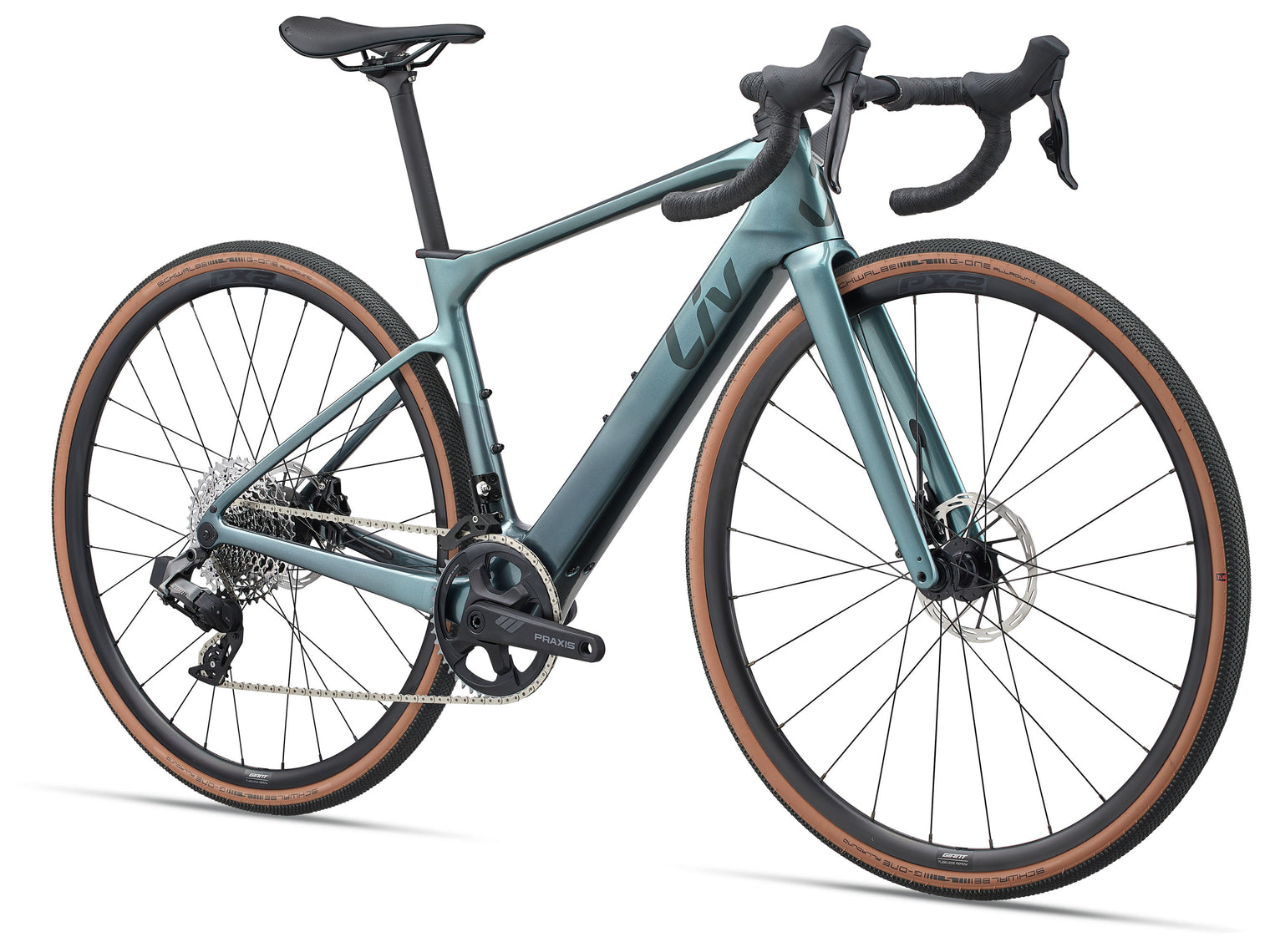

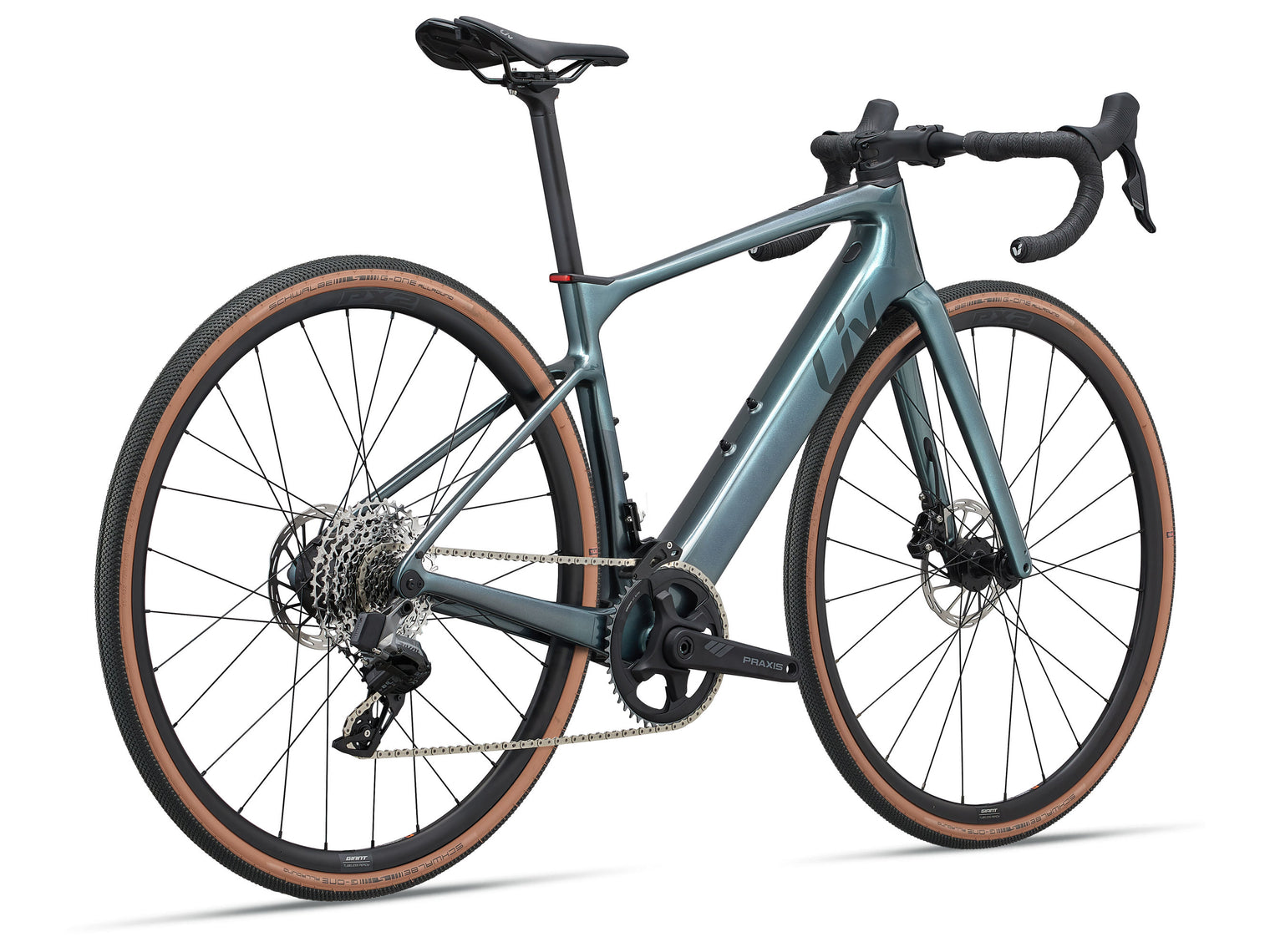

Liv 2025 Avail Advanced E+ EL AR

$10,499.00
Colour
Size
Loading locations...

THE DESIGN OF THE AVAIL ADVANCED E+ ELITE AR STEALTHILY CONCEALS ITS POTENT ELECTRIC CAPABILITIES. A COMPACT REAR HUB MOTOR, LIGHTWEIGHT CARBON FRAME AND FORK, HIDDEN CONTROLS, AND INTERNAL CABLE ROUTING IS THE EPITOME OF A BEAUTIFUL, HIGH-END ROAD BIKE THAT LOOKS FAST—EVEN WHEN IT’S NOT MOVING.

KEY PERFORMANCE FACTORS

A Natural Ride

It looks like an analogue road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.

Maximum Miles. Minimum Fatigue.

The Avail Advanced E+ Elite AR provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender*. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience. *sold separately

Delivering Power & Speed

The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30Nm which is comparable to 75Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 25km/h in Australia.

RANGE

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

ENERGYPAK 400 / SYNCDRIVE MOVE

Range Extreme: 40 km Good: 70 km Ideal: 100 km

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

×

ENERGYPAK

EnergyPak side release design makes it easy to handle and remove the battery from the E-bike, plus the battery can be charged on or off the bike for convenience.

READ MORE

×

RIDECONTROL GO

Available on premium Liv E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Colored LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

×

SYNCDRIVE MOVE

The SyncDrive Move literally moves the motor to the rear hub of the bicycle. Found in our youth bike range, this compact motor delivers 30Nm of torque for a smooth, confidence-inspiring ride. It features 3 support modes to help young riders climb with less effort. For kids’ safety the power mode will stay on for only 10 seconds, serving as a fun boost. It also features Smart Assist technology which uses five sensors to determine a smooth and natural pedaling support.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
L
XS
S
M
L
ASEAT TUBE LENGTH (mm)
400
435
470
505
BSEAT TUBE ANGLE
74.5°
74.5°
74.0°
73.5°
CTOP TUBE LENGTH (mm)
515
525
540
555
DHEAD TUBE LENGTH (mm)
120
135
155
175
EHEAD TUBE ANGLE
70.5°
71.0°
72.0°
72.0°
FFORK RAKE (mm)
50
50
50
50
GTRAIL (mm)
72.0
68.3
61.8
61.8
HWHEELBASE (mm)
993
999
1003
1013.2
ICHAIN STAY LENGTH (mm)
420
420
420
420
JBOTTOM BRACKET DROP (mm)
80
80
80
75
KSTACK (mm)
528
545
562
582.4
LREACH (mm)
368
373.6
378.4
382.4
MSTAND OVER HEIGHT (mm)
677
708
743
782.4
NSTEM LENGTH (mm)
80
90
100
110
OCRANK LENGTH (mm)
165
170
170
172.5
PWHEEL SIZE
700C
700C
700C
700C
FRAME
Advanced-Grade Composite, disc, 12x145mm
FORK
Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm, disc
MOTOR
Giant SyncDrive Move Plus, rear hub, 30Nm
BATTERY
EnergyPak Smart 400Wh; EnergyPak Plus range extender compatible
CHARGER
EnergyPak 4A smart charger compact
DISPLAY
RideControl GO, frame-integrated LED; ANT+ wireless display compatible
CONTROLLER
Mode support switch from SRAM Blips
CONNECTIVITY
Giant RideControl App enabled; ANT+ e-bike profile
BAR TAPE
Stratus Lite 3.0
HANDLEBAR
Giant Contact SL D-Fuse XS:38/40cm S:40/42cm, M:40/42cm, L:42/44cm
PEDALS
N/A
SADDLE
Liv Approach
SEATPOST
Giant D-Fuse, composite, -5/+15mm offset
STEM
Giant Contact SL AeroLight XS: 80mm, S:90mm, M:100mm, L:110mm
BOTTOM BRACKET
Giant E+ System BBSS
BRAKE LEVERS
SRAM Rival AXS hydraulic
BRAKES
SRAM Rival AXS hydraulic
BRAKE ROTORS
SRAM PaceLine rotors [F]160mm, [R]160mm
CASSETTE
SRAM Force XPLR XG-1251, 12-speed, 10-44
CHAIN
SRAM Rival D1
CRANKSET
SRAM X-SYNC 46T BCD107 chainring, Praxis E Crank Alloy ISIS; XS:165mm, S:165mm, M:170mm, L:172.5mm
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
SRAM Rival XPLR AXS
SHIFTERS
SRAM Rival AXS
RIMS
Giant P-X2 Alloy Disc Wheel System, tubeless ready
HUBS
[F] Giant Alloy, 24H; [R] Giant SyncDrive Move Plus, 28H
SPOKES
Sapim spoke E-Light [R] / Race [F], e-bike optimised
TYRES
Schwalbe G-One Allround Performance, RaceGuard, brown side-wall, tubeless, 700x35C
EXTRAS
Seatpost clamp integrated tail light
