• Liv Intrigue LT Advanced 1 2024

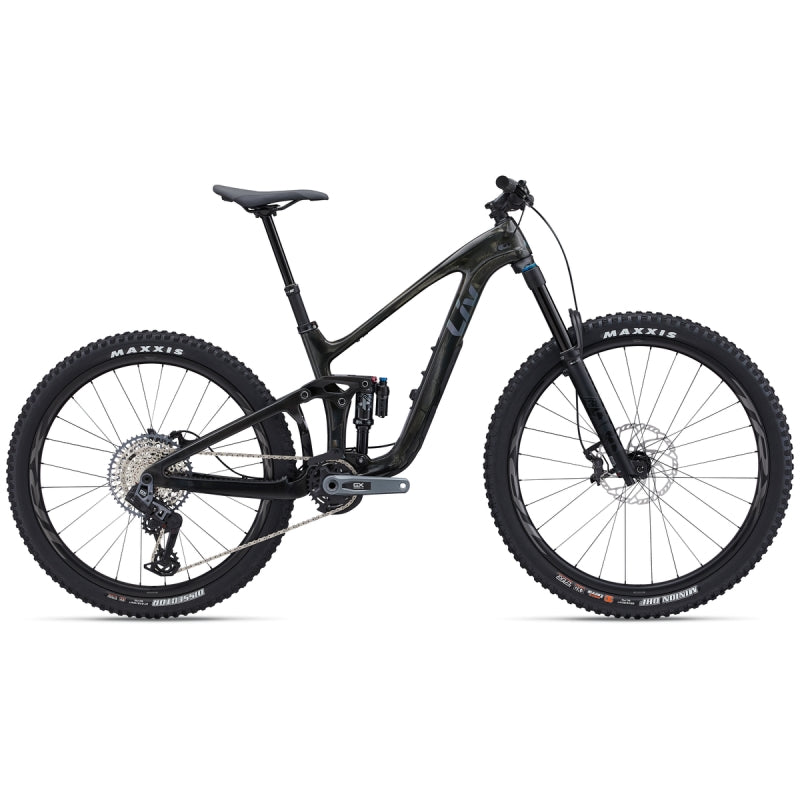

Liv Intrigue LT Advanced 1 2024

$8,999.00
colour
Size
Loading locations...

Whether you're looking ahead to park days, backcountry singletrack adventures, or your next enduro race - the all-new Intrigue LT Advanced equips you with the versatility of adjustable frame geometry, the exceptional efficiency of Advanced-grade composite and the ultra-smooth performance of Maestro suspension so you can do what you do best - SHRED!

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
L
XS
LOW | MID | HIGH
S
LOW | MID | HIGH
M
LOW | MID | HIGH
L
LOW | MID | HIGH
A SEAT TUBE LENGTH (mm)
370
390
420
450
A1 SEAT POST INSERTION DEPTH (mm)
230
250
280
310
B SEAT TUBE ANGLE
76.2° | 76.6° | 77.0°
76.2° | 76.6° | 77.0°
77.3° | 77.6° | 78.0°
77.3° | 77.6° | 78.0°
C TOP TUBE LENGTH (mm)
552 | 552 | 550
567 | 566 | 565
581 | 580 | 579
603 | 602 | 601
D HEAD TUBE LENGTH (mm)
95
95
100
110
E HEAD TUBE ANGLE
64.7° | 65.1° | 65.5°
64.6° | 65.1° | 65.5°
64.8° | 65.1° | 65.5°
64.8° | 65.1° | 65.5°
F FORK RAKE (mm)
44
44
44
44
G TRAIL (mm)
131 | 127.9 | 124.8
131.6 | 127.8 | 124.8
130.6 | 127.7 | 124.8
130.5 | 127.7 | 124.8
H WHEELBASE (mm)
1166 | 1166 | 1164
1183 | 1180 | 1179
1208 | 1207 | 1207
1232 | 1231 | 1231
I CHAIN STAY LENGTH (mm)
443 | 442 | 440
443 | 442 | 440
443 | 442 | 440
443 | 442 | 440
J BOTTOM BRACKET DROP (mm)
25 | 20 | 15
24 | 20 | 15
35 | 30 | 25
35 | 30 | 25
K STACK (mm)
629 | 627 | 624
628 | 627 | 624
628 | 625 | 622
637 | 634 | 631
L REACH (mm)
398 | 402 | 406
413 | 417 | 421
439 | 442 | 447
459 | 462 | 467
M STAND OVER HEIGHT (mm)
613 | 613 | 613
674 | 674 | 674
712 | 712 | 712
750 | 750 | 750
O STEM LENGTH (mm)
40
50
50
50
P CRANK LENGTH (mm)
165
170
170
170
Q WHEEL SIZE
F 29" | R 27.5"
F 29" | R 27.5"
29"
29"
Sizes
XS: (F 29"/R27.5"), S: (F 29"/R27.5"), M, L: (F/R 29"), MX compatible
Colours
Raw Carbon
Frame
Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip 3 position, integrated downtube storage, 55mm Chainline
Fork
Fox 36 Performance Elite, 160mm, Grip 2 damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv
Shock
Fox Float X Performance Elite 185x55, custom tuned for Liv
Handlebar
Giant Contact SLR TR35, composite, 35mm
Grips
Liv Tactal single lock-on
Stem
Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm
Seatpost
TranzX dropper, remote XS: 125mm travel / 30.9 x 390mm S: 125mm travel / 30.9 x 390mm M: 150mm travel / 30.9 x 440mm L: 150mm travel / 30.9 x 440mm
Saddle
Liv Sylvia
Pedals
N/A
Shifters
SRAM AXS POD Controller, 1x12
Front Derailleur
N/A
Rear Derailleur
SRAM GX T-Type
Brakes
Shimano XTR BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers
Shimano XTR BL-M8100
Cassette
SRAM GX T-Type, 10x52
Chain
SRAM GX T-Type FlatTop
Crankset
SRAM GX T-Type, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm
Bottom Bracket
SRAM DUB, press fit
Rims
Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
Hubs
[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Spokes
Sapim
Tyres
[F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R, size M and L] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, or [R, size XS and S] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless
Extras
MRP AMG V2 chainguide, 3M tailgate protector, tubeless prepared, max tyre size 2.5", max chainring size 32t
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
KEY PERFORMANCE FACTORS
Performance Long Travel Trail

Lightweight Advanced-Grade Composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centred and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.

Adjustable Frame Geometry

All-new flip chip – Maestro 3 offers more adjustability allowing you to easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only

Best of Both Wheels

Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customise your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
