Liv Avail AR 2 2024

$1,649.00 $2,199.00
Colour
Size
Loading locations...
WHETHER IT'S NAVIGATING ASPHALT OR VENTURING THROUGH AN UNPAVED SHORT CUT, THE AVAIL AR IS SMOOTH ON FLATS, SPRY ON CLIMBS AND CONFIDENT ON DESCENTS.

KEY PERFORMANCE FACTORS

Comfort
The lightweight ALUXX frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control
The 32c tires provide stability both on-road and off-road, and select models offer compatibility with tubeless tyres up to 38c. With the OverDrive steerer and powerful disc brakes, you'll enjoy precise handling and reliable stopping power for confident riding.

Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.

TECHS & FEATURES

×

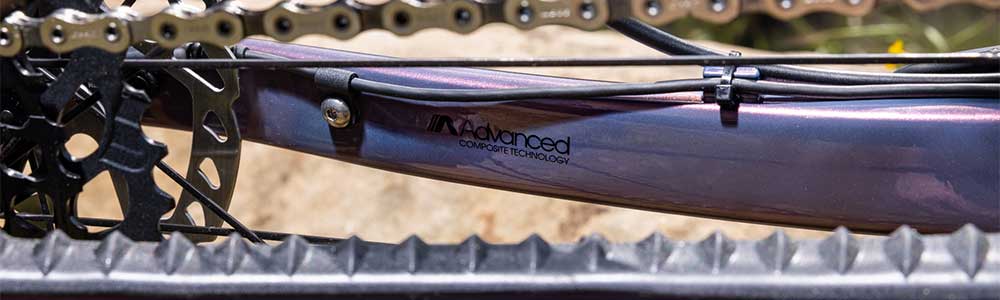

ADVANCED COMPOSITE TECHNOLOGY

Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

×

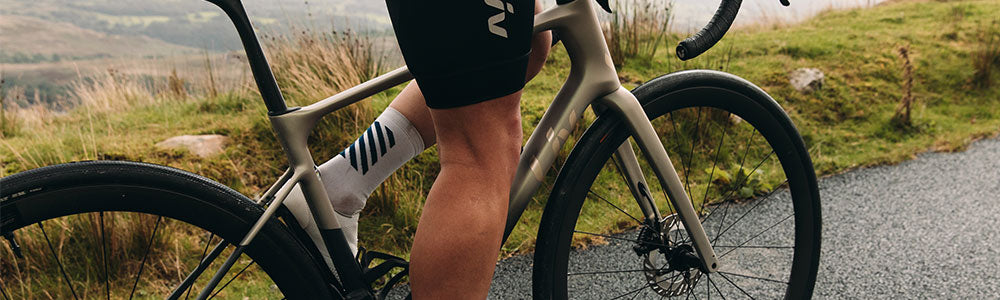

COMPACT ROAD DESIGN

When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

×

D-FUSE SEATPOST

The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

×

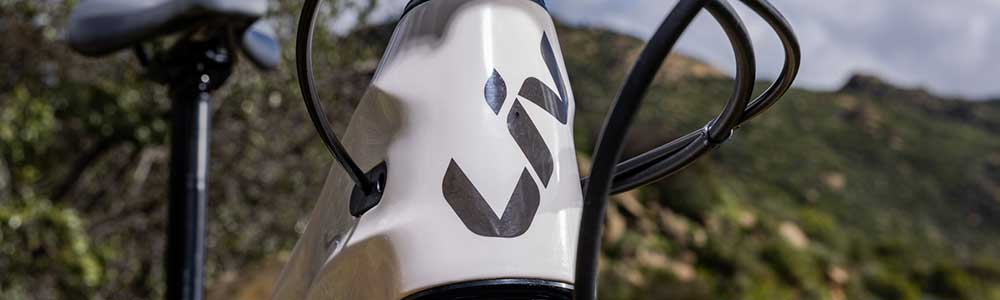

OVERDRIVE

Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

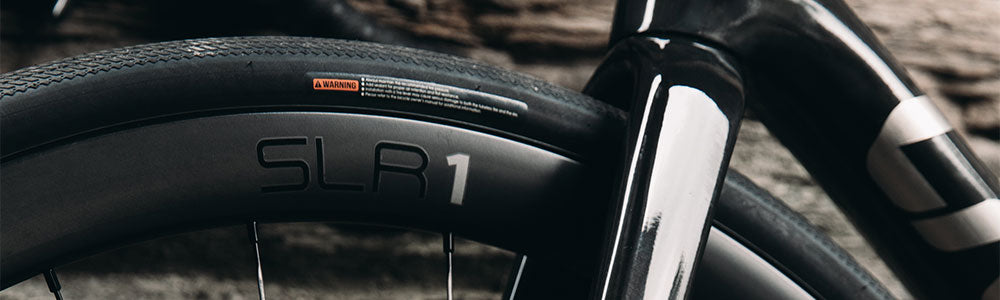

TUBELESS SYSTEM

Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      153 cm5’0” to 162 cm5’4”
  • S
      158 cm5’2” to 169 cm5’7”
  • M
      165 cm5’5” to 174 cm5’9”
  • L
      171 cm5’7” to 182 cm6’0”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSML
ASeat Tube Length (mm) (inch)41016.144517.548018.951520.3
BSeat Tube Angle (degrees)74.5°74.5°74.0°74.0°
CTop Tube Length (mm) (inch)51520.352520.754021.355521.9
DHead Tube Length (mm) (inch)1184.61385.41586.21787
EHead Tube Angle (degrees)70.5°71.5°72.0°72.0°
FFork Rake (mm) (inch)532.1532.1532.1532.1
GTrail (mm) (inch)69.52.762.92.459.62.359.62.3
HWheelbase (mm) (inch)99939.3100139.4100639.6102240.2
IChain Stay Length (mm) (inch)42216.642216.642216.642216.6
JBottom Bracket Drop (mm) (inch)803.1803.1803.1803.1
KStack (mm) (inch)53821.256122.158222.960123.7
LReach (mm) (inch)36614.436914.537314.738315.1
MStand Over Height (mm) (inch)68126.870927.97362976630.2
NHandlebar Width (mm) (inch)3801540015.740015.742016.5
OStem Length (mm) (inch)702.8803.1903.5903.5
PCrank Length (mm) (inch)1656.51706.71706.7172.56.8
QWheel Size 700C700C700C700C
