Giant Revolt Advanced 2

$3,499.00
Colour
Size
Loading locations...

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Key Performance Factors

Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seat stays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seat post work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seat post for maximum compliance.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

D-FUSE SEATPOST

The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

×

OVERDRIVE

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
A SEAT TUBE LENGTH (mm)
430
450
470
490
510
530
B SEAT TUBE ANGLE
74.0°
73.5°
73.5°
73.0°
73.0°
73.0°
C TOP TUBE LENGTH (mm)
540
550
560
575
585
600
D HEAD TUBE LENGTH (mm)
125
135
150
165
180
195
E HEAD TUBE ANGLE
70.0°
71.0°
71.5°
72.0°
72.0°
72.0°
F FORK RAKE (mm)
50
50
50
50
50
50
G TRAIL (mm)
78
72
68
65
65
65
H WHEELBASE (mm)
1024
1020
1026
1031
1041
1056
I CHAIN STAY LENGTH (mm)
425
425
425
425
425
425
J BOTTOM BRACKET DROP (mm)
80
80
80
80
80
80
K STACK (mm)
556
570
586
602
616
630
L REACH (mm)
381
381
387
391
397
407
M STAND OVER HEIGHT (mm)
724
740
757
774
791
807
O STEM LENGTH (mm)
50
60
70
80
80
90
P CRANK LENGTH (mm)
170
170
172.5
172.5
175
175
Q WHEEL SIZE
700C
700C
700C
700C
700C
700C

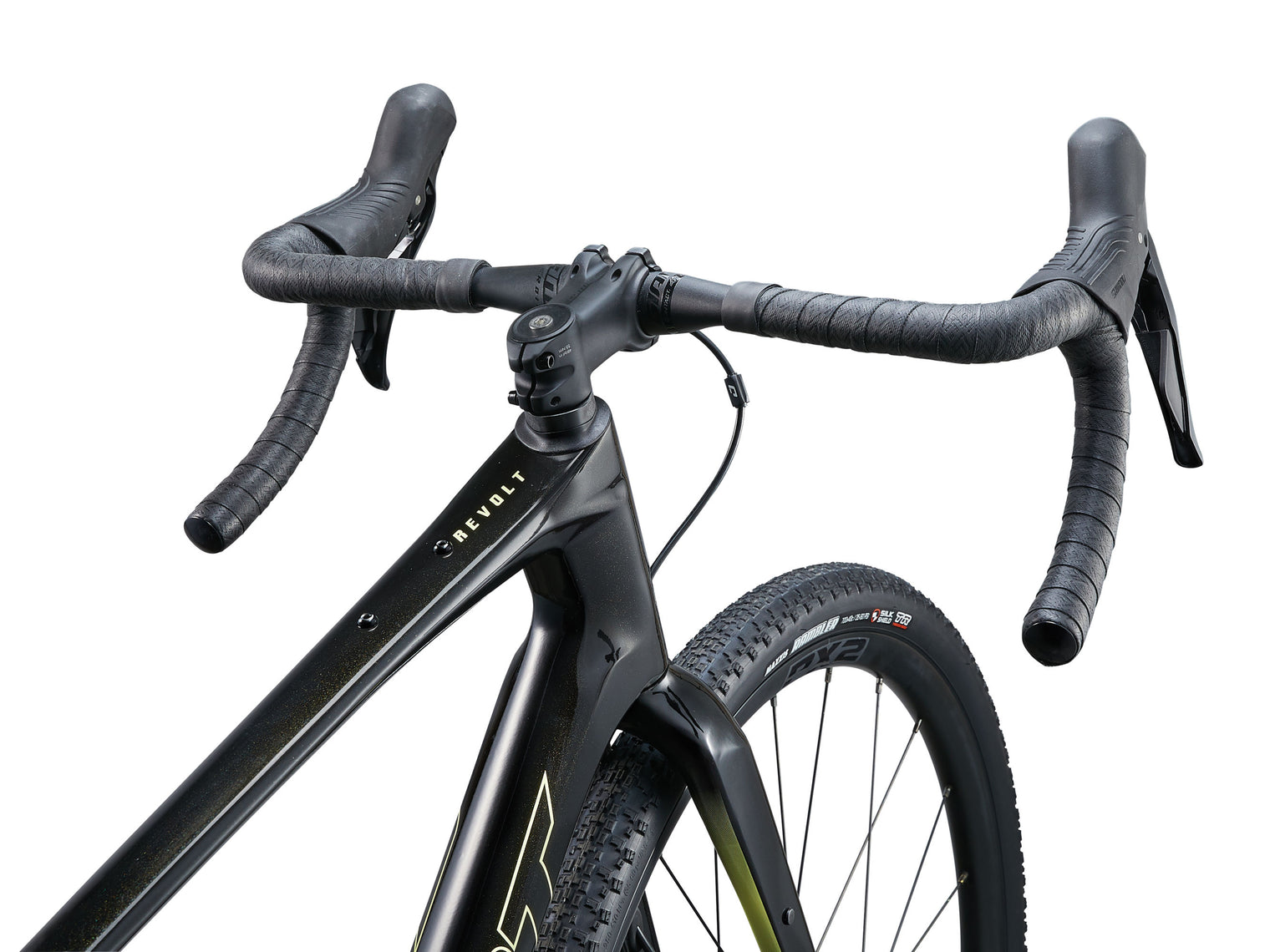

HANDLEBAR
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
PEDALS
N/A
SADDLE
Giant Approach
SEATPOST
Giant D-Fuse, composite, 14mm offset
STEM
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
BOTTOM BRACKET
FSA Mega EXA
BRAKE LEVERS
Shimano GRX RX-610 hydraulic
BRAKES
Shimano GRX RX-410 hydraulic
BRAKES ROTOR
Giant MPH rotors [F]160mm, [R]160mm
CASSETTE
Shimano CS-HG710, 12-speed, 11x36
CHAIN
KMC X12L-1

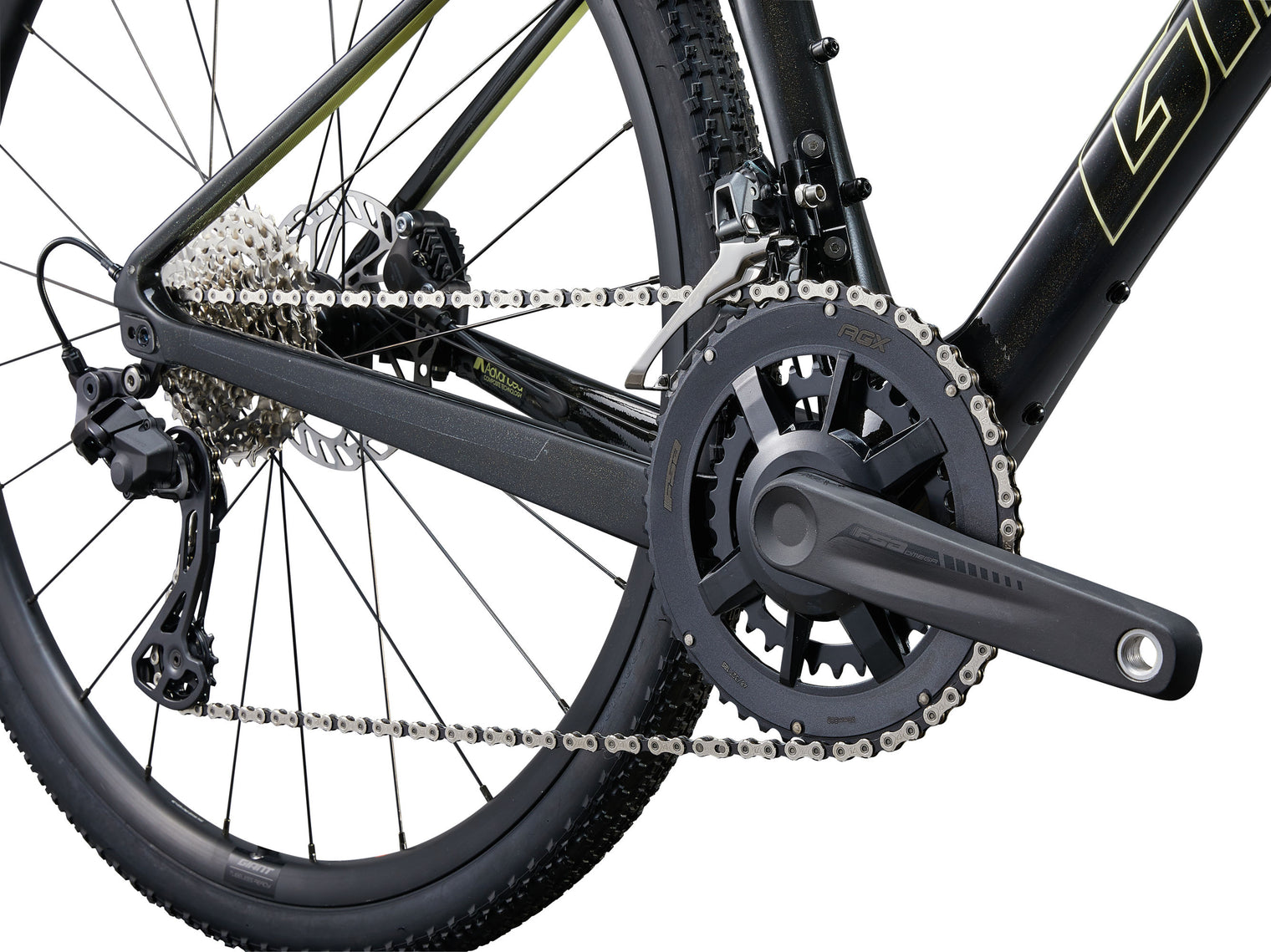

CRANKSET
FSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
FRONT DERAILLEUR
Shimano GRX RX-820
REAR DERAILLEUR
Shimano GRX RX-820
SHIFTERS
Shimano GRX RX-610, 2x12

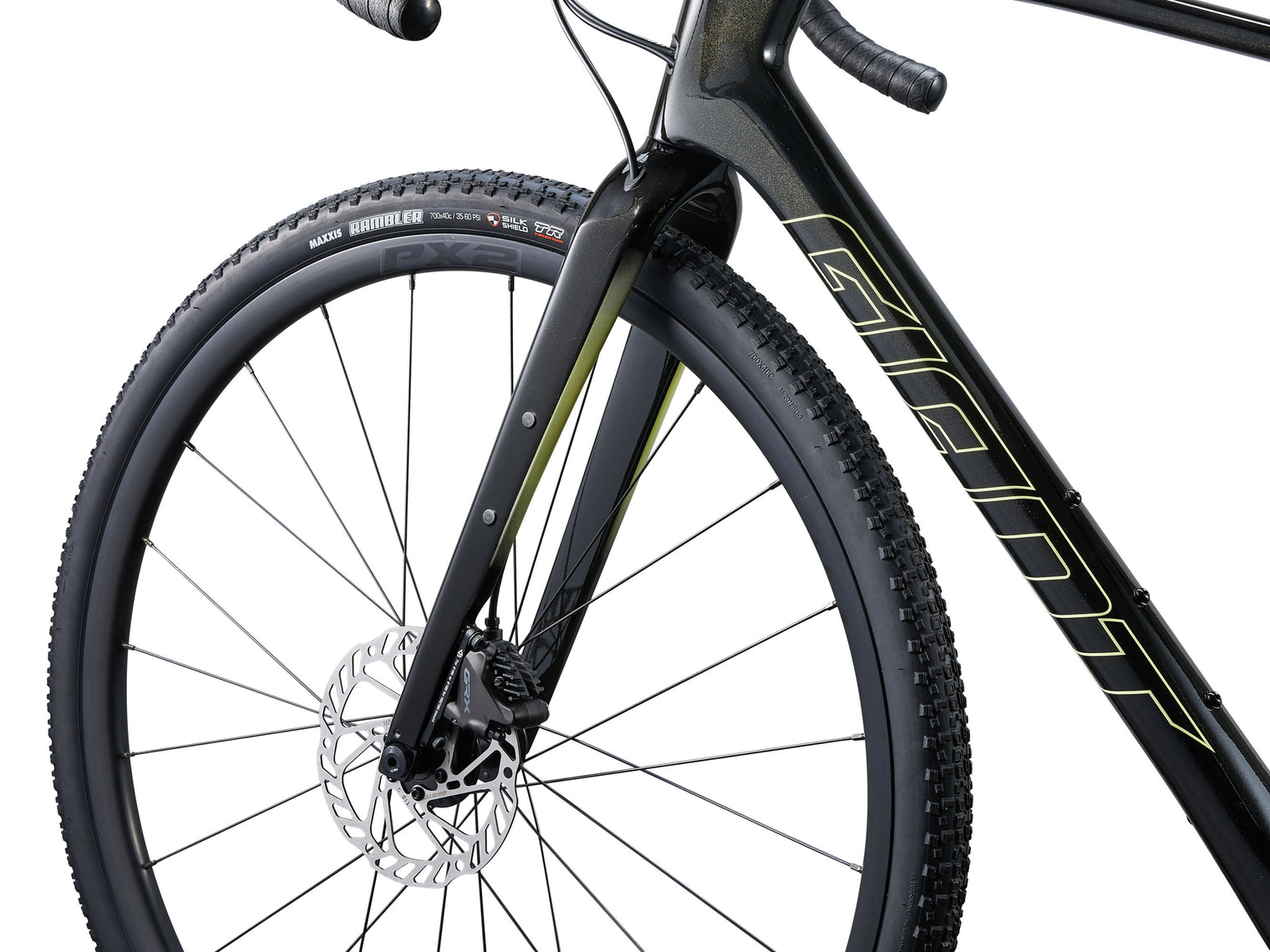

FORK
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
FRAME
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
EXTRAS
Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
HUBS
Giant alloy, 12mm thru-axle
RIMS
Giant P-X2 Disc wheelset, alloy
SPOKES
Sapim
TYRES
Maxxis Rambler, 700x40c, tubeless
