• Giant Talon 29 1 2024

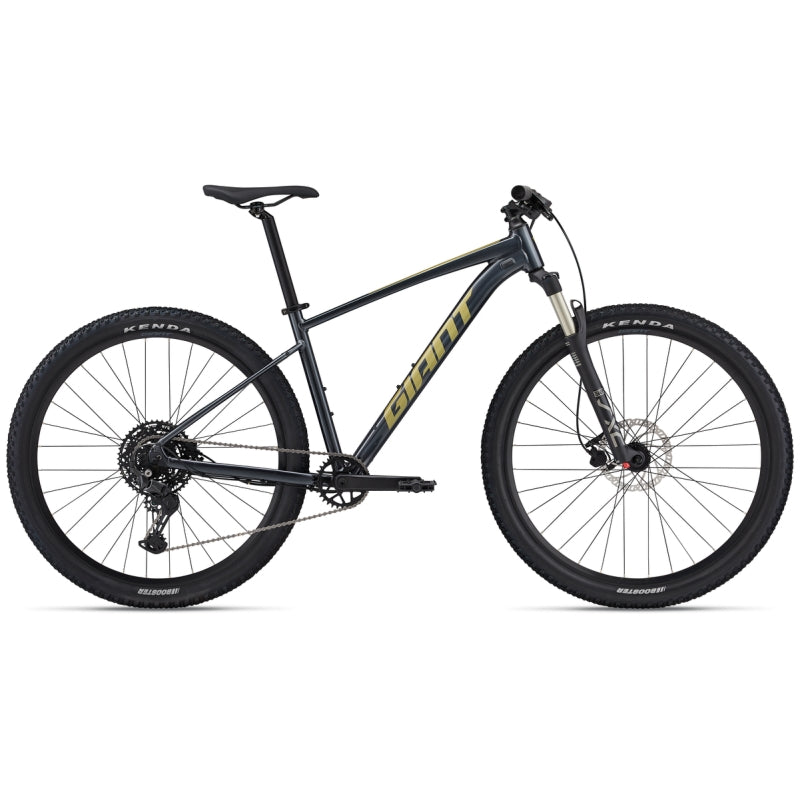

Giant Talon 29 1 2024

$1,010.01 $1,299.00
Colour
Size
Loading locations...

GET A FEEL FOR THE TRAIL WITH CONFIDENCE AND CONTROL.

The Giant Talon 29 1 2024 is built for aspiring riders looking to elevate their XC experience. With a lightweight aluminium frame, confident 29-inch wheels and a responsive suspension fork, it’s the ideal platform for progression on dirt and singletrack.

Key Performance Factors

Proven Alloy Performance

The ALUXX aluminium frame is handcrafted for optimal strength-to-weight balance, delivering efficient climbing and agile handling on XC terrain.

Smooth Front Suspension

A 100mm suspension fork with remote lockout helps absorb bumps and maintain momentum across varied trail conditions.

Stable 29er Confidence

Larger 29-inch wheels roll over roots and rocks with ease, giving you better balance and speed control on technical terrain.

TECHS & FEATURES

×

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
M
L
XL
A SEAT TUBE LENGTH (mm)
390
440
490
535
A1 SEAT POST INSERTION DEPTH (mm)
245
200
250
300
B SEAT TUBE ANGLE
74.0°
74.0°
74.0°
74.0°
C TOP TUBE LENGTH (mm)
577
599
620
639
D HEAD TUBE LENGTH (mm)
95
105
125
140
E HEAD TUBE ANGLE
68.5°
68.5°
68.5°
68.5°
F FORK RAKE (mm)
51
51
51
51
G TRAIL (mm)
94
94
94
94
H WHEELBASE (mm)
1126
1150
1172
1192
I CHAIN STAY LENGTH (mm)
455
455
455
455
J BOTTOM BRACKET DROP (mm)
55
55
55
55
K STACK (mm)
602
611
630
644
L REACH (mm)
404
424
439
454
M STAND OVER HEIGHT (mm)
732
766
805
839
O STEM LENGTH (mm)
50
60
70
80
P CRANK LENGTH (mm)
170
175
175
175
Q WHEEL SIZE
29"
29"
29"
29"
HANDLEBAR
Giant Connect Trail, 31.8mm
PEDALS
MTB caged
SADDLE
Giant
SEATPOST
Giant Sport, 30.9mm
STEM
Giant Sport, 7-degree S: 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
BOTTOM BRACKET
Cartridge
BRAKE LEVERS
Tektro HDC M275
BRAKES
Tektro HDC M275, hydraulic
BRAKES ROTOR
Tektro rotors [F]180mm, [R]160mm
CASSETTE
Shimano CUES, CS-LG300, 11x48
CHAIN
Shimano CUES LG500
CRANKSET
ProWheel Charm, 32t (29) S:170mm (29) M: 175mm (29) L: 175mm (29) XL: 175mm (29)
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano CUES, U6000, Shadow+
SHIFTERS
Shimano CUES SL-6000, 1x10
FORK
SXC32-2 RL, air spring, QR, alloy steerer S: 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)
FRAME
ALUXX-grade aluminium, disc
EXTRAS
2.4 inch max tyre size, 32t max chainring size
HUBS
Alloy, sealed
RIMS
Giant GX03V 29 inch alloy, double wall
SPOKES
Stainless, 14g
TYRES
Kenda Booster 29x2.4, wire bead
