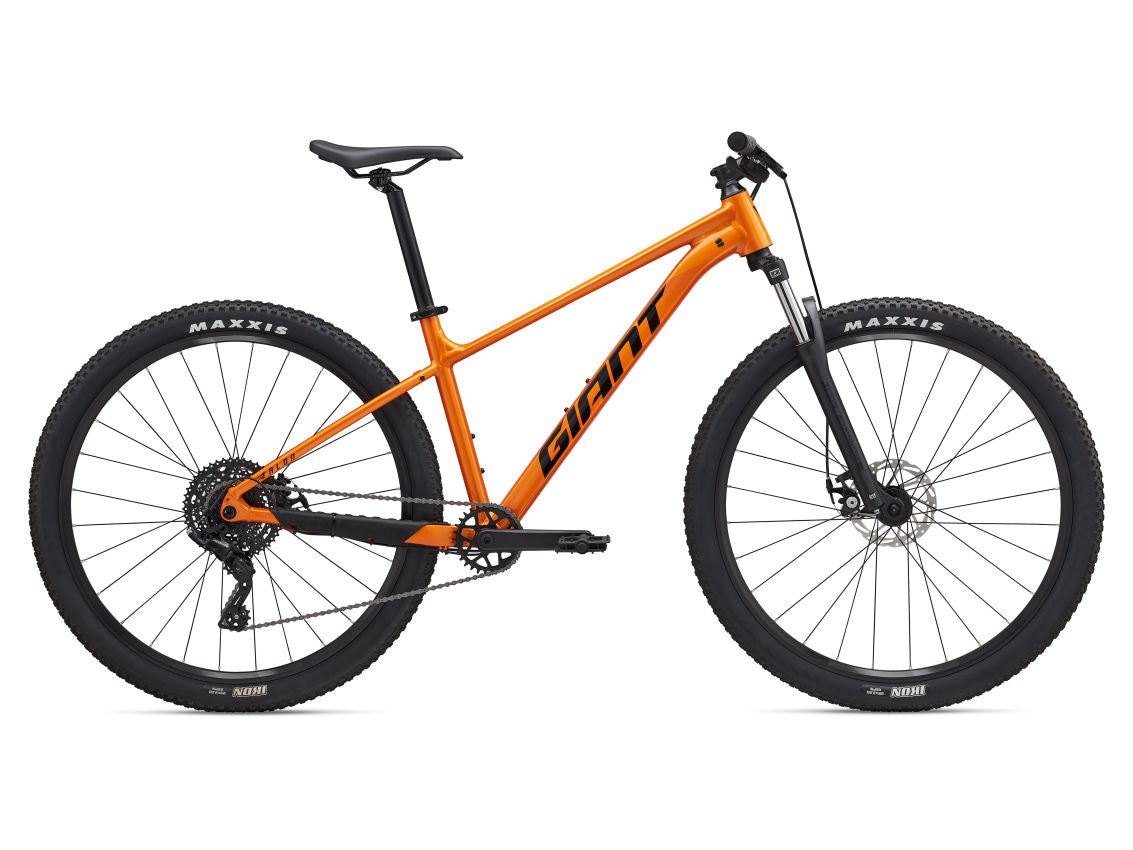

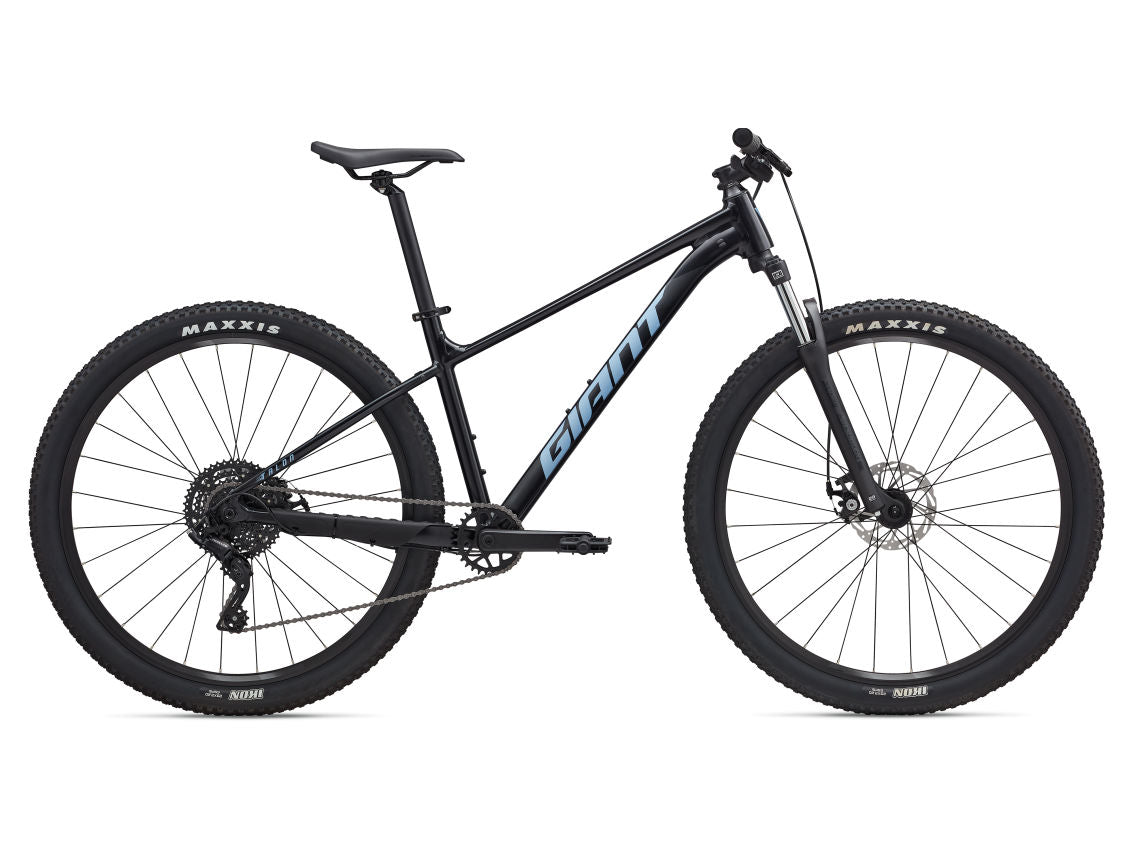

Giant Talon 29 4 2025

$699.00 $829.00
Colour
Size
Loading locations...

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models



Key Performance Factors





Modern MTB Design

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models



Off-Road Control

New geometry is optimised for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size and model. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size and model. All models have clearance for high-volume tyres (up to 2.4-inch) for traction and grip on technical terrain.



Light and Durable

All-new ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.



Highlights

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance.

TECHS & FEATURES

×

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
M
L
XL
ASEAT TUBE LENGTH (mm)
380
420
450
480
A1SEAT POST INSERTION DEPTH (mm)
340
200
237
292
BSEAT TUBE ANGLE
74.5°
74.5°
74.5°
74.5°
CTOP TUBE LENGTH (mm)
581
604
629
653
DHEAD TUBE LENGTH (mm)
95
105
125
140
EHEAD TUBE ANGLE
67.5°
67.5°
67.5°
67.5°
FFORK RAKE (mm)
44
44
44
44
GTRAIL (mm)
108.9
108.9
108.9
108.9
HWHEELBASE (mm)
1139
1164
1191
1217
ICHAIN STAY LENGTH (mm)
455
455
455
455
JBOTTOM BRACKET DROP (mm)
55
55
55
55
KSTACK (mm)
597
606
625
639
LREACH (mm)
415
436
456
476
MSTAND OVER HEIGHT (mm)
715
709
709
710
OSTEM LENGTH (mm)
50
60
70
80
PCRANK LENGTH (mm)
170
170
170
175
QWHEEL SIZE
29"
29"
29"
29"
SIZES
27.5: XS, S, 29: S, M, L, XL
COLOURS
Radiant Orange, Black
FRAME
ALUXX-grade aluminium, disc
FORK
SR Suntour XCE 28, coil spring, QR, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29), XL: 100mm travel (29)
SHOCK
N/A
HANDLEBAR
Giant Connect Trail, 31.8mm
GRIPS
Giant Sole-O
STEM
Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
SEATPOST
Giant Sport, 30.9mm
SADDLE
Giant Sport
PEDALS
MTB caged
SHIFTERS
microSHIFT Acolyte, 1x8
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
microSHIFT Acolyte, M5185M w/clutch
BRAKES
TKB-172, mechanical [F]160mm, [R]160mm rotors
BRAKE LEVERS
Alloy
CASSETTE
microSHIFT H083, 12x46
CHAIN
KMC 8.1
CRANKSET
Prowheel Forged, 32t XS:165mm (27.5) S:165mm (27.5) / 170mm (29) M:170mm (29) L:170mm (29) XL:175mm (29)
BOTTOM BRACKET
Cartridge
RIMS
Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
HUBS
Alloy, sealed
SPOKES
Stainless, 14g
TYRES
Maxxis Ikon 27.5" or 29x2.2", wire bead
EXTRAS
2.4" max tyre size, 32t max chainring size
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
