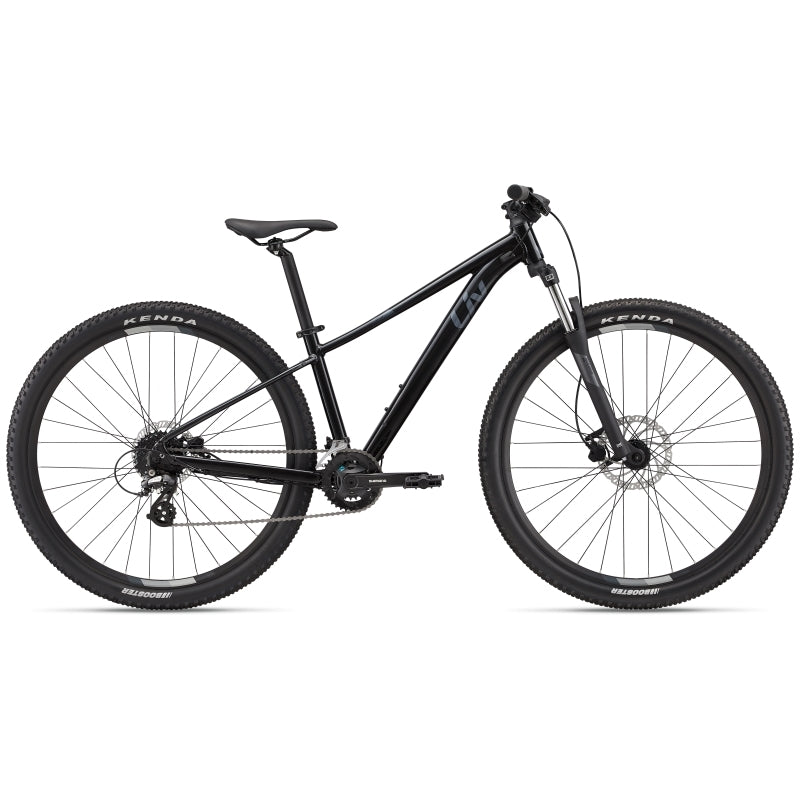

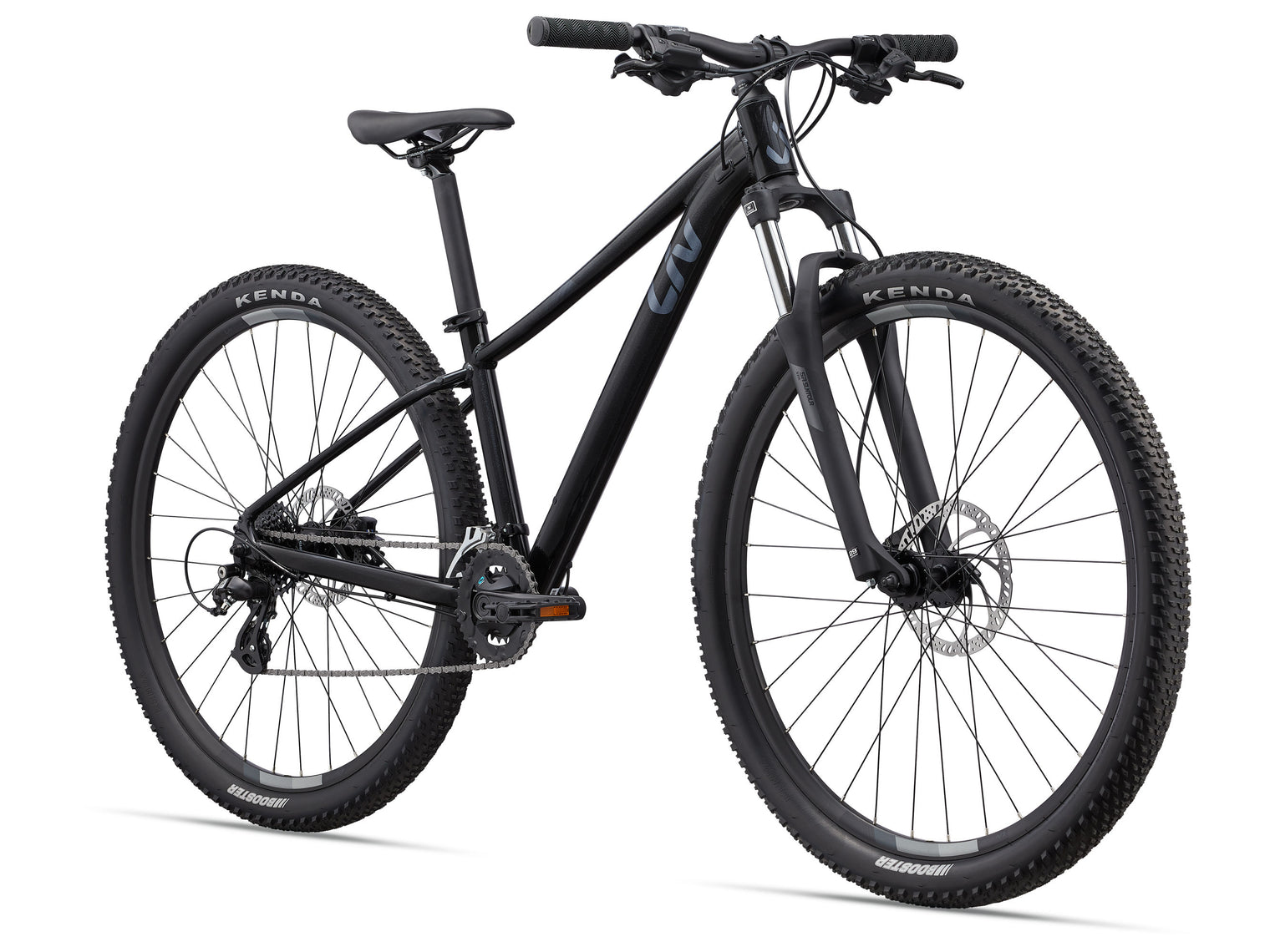

Liv Tempt 29 3 2022

$589.00 $849.00
Colour
Size
Loading locations...

GET ON THE DIRT AND RIDE YOUR WAY TO YOUR FIRST SINGLETRACK. TEMPT IS THAT FRIEND THAT OPENS A WHOLE NEW WORLD TO YOU.

Key Performance Factors

Confidence Inspiring
Perfect as your first mountain bike, the ALUXX-Grade Aluminium frame is lightweight, capable and durable.

Versatile
Tempt's performance-minded yet comfortable geometry gives it the versatility for both commutes around campus and off-road rides.

XC Control
A suspension fork offers control, comfort and stability over bumpy terrain. Depending on frame size, the fork comes with 80mm or 100mm of travel.

TECHS & FEATURES

×

ALUXX ALUMINIUM TECHNOLOGY

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
XS
S
M
A SEAT TUBE LENGTH (mm)
325
365
405
B SEAT TUBE ANGLE
74.0°
74.0°
74.0°
C TOP TUBE LENGTH (mm)
542
571
594
D HEAD TUBE LENGTH (mm)
95
100
110
E HEAD TUBE ANGLE
68.0°
68.0°
68.0°
F FORK RAKE (mm)
40
42
42
G TRAIL (mm)
102
98.9
98.9
H WHEELBASE (mm)
1072
1104
1128
I CHAIN STAY LENGTH (mm)
440
440
440
J BOTTOM BRACKET DROP (mm)
40
45
45
K STACK (mm)
554
579
588
L REACH (mm)
383
405
425
M STAND OVER HEIGHT (mm)
663
686
708
O STEM LENGTH (mm)
40
40
50
P CRANK LENGTH (mm)
165
165
170
Q WHEEL SIZE
27.5"
27.5"
27.5"
GRIPS
Giant Sole-O
HANDLEBAR
Giant Connect Trail, 31.8mm
PEDALS
MTB caged
SADDLE
Liv Sport
SEATPOST
Giant Sport, 30.9mm
STEM
Giant Sport, 7-degree XS: 40mm S: 40mm M: 50mm
BOTTOM BRACKET
Cartridge
BRAKE LEVERS
Tektro TDK143
BRAKES
Tektro TDK143, hydraulic
BRAKES ROTOR
Tektro rotors [F]180mm, [R]160mm
CASSETTE
Shimano Deore HG200, 12x32
CHAIN
KMC 8.3
CRANKSET
Shimano FC-M315, 22/36 XS: 170mm S: 170mm M: 170mm
FRONT DERAILLEUR
microSHIFT FD-M282
REAR DERAILLEUR
Shimano Altus M310
SHIFTERS
microSHIFT, 2x8
FORK
SR Suntour XCE, QR, alloy steerer XS: 80mm travel S: 100mm travel M: 100mm travel
FRAME
ALUXX-Grade Aluminium, disc
EXTRAS
2.4 inch max tyre size, 32t max chainring size
HUBS
Alloy, sealed bearing
RIMS
Giant GX03V 27.5, alloy, double wall
SPOKES
Stainless, 14g
TYRES
Kenda Booster 27.5 x 2.2 inch, wire bead
