• Giant Arx 20 2022

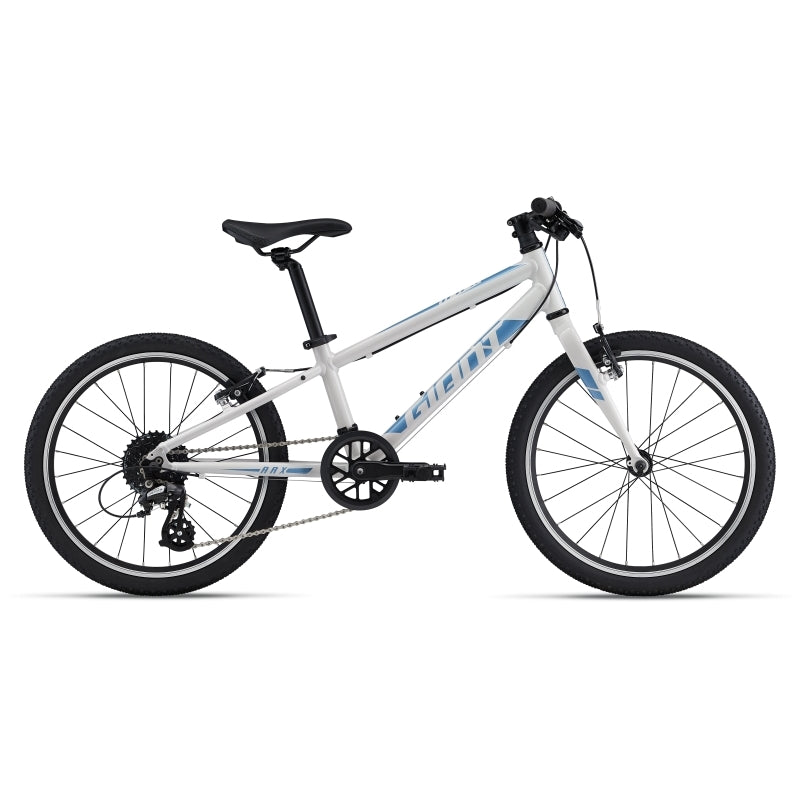

Giant Arx 20 2022

$449.00 $629.00
Colour
Size

Loading locations...
Shop online or in store today for the Giant Arx 20 2022.

TECHS & FEATURES

×

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

OneSize
OneSize
B SEAT TUBE ANGLE
72.0°
C TOP TUBE LENGTH (mm)
450
D HEAD TUBE LENGTH (mm)
120
E HEAD TUBE ANGLE
69.0°
H WHEELBASE (mm)
886
I CHAIN STAY LENGTH (mm)
375
K STACK (mm)
403
L REACH (mm)
319
M STAND OVER HEIGHT (mm)
509
P CRANK LENGTH (mm)
127
HANDLEBAR
Alloy
PEDALS
Platform
SADDLE
Selle Royal Vivo Jr.
SEATPOST
Alloy, 27.2mm
STEM
Forged, alloy, 25.4x60mm
BOTTOM BRACKET
Sealed cartridge
BRAKE LEVERS
Alloy, junior MTB
BRAKES
Alloy, linear pull
CASSETTE
Shimano HG200, 12x32
CHAIN
KMC Z8
CRANKSET
Alloy, forged, three-piece, 32t, 115mm
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano Altus RD-M310
SHIFTERS
Shimano Altus SL-M315
FORK
Alloy
FRAME
ALUXX-Grade Aluminium
HUBS
Alloy, F: 24h QR, R: 24h
RIMS
Giant Kids 20", alloy
SPOKES
Stainless, 14g
TYRES
Innova IB-3010, 20x1.5"
