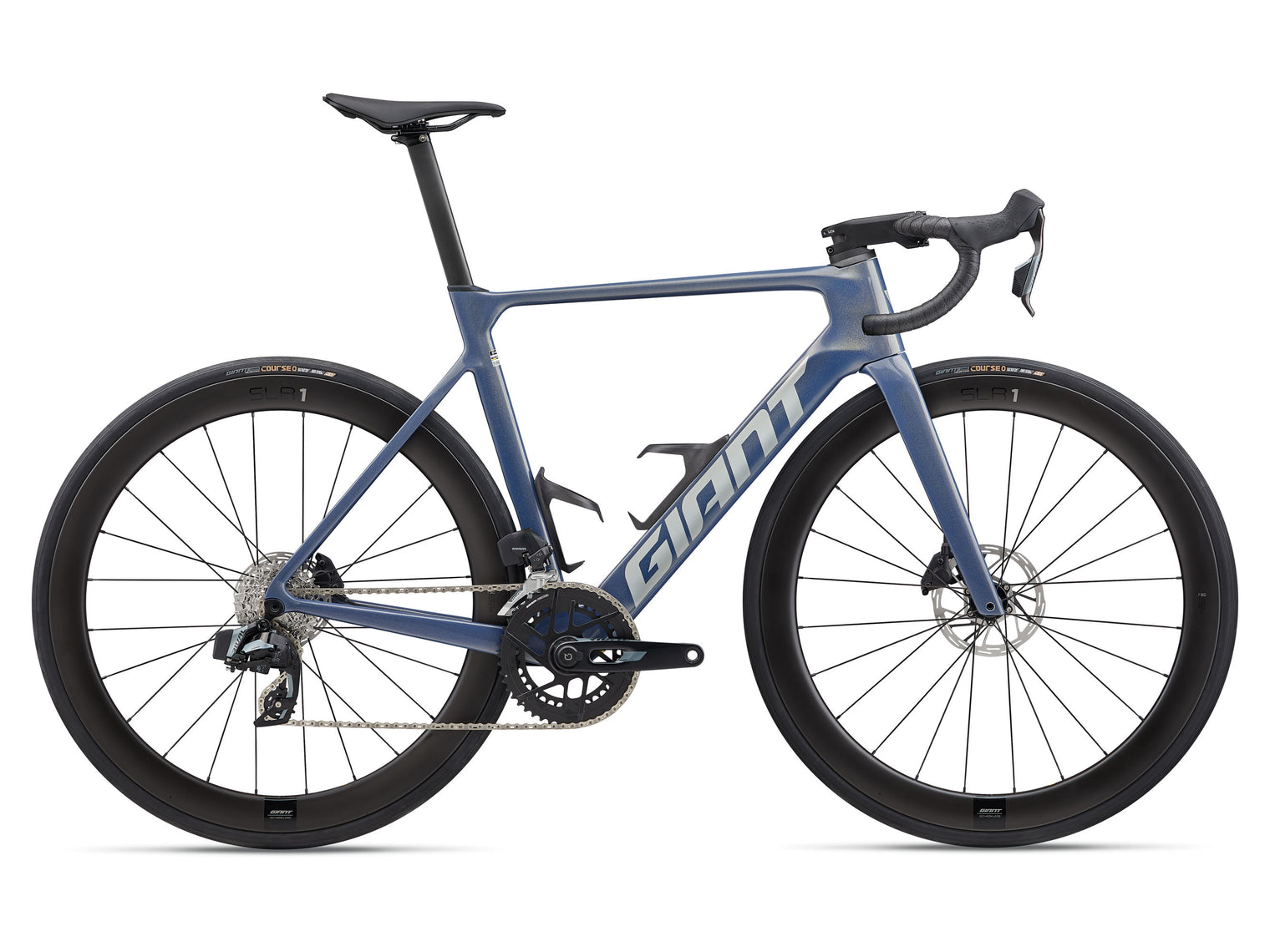

Giant 2026 Propel Advanced Pro 1

$6,999.00
Colour
Size
Loading locations...

THIS AERO ROCKETSHIP IS BUILT FOR SPEED WHEN IT MATTERS MOST. IT’S LIGHTER THAN THE PREVIOUS GENERATION AND ENGINEERED TO SLICE THROUGH WIND. THE RESULT? RACE-WINNING EFFICIENCY THAT PUTS YOU AHEAD OF THE PACK.

Key Performance Factors

Integrated aerodynamics

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR/SL Aero cockpit produce the best overall aero performance.

Easier adjustability

All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency

Advanced-grade composite frameset features high-performance materials and proprietary manufacturing processes. As a result, it’s lighter than the previous generation for an even greater stiffness-to-weight ratio.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

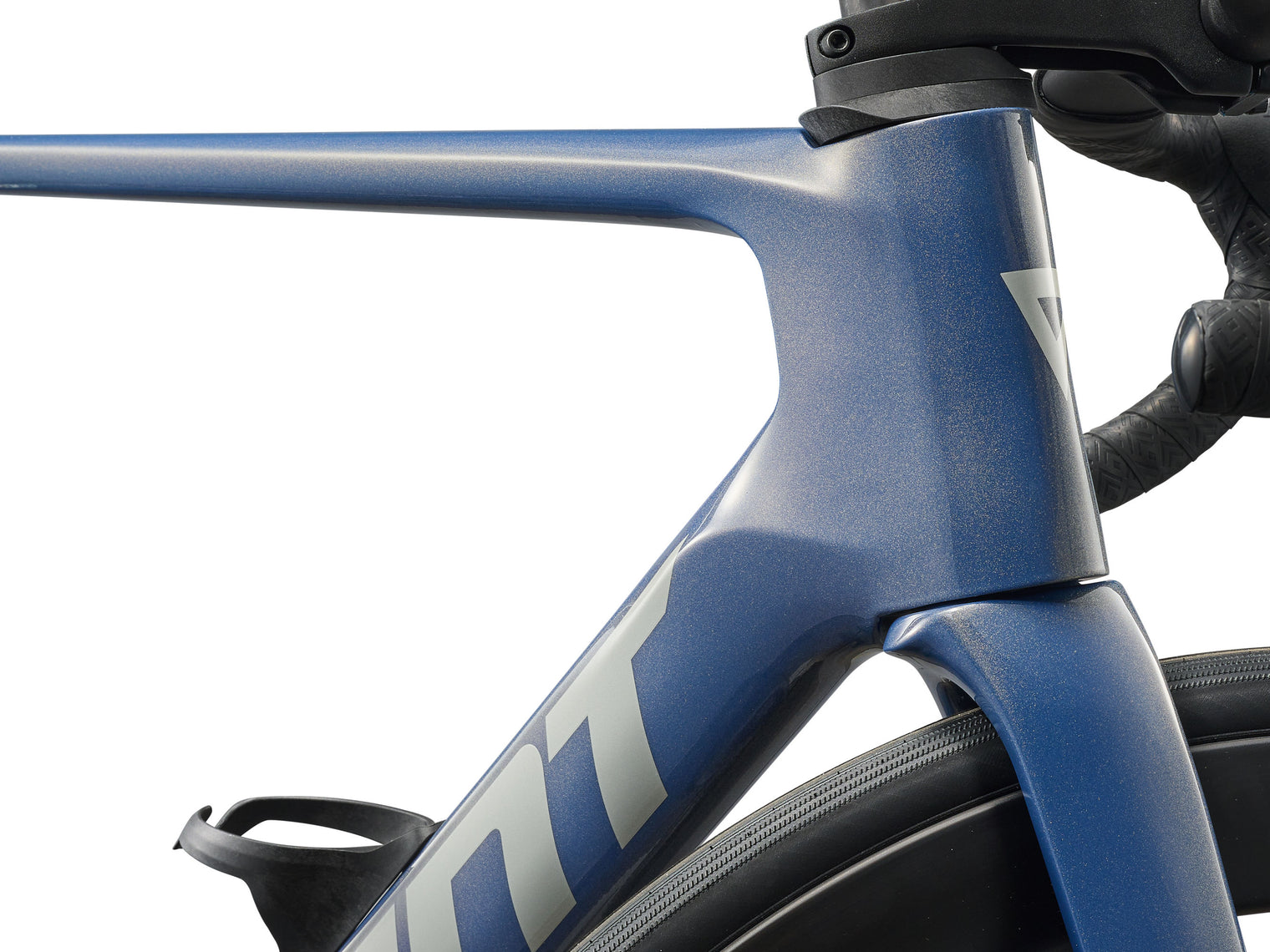

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

AEROSYSTEM SHAPING TECHNOLOGY

Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimise each tube shape to deliver superior aerodynamic performance.

×

OVERDRIVE AERO

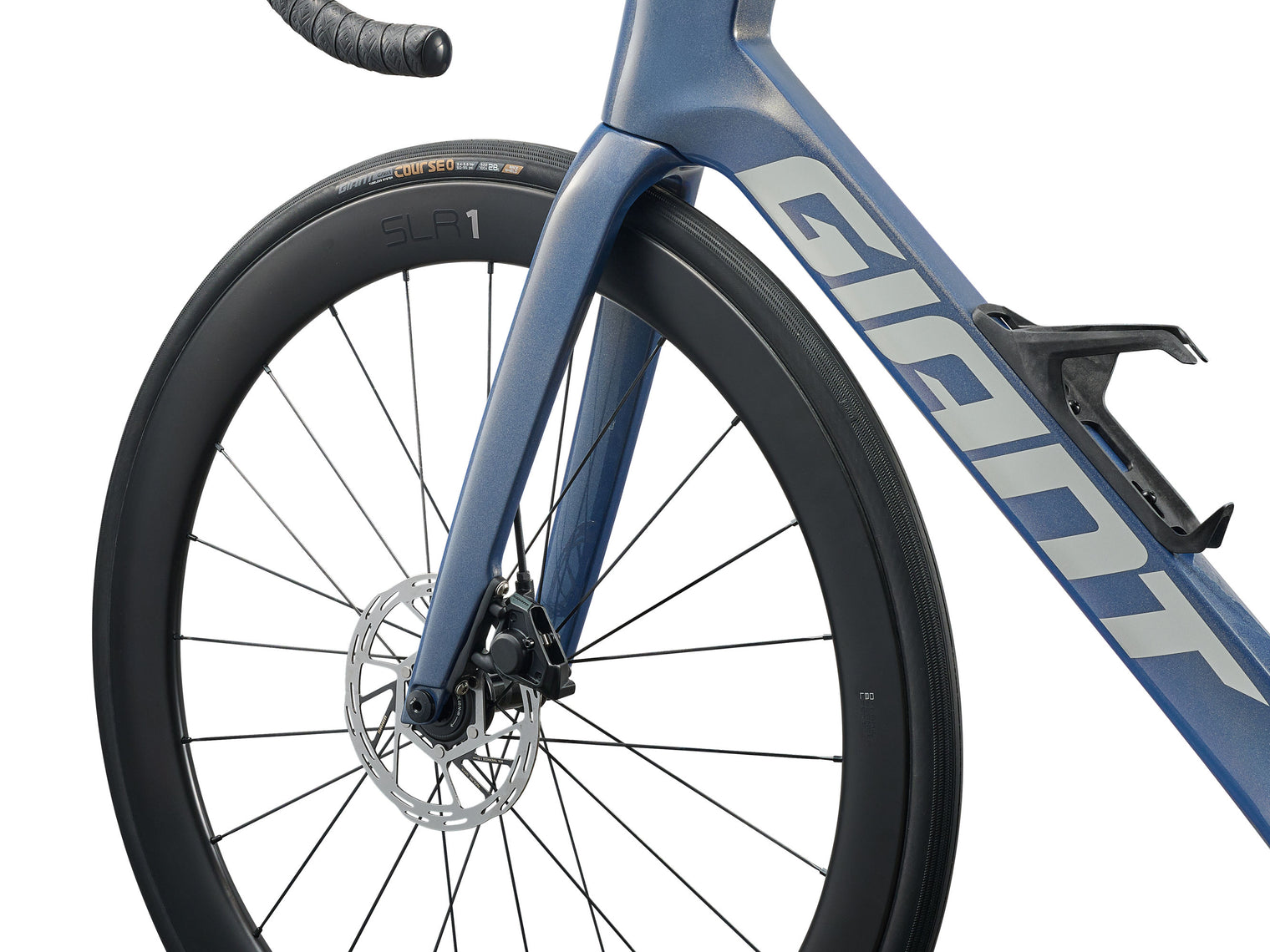

Found inside the head tube of the all-new Propel range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
ASEAT TUBE LENGTH (mm)
465
500
520
545
575
595
BSEAT TUBE ANGLE
74.5°
74.0°
73.5°
73.0°
73.0°
72.5°
CTOP TUBE LENGTH (mm)
520
535
550
565
580
600
DHEAD TUBE LENGTH (mm)
120
130
145
165
185
200
EHEAD TUBE ANGLE
71.0°
72.3°
73.0°
73.0°
73.0°
73.0°
FFORK RAKE (mm)
45
45
45
45
45
45
GTRAIL (mm)
70.5
62.5
57.8
57.8
57.8
57.8
HWHEELBASE (mm)
976
977
980
991
1006
1020
ICHAIN STAY LENGTH (mm)
405
405
405
405
405
405
JBOTTOM BRACKET DROP (mm)
72
70
70
67
67
67
KSTACK (mm)
517
528
545
562
581
596
LREACH (mm)
376
383
388
393
402
412
MSTAND OVER HEIGHT (mm)
722
753
770
794
821
834
OSTEM LENGTH (mm)
80
90
100
110
110
120
PCRANK LENGTH (mm)
165
165
170
170
172.5
172.5
SIZES
XS, S, M, M/L, L, XL
COLOURS
Midnight Moon
FRAME
Advanced-grade Composite, 12x142mm thru-axle, disc
FORK
Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
SHOCK
N/A
HANDLEBAR
Giant Contact SL Aero XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
GRIPS
Stratus Lite 2.0
STEM
Giant Contact SL Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
SEATPOST
Giant Vector, composite, -5/+15mm offset
SADDLE
Giant Fleet SL
PEDALS
N/A
SHIFTERS
SRAM Rival AXS E1
FRONT DERAILLEUR
SRAM Rival AXS E1
REAR DERAILLEUR
SRAM Rival AXS E1
BRAKES
SRAM Rival AXS E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm
BRAKE LEVERS
SRAM Rival AXS E1 hydraulic
CASSETTE
SRAM Rival E1 XG-1250, 12-speed, 10-30
CHAIN
SRAM Rival E1
CRANKSET
SRAM Rival E1 DUB, 35/48 with power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
BOTTOM BRACKET
SRAM DUB, press fit
RIMS
Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm
HUBS
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle; [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
SPOKES
Sapim CX-Ray
TYRES
Giant Gavia Course 0, tubeless, 700x28c (28mm), folding
EXTRAS
Computer mount, water bottle cages, tubeless prepared, 30mm max tyre size
MAX TYRE CLEARANCE
30mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
