Giant 2025 Revolt Advanced 1

$4,199.00
Colour
Size
Loading locations...

GRAVEL CRUSHER

For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective: Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.

KEY PERFORMANCE FACTORS

FAST AND VERSATILE

An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost* help smooth out rough tracks, improving control and minimising fatigue over long distances.

SMART INTEGRATION

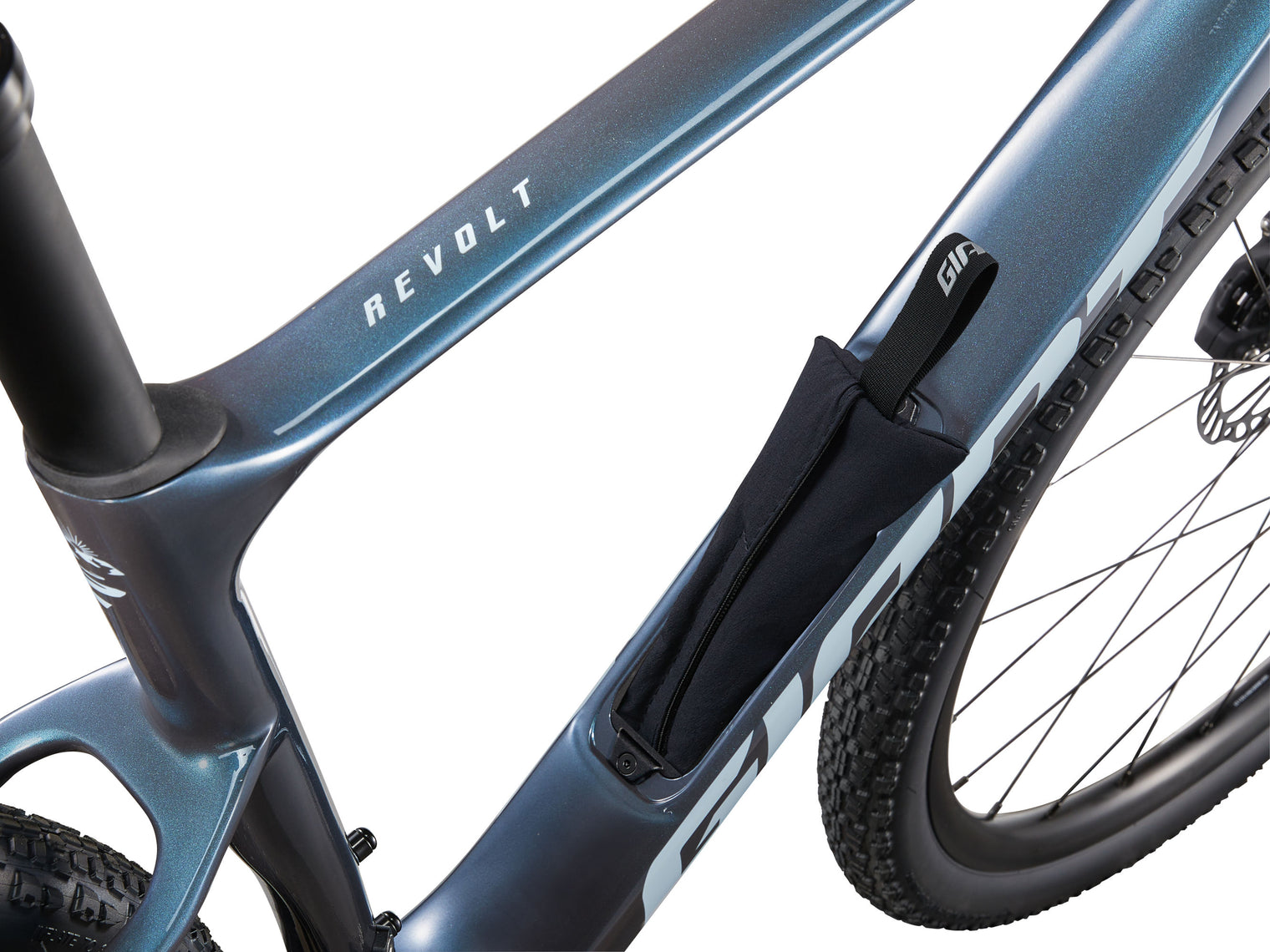

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, moulded, chainstay and down tube protection help defend the frame against impacts and quell noise.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

D-FUSE TECHNOLOGY

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.absorbing road shocks and vibrations so you can ride further, faster.

READ MORE

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
ASEAT TUBE LENGTH (mm)
430
450
470
490
510
530
BSEAT TUBE ANGLE
74.0°
73.5°
73.5°
73.0°
73.0°
73.0°
CTOP TUBE LENGTH (mm)
540
555
560
575
585
600
DHEAD TUBE LENGTH (mm)
125
135
150
165
180
195
EHEAD TUBE ANGLE
70.0°
71.0°
71.5°
72.0°
72.0°
72.5°
FFORK RAKE (mm)
50
50
50
50
50
50
GTRAIL (mm)
78.2
75
68.2
68.2
68
65
HWHEELBASE (mm)
1024
1034
1032
1036
1041
1056
ICHAIN STAY LENGTH (mm)
425
435
435
435
435
435
JBOTTOM BRACKET DROP (mm)
80
81
81
81
81
81
KSTACK (mm)
556
571
586
601
616
630
LREACH (mm)
381
387
392
397
401
407
MSTAND OVER HEIGHT (mm)
724
731
740
764
782
814
NSTEM LENGTH (mm)
50
60
70
80
80
90
OCRANK LENGTH (mm)
170
170
172.5
172.5
175
175
PWHEEL SIZE
700c
700c
700c
700c
700c
700c
SIZES
XS, S, M, M/L, L, XL
COLOURS
Ocean Twilight
FRAME
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
FORK
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
SHOCK
N/A
HANDLEBAR
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
GRIPS
Stratus Lite 3.0
STEM
Giant Contact AeroLight, -10° XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
SEATPOST
Post Moderne dropper, 30.9mm with 30mm suspension — XS:365mm/75mm drop; S:415mm/100mm; M:415mm/100mm; M/L:415mm/100mm; L:415mm/100mm; XL:415mm/100mm
SADDLE
Giant Approach
SHIFTERS
SRAM Apex 1, 1x12
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
SRAM Apex XPLR
BRAKES
SRAM Apex hydraulic; Giant MPH rotors [F]160mm, [R]160mm
BRAKE LEVERS
SRAM Rival 1, left lever dropper switch
CASSETTE
SRAM PG-1231, 12-speed, 11x44
CHAIN
SRAM Apex D1
CRANKSET
SRAM Apex 1 Wide DUB, 40t — XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
BOTTOM BRACKET
SRAM DUB, press fit
RIMS
Giant P-X2 Disc wheelset, alloy
HUBS
Giant alloy, 12mm thru-axle
SPOKES
Sapim
TYRES
Giant Crosscut Grip, 700x45c, tubeless
EXTRAS
Giant 1x chain guide; tubeless prepared; 53mm max tyre size in long flip chip; 45mm max tyre size in short flip chip; in-frame storage bag
MAX TYRE CLEARANCE
53mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
