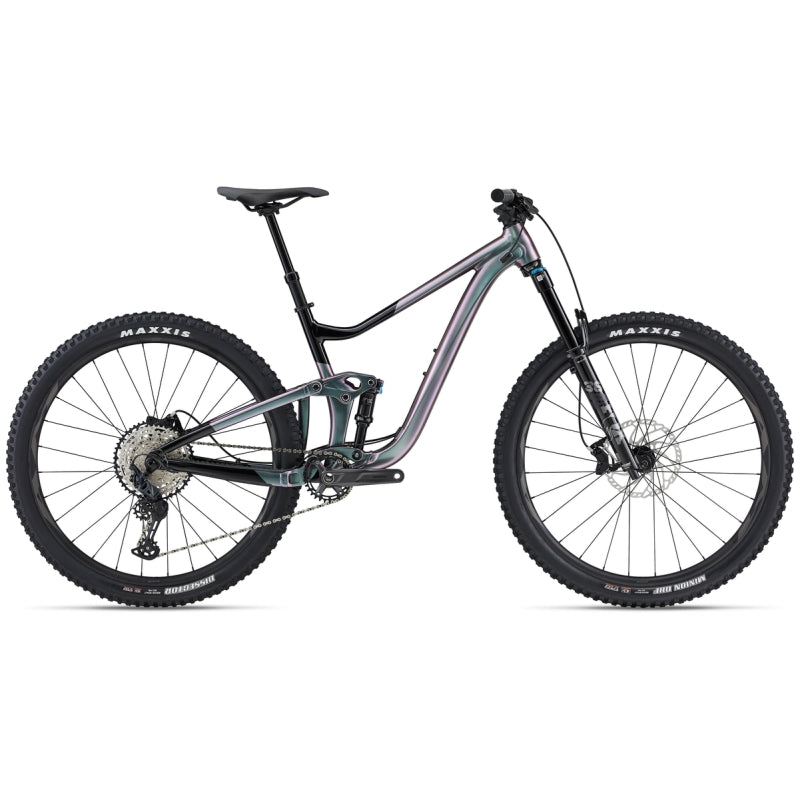

Giant Trance X 29 1

$3,249.00 $4,999.00
Colour
Size
Loading locations...

ROM FAST, ROWDY DESCENTS TO TECHNICAL TERRAIN, THIS PROGRESSIVE TRAIL BIKE GIVES YOU ACTIVE SUSPENSION, ADJUSTABLE FRAME GEOMETRY, AND EVERYTHING YOU NEED TO UP YOUR SINGLETRACK GAME.





KEY PERFORMANCE FACTORS





29er confidence and control

29-inch wheels are optimised to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tyres.



Progressive suspension

Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frameweight.



Adjustable geometry

A flip chip lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine tune the handling. You can choose the low position for fast, open terrain, or the high position for slower, tighter singletrack.

GRIPS
Giant Tactal Pro Single
HANDLEBAR
Giant Contact SL TR35
PEDALS
N/A
SADDLE
Giant Romero
SEATPOST
Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm, M: 150mm travel / 30.9 x 440mm, L: 170mm travel / 30.9 x 450mm, XL: 170mm travel / 30.9 x 450mm
STEM
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
BOTTOM BRACKET
Shimano, press fit
BRAKE LEVERS
Shimano Deore BL-MT501
BRAKES
Shimano Deore BR-MT520, hydraulic
BRAKES ROTOR
Shimano RT-66 rotors [F]203mm, [R]180mm
CASSETTE
Shimano SLX, 10x51
CHAIN
KMC X-12
CRANKSET
Shimano M511, 30t, 55mm chainline
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano SLX RD-M7100
SHIFTERS
Shimano SLX SL-M7100, 1x12
FORK
Fox 36 Float Performance, GRIP damper, 44mm offset, 150mm, 15x110 Kabolt, custom tuned for Giant
FRAME
ALUXX SL-Grade Aluminium front and rear triangles, 135mm Maestro suspension, flip chip - Maestro, 12x148mm thru-axle
SHOCK
Fox Float DPS Performance, 185/55, custom tuned for Giant
EXTRAS
Tubeless prepared, 2.5 inch max tyre size, 34t max chainring size
FRONT TYRE
Maxxis Minion DHF 29x2.5 WT, EXO, TR
HUBS
Alloy, sealed bearing
REAR TYRE
Maxxis Dissector 29x2.4, EXO, TR, tubeless
RIMS
Giant AM 29, alloy
SPOKES
Sapim

TECHS & FEATURES

×

A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.

×

ALUXX SL ALUMINIUM TECHNOLOGY

This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.

×

MAESTRO SUSPENSION TECHNOLOGY

Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

READ MORE

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

×

FLIP CHIP - MAESTRO

The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.

READ MORE
