• Giant Talon 29 2 2024

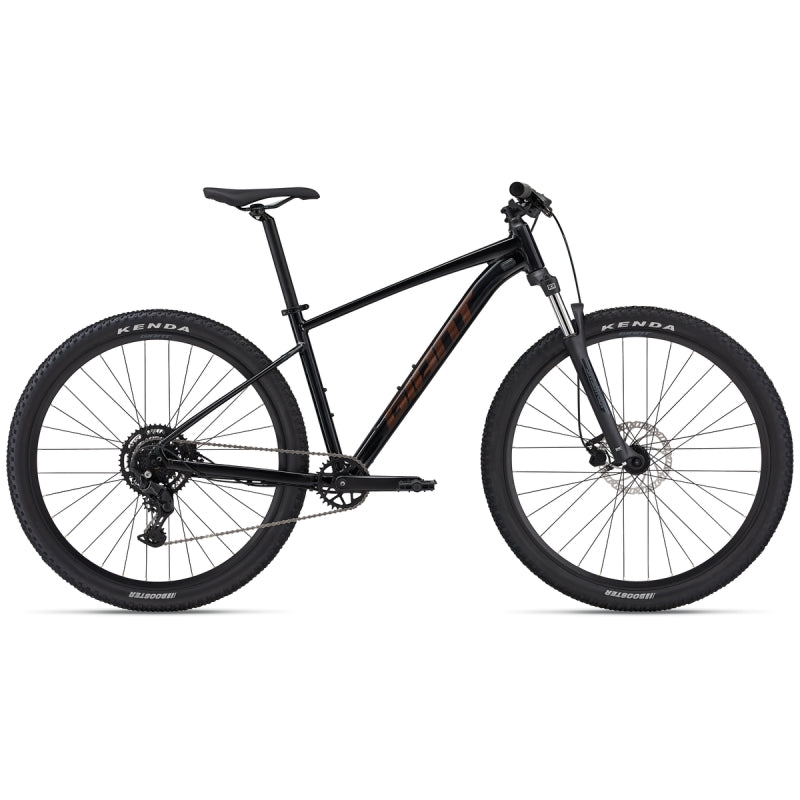

Giant Talon 29 2 2024

$799.00 $999.00
Colour
Size

Loading locations...
Shop online or in store today for the Giant Talon 29 2 2024.

TECHS & FEATURES

×

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
M
L
XL
A SEAT TUBE LENGTH (mm)
390
440
490
535
A1 SEAT POST INSERTION DEPTH (mm)
245
200
250
300
B SEAT TUBE ANGLE
74.0°
74.0°
74.0°
74.0°
C TOP TUBE LENGTH (mm)
577
599
620
639
D HEAD TUBE LENGTH (mm)
95
105
125
140
E HEAD TUBE ANGLE
68.5°
68.5°
68.5°
68.5°
F FORK RAKE (mm)
51
51
51
51
G TRAIL (mm)
94
94
94
94
H WHEELBASE (mm)
1126
1150
1172
1192
I CHAIN STAY LENGTH (mm)
455
455
455
455
J BOTTOM BRACKET DROP (mm)
55
55
55
55
K STACK (mm)
602
611
630
644
L REACH (mm)
404
424
439
454
M STAND OVER HEIGHT (mm)
732
766
805
839
O STEM LENGTH (mm)
50
60
70
80
P CRANK LENGTH (mm)
170
175
175
175
Q WHEEL SIZE
29"
29"
29"
29"
HANDLEBAR
Giant Connect Trail, 31.8mm
PEDALS
MTB caged
SADDLE
Giant
SEATPOST
Giant Sport, 30.9mm
STEM
Giant Sport, 7-degree S: 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
BOTTOM BRACKET
Cartridge
BRAKE LEVERS
Tektro HDC M275
BRAKES
Tektro HDC M275, hydraulic,
BRAKES ROTOR
Tektro rotors [F]180mm, [R]160mm
CASSETTE
Shimano CUES, CS-LG300, 11x46
CHAIN
Shimano CUES LG500
CRANKSET
ProWheel Charm, 32t (29) S:170mm (29) M: 175mm (29) L: 175mm (29) XL: 175mm (29)
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano CUES RD-U4000
SHIFTERS
Shimano CUES SL-4000, 1x9
FORK
SR Suntour XCM30, QR, alloy steerer S:100mm travel (29) M: 100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29)
FRAME
ALUXX-grade aluminium, disc
EXTRAS
2.4 inch max tyre size, 32t max chainring size
HUBS
Alloy, sealed
RIMS
Giant GX03V 29" alloy, double wall
SPOKES
Stainless, 14g
TYRES
Kenda Booster 29x2.4, wire bead
