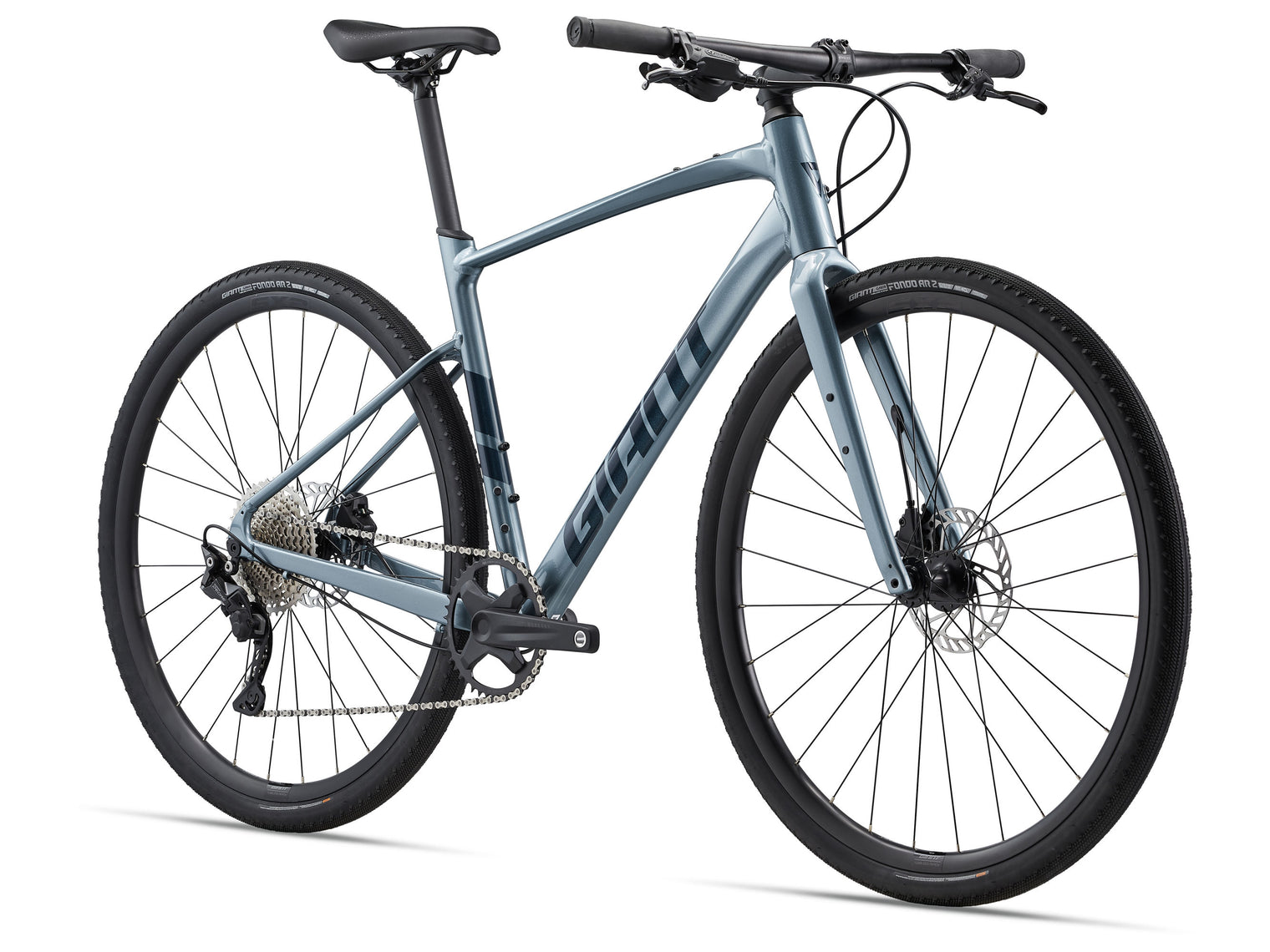

Giant Fastroad AR 1 2023

$1,349.00 $1,799.00
Colour
Size
Loading locations...

LIGHTWEIGHT CARBON PERFORMANCE FOR ALL-ROAD RIDING.

The Giant FastRoad AR 1 2023 features an Advanced-grade carbon frame and fork that deliver a smooth, responsive ride. Equipped with wide tyre clearance and hydraulic disc brakes, this bike is built for speed, control, and comfort on roads and light gravel.

Key Performance Factors

Advanced-Grade Carbon Frame

Lightweight and stiff, the carbon frame absorbs vibrations and boosts efficiency for longer, faster rides.

Wide Tyre Compatibility

Allows for tyres up to 45mm, increasing comfort and control on varied surfaces from pavement to gravel.

Hydraulic Disc Brakes

Provide powerful, consistent stopping power in all conditions, enhancing rider confidence.

TECHS & FEATURES

×

D-FUSE TECHNOLOGY

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.absorbing road shocks and vibrations so you can ride further, faster.

READ MORE

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

×

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
A SEAT TUBE LENGTH (mm)
435
455
475
495
525
555
B SEAT TUBE ANGLE
73.5°
73.5°
73.5°
73.0°
73.0°
73.0°
C TOP TUBE LENGTH (mm)
545
560
575
590
610
630
D HEAD TUBE LENGTH (mm)
110
130
155
175
200
225
E HEAD TUBE ANGLE
70.5°
70.5°
71.0°
71.0°
71.5°
71.5°
F FORK RAKE (mm)
50
50
50
50
50
50
G TRAIL (mm)
74
74
70
70
67
67
H WHEELBASE (mm)
1031
1047
1058
1069
1084
1105
I CHAIN STAY LENGTH (mm)
435
435
435
435
435
435
J BOTTOM BRACKET DROP (mm)
75
75
75
75
75
75
K STACK (mm)
533
552
578
597
623
646
L REACH (mm)
387
396
404
407
419
432
M STAND OVER HEIGHT (mm)
718
736
756
773
800
826
O STEM LENGTH (mm)
70
80
90
90
100
110
P CRANK LENGTH (mm)
170
170
170
172.5
172.5
172.5
Q WHEEL SIZE
700C
700C
700C
700C
700C
700C
GRIPS
Giant ErgoContact
HANDLEBAR
Giant Sport, mini-rise, 31.8
PEDALS
Platform pedal
SADDLE
Giant ErgoMax
SEATPOST
Giant D-Fuse, composite, 350mm
STEM
Giant Contact
BOTTOM BRACKET
Threaded
BRAKE LEVERS
Tektro HD-R280
BRAKES
Tektro HD-R280
BRAKES ROTOR
Giant MPH rotors, [F]160mm, [R]160mm
CASSETTE
Shimano CS-M5100, 11x42
CHAIN
KMC X11
CRANKSET
FSA Omega AGX+, 42t
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano Deore XT
SHIFTERS
Shimano Deore, 1x11
FORK
Advanced-Grade Composite, composite OverDrive steerer
FRAME
ALUXX SL-Grade Aluminum
EXTRAS
Tubeless prepared, 42mm max tyre size
HUBS
Giant alloy, 12mm thru-axle
RIMS
Giant S-X2 Disc wheelset
SPOKES
Sapim
TYRES
Giant Gavia Fondo AR, tubeless, 700x40c
