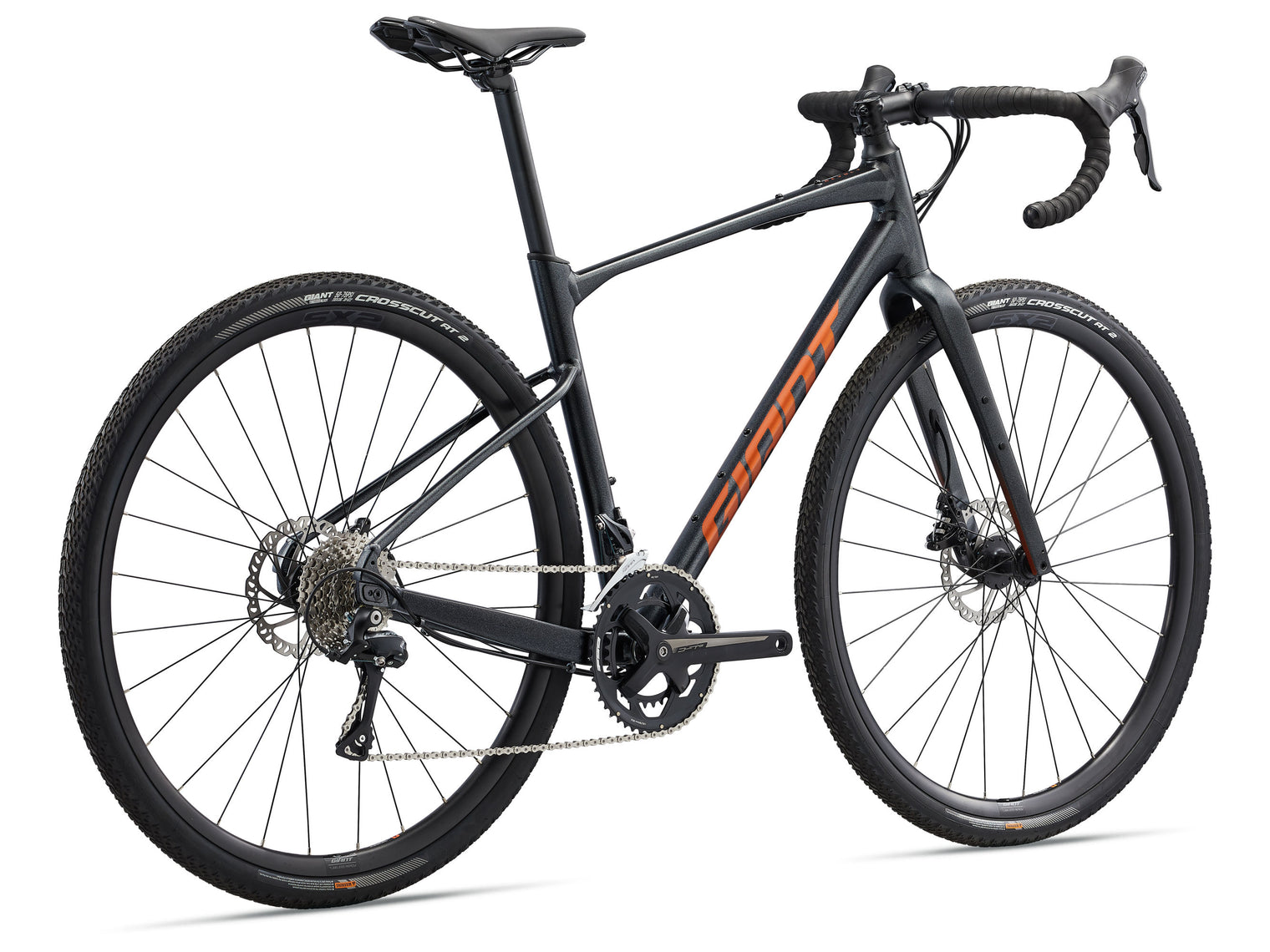

Giant Revolt 2

$1,499.00 $1,799.00
Colour
Size
Loading locations...

Ride roads, gravel or dirt with this all-new aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Key Performance Factors

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

TECHS & FEATURES

×

ALUXX ALUMINIUM TECHNOLOGY

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

×

D-FUSE SEATPOST

The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

×

OVERDRIVE

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
A SEAT TUBE LENGTH (mm)
430
450
470
490
510
530
B SEAT TUBE ANGLE
74.0°
73.5°
73.5°
73.0°
73.0°
73.0°
C TOP TUBE LENGTH (mm)
540
550
560
575
585
600
D HEAD TUBE LENGTH (mm)
125
135
150
165
180
195
E HEAD TUBE ANGLE
70.0°
71.0°
71.5°
72.0°
72.0°
72.0°
F FORK RAKE (mm)
50
50
50
50
50
50
G TRAIL (mm)
78
72
68
65
65
65
H WHEELBASE (mm)
1029
1025
1030
1035
1045
1061
I CHAIN STAY LENGTH (mm)
430
430
430
430
430
430
J BOTTOM BRACKET DROP (mm)
80
80
80
80
80
80
K STACK (mm)
556
570
586
602
616
630
L REACH (mm)
381
381
387
391
397
407
M STAND OVER HEIGHT (mm)
717
734
752
769
786
801
O STEM LENGTH (mm)
70
80
90
100
100
110
P CRANK LENGTH (mm)
170
170
172.5
172.5
175
175
Q WHEEL SIZE
700x
700x
700x
700x
700x
700x
