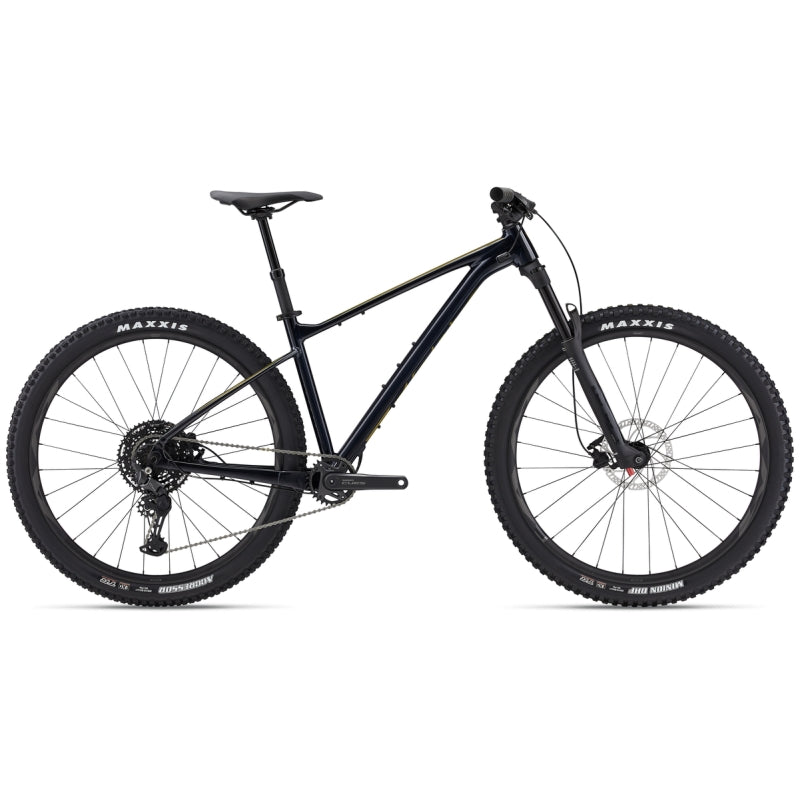

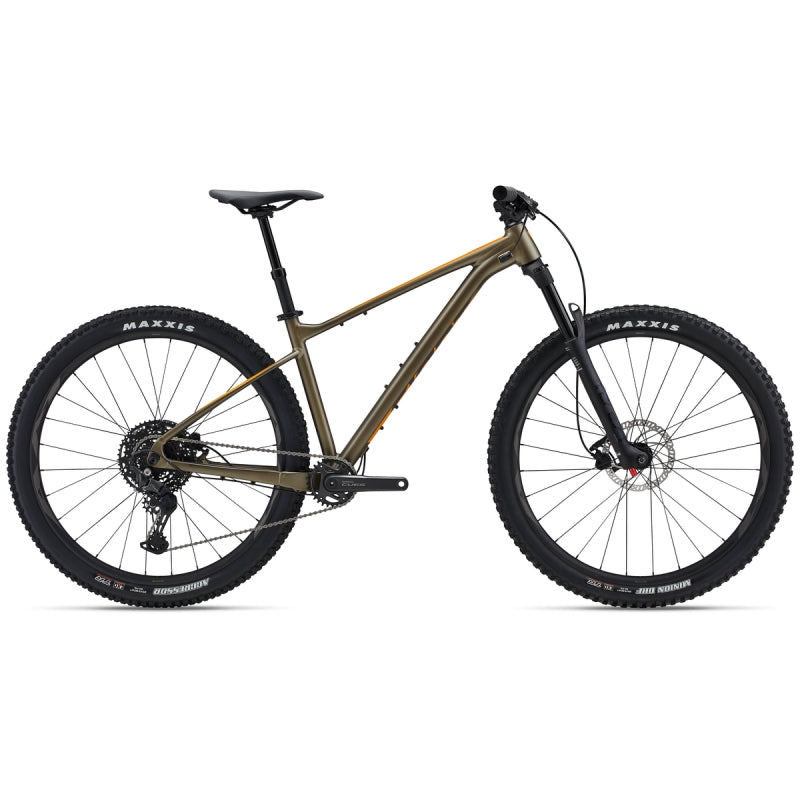

Giant Fathom 29 2 2024

$1,699.00 $1,899.00
Colour
Size

Loading locations...
Shop online or in store today for the Giant Fathom 29 2 2024.

TECHS & FEATURES

×

ALUXX SL ALUMINIUM TECHNOLOGY

This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
M
L
XL
A SEAT TUBE LENGTH (mm)
380
430
465
495
A1 SEAT POST INSERTION DEPTH (mm)
300
200
235
285
B SEAT TUBE ANGLE
75.0°
75.0°
75.0°
75.0°
C TOP TUBE LENGTH (mm)
592
612
639
662
D HEAD TUBE LENGTH (mm)
95
95
105
115
E HEAD TUBE ANGLE
66.0°
66.0°
66.0°
66.0°
F FORK RAKE (mm)
44
44
44
44
G TRAIL (mm)
122
122
122
122
H WHEELBASE (mm)
1157
1177
1206
1230
I CHAIN STAY LENGTH (mm)
438
438
438
438
J BOTTOM BRACKET DROP (mm)
60
60
60
60
K STACK (mm)
622
622
631
640
L REACH (mm)
425
445
470
490
M STAND OVER HEIGHT (mm)
727
746
764
791
O STEM LENGTH (mm)
40
40
50
50
P CRANK LENGTH (mm)
165
170
170
170
Q WHEEL SIZE
29"
29"
29"
29"
HANDLEBAR
Giant Contact TR35, 35mm
SADDLE
Giant Romero
SEATPOST
Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 170mm travel / 30.9 x 455mm
STEM
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
BOTTOM BRACKET
Shimano, threaded
BRAKE LEVERS
Tektro HDM 275
BRAKES
Tektro HDM 275, hydraulic
BRAKES ROTOR
Tektro rotors [F]180mm, [R]180mm
CASSETTE
Shimano CUES, CS-LG300, 11x48
CHAIN
Shimano CUES LG500
CRANKSET
Shimano CUES FC-U6000-1, 30t S:170mm, M:170mm, L:170mm, XL:170mm
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano CUES, U6000, Shadow+
SHIFTERS
Shimano CUES SL-6000-10R, 1x10
FORK
Giant Crest 34 RCL, 130mm, 44mm offset, Boost 15x110
FRAME
ALUXX SL-grade aluminium, 12x148mm thru-axle
EXTRAS
Tubeless prepared, 2.5 inch max tyre size, 32t max chainring size
FRONT TYRE
Maxxis Minion DHF, 29x2.5 WT, EXO/TR
HUBS
Alloy, sealed
RIMS
Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
SPOKES
Stainless
TYRES
Maxxis Aggressor, 29x2.5 WT, foldable, EXO/T
