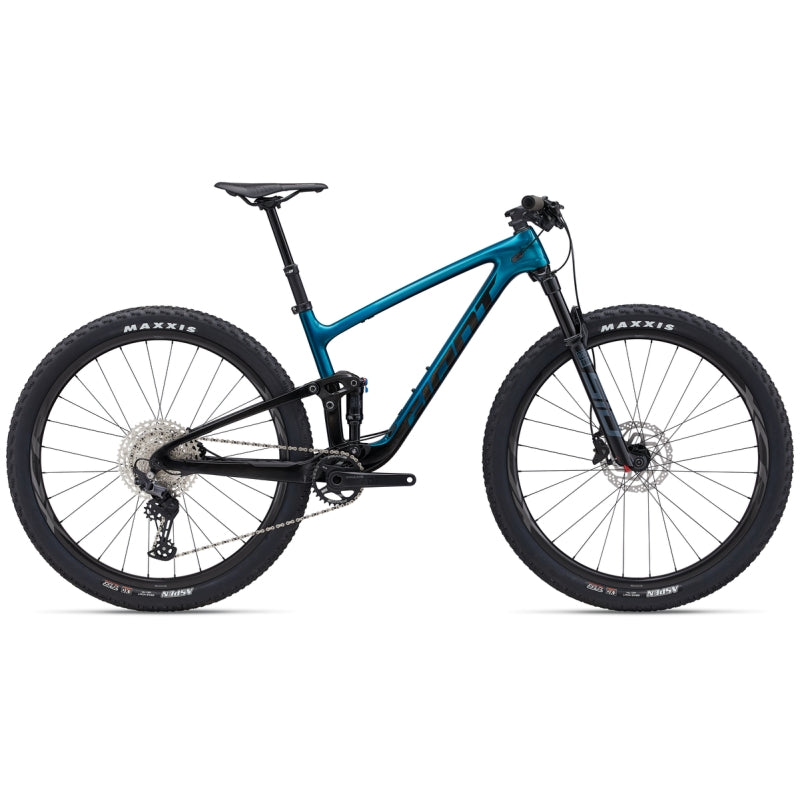

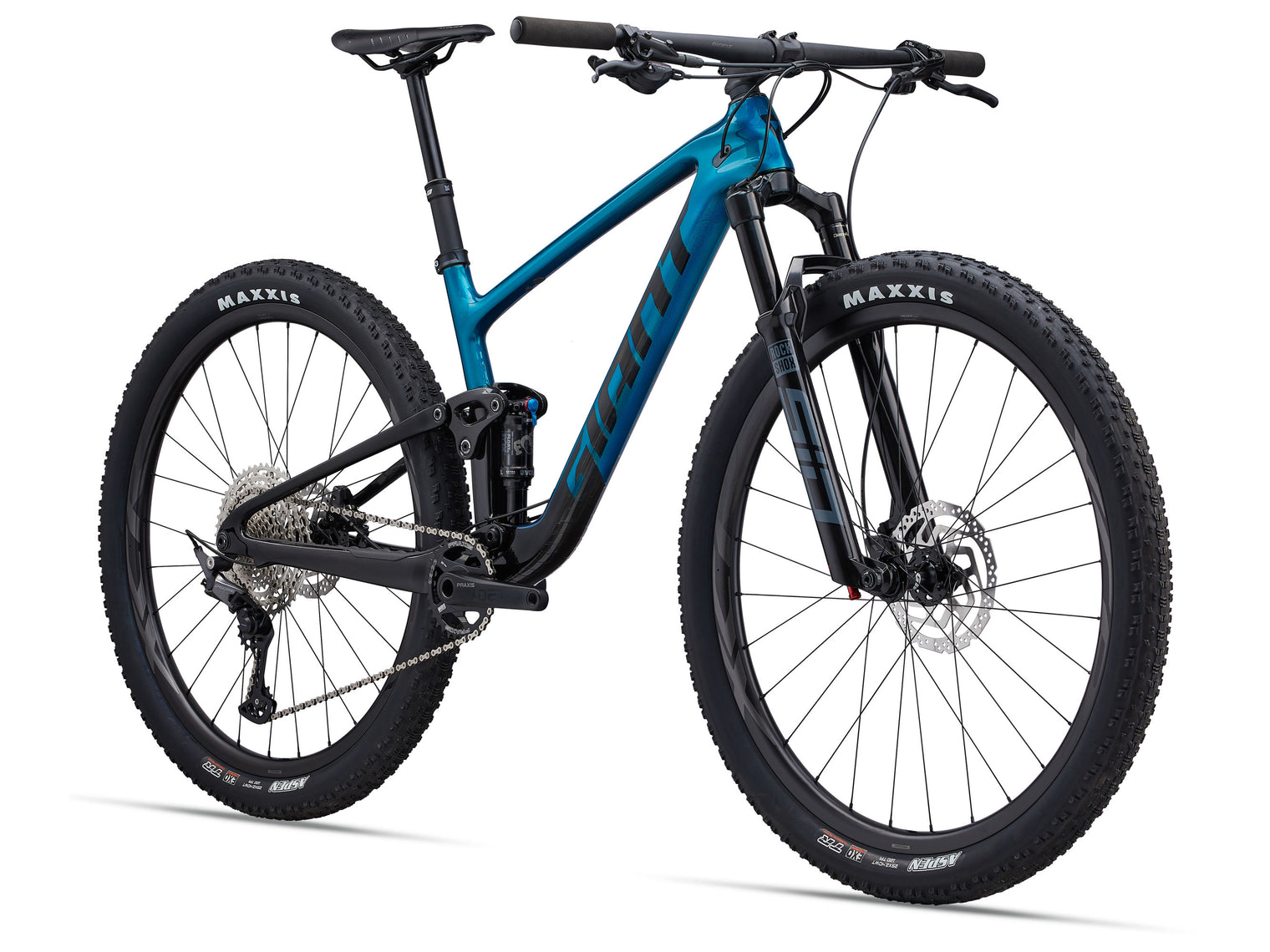

Giant Anthem Advanced 29 3 2024

$3,999.00 $6,299.00
Colour
Size
Loading locations...

BUILT FOR MODERN XC RACING, THIS FULL-COMPOSITE FLYER TACKLES STEEP SINGLETRACK CLIMBS AND TECHNICAL DESCENTS WITH SPEED AND CONTROL. WITH FLEXPOINT PRO REAR SUSPENSION AND RACE-READY GEOMETRY, IT PUTS YOU AT THE FRONT OF THE PACK.

KEY PERFORMANCE FACTORS

Ultra-efficient

Advanced composite frameset is 241g lighter than previous generation. The bottom bracket area is stiffer for faster acceleration, and a steeper seat tube puts the rider in an efficient climbing position.

Superior control

FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The frameset features modern XC geometry including a slacker 67.5-degree head tube and 110mm suspension fork for technical descents.

29er stability and speed

Frame geometry and suspension are optimised for fast and stable 29-inch wheels. A longer reach and modified cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

×

Developed as a superlight rear suspension setup for XC bikes that demand efficiency, control and responsive handling, FlexPoint Pro is a linkage-driven, single-pivot system that delivers 100mm of rear-wheel travel. It’s engineered with a full-composite swingarm that significantly reduces overall frame weight.

Read more

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
M
L
XL
ASEAT TUBE LENGTH (mm)
390
420
465
495
A1SEAT POST INSERTION DEPTH (mm)
185
225
260
290
BSEAT TUBE ANGLE
75.5°
75.5°
75.5°
75.5°
CTOP TUBE LENGTH (mm)
572
604
626
653
DHEAD TUBE LENGTH (mm)
90
95
105
115
EHEAD TUBE ANGLE
67.5°
67.5°
67.5°
67.5°
FFORK RAKE (mm)
44
44
44
44
GTRAIL (mm)
109
109
109
109
HWHEELBASE (mm)
1127
1159
1183
1212
ICHAIN STAY LENGTH (mm)
435
435
435
435
JBOTTOM BRACKET DROP (mm)
42
42
42
42
KSTACK (mm)
589
593
603
612
LREACH (mm)
420
450
470
495
MSTAND OVER HEIGHT (mm)
745
750
777
800
OSTEM LENGTH (mm)
60
70
70
70
PCRANK LENGTH (mm)
170
175
175
175
QWHEEL SIZE
29"
29"
29"
29"
