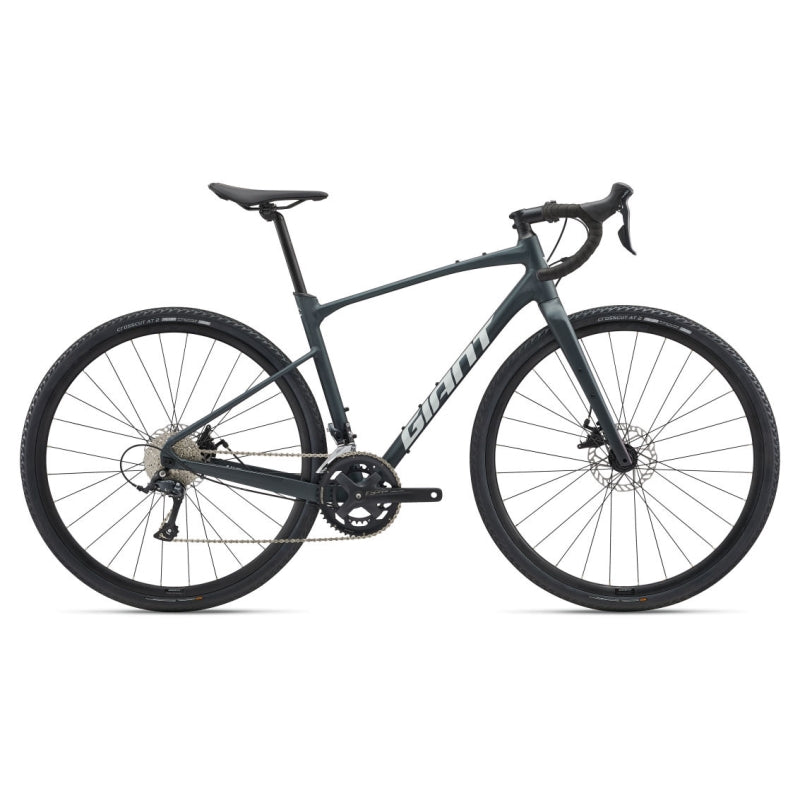

Giant 2025 Revolt 2

$1,648.00 $1,899.00
Colour
Size
Loading locations...

RIDE ROADS, GRAVEL OR DIRT WITH THIS VERSATILE ALUMINIUM ALL-ROUNDER. A COMPOSITE FORK GIVES IT A SMOOTH RIDE, AND A FLIP CHIP LETS YOU ADJUST WHEELBASE AND TYRE CLEARANCE.

KEY PERFORMANCE FACTORS

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

TECHS & FEATURES

×

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

×

D-FUSE TECHNOLOGY

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.absorbing road shocks and vibrations so you can ride further, faster.

READ MORE

×

FLIP CHIP - DROPOUT

Allows riders to quickly adjust the geometry and rear-wheel tyre clearance with eccentric, offset two-position hardware in the rear wheel dropouts.

READ MORE

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
Geometry Diagram
XS
S
M
ML
L
XL
A SEAT TUBE LENGTH (mm)
430
450
470
490
510
530
B SEAT TUBE ANGLE
74.0°
73.5°
73.5°
73.0°
73.0°
73.0°
C TOP TUBE LENGTH (mm)
540
550
560
575
585
600
D HEAD TUBE LENGTH (mm)
125
135
150
165
180
195
E HEAD TUBE ANGLE
70.0°
71.0°
71.5°
72.0°
72.0°
72.0°
F FORK RAKE (mm)
50
50
50
50
50
50
G TRAIL (mm)
78
82
72
75
68
72
H WHEELBASE (mm)
1029
1039
1030
1040
1045
1071
I CHAIN STAY LENGTH (mm)
430
440
440
440
440
440
J BOTTOM BRACKET DROP (mm)
80
81
80
81
81
81
K STACK (mm)
556
570
586
602
616
630
L REACH (mm)
381
381
387
391
397
407
M STAND OVER HEIGHT (mm)
717
724
734
752
769
793
O STEM LENGTH (mm)
50
60
70
80
80
90
P CRANK LENGTH (mm)
170
170
172.5
172.5
175
175
Q WHEEL SIZE
700C
700C
700C
700C
700C
700C
COLOURS
Asphalt Green
FRAME
ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
FORK
Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
HANDLEBAR
Giant Contact XR Ergo-Control, 31.8mm XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
GRIPS
Cork tape with gel
STEM
Giant Sport, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
SEATPOST
Giant D-Fuse, alloy, 14mm offset
SADDLE
Giant Approach
PEDALS
N/A
SHIFTERS
Shimano Sora, 2x9
FRONT DERAILLEUR
Shimano Sora
REAR DERAILLEUR
Shimano Sora, long cage
BRAKES
Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
BRAKE LEVERS
Shimano Sora
CASSETTE
Shimano HG400, 11x34
CHAIN
KMC X9
CRANKSET
FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
BOTTOM BRACKET
Cartridge
RIMS
Giant S-X2 Disc wheelset, alloy
HUBS
Giant alloy, 12mm thru-axle
SPOKES
Stainless
TIRES
Giant CrossCut AT 2, 700x38c, tubeless
EXTRAS
Tubeless prepared, 53mm max tyre size in 'long' flip chip position, 45mm max tyre size in 'short' flip chip position
MAX TIRE CLEARANCE
53mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
