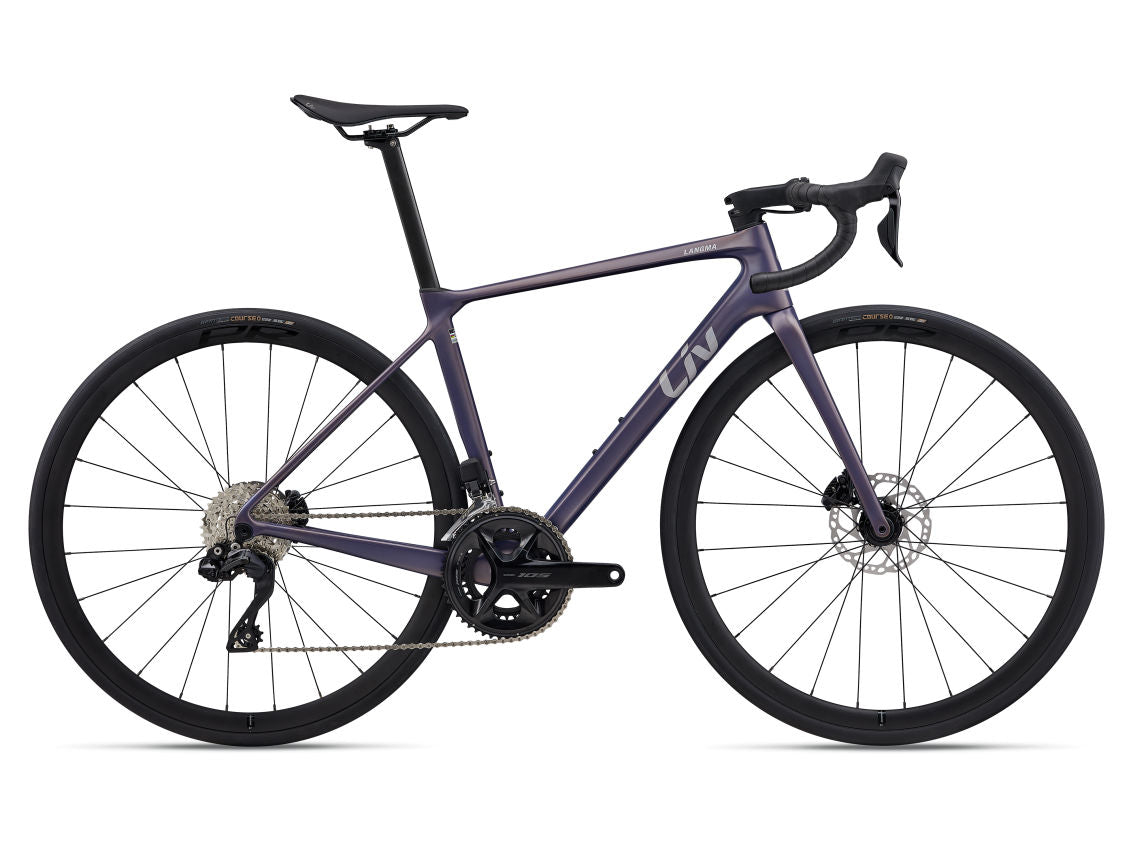

Liv 2026 Langma Advanced 1 PC

$4,999.00
Colour
Size
Loading locations...

THE OFFICIAL BIKE OF ROAD RIDING SEASON, THE LANGMA ADVANCED WAS DESIGNED TO CLIMB MOUNTAINS AND LEADERBOARDS. THE RE-ENGINEERED FRAMESET AND COMPONENTS ARE SEAMLESSLY INTEGRATED FOR EFFORTLESS ASCENTS AND FEARLESS DESCENTS. STREAMLINED AERODYNAMICS ROUND OUT THIS ALL-ROUNDER, INSPIRING YOU TO PUSH LIMITS ALL DAY LONG.

Key Performance Factors

QOM-Level Efficiency

The re-engineered frameset and integrated components yield efficient power transfer for quick bursts of speed and sustained climbing prowess.

Limit-Pushing Control

Up to 33mm tyre clearance means you’re ready for any road, from the freshly-poured to the weather-beaten, without compromising handling. The flared handlebar injects control and confidence into those explosive sprints and bomber descents.

Gap-Widening Aero

With truncated ellipse tube shapes and a new internal cable routing design, you’ll reduce drag, pick up speed, and watch the scenery fly by.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

×

COMPACT ROAD DESIGN

When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

×

POWERCORE

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

×

TUBELESS SYSTEM

Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
XS
S
M
ASEAT TUBE LENGTH (mm)
420
450
480
BSEAT TUBE ANGLE
75.0°
74.5°
74.0°
CTOP TUBE LENGTH (mm)
508
524
540
DHEAD TUBE LENGTH (mm)
120
135
155
EHEAD TUBE ANGLE
71.0°
72.0°
72.5°
FFORK RAKE (mm)
49
49
49
GTRAIL (mm)
68
61
58
HWHEELBASE (mm)
973
977
984
ICHAIN STAY LENGTH (mm)
405
405
405
JBOTTOM BRACKET DROP (mm)
72
70
70
KSTACK (mm)
517
532
553
LREACH (mm)
370
377
382
MSTAND OVER HEIGHT (mm)
707
736
763
OSTEM LENGTH (mm)
80
90
100
PCRANK LENGTH (mm)
165
170
170
SIZES
XS, S, M
COLOURS
Meteorite Mist
FRAME
Advanced-grade Composite, 12x142mm thru-axle, disc
FORK
Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
SHOCK
N/A
HANDLEBAR
Liv Contact XS:36cm, S:38cm, M:40cm
GRIPS
Liv Stratus Elite 2.0
STEM
Giant Contact AeroLight XS:80mm, S:90mm, M:100mm
SEATPOST
Giant Variant, composite, -5/+15mm offset
SADDLE
Liv Approach
PEDALS
N/A
SHIFTERS
Shimano 105 Di2
FRONT DERAILLEUR
Shimano 105 Di2 FD-R7150
REAR DERAILLEUR
Shimano 105 Di2 RD-R7150
BRAKES
Shimano 105 Di2 hydraulic, Shimano SM-RT64 rotors, [F]160mm, [R]140mm
BRAKE LEVERS
Shimano 105 Di2
CASSETTE
Shimano 105, 12-speed, 11x34
CHAIN
KMC X12L-1
CRANKSET
Shimano 105, 36/52 XS:165mm, S:165mm, M:170mm
BOTTOM BRACKET
Shimano, press fit
RIMS
Giant P-R1, [F]30mm, [R]30mm
HUBS
12mm thru-axle
SPOKES
Sapim
TYRES
Giant Gavia Course 0, tubeless, 700x28c, folding
EXTRAS
Tubeless prepared, 33mm max tyre size
MAX TYRE CLEARANCE
33mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
