Giant Trance X Advanced E+ Elite 2 2024

$6,899.00 $9,999.00
Colour
Size
Loading locations...

Conquer climbs, crush descents, and glide over technical terrain with confidence. This lightweight, full-suspension E-MTB delivers the power you need and the agility you’ve always wanted. Featuring an ultra-slim battery that keeps weight to a minimum, it lets you ride faster, longer, and with more control than ever before. Whether you're climbing steep switchbacks or navigating rock gardens, this bike turns every trail into your playground.

ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, AND EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. THE ULTRA-SLIM BATTERY MINIMIZES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.

KEY PERFORMANCE FACTORS

Lighter Weight
The EnergyPak 400 battery system is ultra slim, delivering all the power you need in a smaller package that’s cleanly integrated into the lightweight composite frameset.

Advanced Cockpit Control
The RideControl Ergo 3 remote attaches to the composite Giant Contact handlebar. It can be mounted to either side, giving you a clean, customizable, and clutter-free cockpit.

More Power

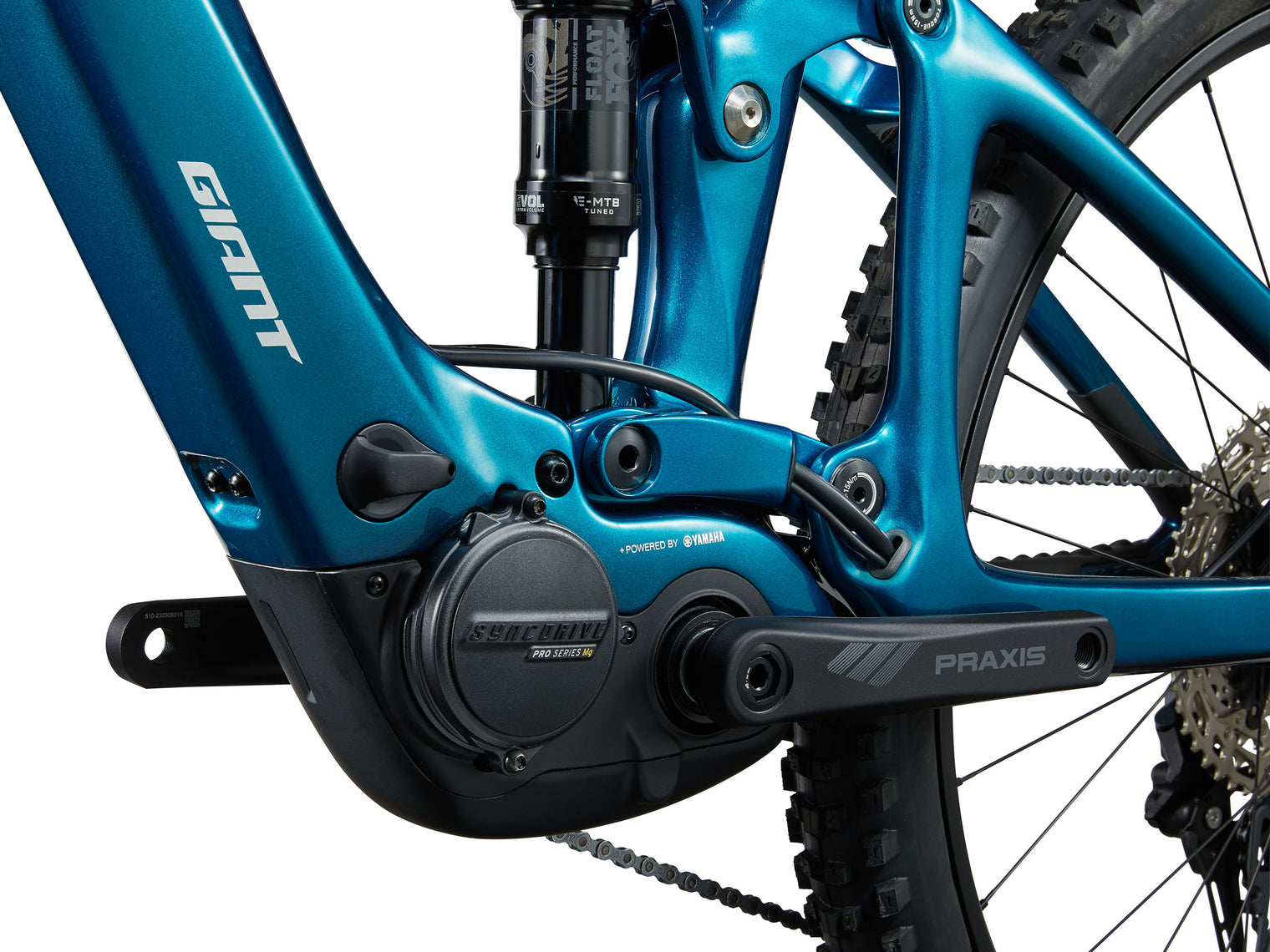

The new SyncDrive Pro Magnesium motor features a lightweight 2.5kg magnesium casing and delivers 85Nm of torque. It’s engineered for quiet performance and instant, responsive power.

TECHS & FEATURES

×

This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.

READ MORE

×

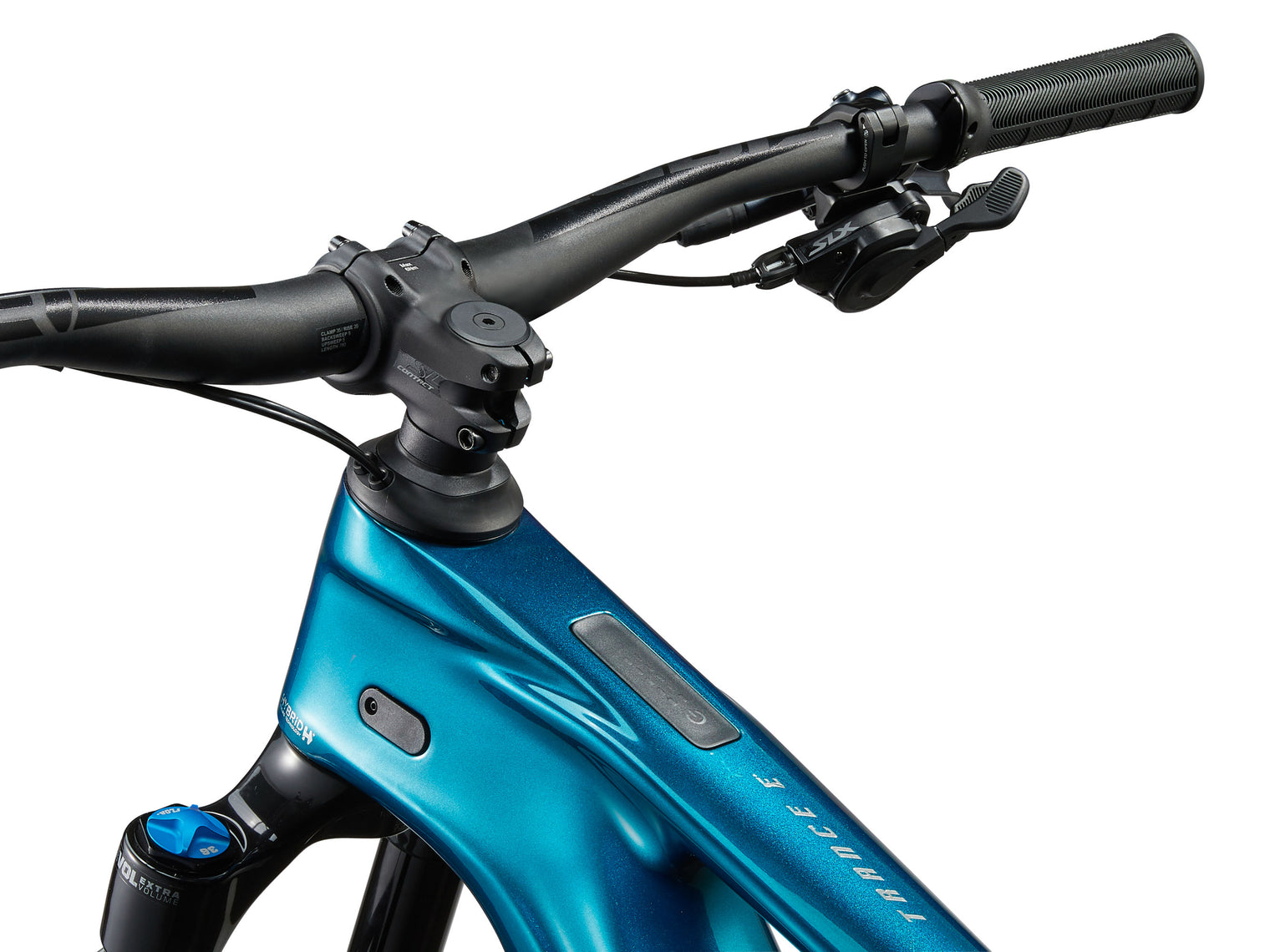

Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Coloured LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

READ MORE

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

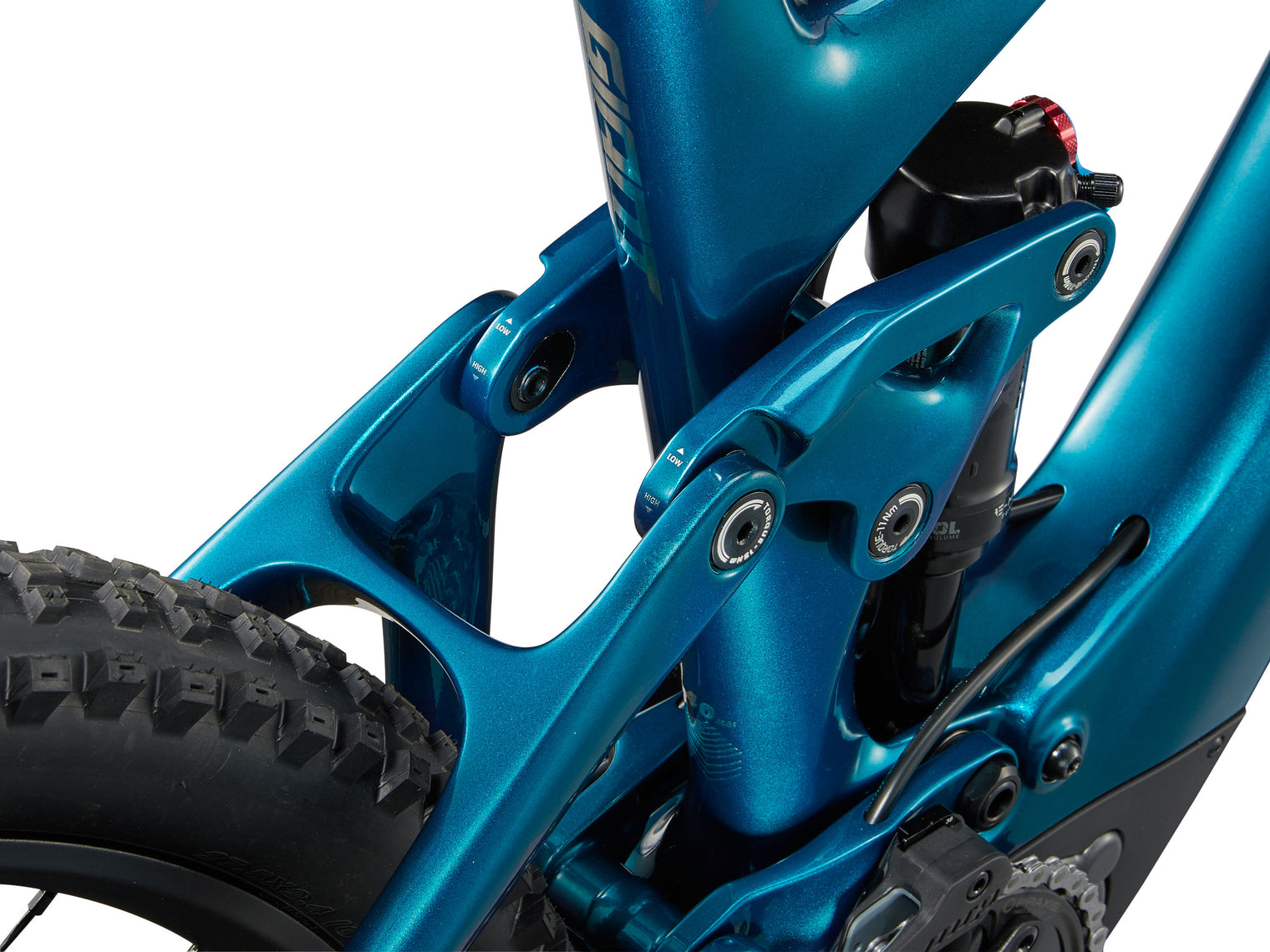

A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.

×

ENERGYPAK

Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimise the E-bike experience for a specific style of riding.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
LOW HIGH
M
LOW HIGH
L
LOW HIGH
XL
LOW HIGH
A SEAT TUBE LENGTH (mm)
400
425
450
475
A1 SEAT POST INSERTION DEPTH (mm)
220
245
270
295
B SEAT TUBE ANGLE
77.2° 78.0°
76.0° 76.7°
76.0° 76.7°
76.0° 76.7°
C TOP TUBE LENGTH (mm)
577 575
607 605
636 634
665 663
D HEAD TUBE LENGTH (mm)
95
100
115
130
E HEAD TUBE ANGLE
65.7° 66.5°
65.8° 66.5°
65.8° 66.5°
65.8° 66.5°
F FORK RAKE (mm)
44
44
44
44
G TRAIL (mm)
113.1 108
113.1 108
113.1 108
113.1 108
H WHEELBASE (mm)
1194 1195
1215 1212
1244 1244
1275 1275
I CHAIN STAY LENGTH (mm)
447 447
447 447
447 447
447 447
J BOTTOM BRACKET DROP (mm)
10
10
10
10
K STACK (mm)
607 601
611 605
625 619
639 633
L REACH (mm)
439 447
457 462
480 487
505 513
M STAND OVER HEIGHT (mm)
726 735
733 742
732 741
741 750
O STEM LENGTH (mm)
40
40
50
50
P CRANK LENGTH (mm)
160
165
165
170
Q WHEEL SIZE
[F]29"[R]27.5"
[F]29"[R]27.5"
[F]29"[R]27.5"
[F]29"[R]27.5"
HANDLEBAR
Giant Contact SL 35 Trail, 35
SADDLE
Giant Romero
SEATPOST
TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm
STEM
Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:50mm
BRAKE LEVERS
Shimano SLX, I-spec EV
BRAKES
Shimano SLX, BR-M7120, 4-piston, hydraulic disc
BRAKES ROTOR
203mm [F/R]
CASSETTE
Shimano, CS-M6100, 10-51T, 12-speed
CHAIN
KMC e.12 Turbo, EcoProteq, e-bike optimized
CRANKSET
Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 165mm, L:165mm, XL:170mm
FRONT DERAILLEUR
MRP HD2 co-moulded chain guide
REAR DERAILLEUR
Shimano SLX, 12-speed, Shadow+
SHIFTERS
Shimano SLX
BATTERY
EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
DISPLAY
RideControl GO, frame integrated LED display ANT+ Wireless display compatible
DISPLAY/CONTROLLER
RideControl Ergo 3, grip integrated
E MOTOR
Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
E MOTOR CHARGER
EnergyPak 4A smart charger compact
LIGHTS
Optional:- Giant Recon series e-bike lights available and direct connectable
FORK
Fox 36 Float Performance Elite, 150mm travel, 44mm offset, GRIP 3-position Micro Adjust damper, Boost 110x15QR, e-bike optimised
FRAME
Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
SHOCK
Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, custom tuned
EXTRAS
Tubeless kit (liquid, valves, levers)
FRONT TYRE
Maxxis Minion DHF 29X2.50 Foldable, TLR, EXO
HUBS
Giant TRA, E-Drive 260Nm 6-Pawl Driver, 72T engagement, MicroSpline body, 110 x 15 [F], 148 x 12 [R] Thru-axle
REAR TYRE
Maxxis Dissector 27.5x2.4 Foldable, TLR, EXO
RIMS
Giant TRA, Hookless Clincher, 30mm inner width, Hollow Side-Wall Design for improved strength and flat protection
SPOKES
Sapim E-Lite [R] Race [F], e-bike optimised
