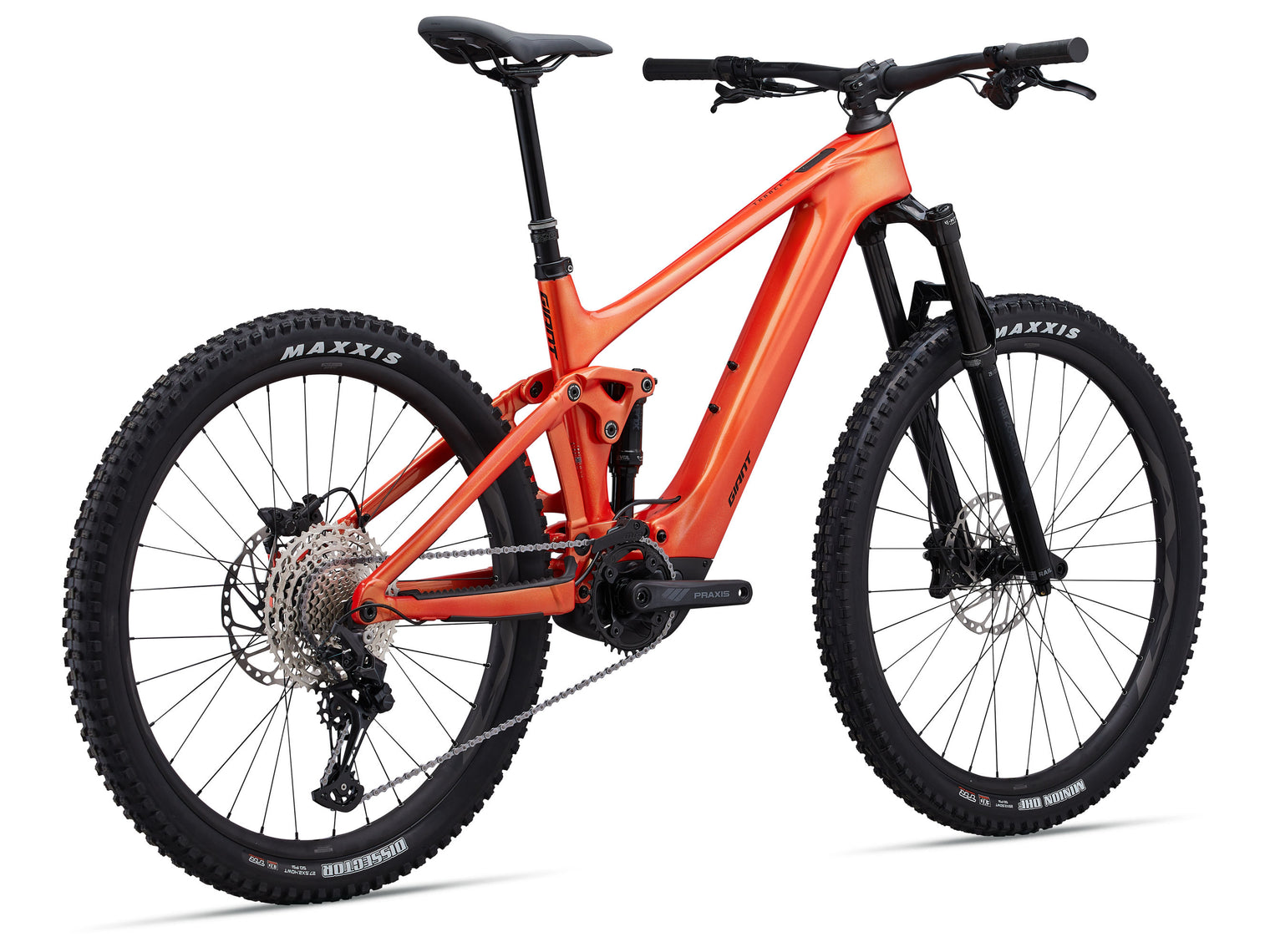

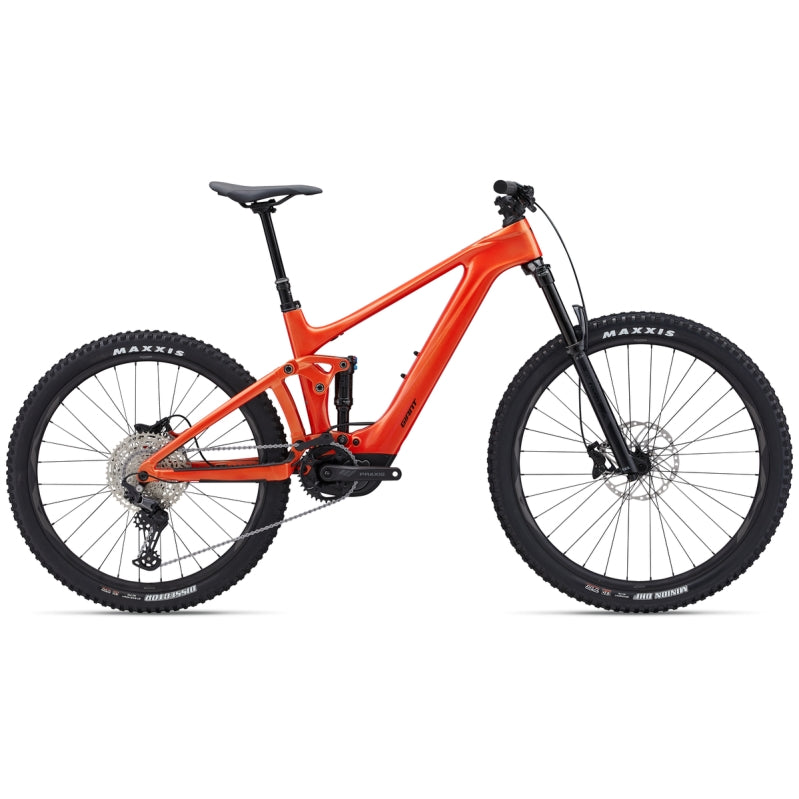

Giant Trance X Advanced E+ Elite 3 2024

$6,299.00 $8,999.00
Colour
Size
Loading locations...

ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, AND EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. THE ULTRA-SLIM BATTERY MINIMIZES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.

KEY PERFORMANCE FACTORS

Lighter Weight
The EnergyPak 400 battery system is ultra slim, delivering all the power you need in a smaller package that’s cleanly integrated into the lightweight composite frameset.

Advanced Cockpit Control
The RideControl Ergo 3 remote attaches to the composite Giant Contact handlebar. It can be mounted to either side for a clean, customizable, uncluttered cockpit.

More Power
The new SyncDrive Pro Magnesium motor features a lightweight 2.5kg casing that delivers 85Nm of torque. It provides instant engagement and a quieter ride thanks to reduced noise engineering.

RANGE

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorised as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

TECHS & FEATURES

×

This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.

READ MORE

×

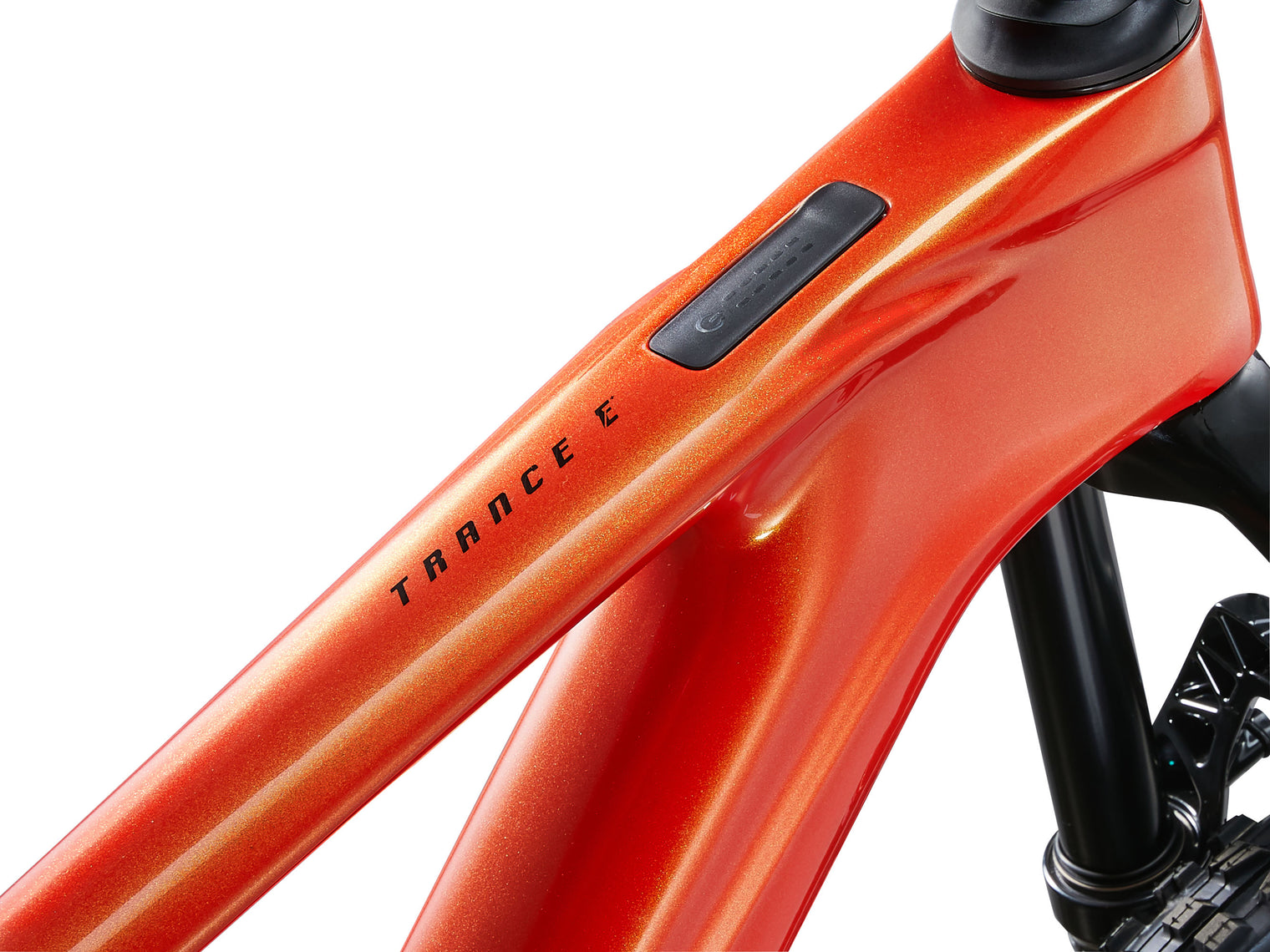

Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Coloured LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

READ MORE

×

SYNCDRIVE PRO

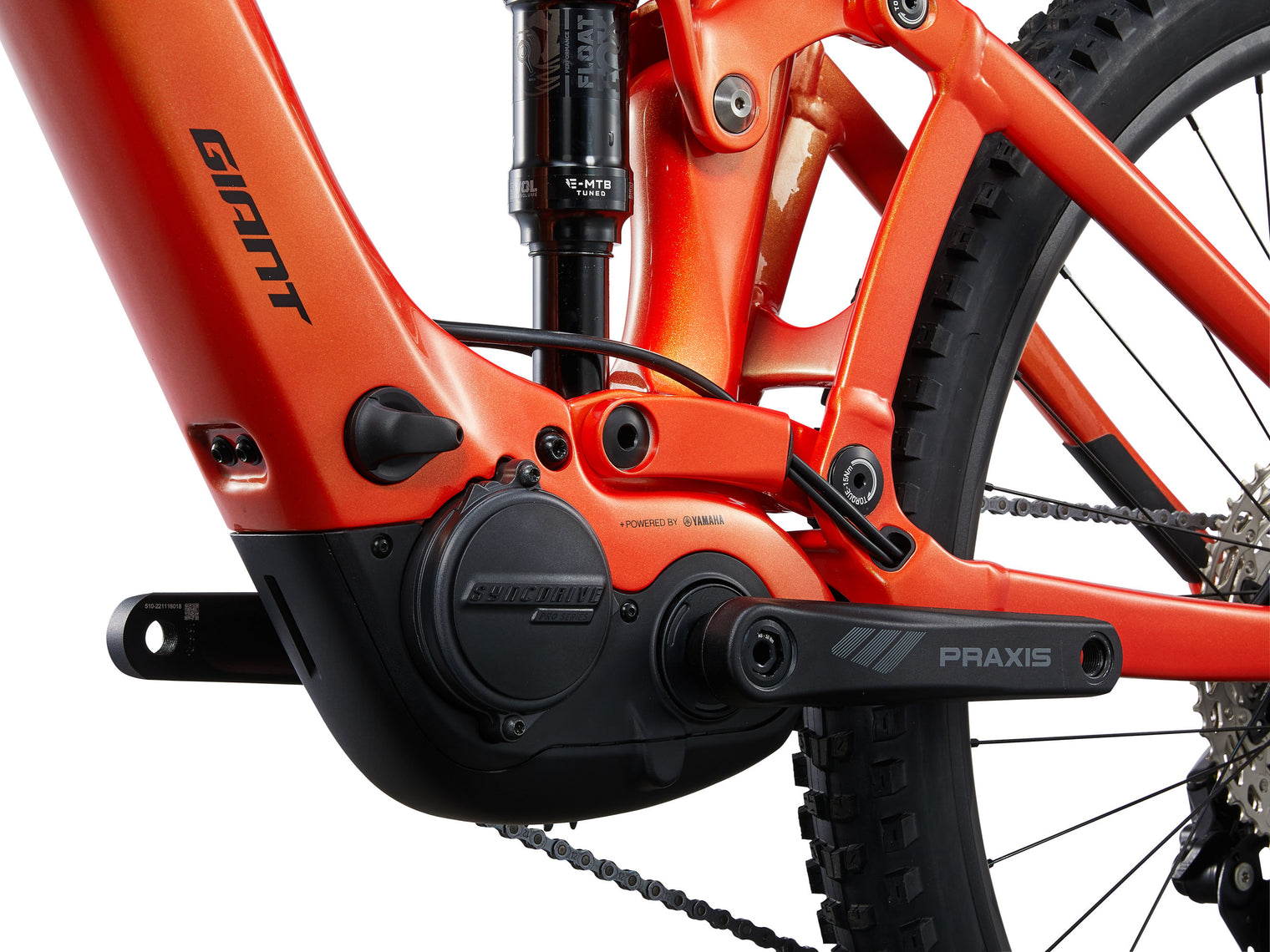

SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact SyncDrive Pro motor is used primarily on Giant’s high-performance models.

Read more

×

ENERGYPAK

Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimise the E-bike experience for a specific style of riding.

READ MORE

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
LOW HIGH
M
LOW HIGH
L
LOW HIGH
XL
LOW HIGH
A SEAT TUBE LENGTH (mm)
400
425
450
475
A1 SEAT POST INSERTION DEPTH (mm)
220
245
270
295
B SEAT TUBE ANGLE
77.2° 78.0°
76.0° 76.7°
76.0° 76.7°
76.0° 76.7°
C TOP TUBE LENGTH (mm)
577 575
607 605
636 634
665 663
D HEAD TUBE LENGTH (mm)
95
100
115
130
E HEAD TUBE ANGLE
65.7° 66.5°
65.8° 66.5°
65.8° 66.5°
65.8° 66.5°
F FORK RAKE (mm)
44
44
44
44
G TRAIL (mm)
113.1 108
113.1 108
113.1 108
113.1 108
H WHEELBASE (mm)
1194 1195
1215 1212
1244 1244
1275 1275
I CHAIN STAY LENGTH (mm)
447 447
447 447
447 447
447 447
J BOTTOM BRACKET DROP (mm)
10
10
10
10
K STACK (mm)
607 601
611 605
625 619
639 633
L REACH (mm)
439 447
457 462
480 487
505 513
M STAND OVER HEIGHT (mm)
726 735
733 742
732 741
741 750
O STEM LENGTH (mm)
40
40
50
50
P CRANK LENGTH (mm)
160
165
165
170
Q WHEEL SIZE
[F]29"[R]27.5"
[F]29"[R]27.5"
[F]29"[R]27.5"
[F]29"[R]27.5"
HANDLEBAR
Giant Contact SL 35 Trail, 35mm
SADDLE
Giant Romero
SEATPOST
TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm
STEM
Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:50mm
BRAKE LEVERS
Shimano Deore, I-spec EV
BRAKES
Shimano BR-MT420, 4-piston, hydraulic disc
BRAKES ROTOR
203mm [F/R]
CASSETTE
Shimano CS-M6100-12, 10-51T, 12-speed
CHAIN
KMC e.12 Turbo, EcoProteq, e-bike optimised
CRANKSET
Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 165mm, L:165mm, XL:170mm
FRONT DERAILLEUR
MRP HD2 co-moulded chain guide
REAR DERAILLEUR
Shimano Deore 12-speed, Shadow+
SHIFTERS
Shimano Deore
BATTERY
EnergyPak Smart 400Wh EnergyPak Plus
DISPLAY
RideControl GO, frame integrated LED display ANT+ Wireless display compatible
DISPLAY/CONTROLLER
RideControl Ergo 3, grip integrated
E MOTOR
SyncDrive Pro2, 85Nm, powered by Yamaha
E MOTOR CHARGER
EnergyPak 4A smart charger compact
RANGE EXTENDER
Range extender compatible
FORK

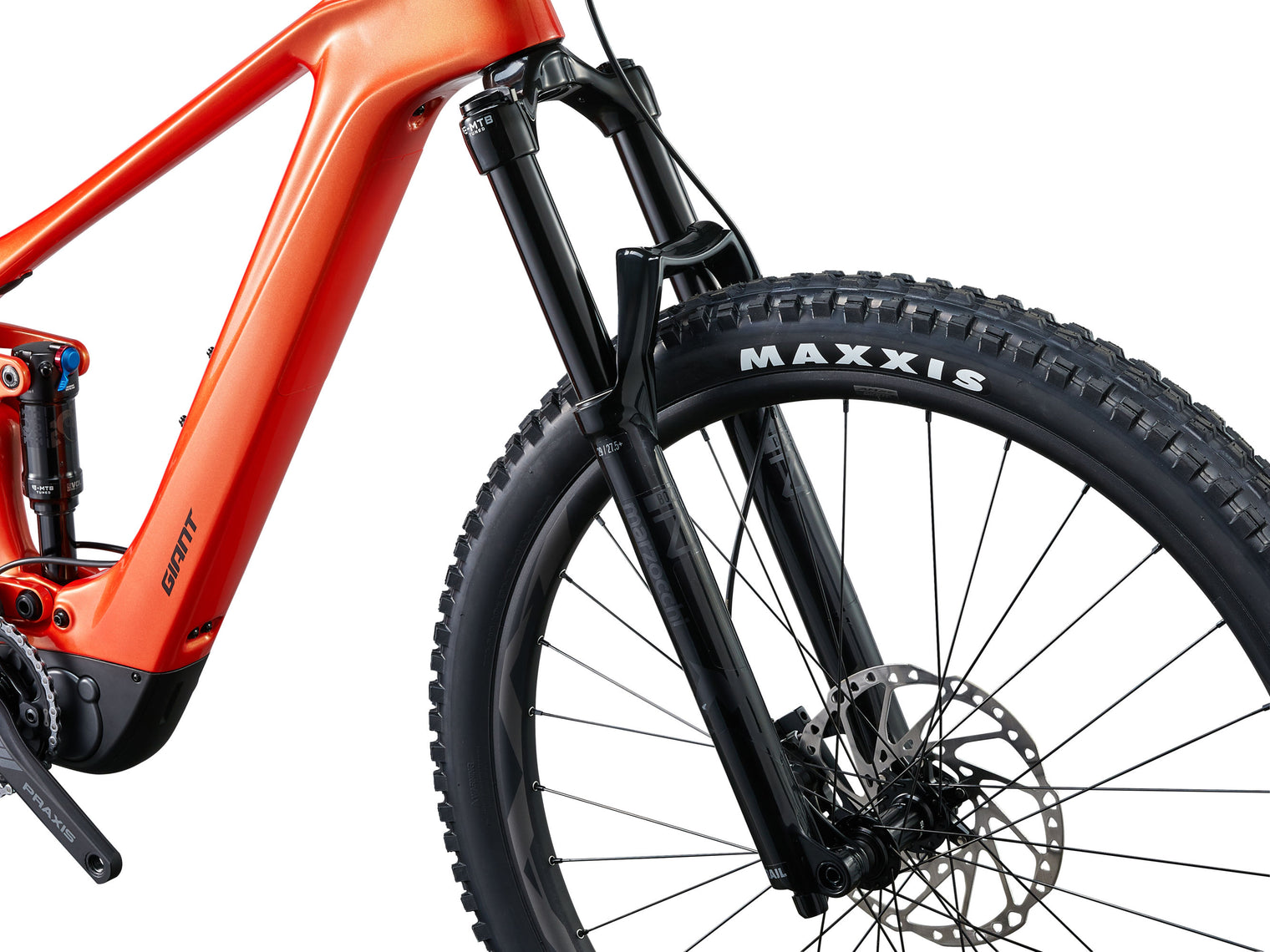

Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
FRAME

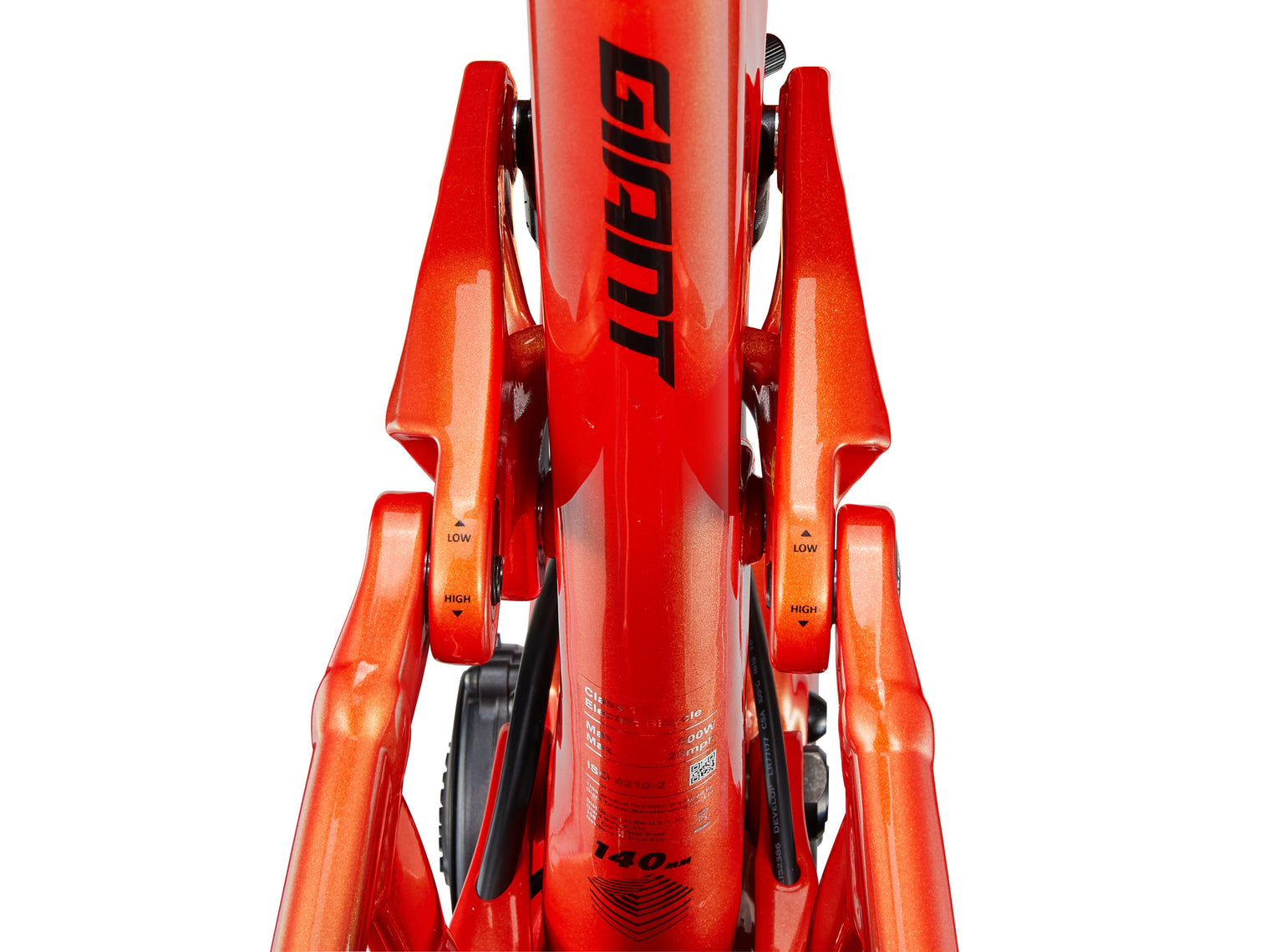

Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, 140mm Maestro suspension, flip chip, UDH hanger 12x148mm thru-axle
SHOCK

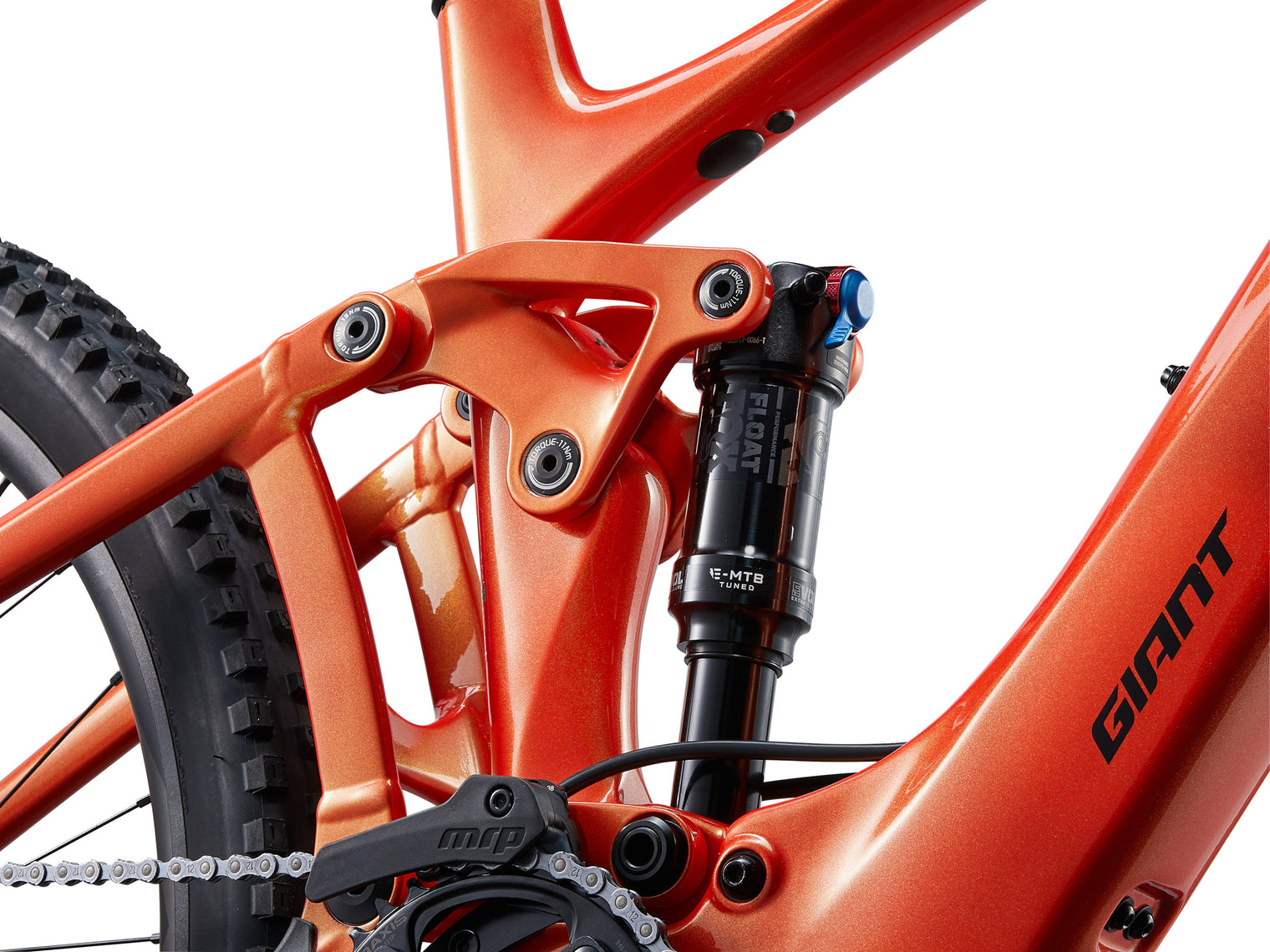

Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
EXTRAS
Tubeless kit (liquid, valves, levers)
FRONT TYRE
Maxxis Minion DHF 29X2.50 Foldable, TLR, EXO
HUBS
Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
REAR TYRE
Maxxis Dissector 27.5x2.4 Foldable, TLR, EXO
RIMS
Giant AM30, Tubeless ready, 30mm inner width, 29 inch [F] / 27.5 inch [R]
SPOKES
Sapim, e-bike optimised
