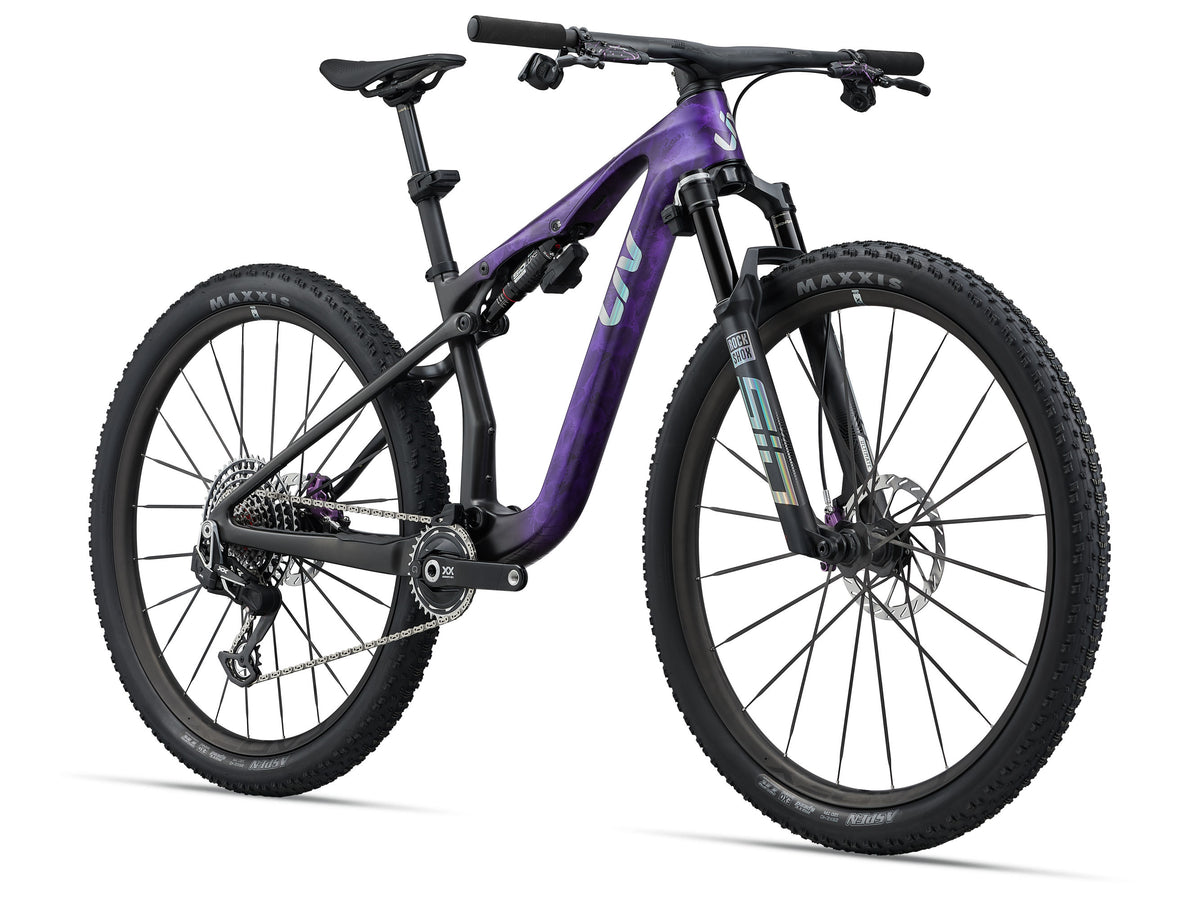

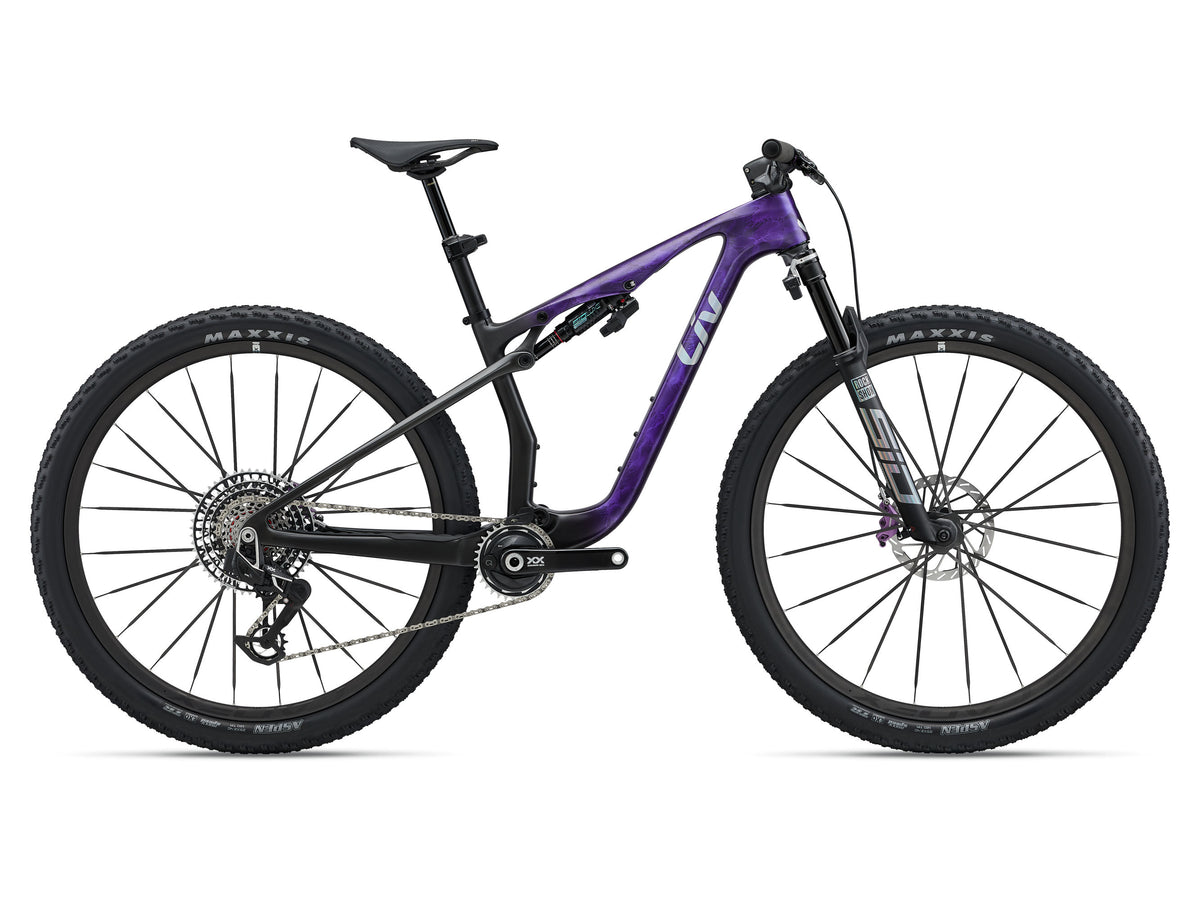

Liv 2027 Pique Advanced SL SE

$18,999.00

Colour

Stella Storm

Size

X-SMALL SMALL MEDIUM

Product variants

Loading locations...

geometry

specs

highlights

Built for speed

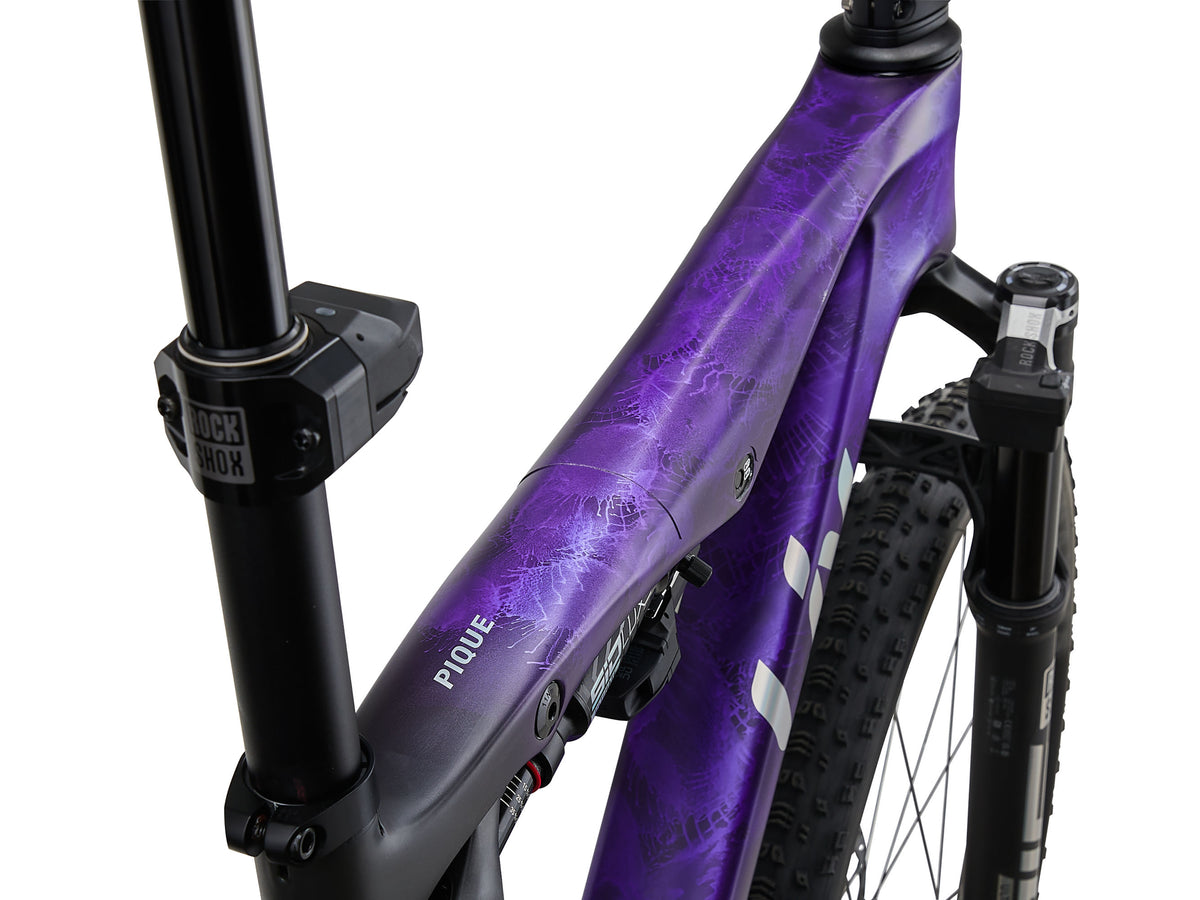

The Advanced SL-grade composite frame is the lightest we've ever designed, achieving exceptional stiffness-to-weight so every pedal stroke returns power almost effortlessly, for swift and decisive acceleration and climbing. Tuned specifically for XC racing, FlexPoint Pro Suspension is light, compact, and semi-integrated into the top tube, for a sleek profile and efficient pedaling performance.

Built for performance

The Pique Advanced SL SE is designed as a single optimized system. The one-piece handlebar-stem with fully integrated cable routing keeps things light, clean, and responsive. The all-new, race-engineered CADEX Max XC WheelSystem is both light and strong, featuring fully integrated hub-and-spoke construction, 120-tooth Helical-Bevel Ratchet Drive and 5 mm Wide Guard hookless rim beads for immediate power transfer, precise handling, and race-ready durability.

Built for results

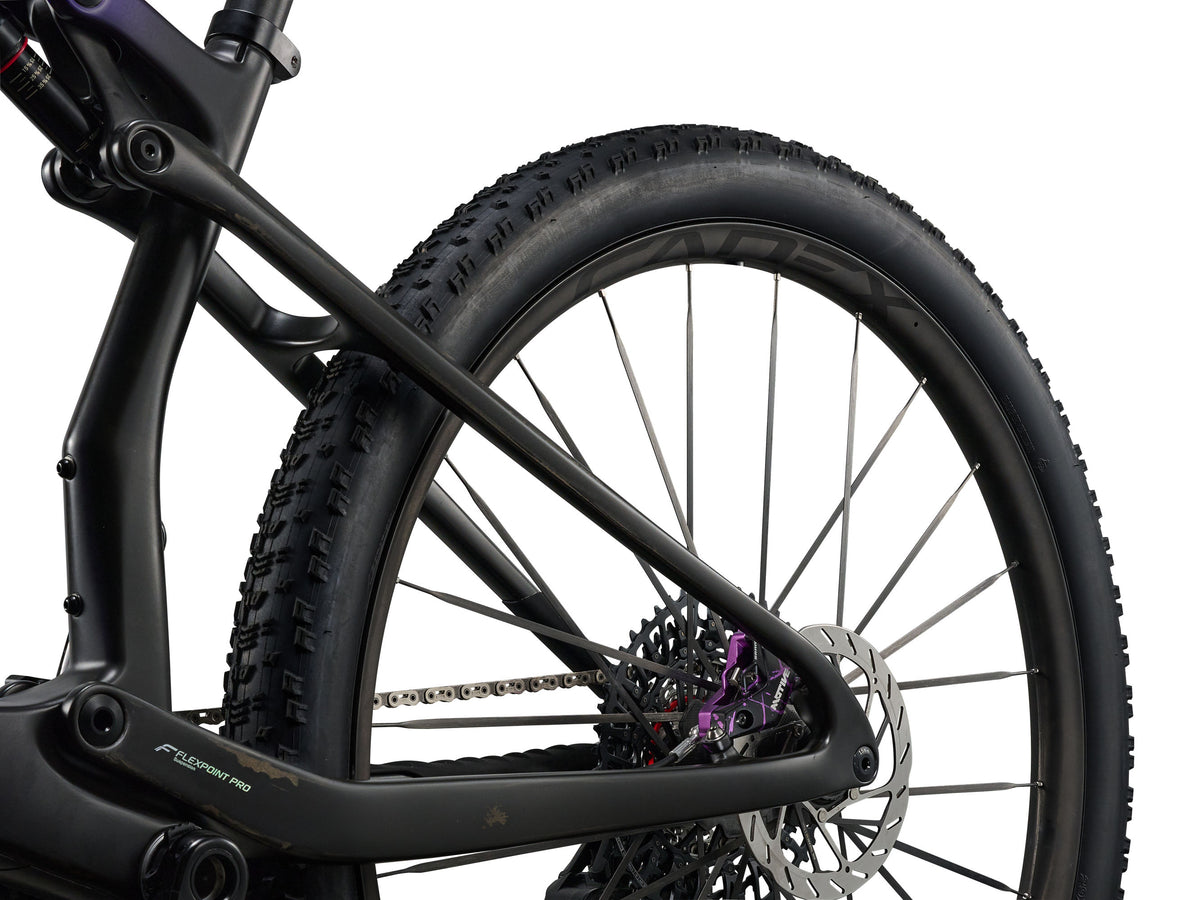

The FlexPoint Pro suspension system offers 120mm of smooth, active rear-wheel travel, paired with a 120mm fork, giving you the control and stability you need when things get technical. RockShox Flight Attendant automatically optimizes your suspension settings on the fly—from open to pedal to lock —so you can stay focused on your next move. The two-position flip chip lets you adjust your geometry for that day's course and how you plan to attack it.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

150 cm

163 cm

158 cm

169 cm

164 cm

175 cm

	XS LOW / HIGH	S LOW / HIGH	M LOW / HIGH
A SEAT TUBE LENGTH	400 / 400	410 / 410	440 / 440
B SEAT TUBE ANGLE	75.5° / 76.0°	75.5° / 76.0°	75.5° / 76.0°
C TOP TUBE LENGTH	555 / 554	571 / 571	594 / 593
D HEAD TUBE LENGTH	90 / 90	95 / 95	105 / 105
E HEAD TUBE ANGLE	66.5° / 67.0°	66.5° / 67.0°	66.5° / 67.0°
F FORK RAKE	44 / 44	44 / 44	44 / 44
G TRAIL	116 / 112	116 / 112	116 / 112
H WHEELBASE	1121 / 1120	1138 / 1136	1162 / 1162
I CHAIN STAY LENGTH	437 / 435	437 / 435	437 / 435
J BOTTOM BRACKET DROP	51 / 45	51 / 45	51 / 45
K STACK	602 / 589	607 / 603	616 / 612
L REACH	398 / 405	415 / 421	435 / 440
M STAND OVER HEIGHT	772 / 770	770 / 770	765 / 765
N STEM LENGTH	60 / 60	60 / 60	70 / 70
O CRANK LENGTH	165 / 165	170 / 170	170 / 170

Sizes	XS, S, M
Colours	Stella Storm

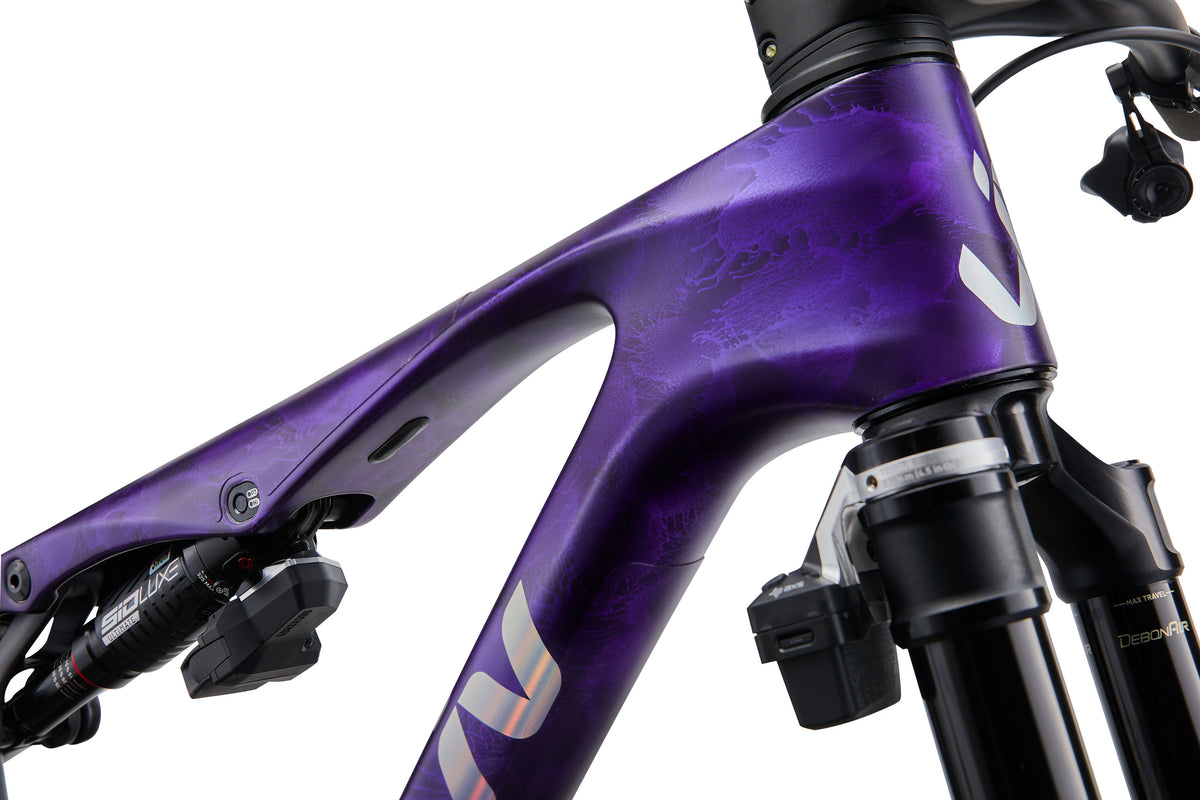

Frame	Advanced SL-grade composite front and rear triangles, UDHL, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle

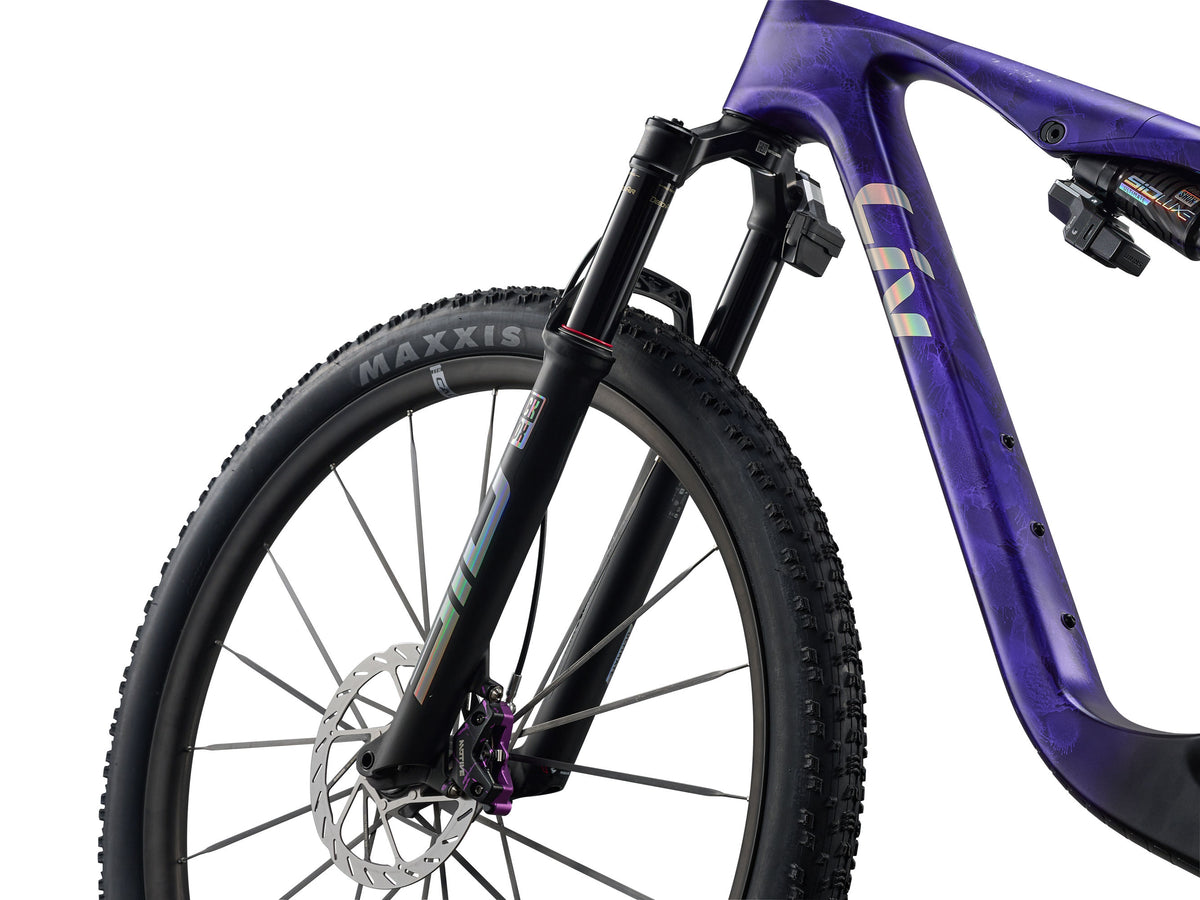

Fork	RockShox SID Flight Attendant XC, 120mm, Race Day damper, Boost 15x110 thru-axle, 44mm offset

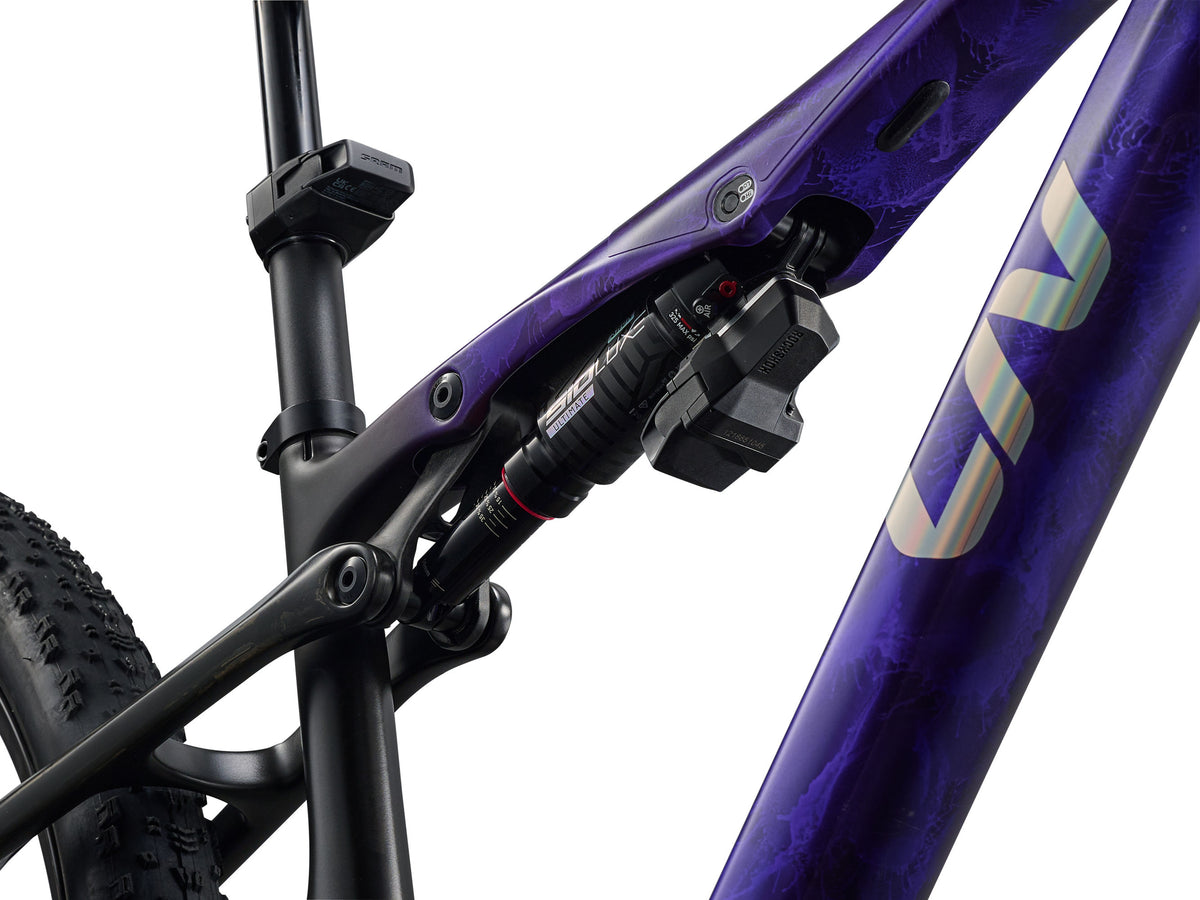

Shock	RockShox SIDLuxe Flight Attendant, RL3 damper, Solo Air

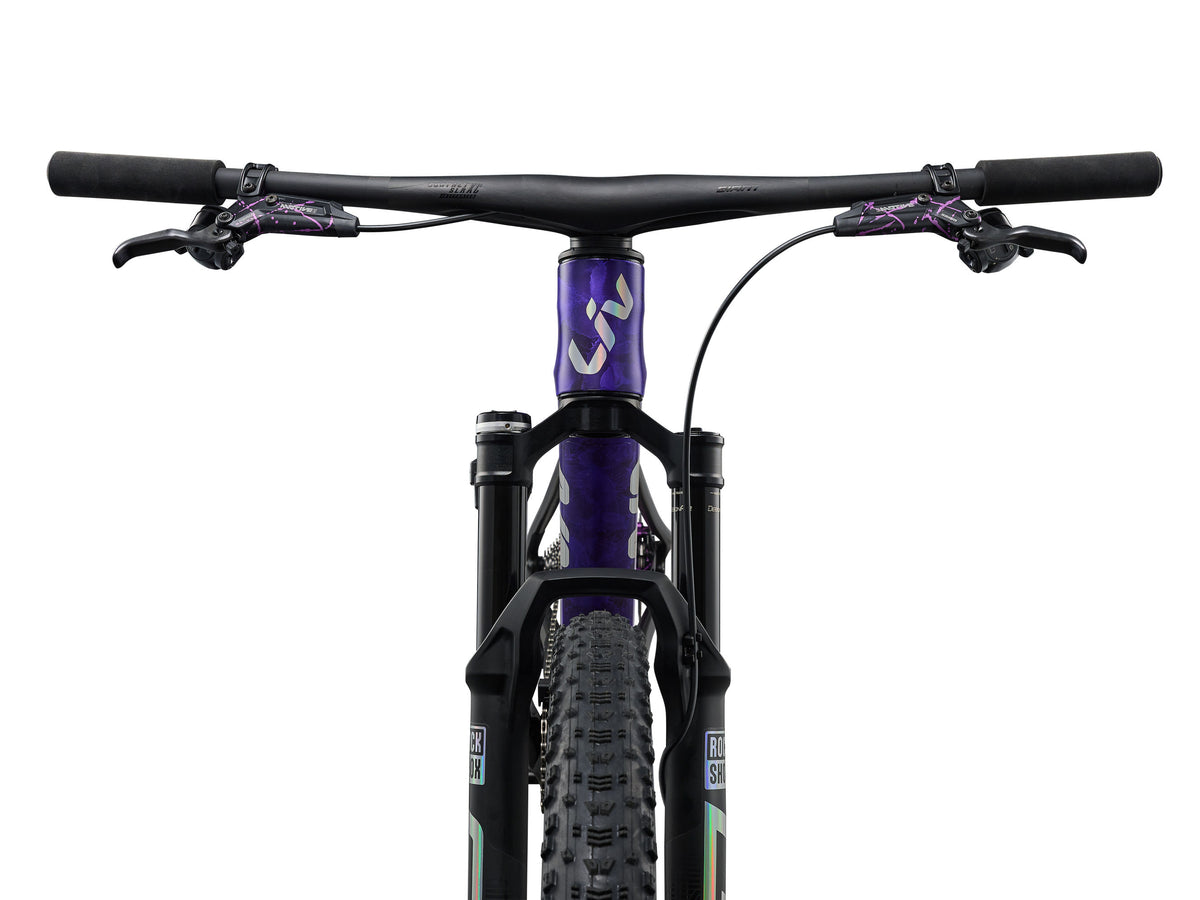

Handlebar	Giant Contact SLR Integrated XC, carbon, 9-degree upsweep
Grips	Liv XC Pro, silicone
Stem	Giant Contact SLR Integrated XC XS:60mm, S:60mm, M:70mm
Seatpost	RockShox Reverb AXS XS: 100mm travel / 30.9 x 337mm S: 100mm travel / 30.9 x 337mm M: 100mm travel / 30.9 x 337mm
Saddle	Liv Grit SLR
Pedals	N/A
Shifters	SRAM AXS Pod, Rocker Paddle, 1x12
Front Derailleur	N/A

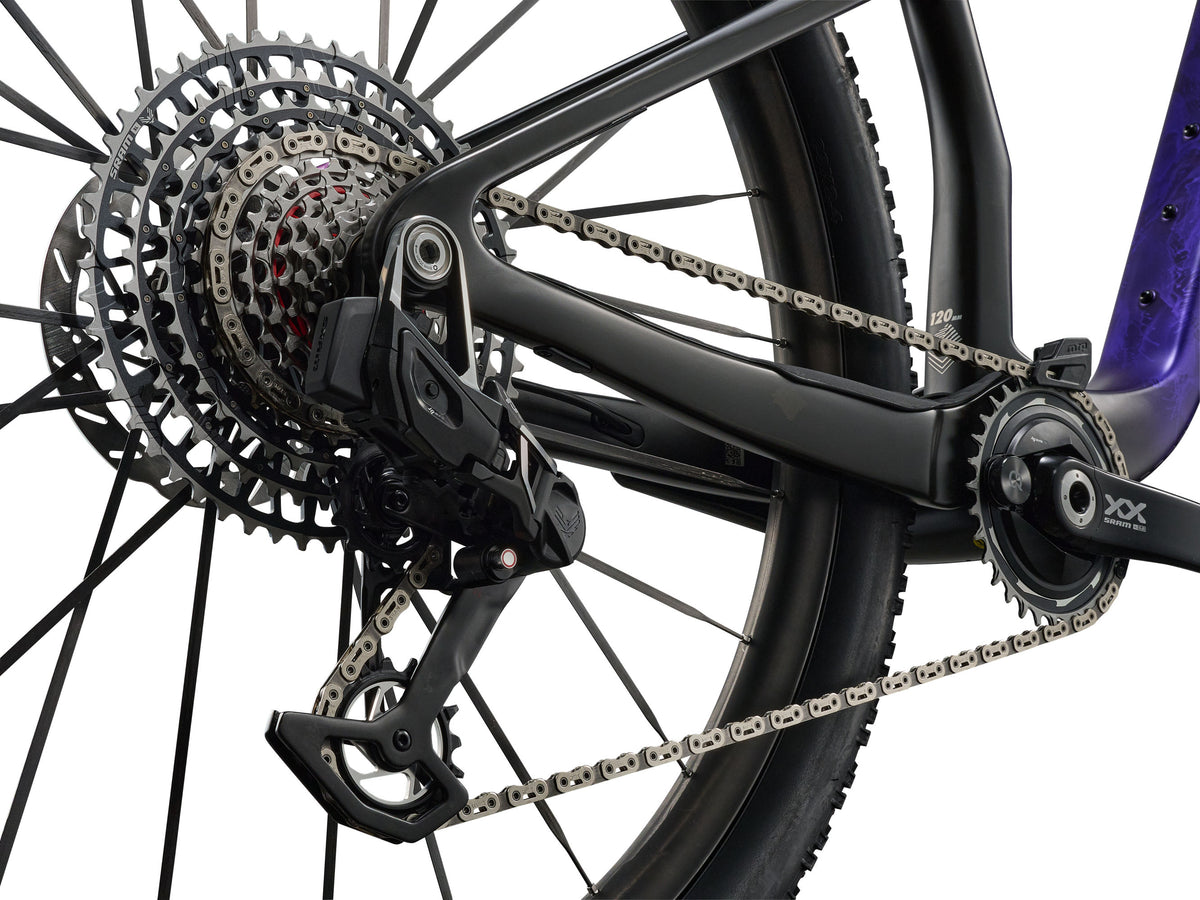

Rear Derailleur	SRAM XX SL Eagle Transmission AXS
Brakes	SRAM Motive ULT, hydraulic, SRAM HS2 rotors [F]180mm, [R]160mm

Brake Levers	SRAM Motive ULT
Cassette	SRAM XS-1299, Eagle Transmission 10-52T
Chain	SRAM XX SL Transmission
Crankset	SRAM XX SL Eagle Transmission with Quarq Power meter, 32t, 55mm chainline XS:165mm, S:170mm, M:170mm
Bottom Bracket	SRAM DUB, press fit

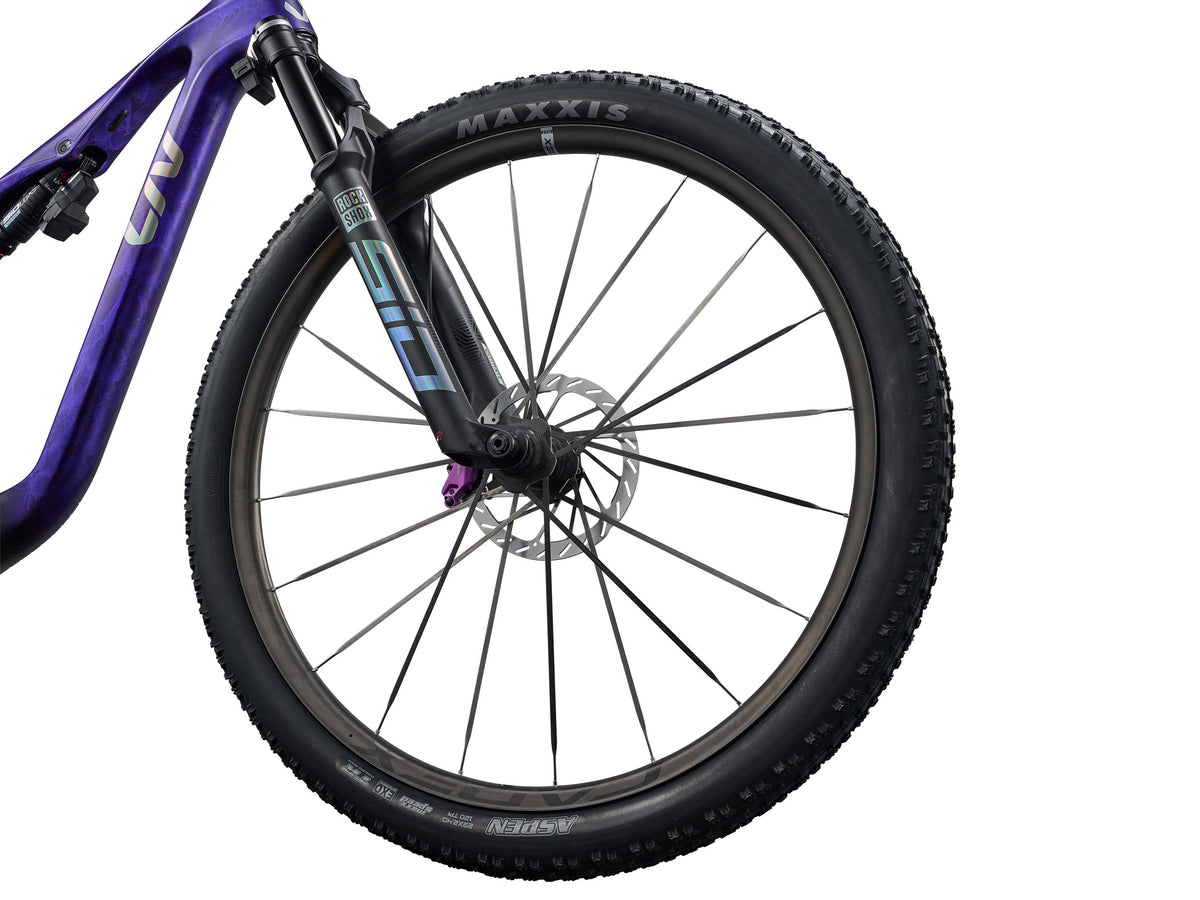

Rims	CADEX Max XC, Hookless Tubeless ready Carbon, 29", 30mm inner width
Hubs	[F] CADEX M1-C hub, CenterLock, Ceramic bearings, 20H [R] CADEX M1-C120 Hub, 120T Helical-Bevel Ratchet Driver, CenterLock, Ceramic bearings, 24H
Spokes	CADEX Super Aero Carbon Spoke
Tyres	Maxxis Aspen 29x2.4, foldable, 120tpi, MaxxSpeed, EXO, tubeless
Extras	Tubeless prepared, 2.4" max tyre size, 34t max chainring size, MRP 1x SL TR2 chain guide
Weight	The most accurate way to determine any bike's weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.

KEY PERFORMANCE FACTORS

Built for speed

The Advanced SL-grade composite frame is the lightest we’ve ever designed, achieving exceptional stiffness-to-weight so every pedal stroke returns power almost effortlessly, for swift and decisive acceleration and climbing. Tuned specifically for XC racing, FlexPoint Pro Suspension is light, compact, and semi-integrated into the top tube, for a sleek profile and efficient pedaling performance.

Built for performance

Built for results

The FlexPoint Pro suspension system offers 120mm of smooth, active rear-wheel travel, paired with a 120mm fork, giving you the control and stability you need when things get technical. RockShox Flight Attendant automatically optimizes your suspension settings on the fly—from open to pedal to lock—so you can stay focused on your next move. The two-position flip chip lets you adjust your geometry for that day’s course and how you plan to attack it.
