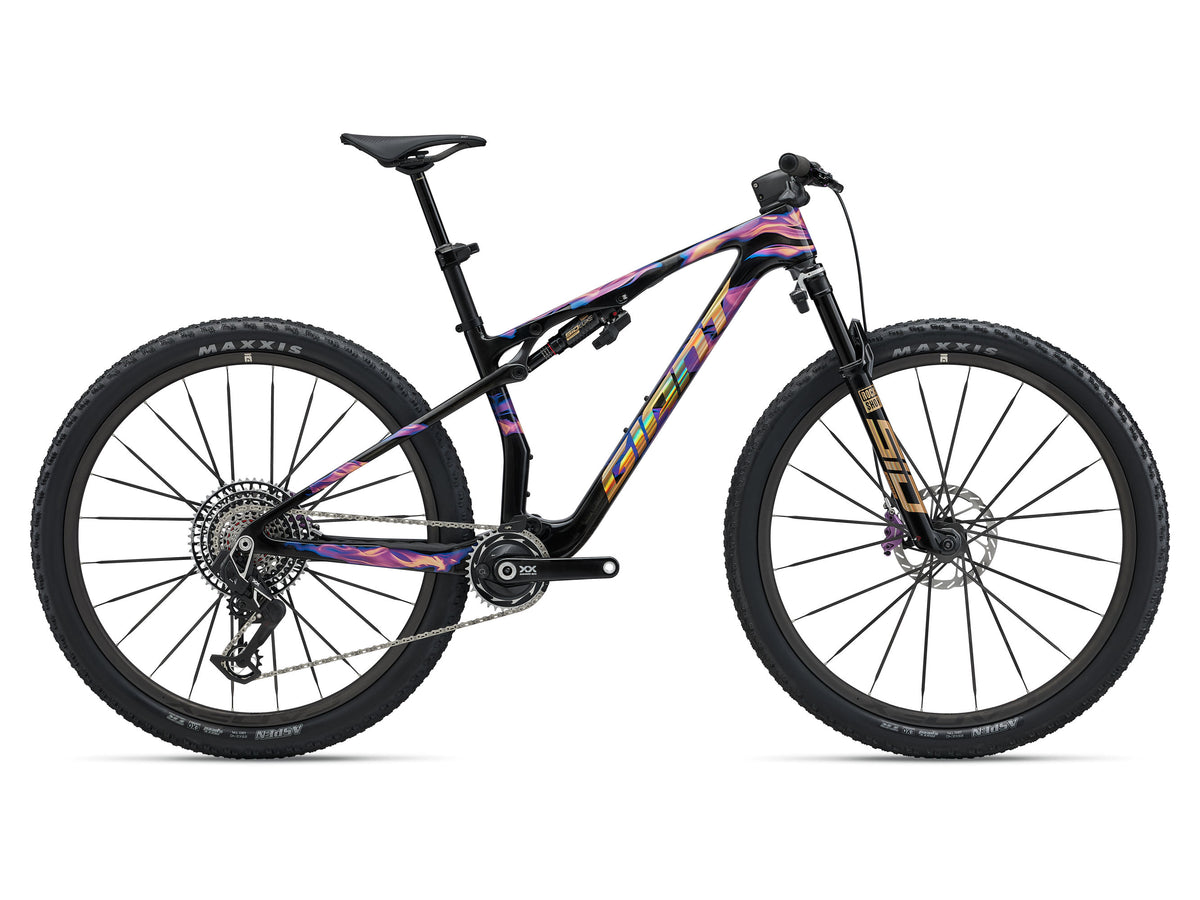

Giant 2027 Anthem Advanced SL SE

$18,999.00

Colour

Stormfire Sprint

Size

SMALL MEDIUM

Product variants

Loading locations...

geometry

specs

highlights

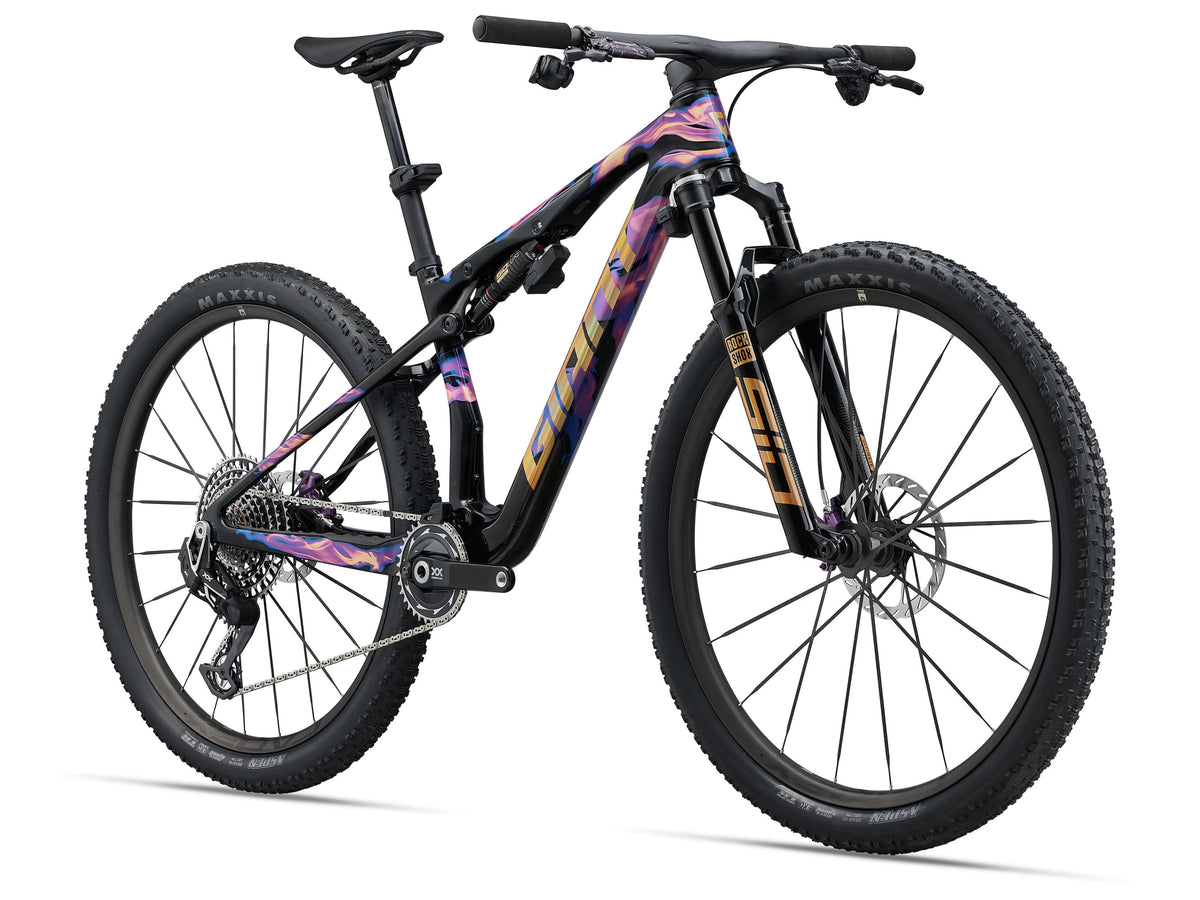

This superlight XC flyer, a proven winner with World Championship and World Cup wins to its name, is engineered with a semi-integrated 120mm FlexPoint Pro rear suspension system and adjustable geometry for any XC terrain. With an all-new CADEX Max XC WheelSystem and limited-edition, race-inspired graphics across the frame, fork and shock, it’s pure inspiration for your podium pursuits.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

cm feet

163 cm 5'4" 172 cm 5'8"

171 cm 5'7" 180 cm 5'11"

179 cm 5'10" 188 cm 6'2"

187 cm 6'2" 198 cm 6'6"

Giant Anthem Advanced SL SE 2027 - complete bike geometry diagram showing seat tube, head tube, stack, reach, wheelbase, chainstay, trail and component dimensions

mm inches

LOW | HIGH

A SEAT TUBE LENGTH (mm) (inch)

400 15.7

420 16.5

465 18.3

495 19.5

B SEAT TUBE ANGLE

75.5° | 76.0°

C TOP TUBE LENGTH (mm) (inch)

576 | 574 22.7 | 22.6

602 | 600 23.7 | 23.6

624 | 623 24.6 | 24.5

651 | 650 25.6 | 25.6

D HEAD TUBE LENGTH (mm) (inch)

90 3.5

95 3.7

105 4.1

115 4.5

E HEAD TUBE ANGLE

66.5° | 67.0°

F FORK RAKE (mm) (inch)

44 1.7

G TRAIL (mm) (inch)

116 | 112.2 4.6 | 4.4

115.9 | 112.2 4.5 | 4.4

115.8 | 112.2 4.5 | 4.4

H WHEELBASE (mm) (inch)

1141 | 1140 44.9 | 44.9

1168 | 1167 46.0 | 45.9

1192 | 1191 46.9 | 46.9

1221 | 1220 48.1 | 48.0

I CHAIN STAY LENGTH (mm) (inch)

437 | 435 17.2 | 17.1

J BOTTOM BRACKET DROP (mm) (inch)

51 | 45 2.0 | 1.8

52 | 45 2.0 | 1.8

K STACK (mm) (inch)

602 | 599 23.7 | 23.6

607 | 603 23.9 | 23.7

616 | 612 24.3 | 24.1

626 | 622 24.6 | 24.5

L REACH (mm) (inch)

420 | 425 16.5 | 16.7

445 | 450 17.5 | 17.7

465 | 470 18.3 | 18.5

490 | 495 19.3 | 19.5

M STAND OVER HEIGHT (mm) (inch)

769 | 775 30.3 | 30.5

764 | 771 30.1 | 30.4

758 | 763 29.8 | 30.0

751 | 758 29.6 | 29.8

O STEM LENGTH (mm) (inch)

60 2.4

70 2.8

80 3.1

P CRANK LENGTH (mm) (inch)

170 6.7

175 6.9

Sizes

S, M, L, XL

Colours

Stormfire Sprint

Frame

Advanced SL-grade composite front and rear triangles, UDH, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle

Fork

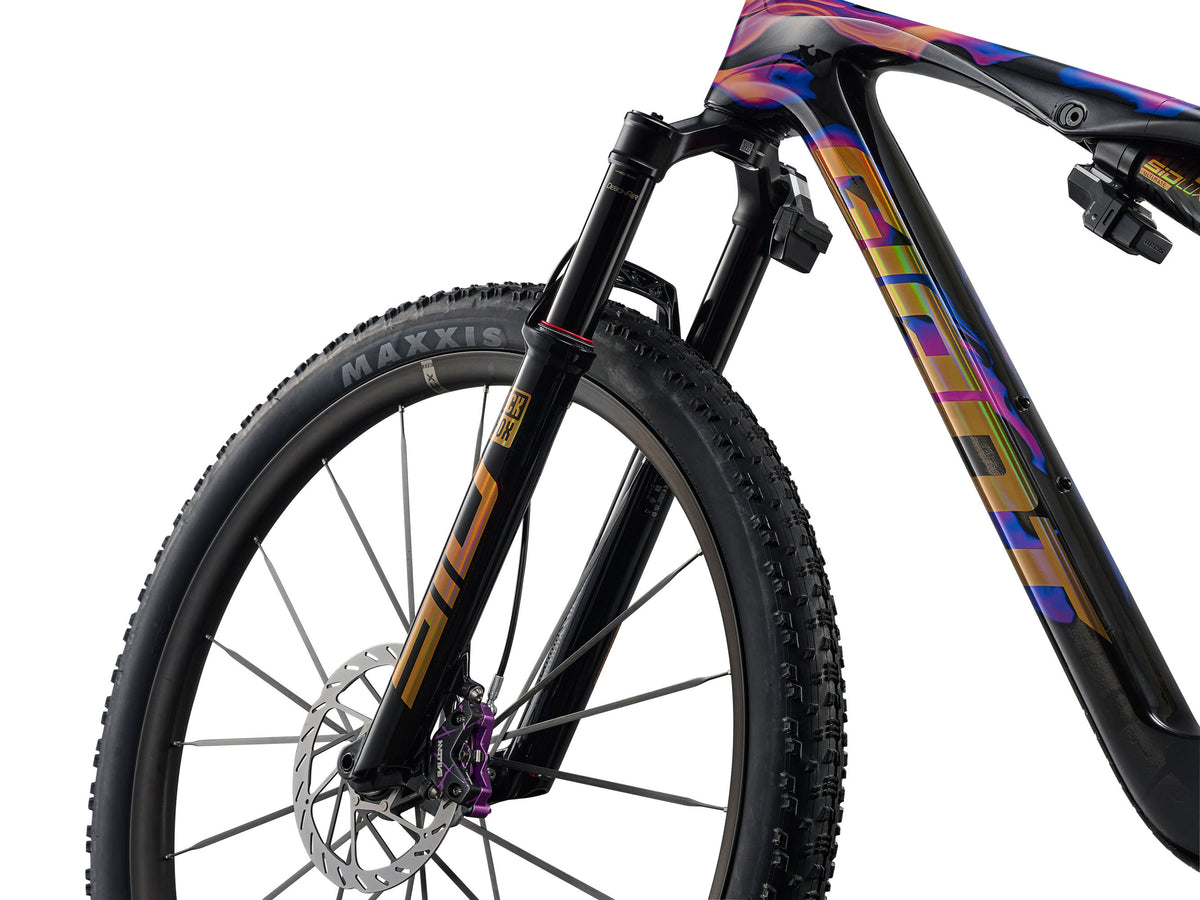

RockShox SID Flight Attendant XC, 120mm, Race Day damper, Boost 15x110 thru-axle, 44mm offset

Shock

RockShox SIDLuxe Flight Attendant, RL3 damper, Solo Air

Handlebar

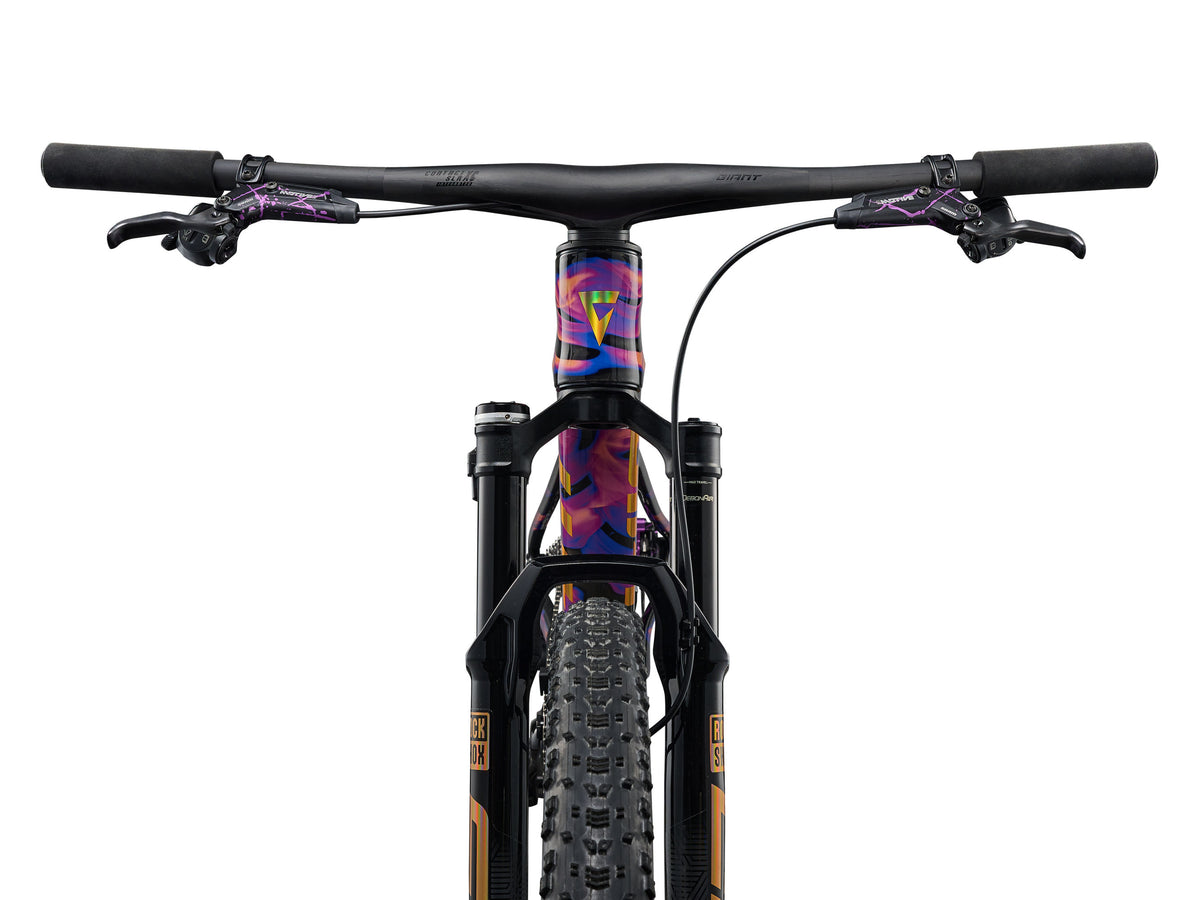

Giant Contact SLR Integrated XC, carbon, 9-degree upsweep

Grips

Giant XC Pro, silicone

Stem

Giant Contact SLR Integrated XC S:60mm, M:70mm, L:70mm, XL:80mm

Seatpost

RockShox Reverb AXS S: 125mm travel / 30.9 x 399mm M: 125mm travel / 30.9 x 399mm L: 150mm travel / 30.9 x 450mm XL: 150mm travel / 30.9 x 450mm

Saddle

Giant Grit SLR

Pedals

N/A

Shifters

SRAM AXS Pod, Rocker Paddle, 1x12

Front Derailleur

N/A

Rear Derailleur

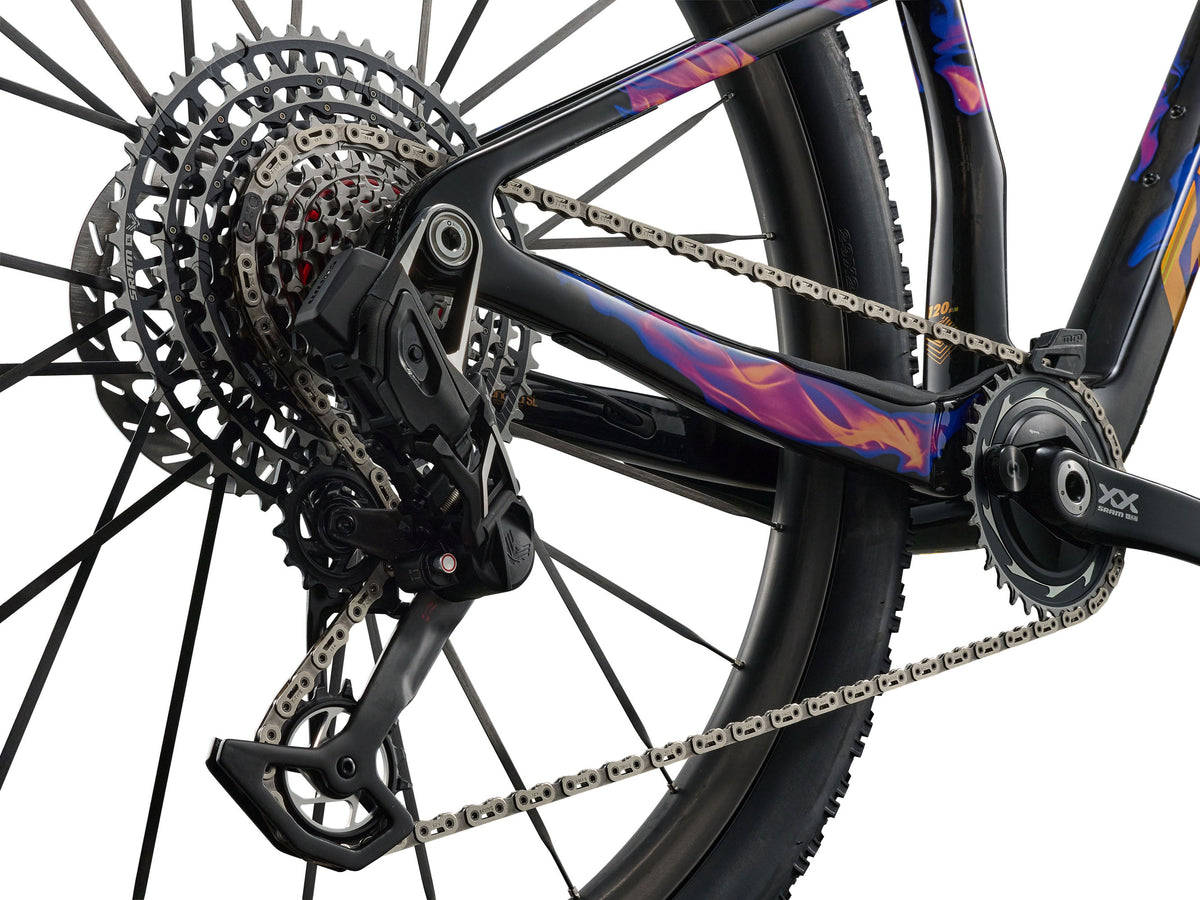

SRAM XX SL Eagle Transmission AXS

Brakes

SRAM Motive ULT, hydraulic, SRAM HS2 rotors [F]180mm, [R]160mm

Brake Levers

SRAM Motive ULT

Cassette

SRAM XS-1299, Eagle Transmission 10-52T

Chain

SRAM XX SL Transmission

Crankset

SRAM XX SL Eagle Transmission with Quarq power meter, 34t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm

Bottom Bracket

SRAM DUB, press fit

Rims

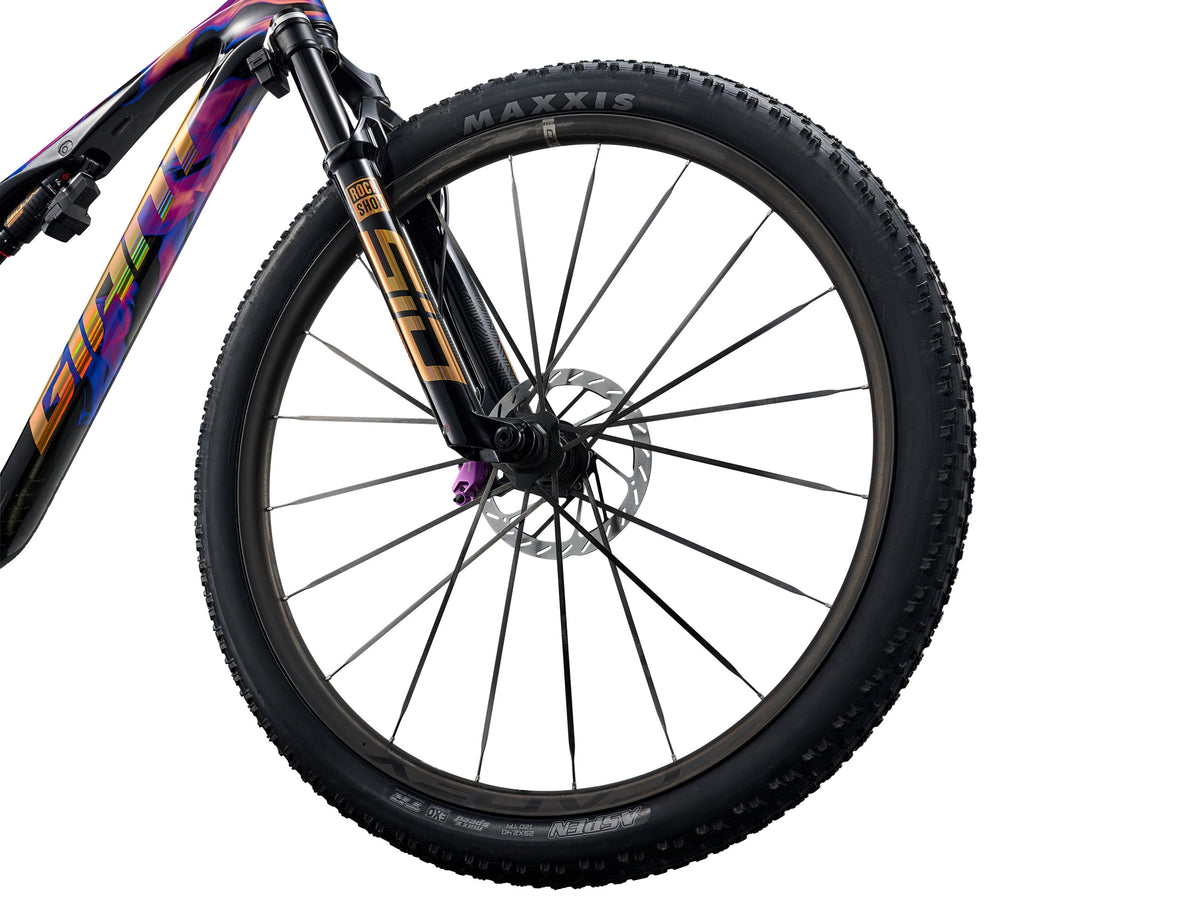

CADEX Max XC, Hookless Tubeless ready Carbon, 29", 30mm inner width

Hubs

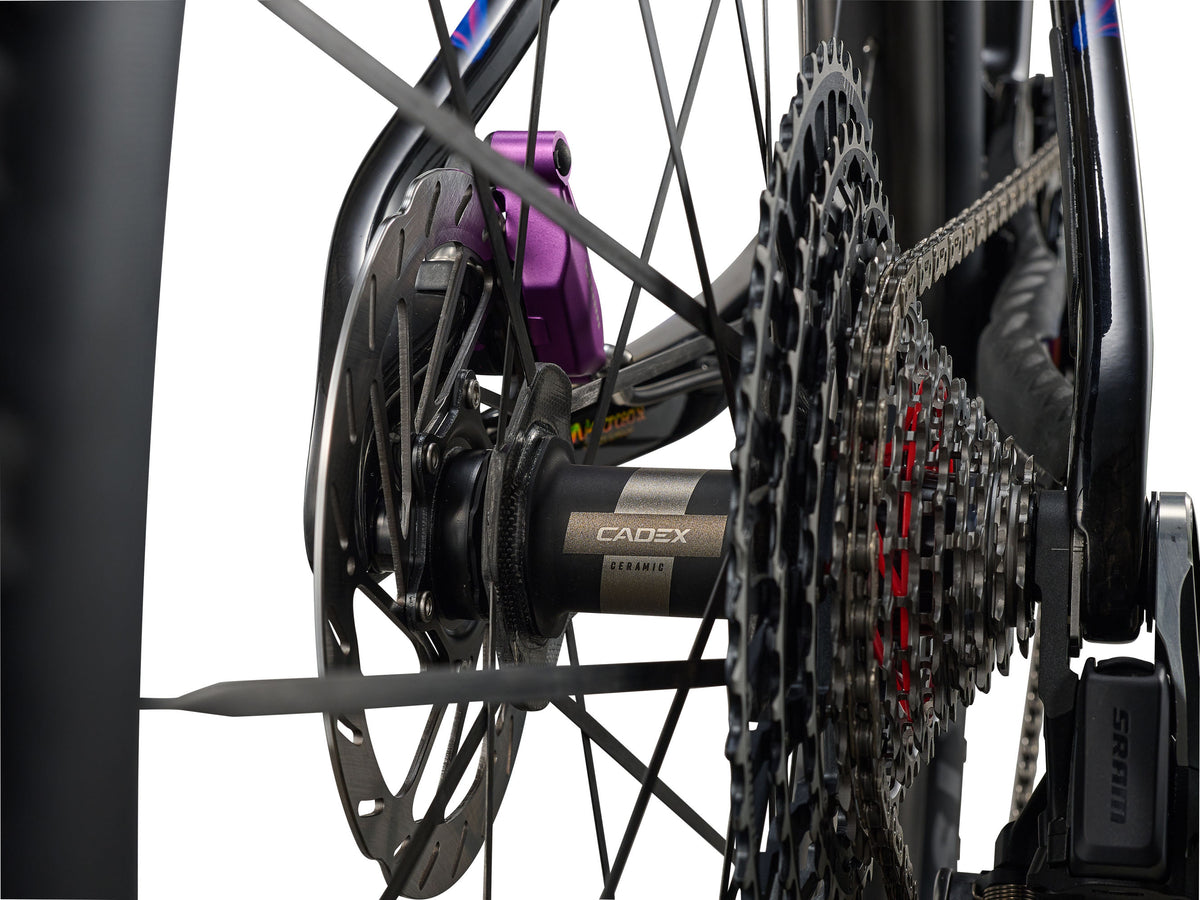

[F] CADEX M1-C hub, CenterLock, Ceramic bearings, 20H [R] CADEX M1-C120 Hub, 120T Helical-Bevel Ratchet Driver, CenterLock, Ceramic bearings, 24H

Spokes

CADEX Super Aero Carbon Spoke

Tyres

Maxxis Aspen 29x2.4, foldable, 120tpi, MaxxSpeed, EXO, tubeless

Extras

Tubeless prepared, MRP 1x SL TR2 chain guide

Max Tyre Clearance

2.4"

Max Chainring Size

34T

Weight

The most accurate way to determine any bike's weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

KEY PERFORMANCE FACTORS

TOTAL CONTROL

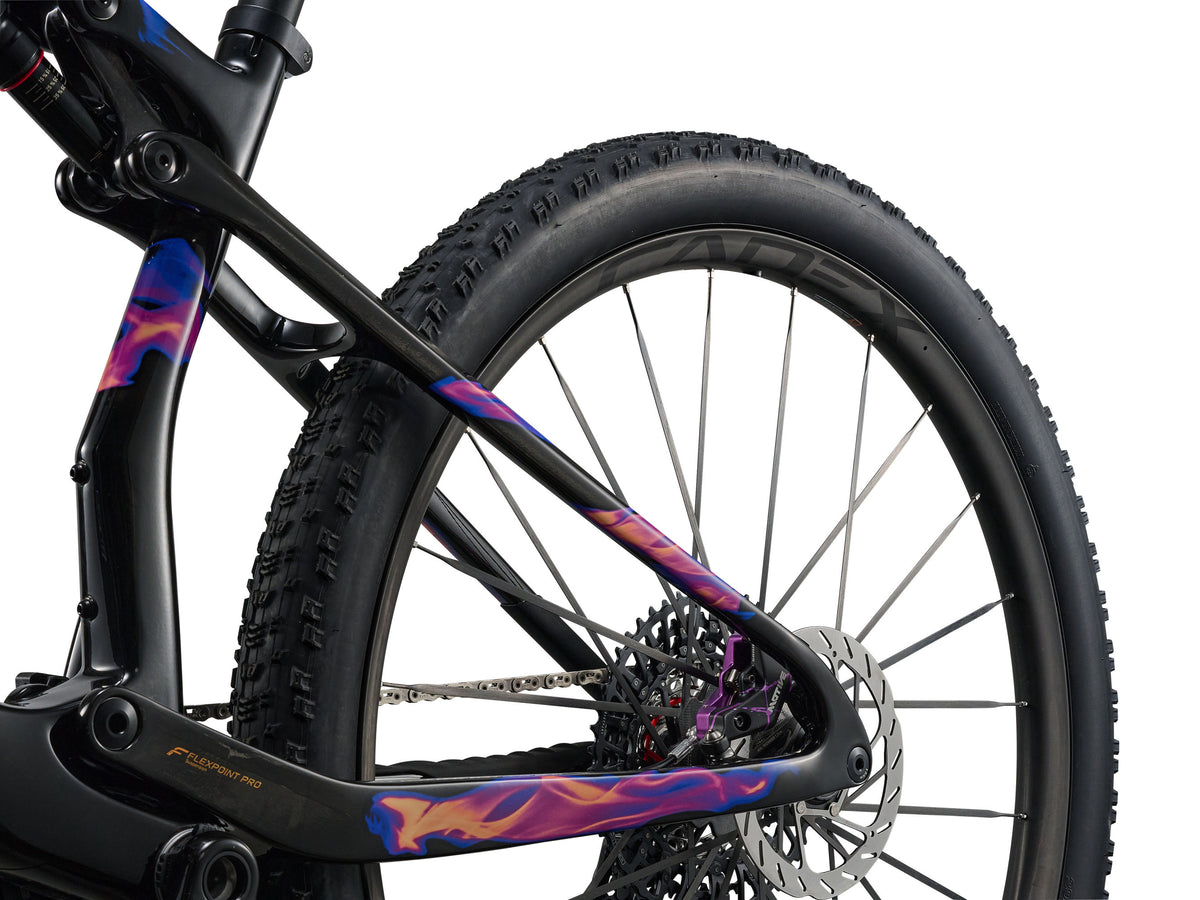

The new FlexPoint Pro suspension delivers 120mm of smooth, active rear travel paired with a 120mm fork, helping you fly down rough descents and power up technical climbs. A flip chip lets you fine-tune handling for all types of XC terrain. The superlight CADEX Max XC WheelSystem with Wide Guard rim technology and robust 5mm-thick sidewalls allows lower tyre pressures for greater control and puncture protection.

LOW-LATENCY SPEED CONCEPT

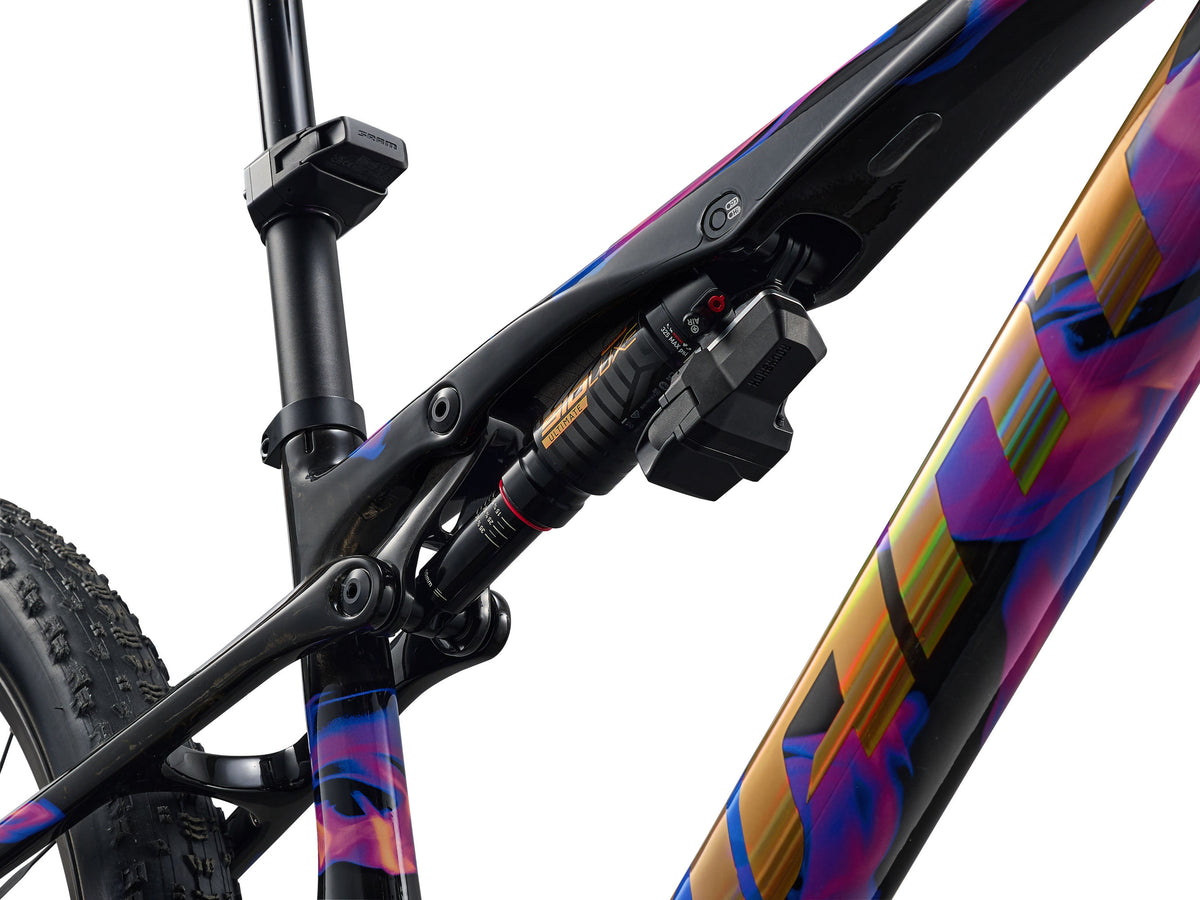

A fully reengineered composite frameset is 89g lighter with an 8.64% percent greater stiffness-to-weight ratio to help you power up climbs and make every watt count. The WheelSystem and integrated handlebar/stem unit is designed for maximum efficiency and instantaneous response to rider input. The rear shock is repositioned and semi-integrated with the top tube, shaving weight and creating space for a second water bottle cage.

SYSTEM INTEGRATION

The Contact SLR XC integrated composite handlebar/stem unit adds compliance to reduce shocks and vibrations, giving you better control and hand comfort. Its geometry is optimised for XC racing with a -8° stem angle, 9° back-sweep, and 2° up-sweep. It features clean cable routing and versatile sizing with multiple stem length options ranging from 60-80mm.
