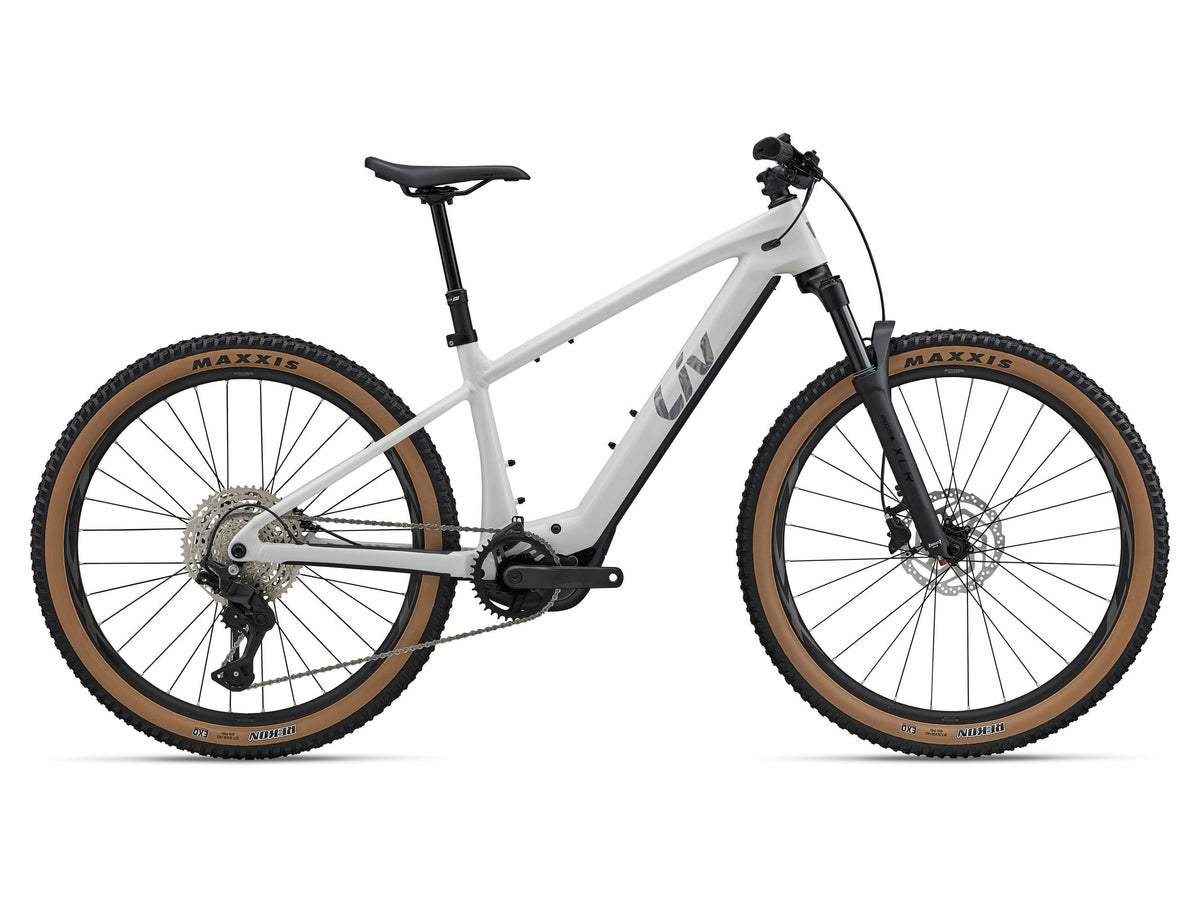

Liv 2027 Tempt E+ 1

$4,999.00

Colour

Null White

Size

X-SMALL SMALL MEDIUM

Product variants

Loading locations...

geometry

specs

highlights

MORE THAN JUST A WAY TO GET AROUND—THE TEMPT E+ IS FREEDOM, FUN AND JOY.

Shop online or in store today for the Liv 2027 Tempt E+ 1.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

B SEAT TUBE ANGLE

78.0°

74.0°

C TOP TUBE LENGTH (mm)

560

570

595

D HEAD TUBE LENGTH (mm)

110

115

105

E HEAD TUBE ANGLE

68.0°

H WHEELBASE (mm)

1151

1162

1139

I CHAIN STAY LENGTH (mm)

450

470

K STACK (mm)

596

600

618

L REACH (mm)

433

442

417

P CRANK LENGTH (mm)

165

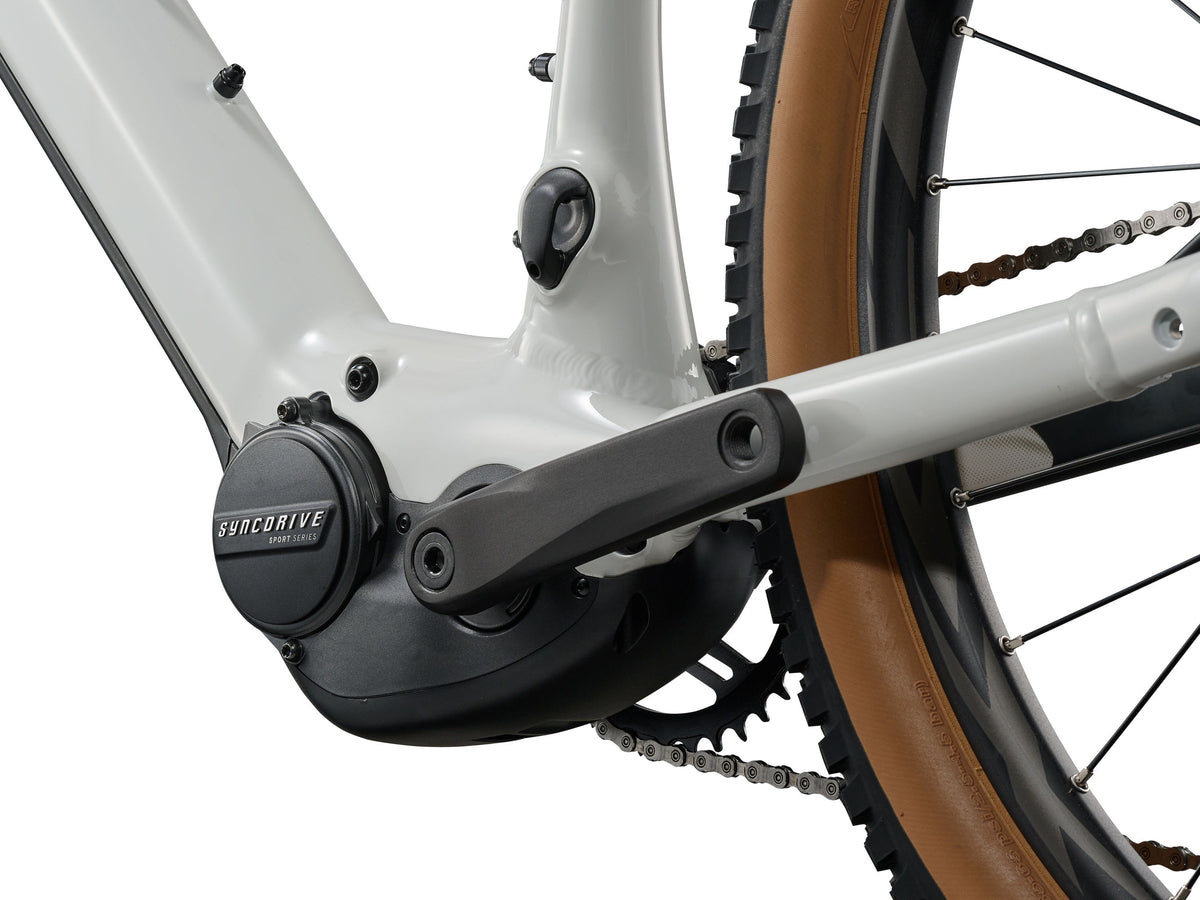

Motor

SyncDrive Sport 3, 85Nm, Powered by Yamaha

Controller

RideControl Dash 2, full colour LCD screen

Display

RideControl Dash 2, full colour LCD screen

Battery

EnergyPak 430Wh, Giant EnergyPak Plus 200 range extender compatible

Charger

Giant EnergyPak 4A smart charger

Maximum assisted speed

Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed

Sizes

27.5" XS, S 29": M

Colours

Null White

Frame

ALUXX-Grade aluminium, UDH, 12x148mm thru-axle, integrated KSA40 kickstand mount, disc

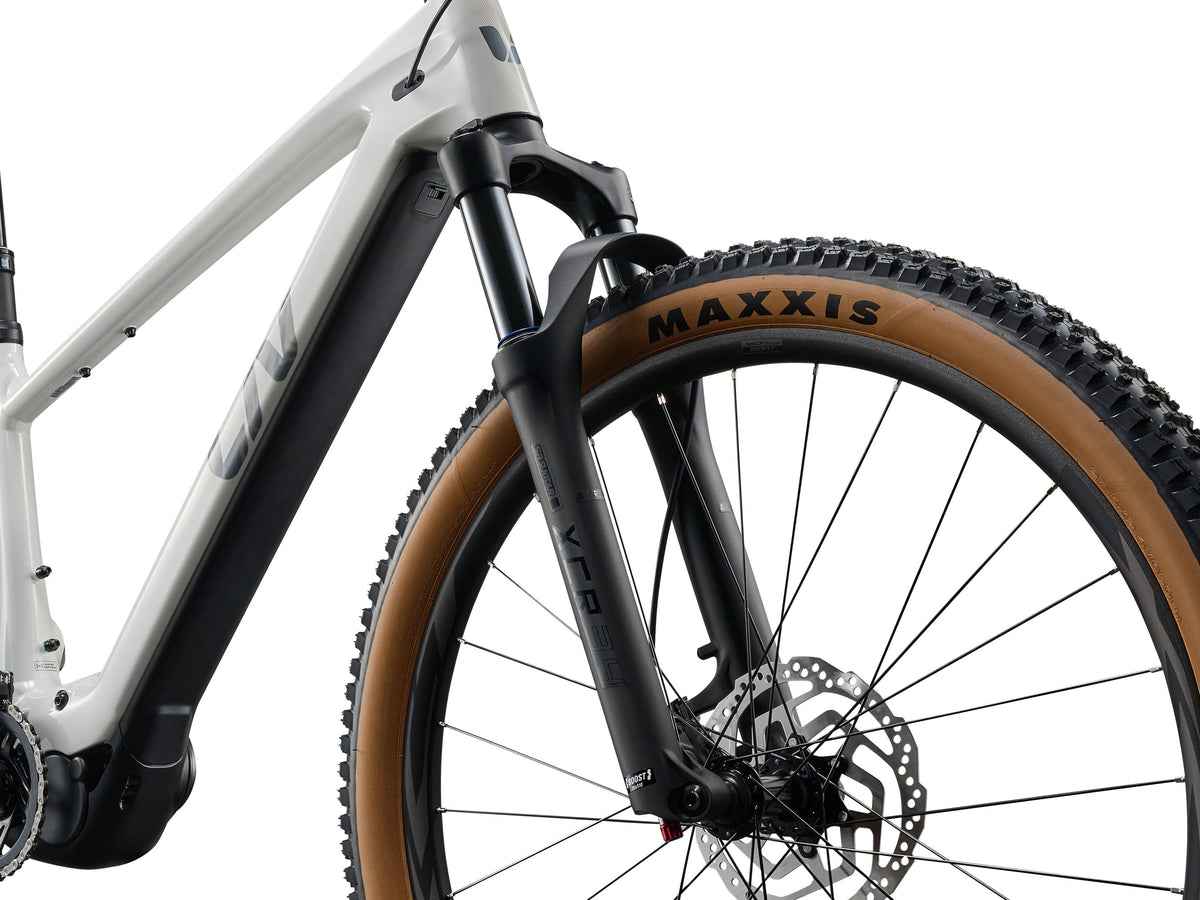

Fork

SR Suntour XCR 34, 2CR, DS Air, 100mm, 110x15mm thru-axle

Handlebar

Giant Connect TR Riser, 31.8mm, 20mm rise

Grips

Giant Sole-O Grip

Stem

Giant Contact, 31.8mm XS:40mm, S:40mm, M:40mm

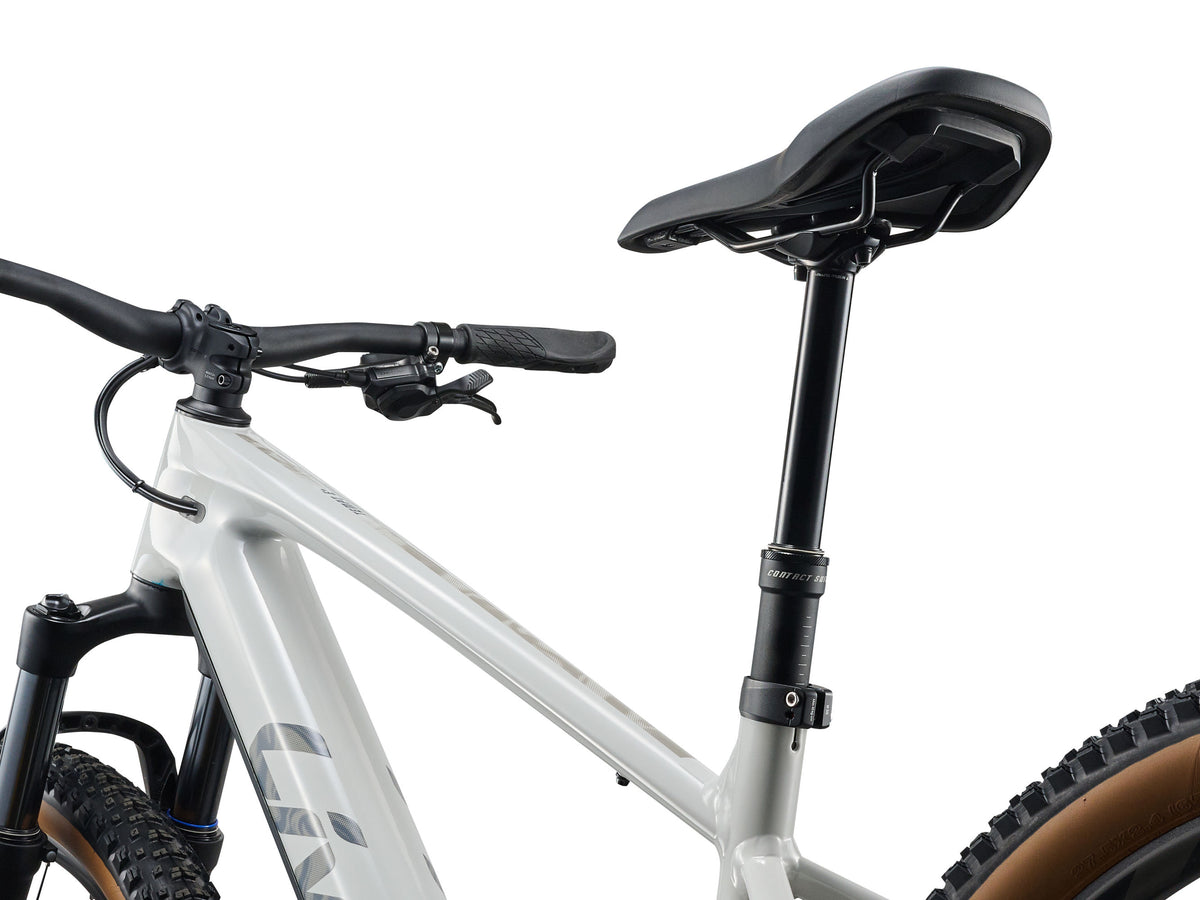

Seatpost

Giant Contact Switch AT dropper, adjustable travel, remote XS: 110-140mm travel / 30.9 x 395mm S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm

Saddle

Liv ErgoContact Trail

Pedals

Platform

Shifters

Shimano Deore, SL-M6210, 1x12

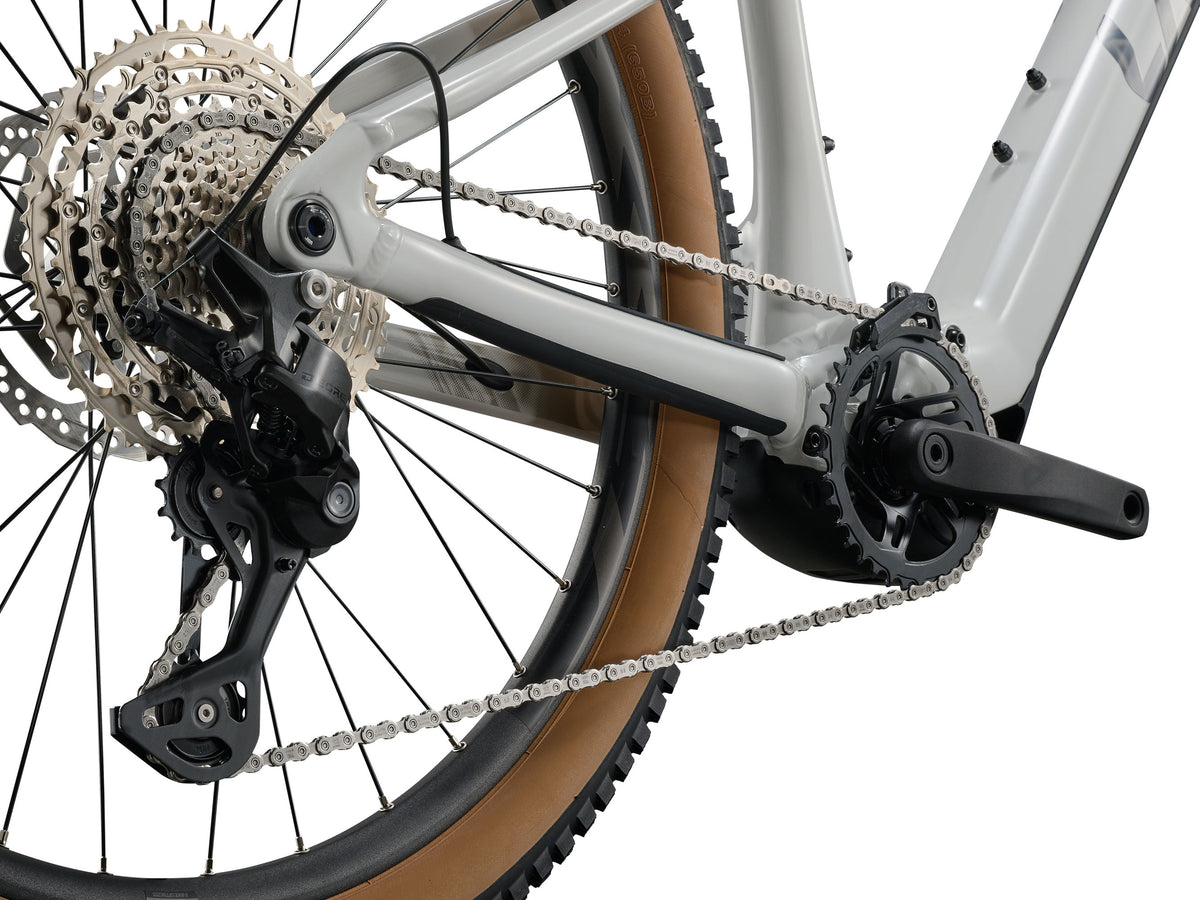

Rear Derailleur

Shimano Deore, M7200, Shadow

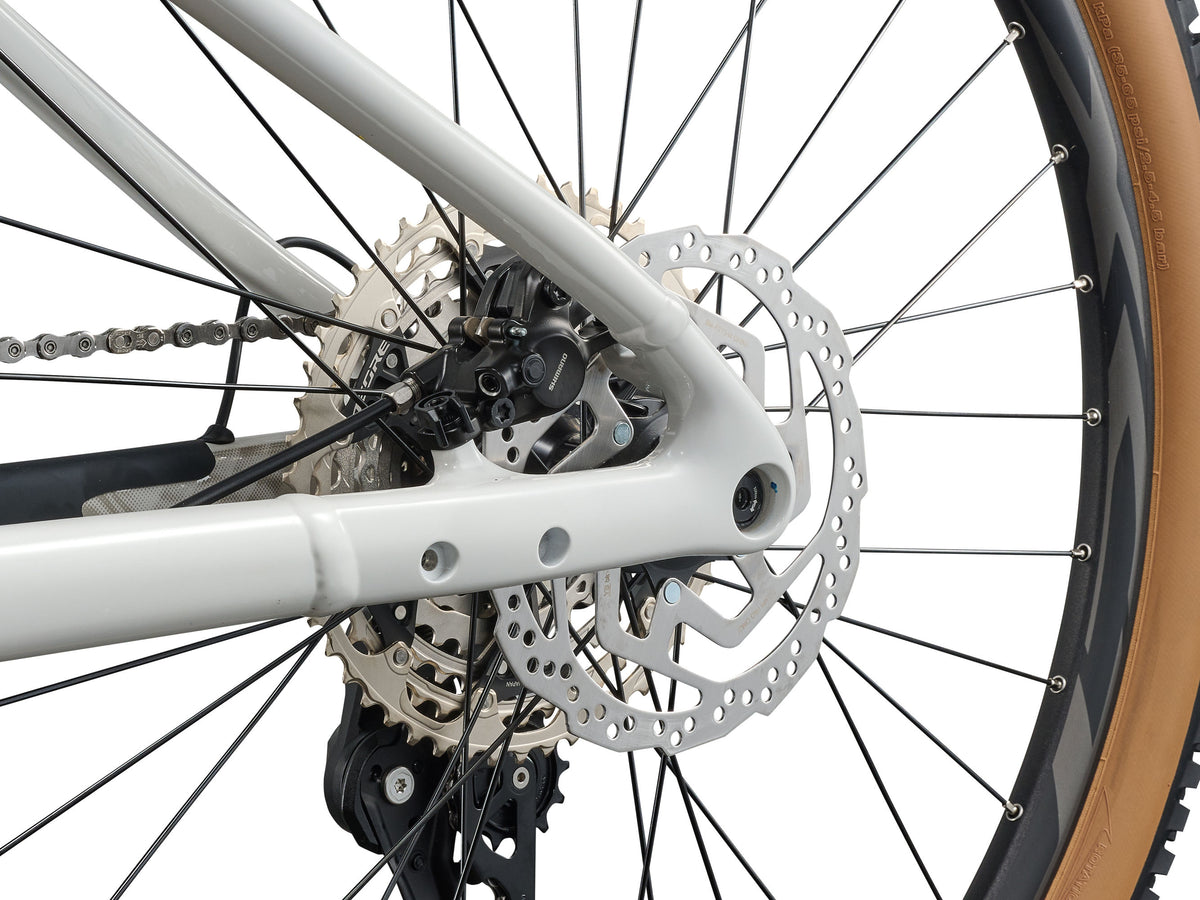

Brakes

Shimano MT200, hydraulic, SM-RT10 rotors [F]180mm, [R]180mm

Brake Levers

Shimano MT-200

Cassette

Shimano Deore, M6200, 10x51

Chain

Shimano Deore, M6100

Crankset

Forged alloy crank arms, 36T steel chain ring XS:160mm, S:160mm, M:165mm

Rims

Giant XCT Tubeless ready Alloy 27.5" [XS/S], 29" [M] 25mm inner width

Hubs

[F] Shimano TC500, Sealed, 28H [R] Shimano MT410, Sealed, HG, 32H

Spokes

Stainless steel

Tyres

Maxxis Rekon 27.5x2.4" [XS/S], 29x2.4" [M], TLR, EXO

NSW Certification

ULL-104235-EA

Combined Max Load Limit

150kg

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

KEY PERFORMANCE FACTORS

LIGHTER WEIGHT

The lightweight ALUXX aluminium frame design provides a quick, agile ride feel. Featuring a new integrated head tube with fewer welds, giving it a sleek, carbon-like modern appearance while also keeping weight down.

POWERFUL

With the SyncDrive Sport 3 motor and removable 430Wh battery, this bike provides strong, consistent support wherever you ride. Need to go even further? An optional 200Wh range extender is available for longer range.

INTELLIGENT

Packed with innovative features, the E-Lock system lets you lock the bike remotely via the App or control unit. Apple Find My compatibility locates your bike with your iPhone, sounds an alarm and sends alerts if the bike is moved, offering added peace of mind.

RANGE

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorised as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

ENERGYPAK SMART 430 / SYNCDRIVE SPORT 3 85NM

Range

Extreme: 115 km

Good: 88 km

Ideal: 58 km
