• Liv Tempt 29 1 2024

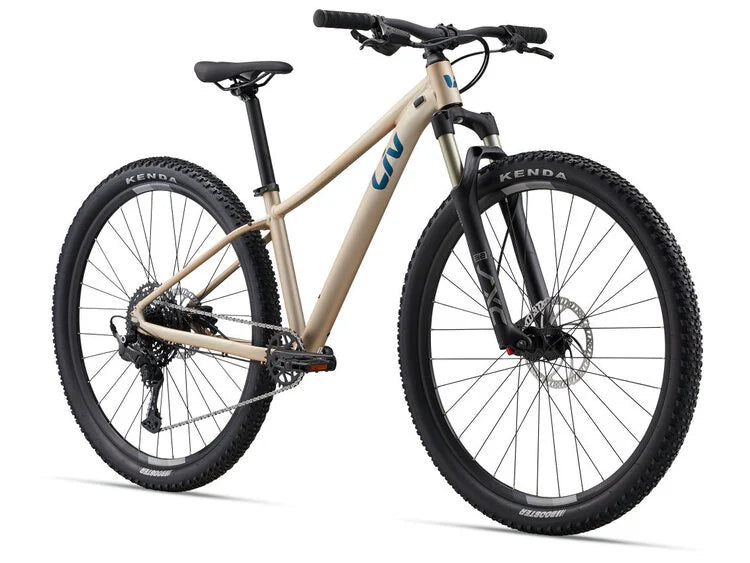

Liv Tempt 29 1 2024

$999.00 $1,299.00
Colour
Size

Loading locations...
Shop online or in store today for the Liv Tempt 29 1 2024.

TECHS & FEATURES

×

ALUXX ALUMINIUM TECHNOLOGY

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
S
M
L
A SEAT TUBE LENGTH (mm)
370
420
450
A1 SEAT POST INSERTION DEPTH (mm)
320
375
220
B SEAT TUBE ANGLE
74.0°
74.0°
74.0°
C TOP TUBE LENGTH (mm)
570
590
610
D HEAD TUBE LENGTH (mm)
90
95
105
E HEAD TUBE ANGLE
68.5°
68.5°
68.5°
F FORK RAKE (mm)
51
51
51
G TRAIL (mm)
94.3
94.3
94.3
H WHEELBASE (mm)
51
51
51
I CHAIN STAY LENGTH (mm)
455
455
455
J BOTTOM BRACKET DROP (mm)
55
55
55
K STACK (mm)
596
601
610
L REACH (mm)
399
418
435
M STAND OVER HEIGHT (mm)
705
737
757
O STEM LENGTH (mm)
40
50
50
P CRANK LENGTH (mm)
170
170
175
Q WHEEL SIZE
29"
29"
29"
GRIPS
Giant Sole-O
HANDLEBAR
Giant Connect Trail, 31.8mm
PEDALS
MTB caged
SADDLE
Liv Sport
SEATPOST
Giant Sport, 30.9mm
STEM
Giant Sport, 7-degree S: 40mm (29) M: 50mm (29) L: 50mm (29)
BOTTOM BRACKET
Cartridge
BRAKE LEVERS
Tektro TKD 149
BRAKES
Tektro HDC TKD 149, hydraulic
BRAKES ROTOR
Tektro rotors [F]180mm, [R]160mm
CASSETTE
Shimano CUES, LG300, 11-48
CHAIN
Shimano CUES, LG500
CRANKSET
ProWheel Charm, 30t S: 170mm (29) M:170mm (29) L:170mm (29)
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano CUES, U6000, Shadow+
SHIFTERS
Shimano CUES, SL-6000, 1x10
FORK
SXC32-2 RL, air spring, QR, alloy steerer S: 100mm travel (29) M: 100mm travel (29) L: 100mm travel (29)
FRAME
ALUXX-Grade aluminium, disc
EXTRAS
2.4 inch max tyre size, 32t max chainring size
HUBS
Alloy, sealed
RIMS
Giant GX03V 29 alloy, double wall
SPOKES
Stainless, 14g
TYRES
Kenda Booster 29x2.4, wire bead
