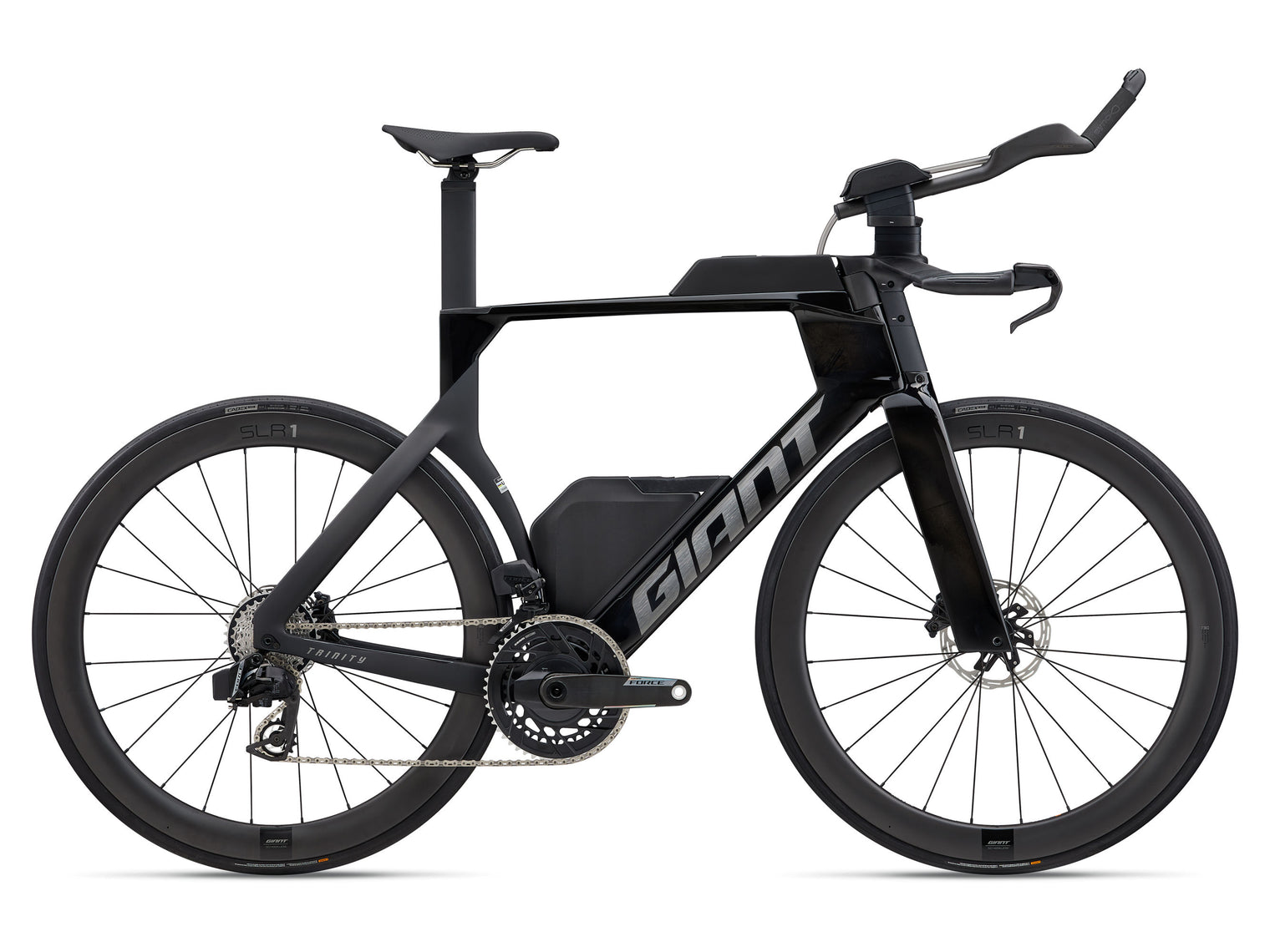

Giant 2025 Trinity Advanced SL 1

$10,698.00 $10,999.00
Colour
Size
Loading locations...

The design of the Avail Advanced E+ Elite stealthily conceals its potent electric capabilities. A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast—even when it’s not moving.

Key Performance Factors

A Natural Ride

It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.

Maximum Miles. Minimum Fatigue.

The Avail Advanced E+ Elite provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.

Delivering Power & Speed

The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm which is comparable to 75 Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 25 km/h in Australia.

TECHS & FEATURES

×

ADVANCED COMPOSITE SL TECHNOLOGY

Giant’s Professional Grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fibre Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.

×

AEROSYSTEM SHAPING TECHNOLOGY

Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimise each tube shape to deliver superior aerodynamic performance.

×

POWERCORE

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
L
XS
S
M
L
ASEAT TUBE LENGTH (mm)
477
508
538
565
BSEAT TUBE ANGLE
77.0°
77.0°
77.0°
77.0°
CTOP TUBE LENGTH (mm)
510
530
554
579
DHEAD TUBE LENGTH (mm)
85
105
125
145
EHEAD TUBE ANGLE
72.0°
73.0°
73.0°
73.0°
FFORK RAKE (mm)
40
40
40
40
GTRAIL (mm)
69
63
63
63
HWHEELBASE (mm)
974
988
1013
1029
ICHAIN STAY LENGTH (mm)
405
405
405
405
JBOTTOM BRACKET DROP (mm)
70
70
70
70
KSTACK (mm)
490
513
532
551
LREACH (mm)
397
412
431
452
MSTAND OVER HEIGHT (mm)
758
787
815
838
NCRANK LENGTH (mm)
160
165
170
172.5
OWHEEL SIZE
700C
700C
700C
700C
PARM PAD STACK (mm)
(TRI) 629-679 | (TT) 582-632
(TRI) 653-733 | (TT) 605-685
(TRI) 672-752 | (TT) 624-704
(TRI) 691-771 | (TT) 643-723
QARM PAD REACH (mm)
(TRI) 323-398 | (TT) 339-414
(TRI) 340-415 | (TT) 355-430
(TRI) 360-435 | (TT) 375-450
(TRI) 380-455 | (TT) 395-470
RPAD REACH MIN (mm)
323
338
358
378
SPAD REACH MAX (mm)
398
413
433
453
SIZES
XS, S, M, L
COLOURS
Carbon / Matte Carbon
FRAME
Advanced SL-Grade Composite, 12x142mm thru-axle, disc
FORK
Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc
HANDLEBAR
AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge
STEM
AeroDrive integrated stem
SEATPOST
Trinity Composite
SADDLE
Giant Contact SL Tri
ARM REST KIT
Sync armrest set
SHIFTERS
SRAM eTap Clics (extension mounted) + SRAM eTap Blips (basebar mounted)
FRONT DERAILLEUR
SRAM Force AXS, FD-Force-E-E1
REAR DERAILLEUR
SRAM Force AXS, RD-Force-E-E1
BRAKES
SRAM S-900 Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
BRAKE LEVERS
SRAM S-900 Aero AXS
CASSETTE
SRAM Force, 12-speed, 10x33
CHAIN
SRAM Force-E1, 12-speed

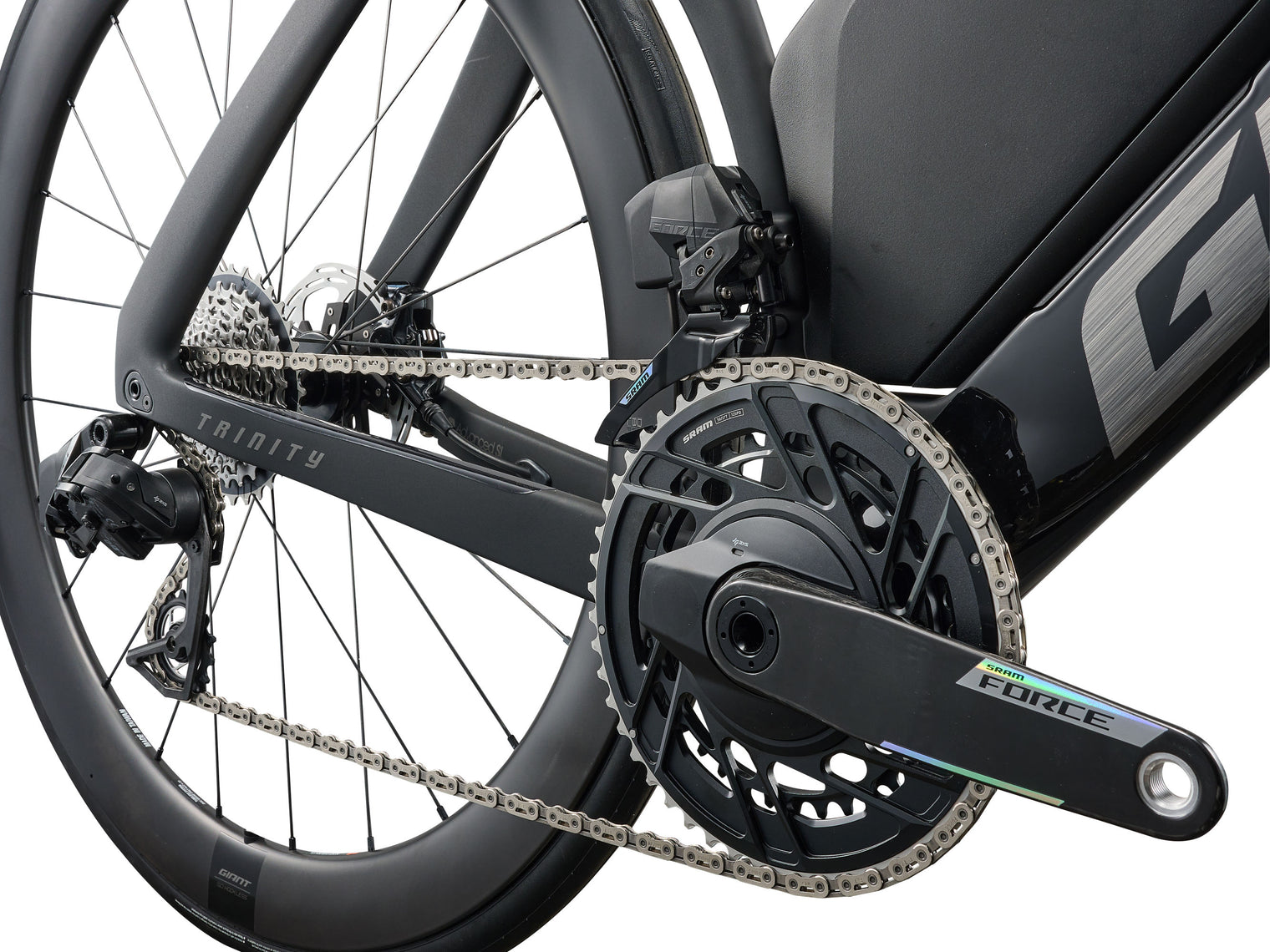

CRANKSET
SRAM Force E1, DUB, 37/50 with SRAM power meter XS:160mm, S:165mm, M:170mm, L:172.5mm
BOTTOM BRACKET
SRAM DUB, press fit

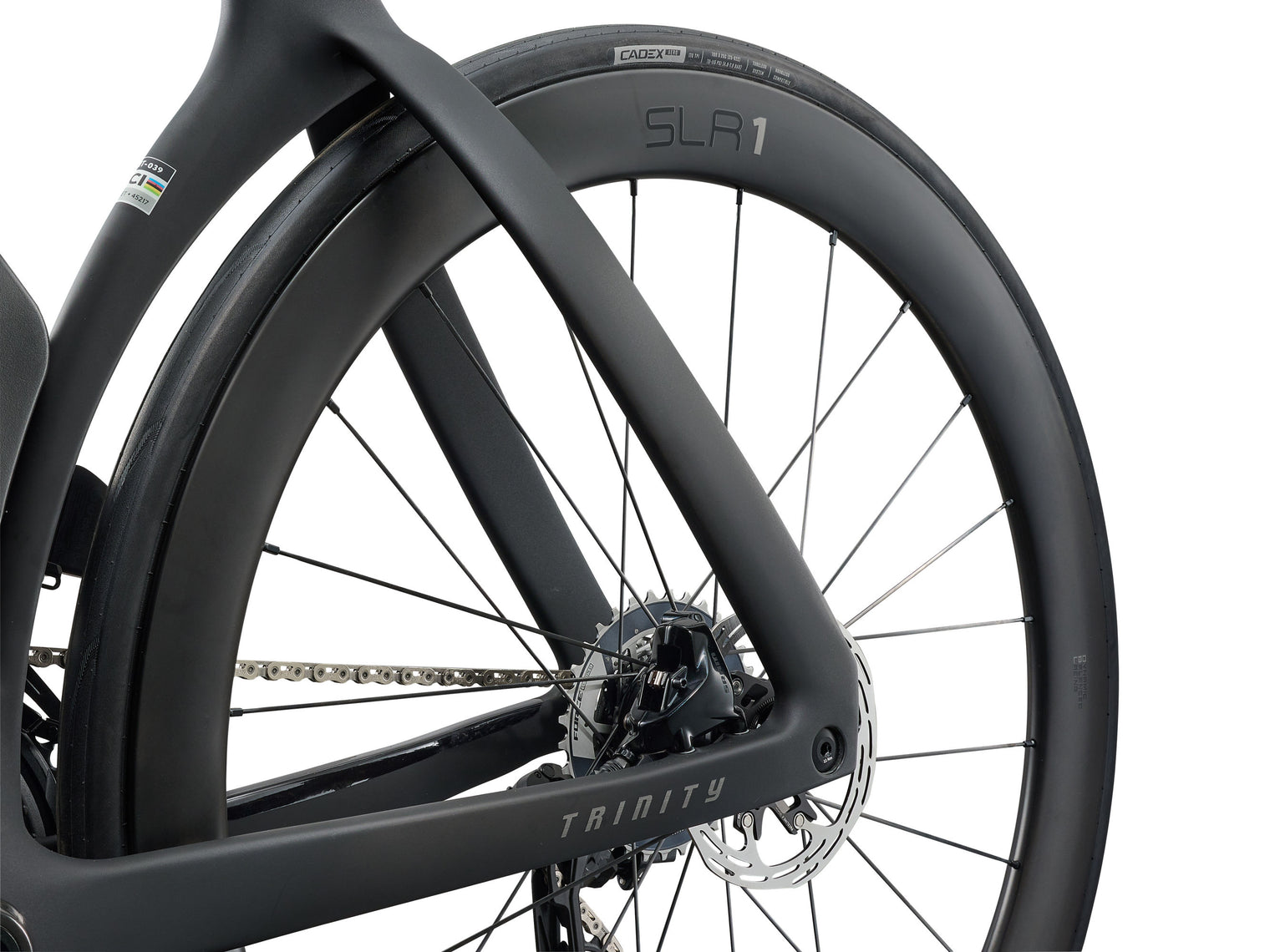

RIMS
Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm
HUBS
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle; [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
SPOKES
Sapim CX-Ray
TYRES
CADEX Aero, tubeless, 700x25c (26.5mm), folding
EXTRAS
Bento box top tube storage, hydration kit, computer mount, tubeless prepared, 30mm max tyre size
MAX TYRE CLEARANCE
30mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
