Trinity Advanced SL 0

$13,999.00 $15,999.00
Colour
Size
Loading locations...

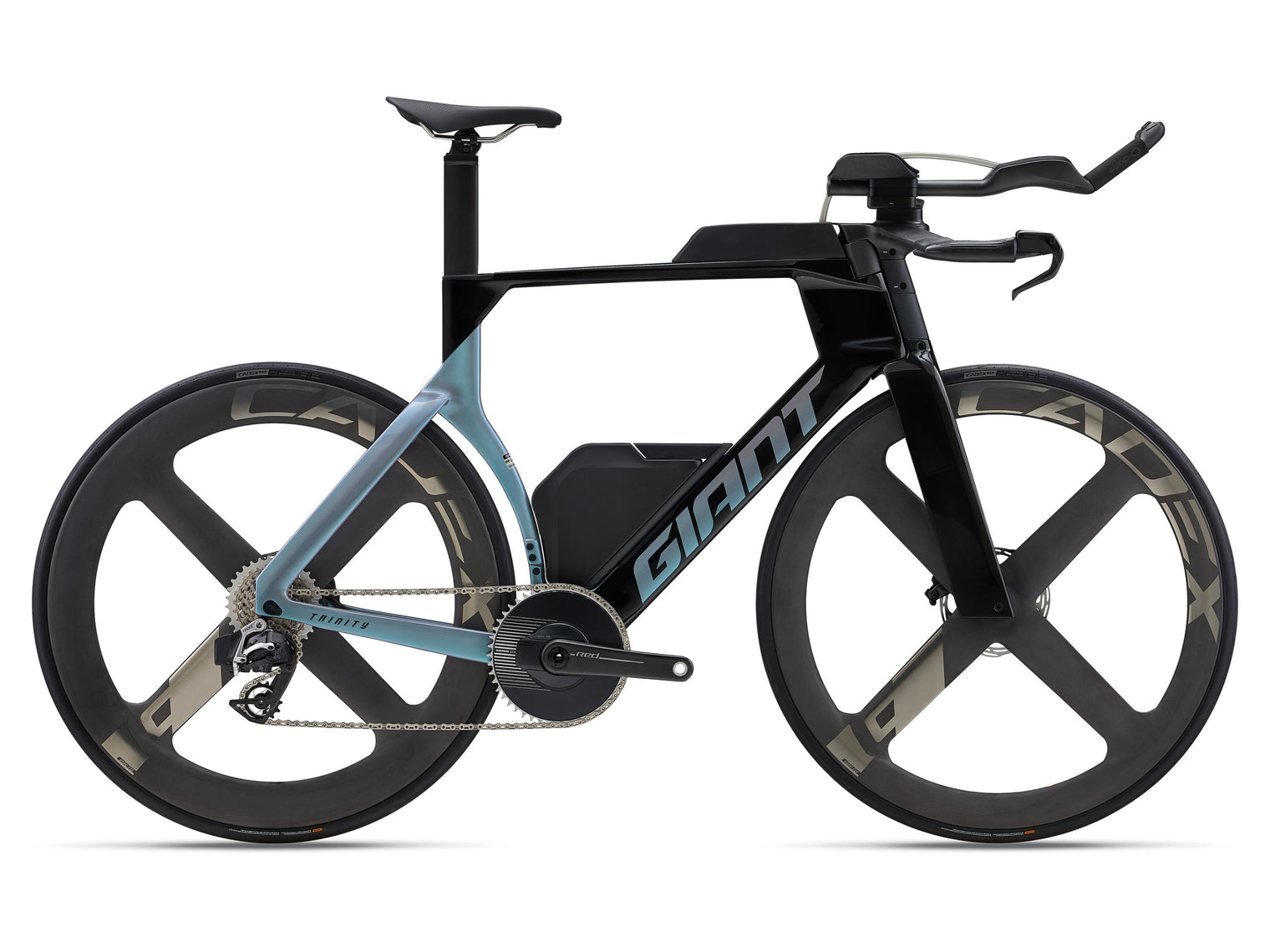

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fuelling systems, it’s lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.

Key Performance Factors

Full-Speed Dynamics

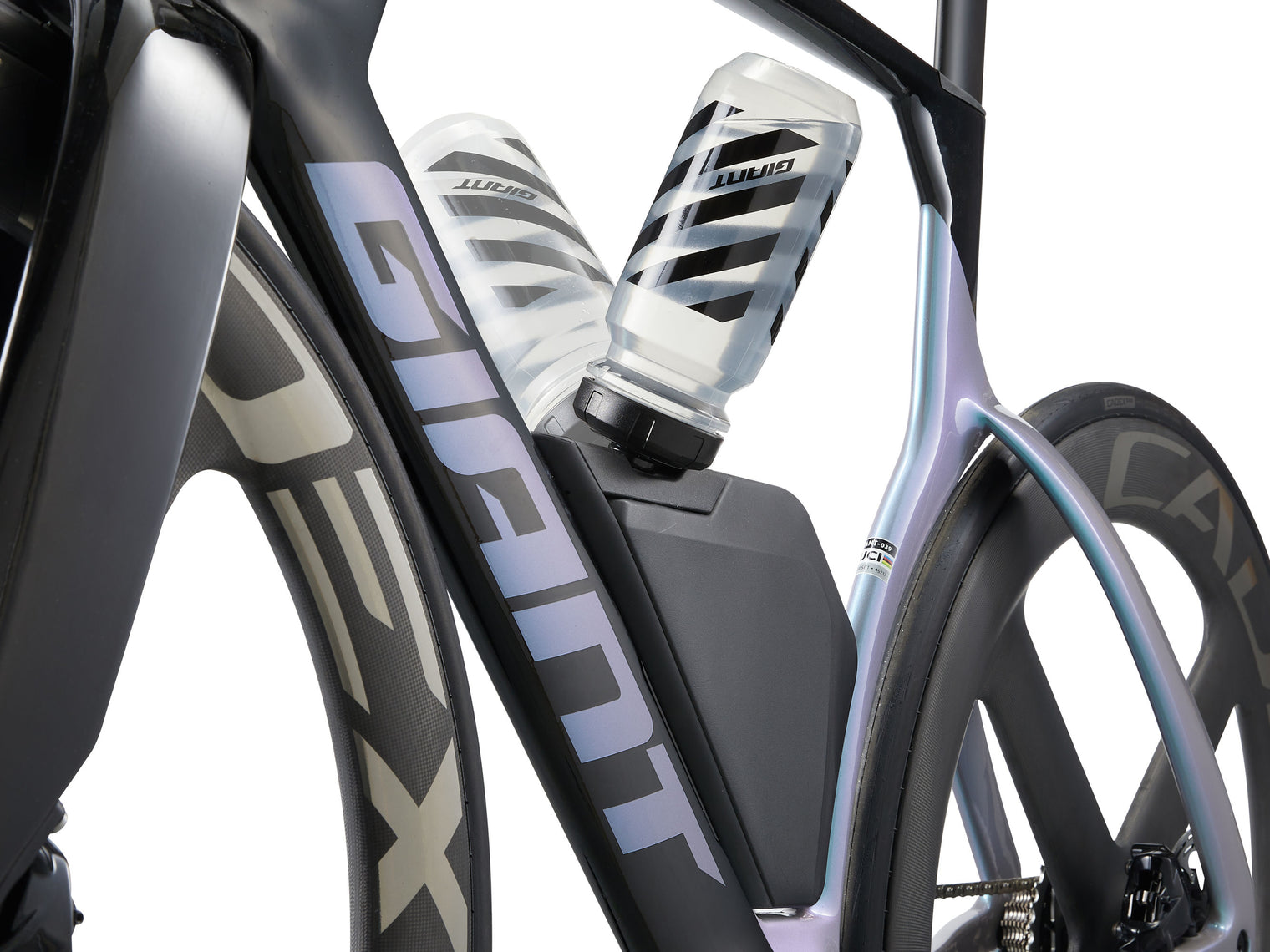

All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.

Ultimate Aero Efficiency

AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimised, integrated fuelling system.

Personalised Fit

With a far greater range of adjustability compared to previous Trinity models—including four seatpost offset positions (51 mm range) and 24× more armrest positioning options (stack, reach, angle and width)—it’s easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.

TECHS & FEATURES

×

ADVANCED COMPOSITE SL TECHNOLOGY

Giant’s Professional Grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fibre Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.

×

AEROSYSTEM SHAPING TECHNOLOGY

Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimise each tube shape to deliver superior aerodynamic performance.

×

POWERCORE

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
L
XS
S
M
L
ASEAT TUBE LENGTH (mm)
477
508
538
565
BSEAT TUBE ANGLE
77.0°
77.0°
77.0°
77.0°
CTOP TUBE LENGTH (mm)
510
530
554
579
DHEAD TUBE LENGTH (mm)
85
105
125
145
EHEAD TUBE ANGLE
72.0°
73.0°
73.0°
73.0°
FFORK RAKE (mm)
40
40
40
40
GTRAIL (mm)
69
63
63
63
HWHEELBASE (mm)
974
988
1013
1029
ICHAIN STAY LENGTH (mm)
405
405
405
405
JBOTTOM BRACKET DROP (mm)
70
70
70
70
KSTACK (mm)
490
513
532
551
LREACH (mm)
397
412
431
452
MSTAND OVER HEIGHT (mm)
758
787
815
838
NCRANK LENGTH (mm)
160
165
170
172.5
OWHEEL SIZE
700C
700C
700C
700C
PARM PAD STACK (mm)
(TRI) 629-679 | (TT) 582-632
(TRI) 653-733 | (TT) 605-685
(TRI) 672-752 | (TT) 624-704
(TRI) 691-771 | (TT) 643-723
QARM PAD REACH (mm)
(TRI) 323-398 | (TT) 339-413
(TRI) 340-415 | (TT) 355-430
(TRI) 360-435 | (TT) 375-450
(TRI) 380-455 | (TT) 395-470
RPAD REACH MIN (mm)
323
338
358
378
SPAD REACH MAX (mm)
398
413
433
453
SIZES
XS, S, M, L
COLOURS
Carbon / Prismatic Haze
FRAME
Advanced SL-Grade Composite, 12x142mm thru-axle, disc

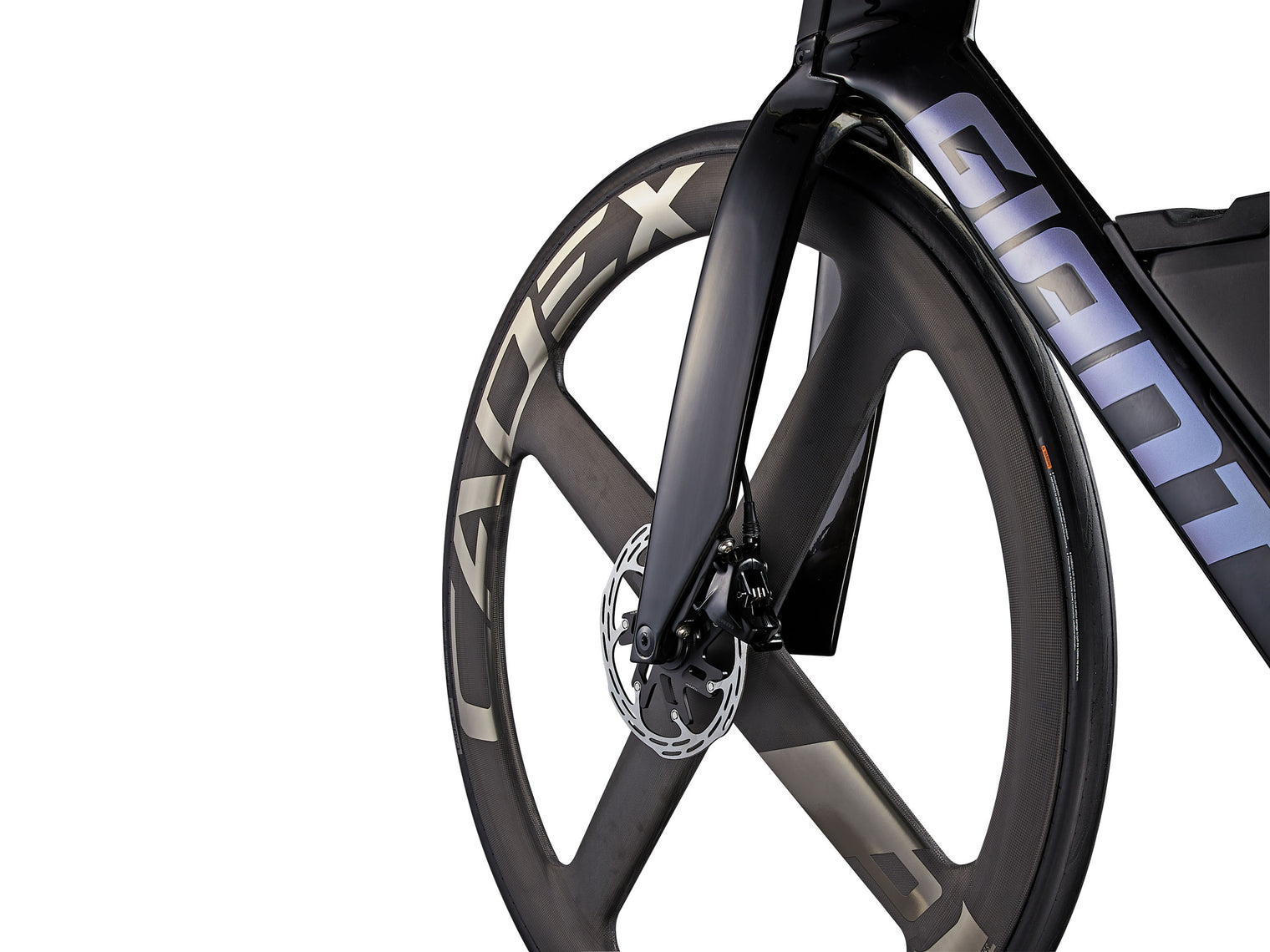

FORK
Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc
HANDLEBAR
AeroDrive base bar
STEM
AeroDrive integrated stem
SEATPOST
Trinity Composite
SADDLE
Giant Contact SL Tri
PEDALS
N/A

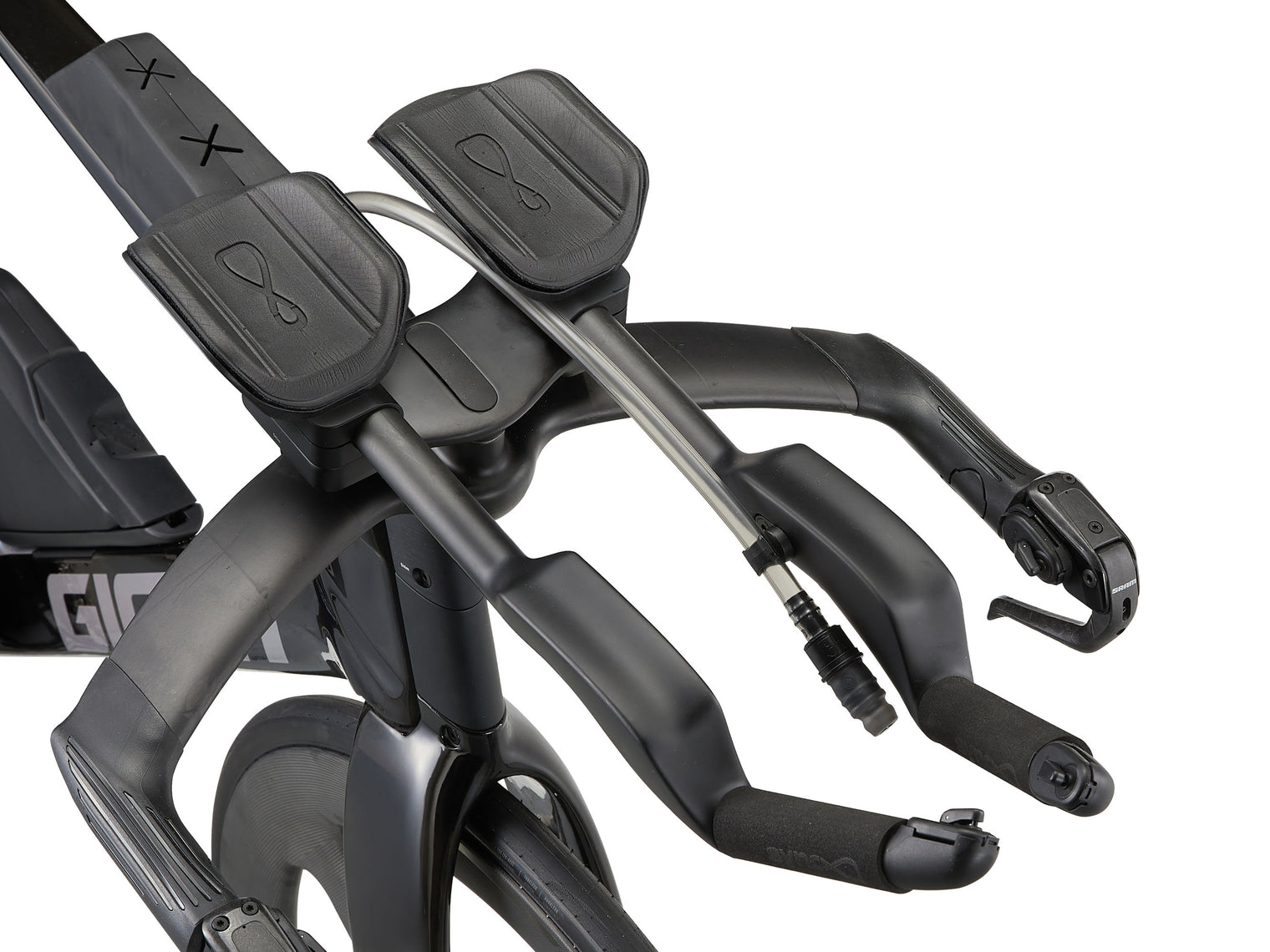

ARM REST KIT
Sync rest armset
EXTENSION BARS
10 and 15-degree extension wedge
SHIFTERS
SRAM eTap AXS WireBlips – extension and basebar mounted
REAR DERAILLEUR
SRAM RED AXS E1
BRAKES
SRAM S-900 Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
BRAKE LEVERS
SRAM S-900 Aero
CASSETTE
SRAM RED E1, 12-speed, 10x33
CHAIN
SRAM RED E1

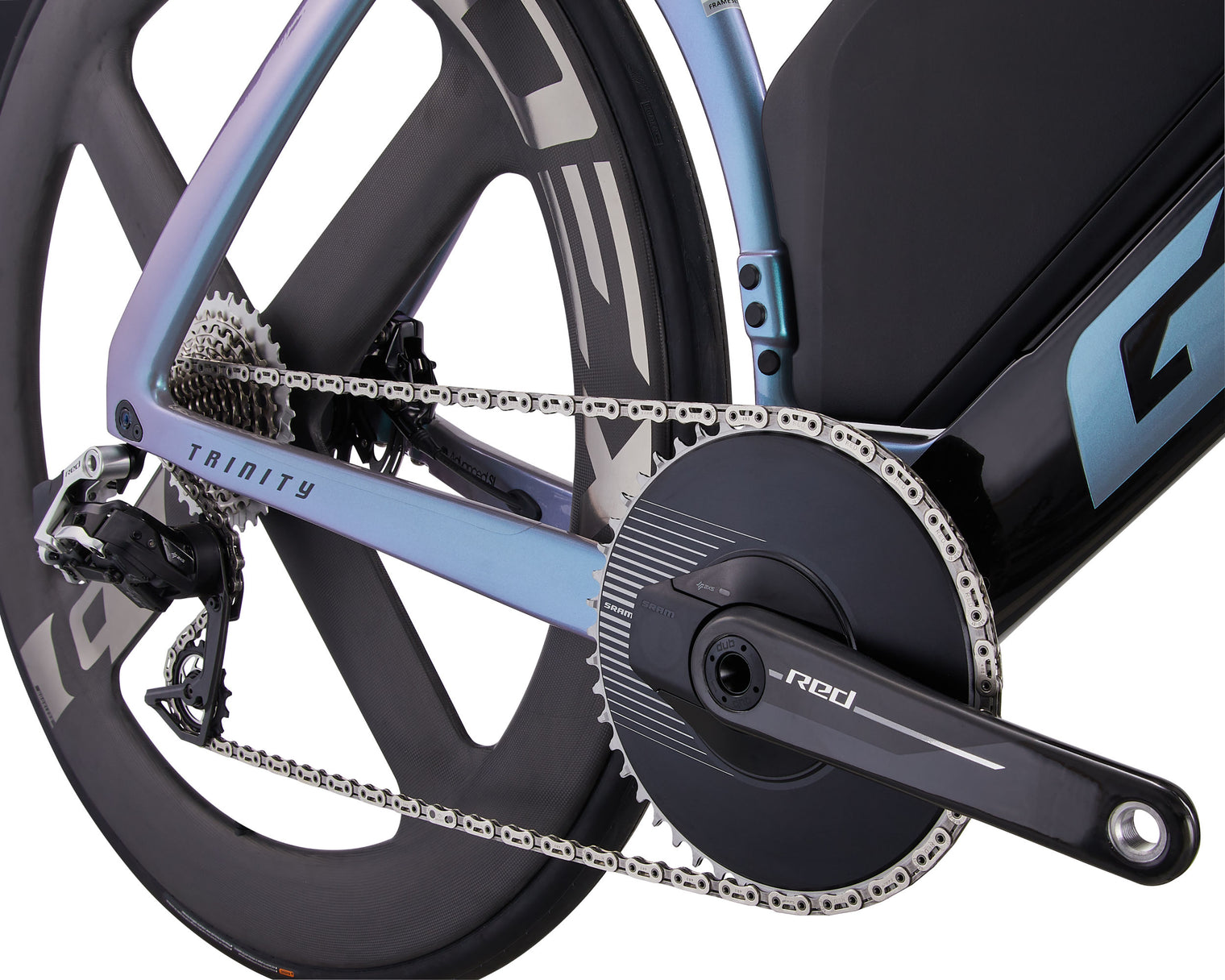

CRANKSET
SRAM RED 1 E1 AXS, 48t with SRAM power meter XS:160mm, S:165mm, M:170mm, L:172.5mm
BOTTOM BRACKET
SRAM DUB, press fit

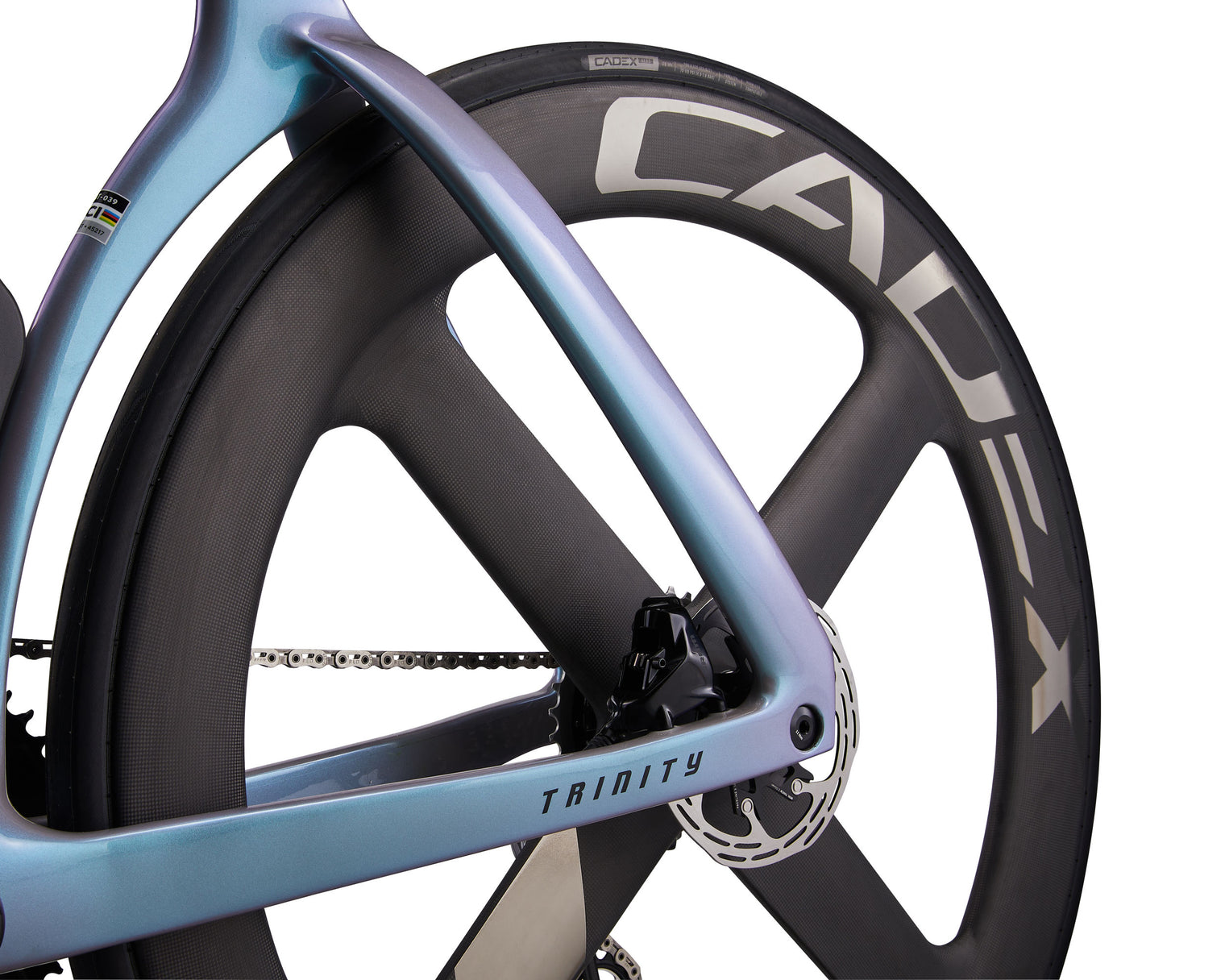

RIMS
CADEX 4-Spoke Disc WheelSystem
HUBS
[F] CADEX R3-C40 Hub, Ceramic Bearings, CenterLock, 12mm thru-axle; [R] CADEX R3-C40 Hub, Ceramic Bearings, 40T ratchet driver, CenterLock, 12mm thru-axle
SPOKES
CADEX 4-Spoke Disc WheelSystem
TYRES
CADEX Aero, tubeless, 700x25c (26.5mm), folding
EXTRAS
Bento box top tube storage, hydration kit, computer mount, tubeless prepared, 30mm max tyre size
MAX TYRE CLEARANCE
30mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
