Liv Avail AR 3 2022

$1,699.00

Colour

Ocean Wave

Size

SMALL

Product variants

Loading locations...

geometry

specs

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.

Key Performance Factors

Comfort

The lightweight ALUXX frame features the latest women’s endurance geometry with an Advanced-Grade Composite fork and D-Fuse seatpost to diminish vibrations.

Control

The Avail AR comes with 32c tyres that ride steady on-road and off, and is compatible with tyres up to 38c. Maintain precise handling with the OverDrive steerer and powerful disc brakes.

Carrying capacity

This bike also accommodates a rack and fenders to keep you equipped on longer hauls.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

cm feet

153 cm

162 cm

158 cm

169 cm

165 cm

174 cm

171 cm

182 cm

mm inches

	XS	S	M	L
A SEAT TUBE LENGTH (mm)	410	445	480	515
B SEAT TUBE ANGLE	74.5°	74.5°	74.0°	74.0°
C TOP TUBE LENGTH (mm)	515	525	540	555
D HEAD TUBE LENGTH (mm)	118	138	158	178
E HEAD TUBE ANGLE	70.5°	71.5°	72.0°	72.0°
F FORK RAKE (mm)	53	53	53	53
G TRAIL (mm)	69.5	62.9	59.6	59.6
H WHEELBASE (mm)	999	1001	1006	1022
I CHAIN STAY LENGTH (mm)	422	422	422	422
J BOTTOM BRACKET DROP (mm)	80	80	80	80
K STACK (mm)	538	561	582	601
L REACH (mm)	366	369	373	383
M STAND OVER HEIGHT (mm)	681	709	736	765
N STEM LENGTH (mm)	70	80	90	90
O CRANK LENGTH (mm)	165	170	170	172.5
P WHEEL SIZE	700C	700C	700C	700C

SIZES

XS, S, M, L

COLOURS

Ocean Wave / Seaport Blue

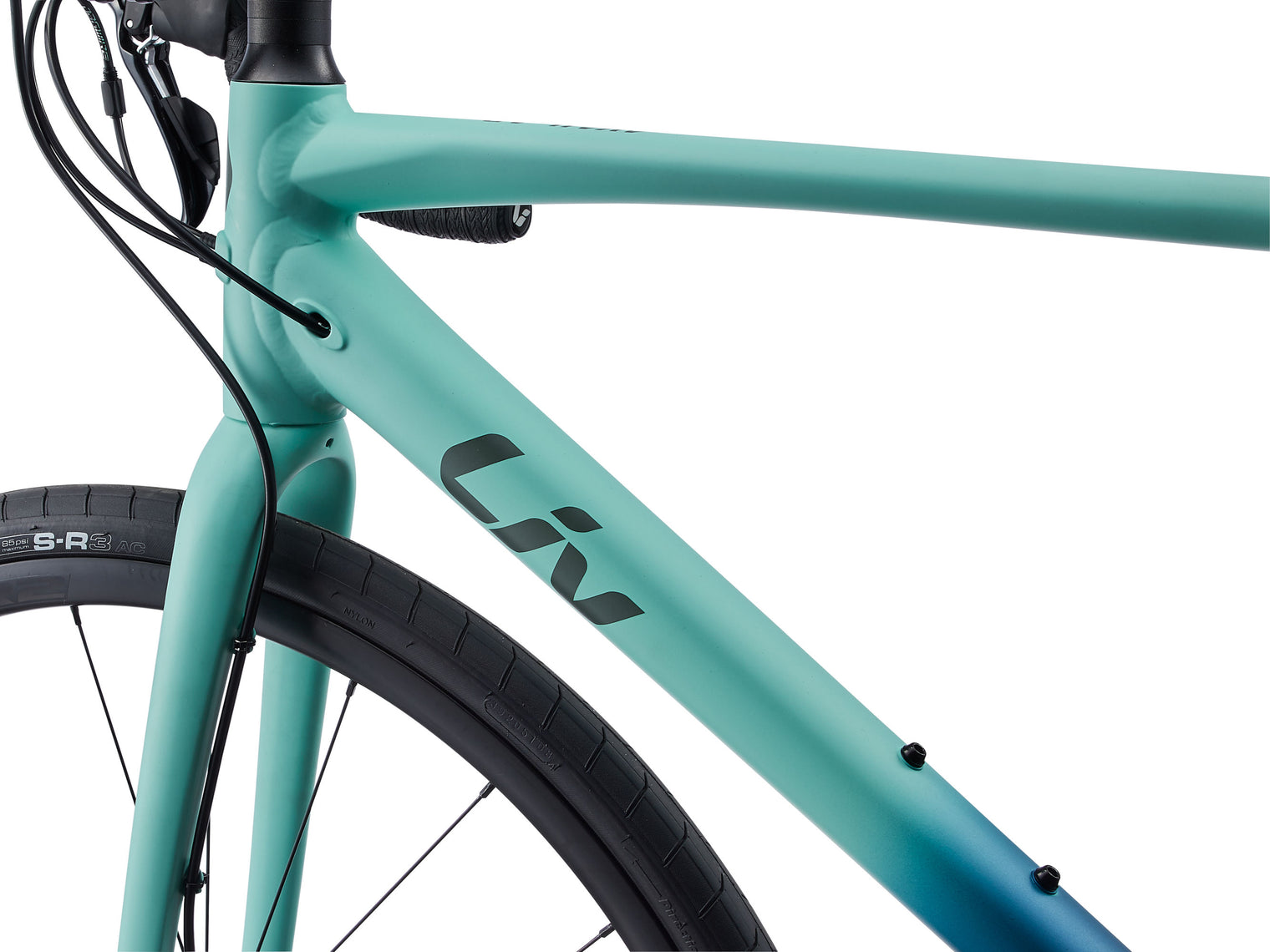

FRAME

ALUXX-Grade Aluminium, 12x142mm thru-axle, disc

FORK

Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc

SHOCK

N/A

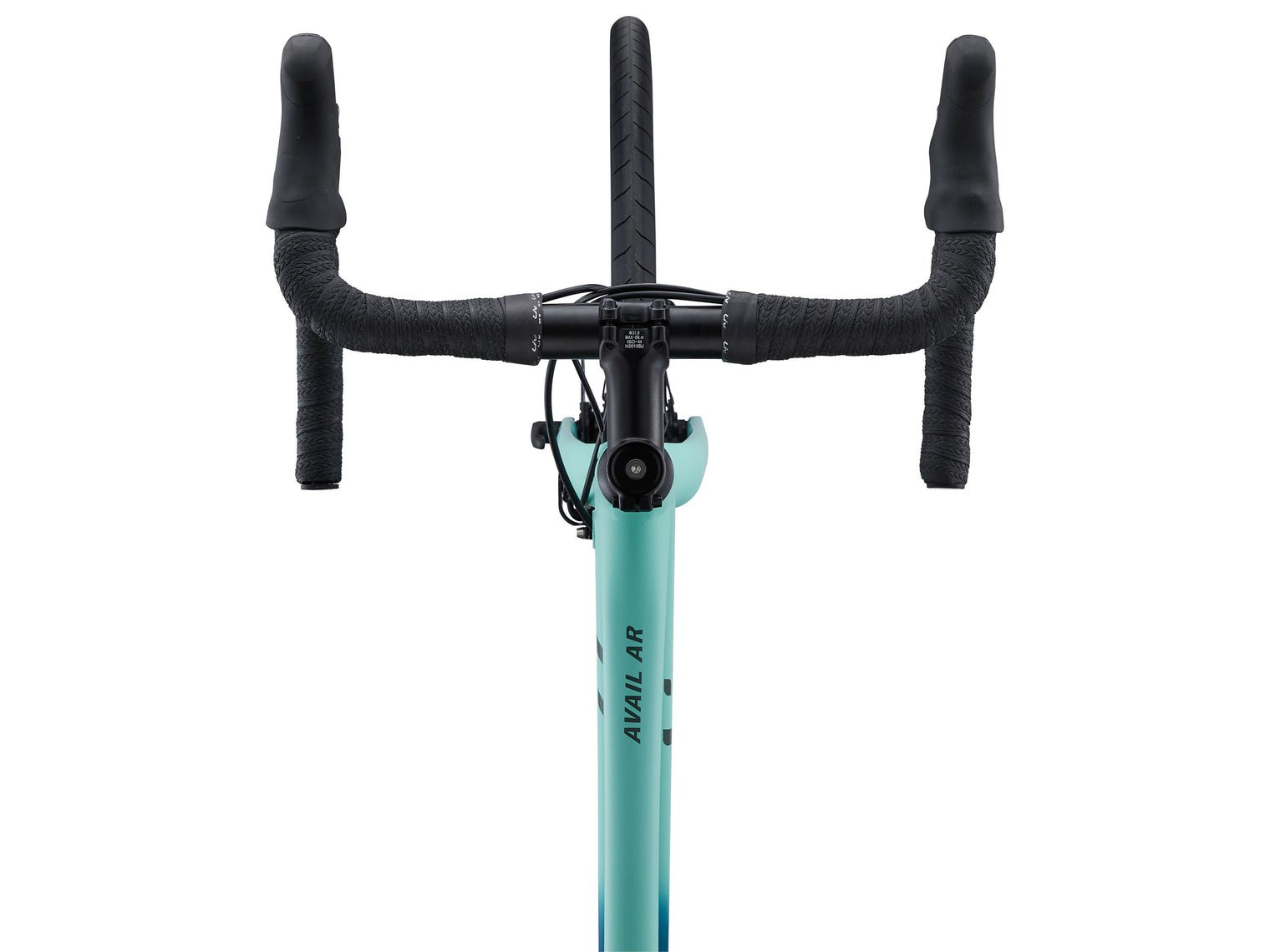

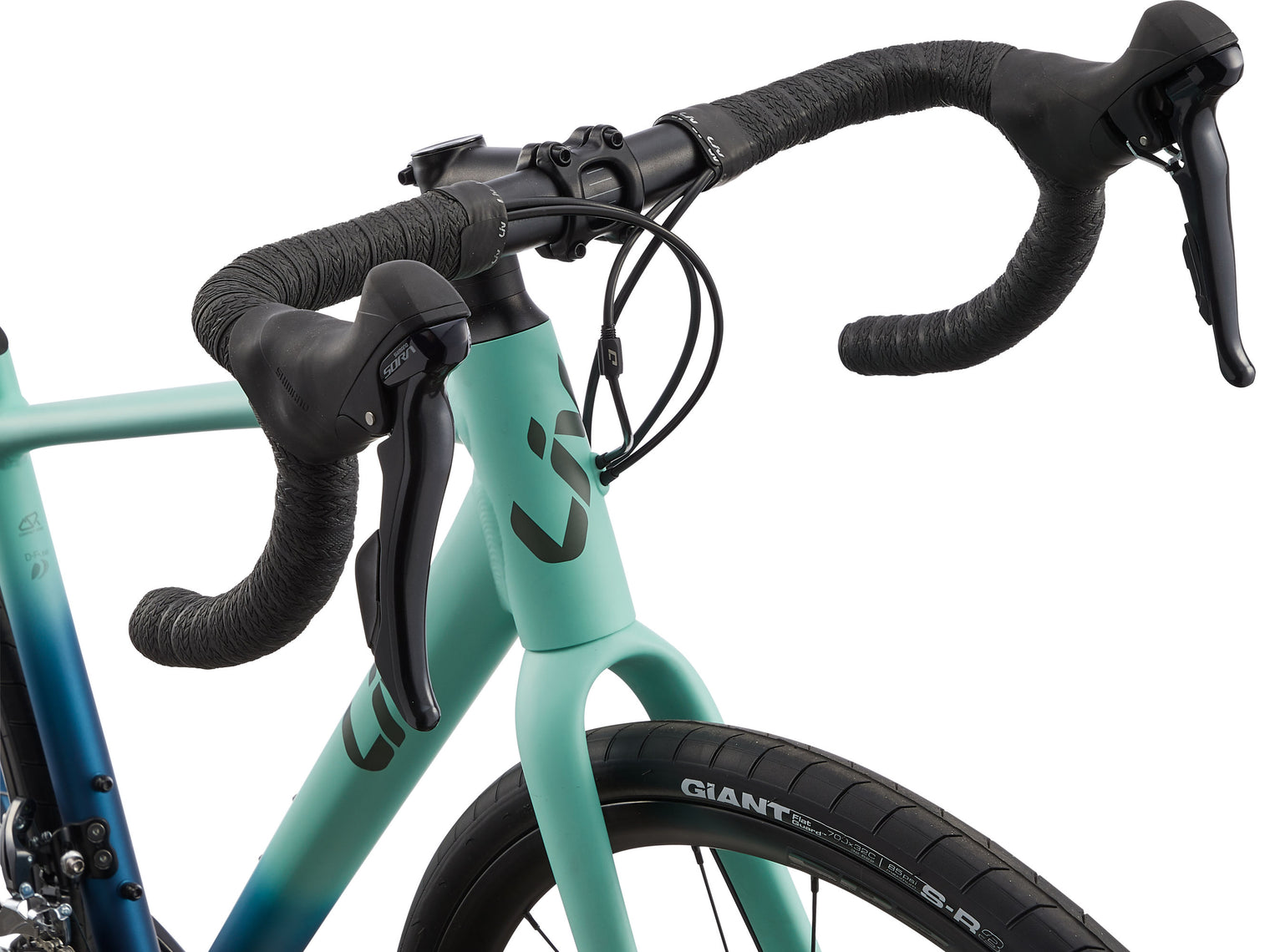

HANDLEBAR

Liv Connect, 31.8mm XS:38cm, S:40cm, M:40cm, L:42cm

GRIPS

Liv All Condition

STEM

Giant Sport XS:70mm, S:80mm, M:90mm, L:90mm

SEATPOST

Giant D-Fuse, alloy

SADDLE

Liv Approach

PEDALS

N/A

SHIFTERS

Shimano Sora

FRONT DERAILLEUR

Shimano Sora

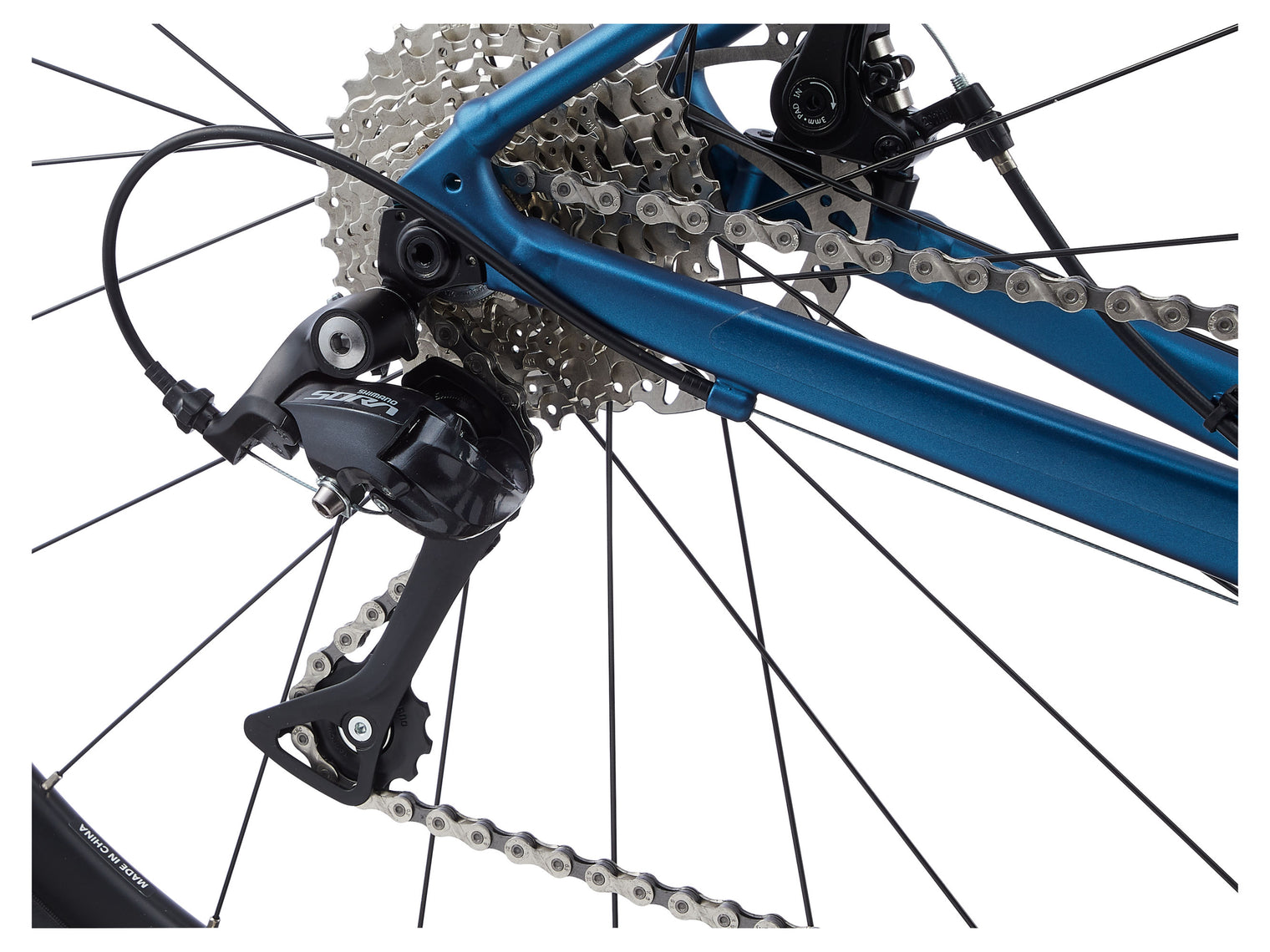

REAR DERAILLEUR

Shimano Sora

BRAKES

Tektro MD-C550 mechanical, Shimano rotors [F]160mm, [R]160mm

BRAKE LEVERS

Shimano Sora

CASSETTE

Shimano CS-HG400, 9-speed, 11x34

CHAIN

KMC X9

CRANKSET

Shimano Sora, 34/50 XS:165mm, S:170mm, M:170mm, L:172.5mm

BOTTOM BRACKET

Cartridge

RIMS

Giant S-R2 Disc wheelset

HUBS

Giant S-R2 Disc wheelset

SPOKES

Giant S-R2 Disc wheelset

TYRES

Giant S-R3 AC, 700x32c

EXTRAS

38mm max tyre size

WEIGHT

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
