Giant Trance X Advanced E+ Elite 0 2024

$11,999.00 $19,499.00
Colour
Size
Loading locations...

ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, AND EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. THE ULTRA-SLIM BATTERY MINIMIZES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.



KEY PERFORMANCE FACTORS

Lighter weight Energy Pak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that's cleanly integrated into the lightweight composite frameset.


Advanced cockpit control

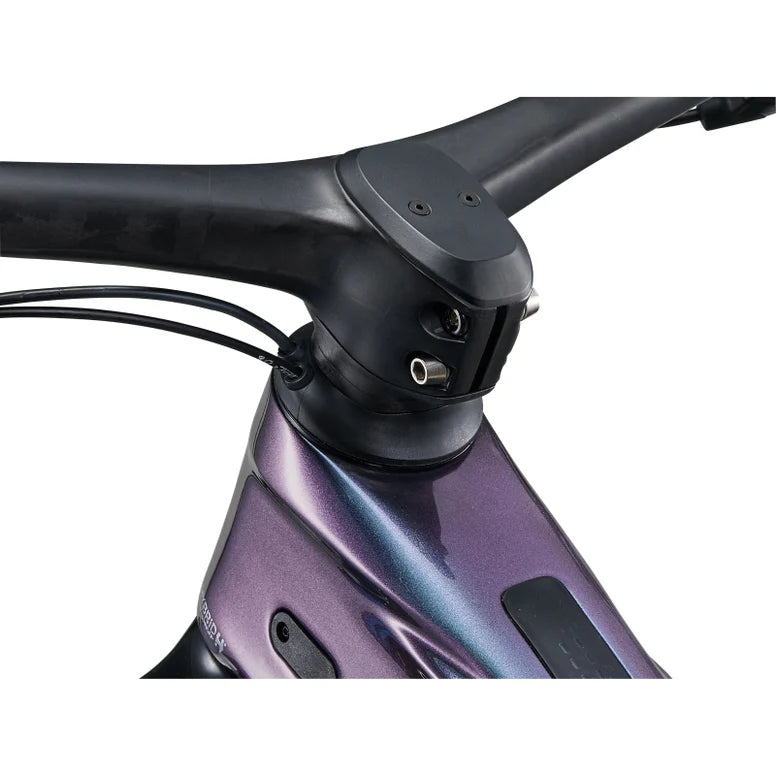

RideControl Ergo 3 remote attaches to the composite Giant Contact handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.


More power

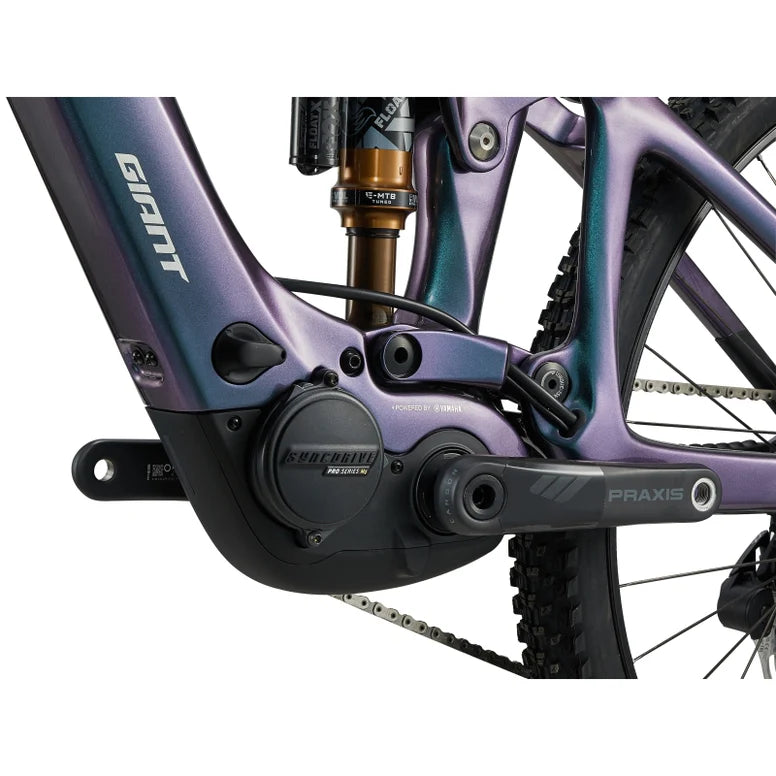

New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterises SyncDrive Pro motors. It's also engineered for a reduced noise level and quiet performance.


RANGE


How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

TECHS & FEATURES

×

A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

SYNCDRIVE PRO

SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact SyncDrive Pro motor is used primarily on Giant’s high-performance models.

Read more

×

This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.

READ MORE

×

Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Coloured LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

READ MORE

×

ENERGYPAK

Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimise the E-bike experience for a specific style of riding.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
LOW HIGH
M
LOW HIGH
L
LOW HIGH
XL
LOW HIGH
A SEAT TUBE LENGTH (mm)
400
425
450
475
A1 SEAT POST INSERTION DEPTH (mm)
220
245
270
295
B SEAT TUBE ANGLE
77.2° 78.0°
76.0° 76.7°
76.0° 76.7°
76.0° 76.7°
C TOP TUBE LENGTH (mm)
577 575
607 605
636 634
665 663
D HEAD TUBE LENGTH (mm)
95
100
115
130
E HEAD TUBE ANGLE
65.7° 66.5°
65.8° 66.5°
65.8° 66.5°
65.8° 66.5°
F FORK RAKE (mm)
44
44
44
44
G TRAIL (mm)
113.1 108
113.1 108
113.1 108
113.1 108
H WHEELBASE (mm)
1194 1195
1215 1212
1244 1244
1275 1275
I CHAIN STAY LENGTH (mm)
447 447
447 447
447 447
447 447
J BOTTOM BRACKET DROP (mm)
10
10
10
10
K STACK (mm)
607 601
611 605
625 619
639 633
L REACH (mm)
439 447
457 462
480 487
505 513
M STAND OVER HEIGHT (mm)
726 735
733 742
732 741
741 750
O STEM LENGTH (mm)
40
40
50
50
P CRANK LENGTH (mm)
160
165
165
170
Q WHEEL SIZE
[F]29"[R]27.5"
[F]29"[R]27.5"
[F]29"[R]27.5"
[F]29"[R]27.5"
GRIPS
Giant Tactal Pro-E, single lock-on
HANDLEBAR
Giant Contact SLR Integrated, composite, 35mm
SADDLE
Giant Romero SL
SEATPOST
Fox Transfer Factory dropper, remote S: 125mm travel / 30.9 x 363mm M: 145mm travel / 30.9 x 418mm L: 175mm travel / 30.9 x 475mm XL: 200mm travel / 30.9 x 475mm
STEM
Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
BOTTOM BRACKET
N/A
BRAKE LEVERS
SRAM Code RSC
BRAKES
SRAM G2 Ultimate, 4-piston, hydraulic disc
BRAKES ROTOR
[F] 200mm, [R] 180mm
CASSETTE
SRAM XX SL, T-Type 10x52, 12-speed
CHAIN
SRAM XX T-Type
CRANKSET
Praxis Performance Carbon e-crank arms, SRAM Eagle T-Type steel 36T chain ring S:160mm, M: 160mm, L:165mm, XL:165mm
FRONT DERAILLEUR
MRP HD2 co-moulded chain guide
REAR DERAILLEUR
SRAM XX Eagle T-Type AXS
SHIFTERS
SRAM AXS Rocker Paddle, 1x12
BATTERY
EnergyPak Smart 400Wh EnergyPak Plus
DISPLAY
RideControl GO, frame integrated LED display ANT+ Wireless display compatible
DISPLAY/CONTROLLER
RideControl Ergo 3, grip integrated
E MOTOR
Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
E MOTOR CHARGER
EnergyPak 4A smart charger compact
LIGHTS
Optional:- Giant Recon series e-bike lights available and direct connectable
RANGE EXTENDER
Range extender compatible
FORK
Fox 38 Factory E-Tuned, 150mm travel, 44mm offset, GRIP 2 VVC damper, Boost 110x15QR
FRAME
Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, flip chip, UDH hanger 12x148mm thru-axle
SHOCK
Fox Float X Factory, EVOL Large Volume sleeve, custom tuned
EXTRAS
Tubeless kit (liquid, valves, levers)
FRONT TYRE
Maxxis Dissector 29X2.40 Foldable, TLR, EXO
HUBS
Zipp 3MOTO ZM2
REAR TYRE
Maxxis Rekon 27.5x2.4 Foldable, TLR, EXO+
RIMS
Zipp 3Zero MOTO 29 inch [F],27.5 inch [R], Carbon (*Quarq TyreWiz not included)
SPOKES
Zipp 3MOTO
