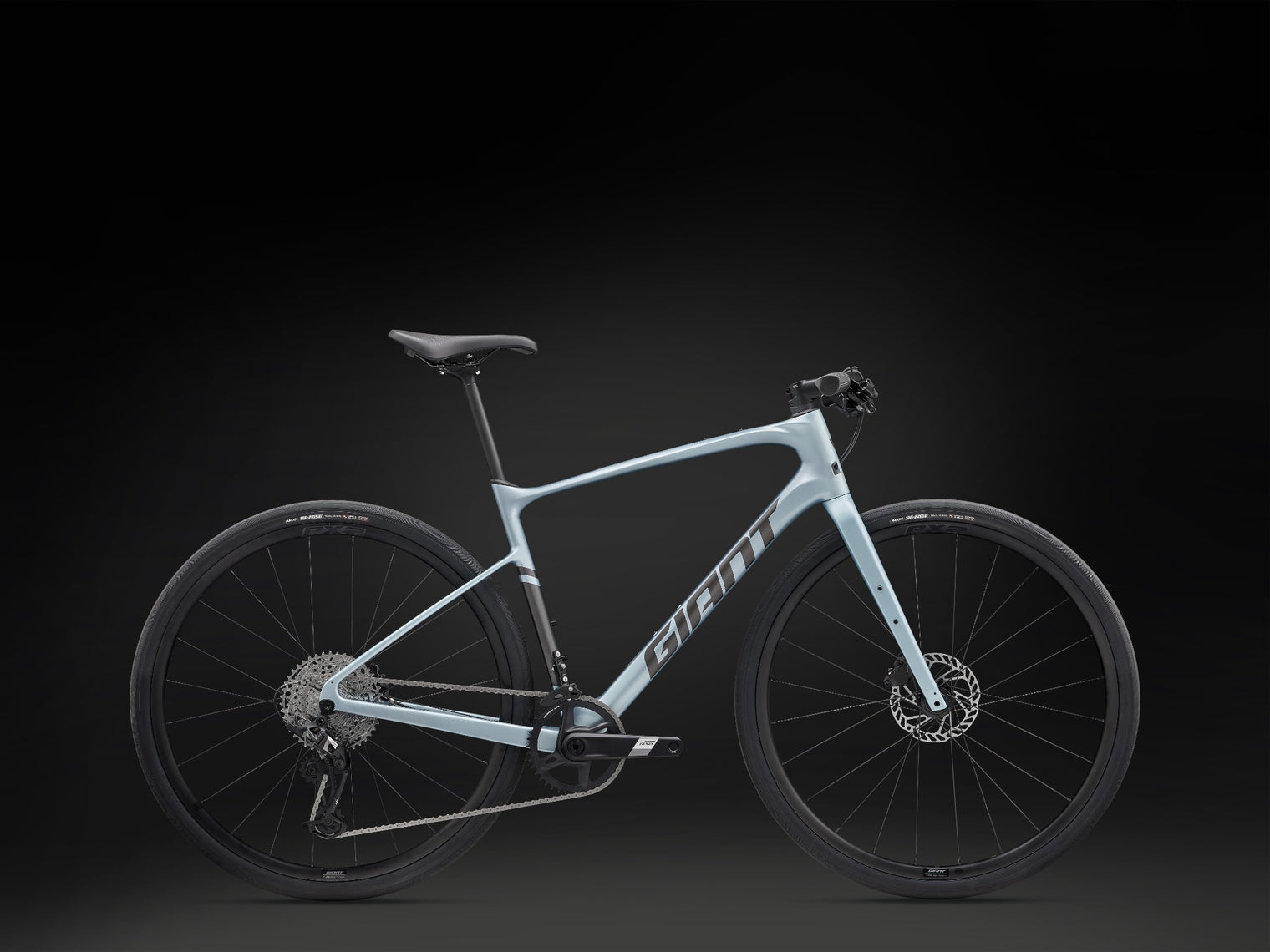

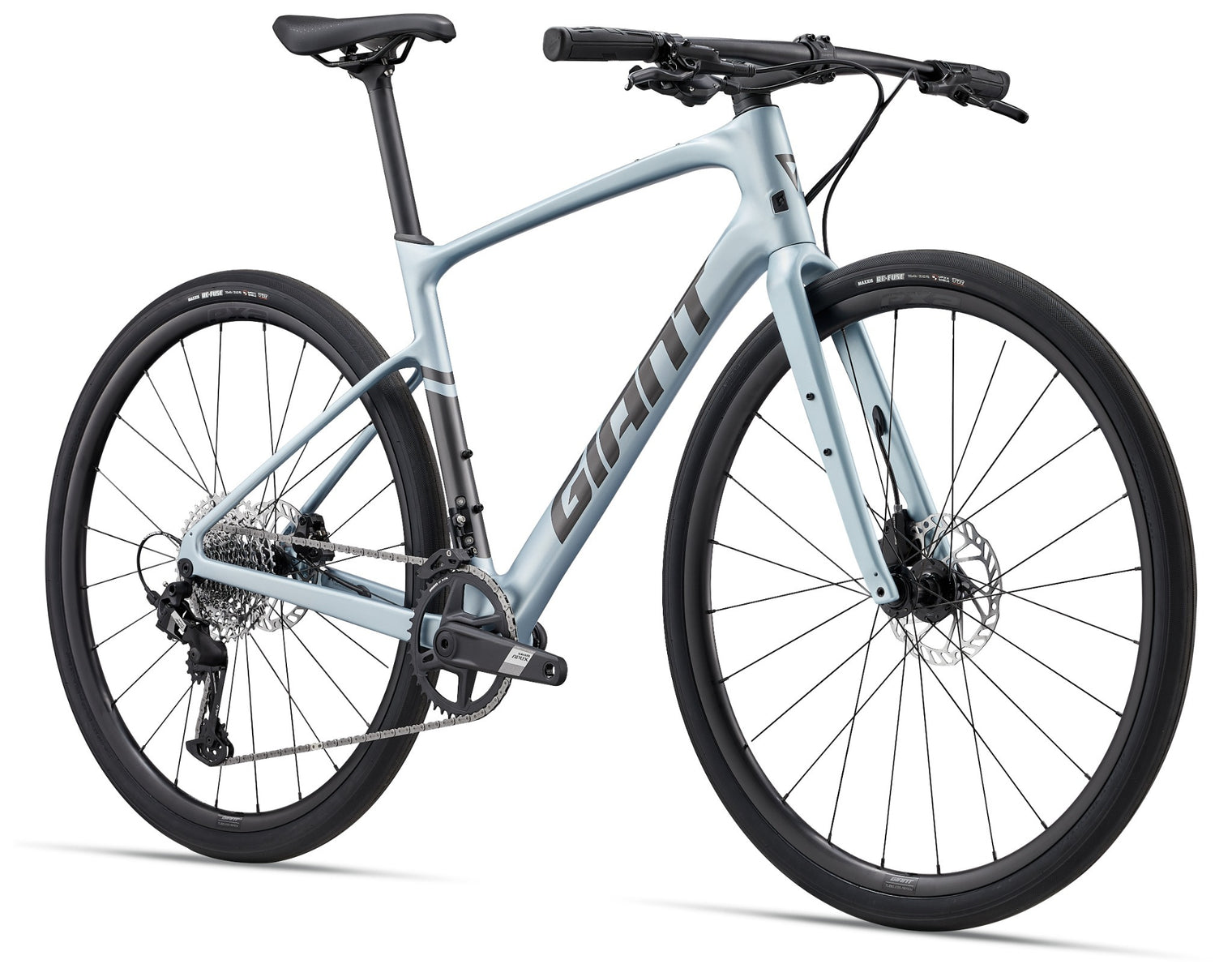

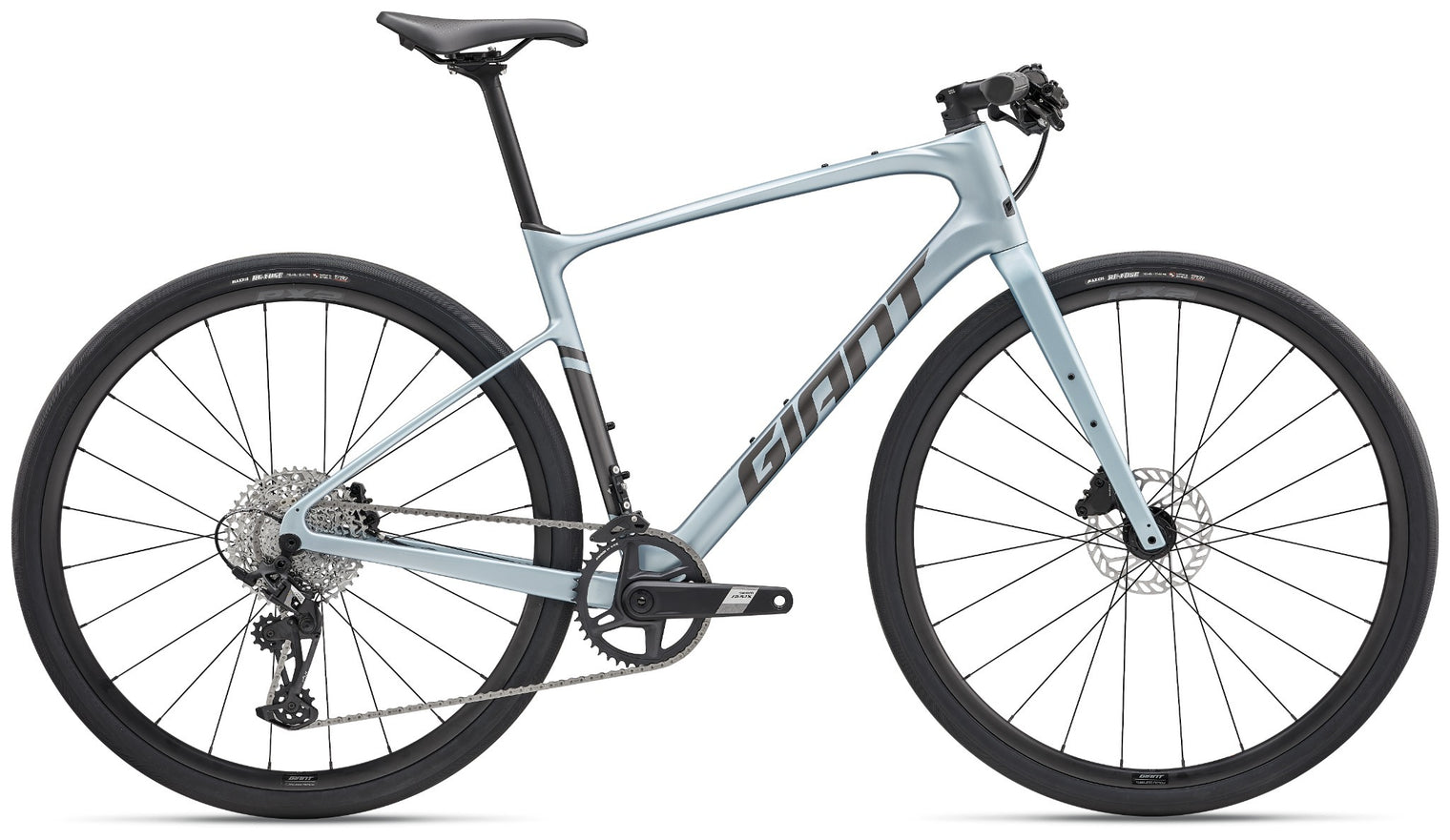

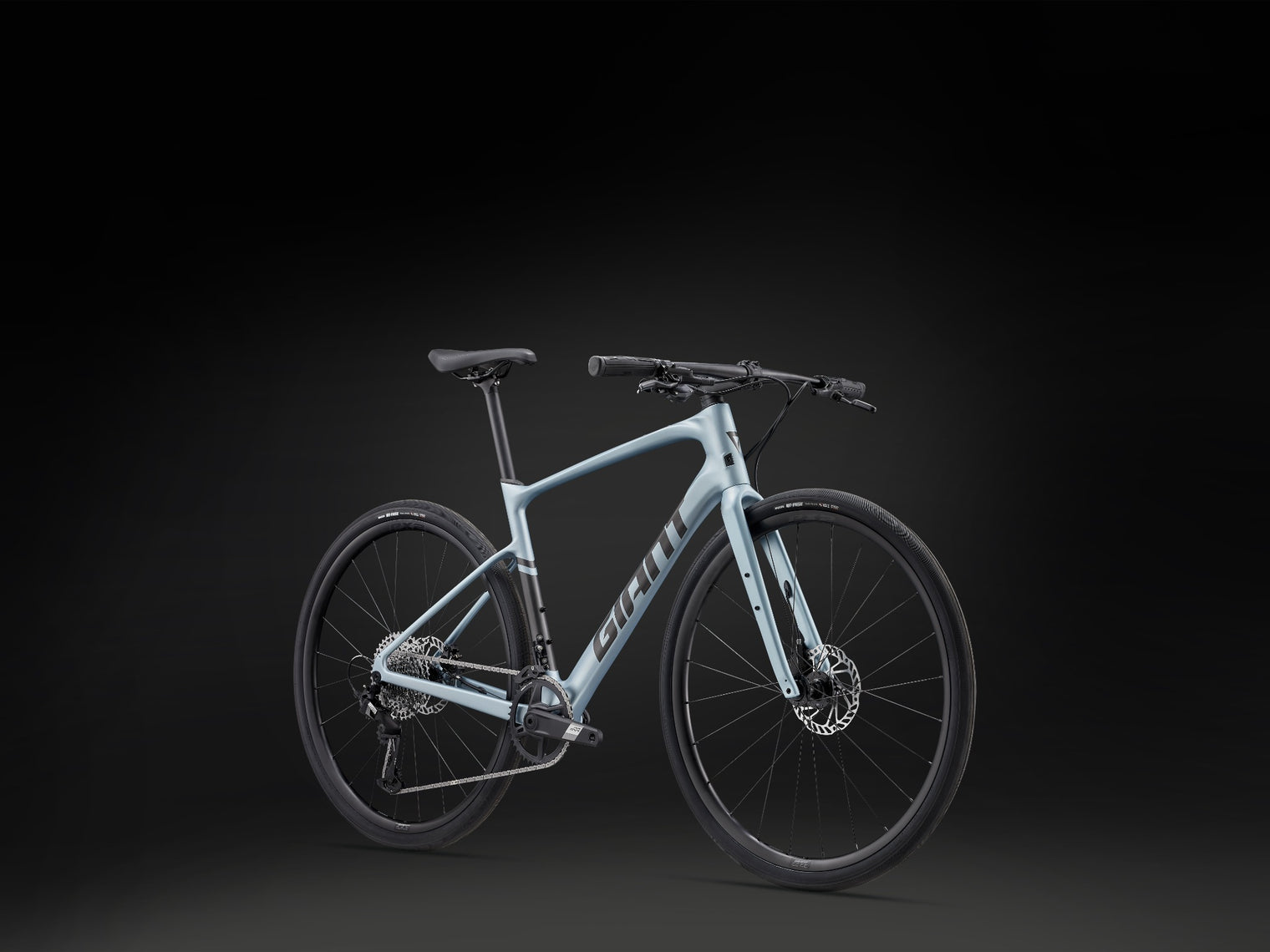

Giant 2027 Fastroad AR Advanced 1

$2,799.00
Colour
Size
Loading locations...

Fitness gains made fun. This lightweight flyer has a sleek composite frameset, flat handlebar positioning and all-road capabilities so you can go from city streets to bumpy backroads with speed, comfort and control.

Key Performance Factors

Lightweight efficiency

Advanced Composite frameset and sleek shaping make this model 350g lighter than the aluminium version. A stiffer bottom bracket area improves power transfer so you can accelerate and climb faster with less effort.

Smooth, stable ride quality

Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. The combination of a D-Fuse composite seatpost and ErgoContact saddle helps smooth out rough roads.

All-road capabilities

High-volume 40mm tubeless tyres offer the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double chainring setups are available on different models to suit individual riding style and terrain.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

cm feet
XS
155 cm 165 cm
S
160 cm 170 cm
M
170 cm 180 cm
ML
175 cm 185 cm
L
180 cm 190 cm
XL
190 cm 200 cm
Bike frame geometry diagram
mm inches
XS S M ML L XL
A SEAT TUBE LENGTH (mm) 425 455 475 495 525 555
B SEAT TUBE ANGLE 72.5° 72.5° 72.5° 72.0° 72.0° 72.0°
C TOP TUBE LENGTH (mm) 545 560 575 590 610 630
D HEAD TUBE LENGTH (mm) 110 130 155 175 200 225
E HEAD TUBE ANGLE 70.5° 70.5° 71.0° 71.0° 71.5° 71.5°
F FORK RAKE (mm) 50 50 50 50 50 50
G TRAIL (mm) 72.7 72.7 70.4 70.4 67.1 67.1
H WHEELBASE (mm) 1021 1047 1058 1069 1084 1105
I CHAIN STAY LENGTH (mm) 425 425 425 425 425 425
J BOTTOM BRACKET DROP (mm) 75 75 75 75 75 75
K STACK (mm) 533 552 578 597 623 646
L REACH (mm) 387 396 404 407 419 432
M STAND OVER HEIGHT (mm) 718 736 756 773 800 826
O STEM LENGTH (mm) 70 80 90 90 100 110
P CRANK LENGTH (mm) 170 170 170 172.5 172.5 172.5
Sizes
XS, S, M, M/L, L, XL
Colours
Cryo Silver
Frame
Advanced-grade composite, 12x142mm thru-axle, disc
Fork
Advanced-Grade Composite, Full Carbon OverDrive Steerer, 12x100mm thru-axle, disc
Shock
N/A
Handlebar
Giant Sport, flat, 31.8mm
Grips
Giant ErgoContact D3
Stem
Giant Contact, 8-degree XS:70mm, S:80mm, M:90mm, M/L:90mm, L:100mm, XL:110mm
Seatpost
Giant D-Fuse, composite
Saddle
Giant ErgoContact
Pedals
N/A
Shifters
SRAM NX Eagle SL-NX-1-B1, 1x12
Front Derailleur
N/A
Rear Derailleur
SRAM APEX, RD-APX-E1
Brakes
Shimano BR-UR300, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers
Shimano BL-MT221
Cassette
SRAM XPLR PG-1231-E1, 12-speed, 11-44
Chain
SRAM Rival-E1
Crankset
SRAM Apex FC-APX-1W-E1, 42t XS:170mm, S:170mm, M:170mm, M/L:172.5mm, L:172.5mm, XL:175mm
Bottom Bracket
SRAM DUB, press fit
Rims
Giant P-X2 Disc wheelset
Hubs
[F] Giant Alloy, 6 bolt, 24H [R] Giant Alloy, 6 bolt, 24H
Spokes
Sapim Race
Tyres
Maxxis Re-Fuse, tubeless, 700x40c
Extras
Tubeless prepared, chain guide
Max Tyre Clearance
42mm
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
