Giant Reign E+ 1

$7,698.99 $11,499.00
Size
Loading locations...

GRAVEL CRUSHER

For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective: Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.

KEY PERFORMANCE FACTORS

FAST AND VERSATILE

An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost* help smooth out rough tracks, improving control and minimising fatigue over long distances.

SMART INTEGRATION

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, moulded, chainstay and down tube protection help defend the frame against impacts and quell noise.

TECHS & FEATURES

×

ALUXX SL ALUMINIUM TECHNOLOGY

This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.

×

ENERGYPAK PLUS

This range extender can boost total capacity by 240Wh. It has all the latest technologies combined with an up-to-date design that fits a select number of bikes. It has smart technology so it automatically turns on when your battery loses power, giving you peace of mind that you can reach your destination.

READ MORE

×

Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Coloured LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

READ MORE

×

This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.

READ MORE

×

SYNCDRIVE PRO

SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact SyncDrive Pro motor is used primarily on Giant’s high-performance models.

Read more

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XXS
XS
S
M
XXS
XS
S
M
ASEAT TUBE LENGTH (mm)
440
477
508
538
BSEAT TUBE ANGLE
77.0°
77.0°
77.0°
77.0°
CTOP TUBE LENGTH (mm)
493
510
530
550
DHEAD TUBE LENGTH (mm)
65
85
105
125
EHEAD TUBE ANGLE
71.0°
72.0°
73.0°
73.0°
FFORK RAKE (mm)
40
40
40
40
GTRAIL (mm)
79
69
63
63
HWHEELBASE (mm)
938
974
988
1013
ICHAIN STAY LENGTH (mm)
405
405
405
405
JBOTTOM BRACKET DROP (mm)
70
70
70
70
KSTACK (mm)
467
490
513
532
LREACH (mm)
387
397
412
431
MSTAND OVER HEIGHT (mm)
729
753
787
815
NWHEEL SIZE
700c
700c
700c
700c
OARM PAD STACK
(TRI) 604-686 | (TT) 556-640
(TRI) 629-709 | (TT) 582-682
(TRI) 653-733 | (TT) 605-685
(TRI) 672-752 | (TT) 624-704
PARM PAD REACH
(TRI) 309-383 | (TT) 326-400
(TRI) 323-398 | (TT) 339-414
(TRI) 340-415 | (TT) 355-430
(TRI) 360-435 | (TT) 375-450
SIZES
S, M, L, XL
COLOURS
Blue Dragonfly / Black
FRAME
ALUXX SL-grade aluminium, Advanced Forged Composite upper rocker, 160mm Maestro suspension system, flip chip, UDH hanger, 12x148mm thru-axle
FORK
Fox 38 Factory E-Tuned, 170mm travel, 44mm offset, GRIP2 VVC damper, Boost Kabolt-X 110x15mm
SHOCK
Fox X2 Factory, EVOL Large Volume sleeve, custom tuned

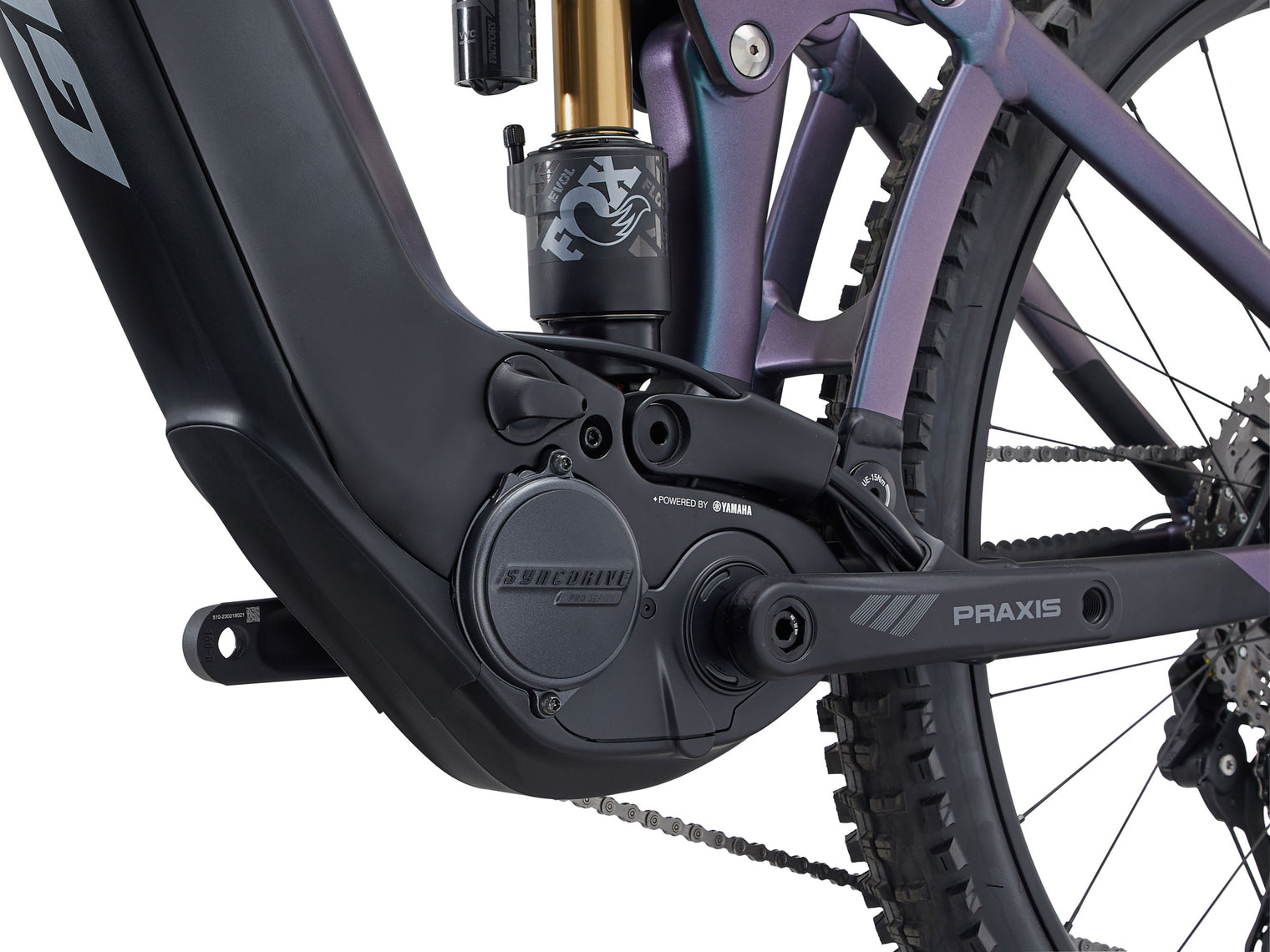

MOTOR
SyncDrive Pro 2, 85Nm, powered by Yamaha
CONTROLLER
RideControl Ergo 3, grip integrated

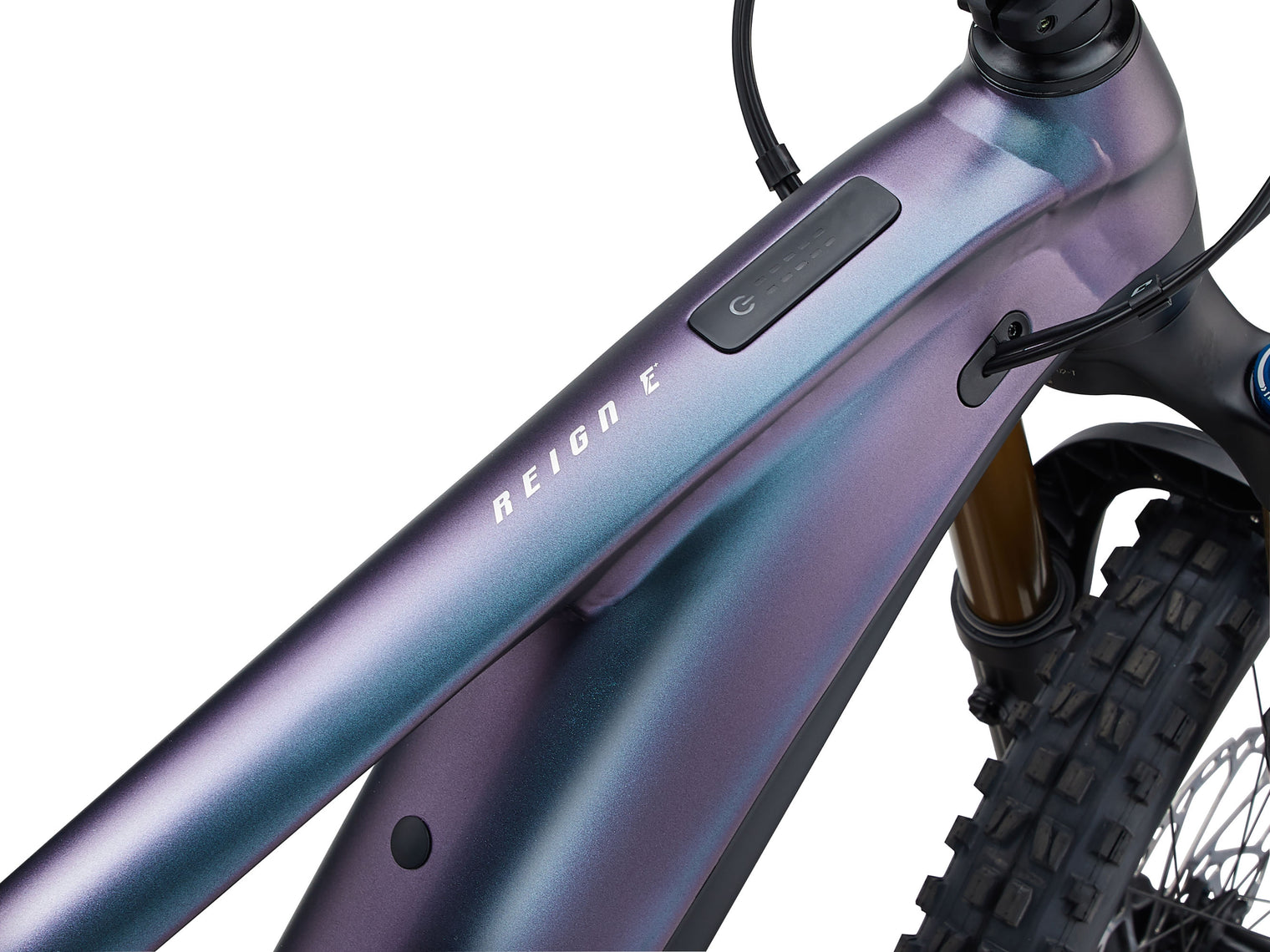

DISPLAY
RideControl GO, frame integrated LED display; ANT+ Wireless display compatible
BATTERY
EnergyPak Smart 800Wh; EnergyPak Plus range extender compatible
CHARGER
EnergyPak 6A smart charger
MAXIMUM ASSISTED SPEED
Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
CONNECTIVITY
Giant RideControl App enabled; ANT+ wireless display signal with e-bike profile
HANDLEBAR
Giant Contact Trail, 35mm
GRIPS
Giant Tactal Pro-E, single lock-on
STEM
Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:50mm
SEATPOST
TranzX travel-adjustable dropper, remote — S: 120–150mm / 30.9 x 459mm; M: 140–170mm / 30.9 x 499mm; L: 170–200mm / 30.9 x 559mm; XL: 170–200mm / 30.9 x 559mm
SADDLE
Giant Romero Trail
PEDALS
Platform
SHIFTERS
Shimano XT LinkGlide, 1x11
FRONT DERAILLEUR
MRP HD2 co-moulded chain guide
REAR DERAILLEUR
Shimano XT LinkGlide 11-speed, Shadow+
BRAKES
Shimano XT BR-M8120, 4-piston, hydraulic disc; [F]220mm, [R]220mm rotors
BRAKE LEVERS
Shimano XT BL-M8100, I-spec EV
CASSETTE
Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
CHAIN
Shimano LinkGlide, CN-LG500
CRANKSET
Praxis N.W. 36T cold-forged 4130 premium steel; Praxis e-HD forged crankarm set (S/M:160mm, L/XL:165mm)
BOTTOM BRACKET
N/A
RIMS
E-TRA Hookless Tubeless ready Alloy — 29" [F] / 27.5" [R], 30mm inner width
HUBS
E-TRA MTB Alloy Hub, 6-Bolt, 110x15 [F] / 148x12 [R]; Shimano HG drive body pawl driver (3 Pawl 30T) thru-axle [R]
SPOKES
Sapim E-Lite [R] / Race [F], e-bike optimised
TYRES
Maxxis Minion DHF 29x2.6" foldable, tubeless, EXO+, 3C MaxxTerra [F]; Maxxis High Roller II 27.5x2.5" foldable, tubeless, DoubleDown, 3C MaxxTerra [R]
EXTRAS
Tubeless kit (liquid, valves, levers, manual, tool)
LOCK
Torx 25 Battery Lock with built-in torque limiter
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
