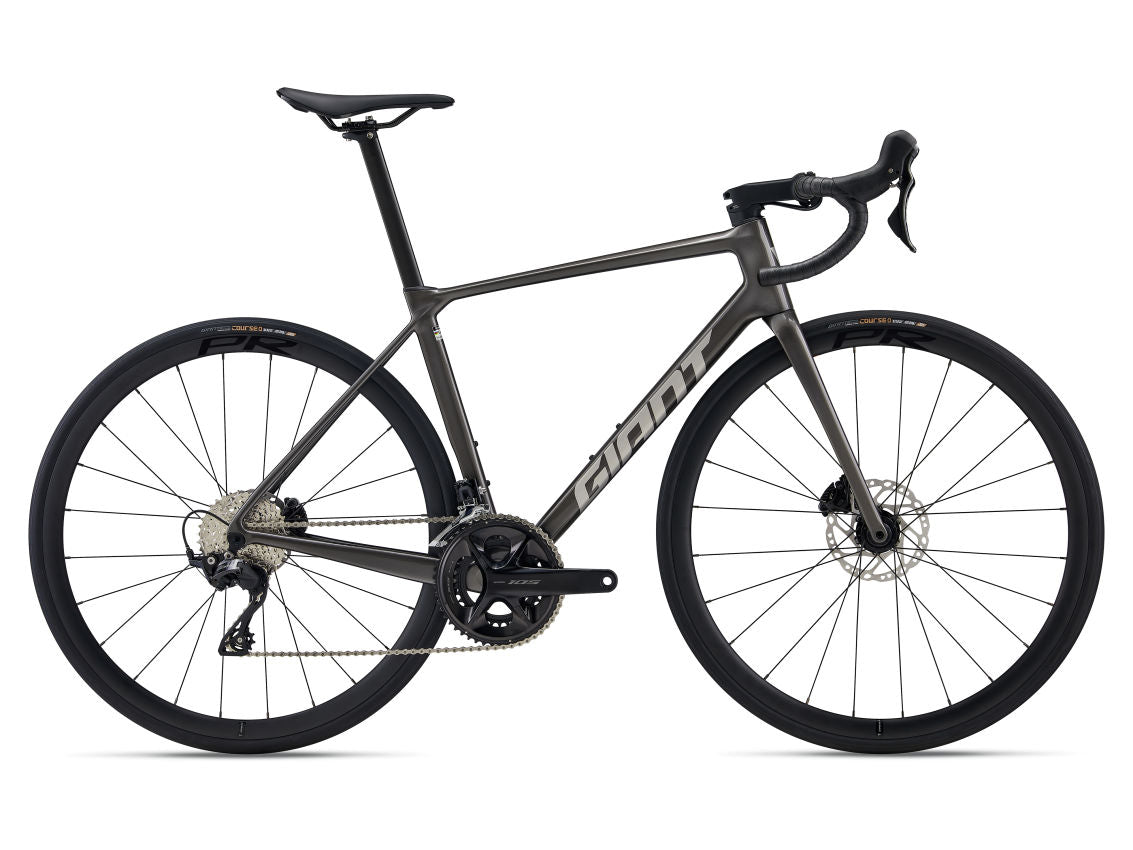

• Giant TCR Advanced 2 PC MY26

Giant TCR Advanced 2 PC MY26

$2,999.00 $3,799.00
Colour
Size
Loading locations...

WINNING RACE BIKES HAVE JUST THE RIGHT BALANCE OF LIGHT WEIGHT, SUPERIOR STIFFNESS AND SMOOTH COMPLIANCE ON THE ROAD. TCR ADVANCED DELIVERS ON ALL THREE.

Key Performance Factors

Class-leading efficiency

A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tyre pressures for increased grip and a reduced risk of punctures.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

POWERCORE

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

×

COMPACT ROAD DESIGN

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
ASEAT TUBE LENGTH (mm)
425
445
470
500
530
560
BSEAT TUBE ANGLE
74.5°
74.0°
73.5°
73.0°
73.0°
72.5°
CTOP TUBE LENGTH (mm)
520
535
550
565
580
600
DHEAD TUBE LENGTH (mm)
120
130
145
165
185
200
EHEAD TUBE ANGLE
71.0°
72.3°
73.0°
73.0°
73.0°
73.0°
FFORK RAKE (mm)
45
45
45
45
45
45
GTRAIL (mm)
72.1
64
59.2
59.2
59.2
59.2
HWHEELBASE (mm)
976
977
980
991
1006
1020
ICHAIN STAY LENGTH (mm)
405
405
405
405
405
405
JBOTTOM BRACKET DROP (mm)
72
70
70
67
67
67
KSTACK (mm)
517
528
545
562
581
596
LREACH (mm)
376
383
388
393
402
412
MSTAND OVER HEIGHT (mm)
719
734
752
768
786
803
OSTEM LENGTH (mm)
80
90
100
110
110
120
PCRANK LENGTH (mm)
165
165
170
170
172.5
172.5
SIZES
XS, S, M, M/L, L, XL
COLOURS
Stealth Chrome
FRAME
Advanced-grade Composite, 12x142mm thru-axle, disc
FORK
Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
SHOCK
N/A
HANDLEBAR
Giant Contact XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
GRIPS
Stratus Lite 2.0
STEM
Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
SEATPOST
Giant Variant, composite, -5/+15mm offset
SADDLE
Giant Approach
PEDALS
N/A
SHIFTERS
Shimano 105
FRONT DERAILLEUR
Shimano 105
REAR DERAILLEUR
Shimano 105
BRAKES
Shimano 105 hydraulic, Shimano SM-RT64 rotors [F]160mm, [R]140mm
BRAKE LEVERS
Shimano 105
CASSETTE
Shimano 105, 12-speed, 11x34
CHAIN
KMC X12L-1
CRANKSET
Shimano 105, 36/52 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
BOTTOM BRACKET
Shimano, press fit
RIMS
Giant P-R1, [F]30mm, [R]30mm
HUBS
Giant alloy, 12mm thru-axle
SPOKES
Stainless
TYRES
Giant Gavia Course 0, tubeless, 700x28c (28mm), folding
EXTRAS
Tubeless prepared, 33mm max tyre size
MAX TYRE CLEARANCE
33mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
