• Liv Langma Advanced 2 Disc PC 2024

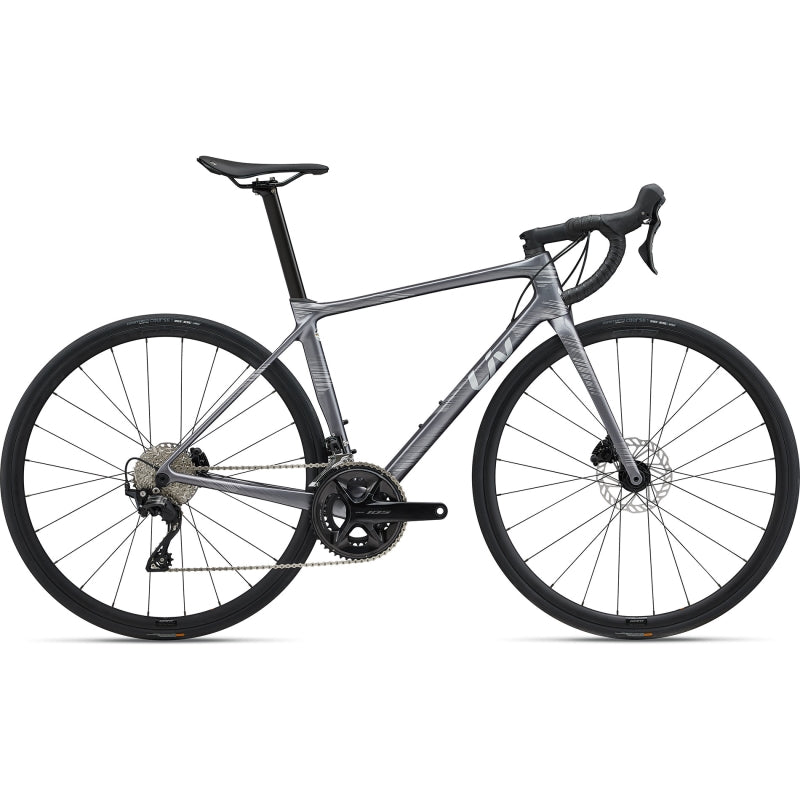

Liv Langma Advanced 2 Disc PC 2024

$2,499.00 $3,799.00
Colour
Size
Loading locations...

WHETHER YOU'RE IN IT FOR THE LOVE OF THE CLIMB, THE RUSH OF THE DESCENT, OR THE NEXT PR, THE LANGMA ADVANCED DISC IS READY WITH ITS RE-ENGINEERED LIGHTWEIGHT AERO FRAME WITH INTEGRATED DISC BRAKES, PLUS CUSTOM LIV SADDLE AND HANDLEBARS FOR POWERFUL FIT AND PERFORMANCE.


SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
L
XS
S
M
L
A SEAT TUBE LENGTH (mm)
420
450
480
510
B SEAT TUBE ANGLE
75.0°
74.5°
74.0°
73.5°
C TOP TUBE LENGTH (mm)
508
524
540
555
D HEAD TUBE LENGTH (mm)
120
135
155
175
E HEAD TUBE ANGLE
71.0°
72.0°
72.5°
72.5°
F FORK RAKE (mm)
49
49
49
49
G TRAIL (mm)
67.8
61.4
58.2
58.2
H WHEELBASE (mm)
973
977
984
996
I CHAIN STAY LENGTH (mm)
405
405
405
405
J BOTTOM BRACKET DROP (mm)
72
70
70
67
K STACK (mm)
517
532
553
569
L REACH (mm)
370
377
382
386
M STAND OVER HEIGHT (mm)
700
730
760
790
O STEM LENGTH (mm)
80
90
100
110
P CRANK LENGTH (mm)
165
170
170
172.5
Q WHEEL SIZE
700C
700C
700C
700C
Sizes
XS, S, M
Colours
Asphalt Green
Frame
ALUXX SL-grade aluminium, 12x142mm thru-axle, disc
Fork
Advanced-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Handlebar
Giant Contact XS:35/38cm, S:37/40cm, M:37/40cm
Grips
Liv
Stem
Giant Contact AeroLight XS:80mm, S:90mm, M:90mm
Seatpost
Giant D-Fuse, composite, 14mm offset
Saddle
Liv Grit Core
Shifters
Shimano 105
Front Derailleur
Shimano 105
Rear Derailleur
Shimano 105
Brakes
Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
Brake Levers
Shimano 105 hydraulic
Cassette
Shimano 105, 12-speed, 11x36
Chain
KMC X12L-1
Crankset
Shimano 105, 34/50 XS:165mm, S:165mm, M:170mm
Bottom Bracket
Shimano, press fit
Rims
Giant ALP, alloy, [F]30mm, [R]30mm
Hubs
[F] Giant alloy, 6 bolt, 12mm thru-axle [R] Giant alloy, 6 bolt, 12mm thru-axle
Spokes
Stainless
Tyres
Giant SR 1, 700x28c
Max Tyre Clearance
32mm
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
KEY PERFORMANCE FACTORS
Accelerate faster

The heart of the Langma Advanced is a super-light Advanced-grade composite frameset, delivering a powerful stiffness-to-weight ratio for explosive acceleration. Updated truncated ellipse tubing reduces wind drag and boosts sprinting efficiency.

Better handling

Integrated, flat-mount disc brakes deliver the confidence to carry speed into corners and navigate variable weather conditions. The Langma also accommodates tyres up to 32mm, so you can customise your set-up for the road ahead.

Vibration cancelling

The adjustable Variant Composite Seatpost provides superior compliance, so you get a responsive ride that practically skims over rough roads.
