• Giant 2027 Reign Advanced

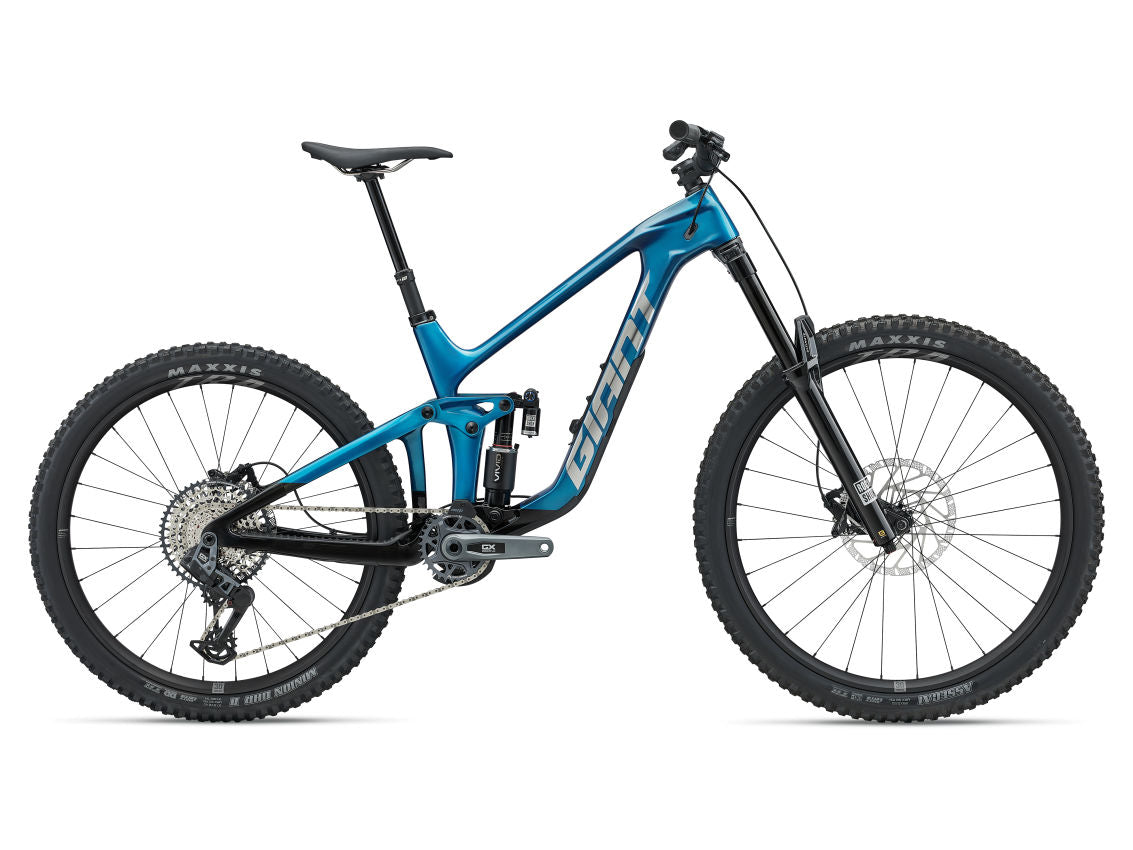

Giant 2027 Reign Advanced

$8,999.00
Colour
Size
Loading locations...

Go fast, get rowdy and nail new lines. Developed with Giant's enduro racing pros, this full-composite machine pairs a 29-inch front wheel with a 27.5-inch rear, 160mm of Maestro rear suspension and adjustable geometry.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
LOW | MID | HIGH
M
LOW | MID | HIGH
L
LOW | MID | HIGH
XL
LOW | MID | HIGH
A SEAT TUBE LENGTH (mm)
400
425
450
475
A1 SEAT POST INSERTION DEPTH (mm)
262
287
312
337
B SEAT TUBE ANGLE
77.5° | 77.8° | 78.2°
77.5° | 77.8° | 78.2°
76.5° | 76.9° | 77.2°
76.5° | 76.9° | 77.2°
C TOP TUBE LENGTH (mm)
558 | 557 | 556
589 | 588 | 587
622 | 621 | 621
654 | 653 | 653
D HEAD TUBE LENGTH (mm)
100
105
115
120
E HEAD TUBE ANGLE
62.7° | 63.0° | 63.4°
62.7° | 63.0° | 63.4°
62.7° | 63.1° | 63.4°
62.7° | 63.1° | 63.4°
F FORK RAKE (mm)
44
44
44
44
G TRAIL (mm)
147 | 144 | 141
147 | 144 | 141
147 | 144 | 141
147 | 144 | 141
H WHEELBASE (mm)
1214 | 1213 | 1212
1246 | 1245 | 1244
1271 | 1270 | 1269
1304 | 1303 | 1302
I CHAIN STAY LENGTH (mm)
445 | 443 | 442
445 | 443 | 442
445 | 443 | 442
445 | 443 | 442
J BOTTOM BRACKET DROP (mm)
29 | 24 | 19
29 | 24 | 19
29 | 24 | 19
29 | 24 | 19
K STACK (mm)
633 | 630 | 627
638 | 635 | 632
647 | 644 | 641
652 | 649 | 646
L REACH (mm)
418 | 421 | 426
448 | 452 | 456
468 | 471 | 476
499 | 503 | 507
M STAND OVER HEIGHT (mm)
714 | 718 | 723
733 | 738 | 742
746 | 750 | 755
762 | 766 | 771
O STEM LENGTH (mm)
40
40
40
40
P CRANK LENGTH (mm)
165
170
170
170
Q WHEEL SIZE
29" [F] 27.5" [R]
29" [F] 27.5" [R]
29" [F] 27.5" [R]
29" [F] 27.5" [R]
Sizes
S, M, L, XL
Colours
Luminous Lagoon
Frame
Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
Fork
RockShox Zeb Ultimate Charger 3.2, 170mm,15x110mm Maxle Stealth thru-axle
Shock
RockShox Vivid Ultimate RCT2, 2 position, custom tuned for Giant
Handlebar
Giant Contact TR35, alloy, 35mm rise
Grips
Giant Tactal Pro Single lock-on
Stem
Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Seatpost
Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle
Giant Romero SL
Pedals
N/A
Shifters
SRAM AXS Pod, 1x12
Rear Derailleur
SRAM GX Eagle Transmission AXS
Brakes
TRP EVO Pro, hydraulic, TRP 2.3mm rotors [F]203mm, [R]180mm
Brake Levers
TRP EVO Pro
Cassette
SRAM XS-1275, Transmission, 10x52
Chain
SRAM GX Transmission
Crankset
SRAM GX Transmission, 32t, 55mm chainline S:165mm, M:165mm, L:165mm, XL:165mm
Bottom Bracket
SRAM DUB, press fit
Rims
Giant TRA Hookless Tubeless ready Alloy Fr: 29", Rr: 27.5" 30mm inner width
Hubs
[F] Giant TRA MTB Alloy Hub, 6 Bolt, 28H [R] Giant TRX MTB Alloy Hub, SRAM XD Drive Body Pawl Driver (Pawl 36x2 T), 28H
Spokes
Sapim Laser
Tyres
[F] Maxxis Assegai 29x2.5 WT, MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, MaxxTerra, DD, TR tubeless
Extras
Tubeless prepared, MRP AMG chain guide
Max Tyre Clearance
2.5"
Max Chainring Size
36t
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
``` :chatgpt-content-reference{index="0"}
KEY PERFORMANCE FACTORS
Race-bred suspension

A Maestro rear suspension system with 160mm of travel, paired with a 170mm fork, was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.

Adjustable enduro geometry

Flip chip technology lets you switch between three settings depending on the terrain and riding style. Choose Low, Mid or High to adjust head and seat tube angles, bottom bracket drop, reach and other key geometry. This gives you three distinct setups to fine-tune handling, from planted stability to a more responsive ride feel.

Mixed-Wheel Agility

A 29-inch front wheel rolls confidently through rough terrain and delivers stability at speed, while the 27.5-inch rear wheel adds agility and a more responsive feel. This purpose-built mixed-wheel setup helps the Reign Advanced stay composed on fast technical terrain while remaining quick and manoeuvrable through tight sections.
