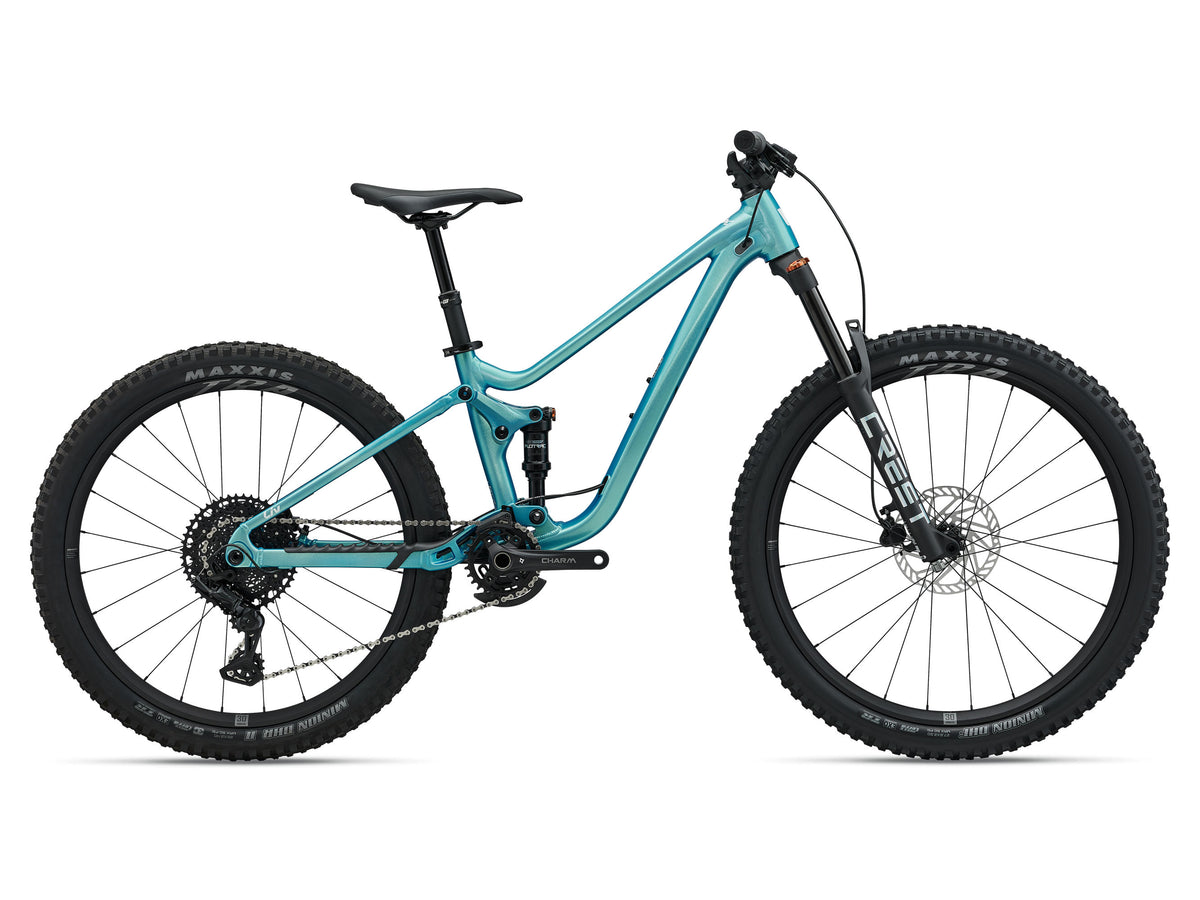

Liv 2027 Faith

$3,599.00

Colour

Glacier Teal

Size

UNISIZE

Product variants

Loading locations...

geometry

specs

highlights

DREAM BIG

Built to meet the demands of young shredders, the Liv Faith provides a performance full suspension platform to fuel limitless possibilities.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

One Size

ONE SIZE

A SEAT TUBE LENGTH (mm)

350

A1 SEAT POST INSERTION DEPTH (mm)

285

B SEAT TUBE ANGLE

77.0°

C TOP TUBE LENGTH (mm)

545

D HEAD TUBE LENGTH (mm)

105

E HEAD TUBE ANGLE

64.5°

F FORK RAKE (mm)

G TRAIL (mm)

123

H WHEELBASE (mm)

1148

I CHAIN STAY LENGTH (mm)

425

J BOTTOM BRACKET DROP (mm)

K STACK (mm)

585

L REACH (mm)

410

M STAND OVER HEIGHT (mm)

676

O STEM LENGTH (mm)

P CRANK LENGTH (mm)

155

Sizes

One size

Colours

Glacier Teal

Frame

ALUXX SL-Grade Aluminium front and rear triangles, 135mm FlexPoint suspension, UDH, 12x148mm thru-axle

Fork

Crest SL FloTune Lite, FloTune TR Lite damper, 140mm, Boost, 15x110mm thru-axle

Shock

Crest, FloTrac Lite, trunnion mount

Handlebar

Giant Contact TR, alloy, 31.8mm, 20mm rise

Grips

Giant Tactal Pro Lite

Stem

Giant Contact, 8-degree, 40mm

Seatpost

Giant Switch AT Lite, 100mm travel

Saddle

Giant Romero

Pedals

Giant Pinner Comp Lite

Shifters

microSHIFT Advent X Trail, 1x10

Front Derailleur

N/A

Rear Derailleur

microSHIFT Advent X, RD-M6205AM

Brakes

Tektro HD-J2820, hydraulic [F]180mm, [R]160mm rotors

Brake Levers

Tektro HD-J2820

Cassette

MicroSHIFT Advent X, G-Series, 11x48

Chain

KMC X10

Crankset

Prowheel Charm, 30t, 155mm

Bottom Bracket

Press fit

Rims

Giant TRA Hookless Tubeless ready Alloy Fr: 27.5", Rr: 26", 30mm inner width

Hubs

[F] Giant TRA MTB Alloy Hub, 6 Bolt, 24H [R] Giant TRX MTB Alloy Hub, Shimano HG Drive Body Pawl Driver (Pawl 36x2 T), 24H

Spokes

Sapim Laser

Tyres

[F] Maxxis Minion DHF 27.5x2.5 WT, MaxxTerra, EXO, TR [R] Maxxis Minion DHR II 26x2.4 WT, MaxxTerra, 3C, EXO, TR tubeless

Extras

Giant 1x chain guide

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

``` :chatgpt-content-reference{index="0"}

KEY PERFORMANCE FACTORS

YOUTH-TUNED SUSPENSION

The Crest FloTrac Lite Shock delivers 135mm of smooth travel tuned specifically for lighter-weight riders, up front, the 140mm Crest SL FloTune Lite Fork handles rocks, roots, and ruts. The new Unified Suspension Setup tailors to the rider's body weight, optimal air pressure, and damping clicks are predefined for both the fork and shock to create smooth balance and control. Our dedication to youth optimisation guarantees effortless setup and the best youth fit - continuing Liv's commitment to supporting the next generation of female riders.

AGILE AND EFFICIENT

An ALUXX SL aluminium frame with youth-specific trail geometry provides unmatched robust efficiency, combined with quality lightweight components that minimise weight to help young riders tackle challenging terrain. The FlexPoint single-pivot design maximises pedalling efficiency and delivers capable control, to help kids stay focused even on bumpy terrain.

OFF-ROAD CONTROL

With the wide-wall technology of TRA WheelSystem, young riders can enjoy enhanced traction through lower tyre pressure, increasing grip and stability. For smaller riders, 27.5-inch front and 26-inch rear wheels bring burly handling, ready for progression. A dropper seatpost makes it easy to optimise riding position while climbing or descending, giving them more control to conquer the trail.
