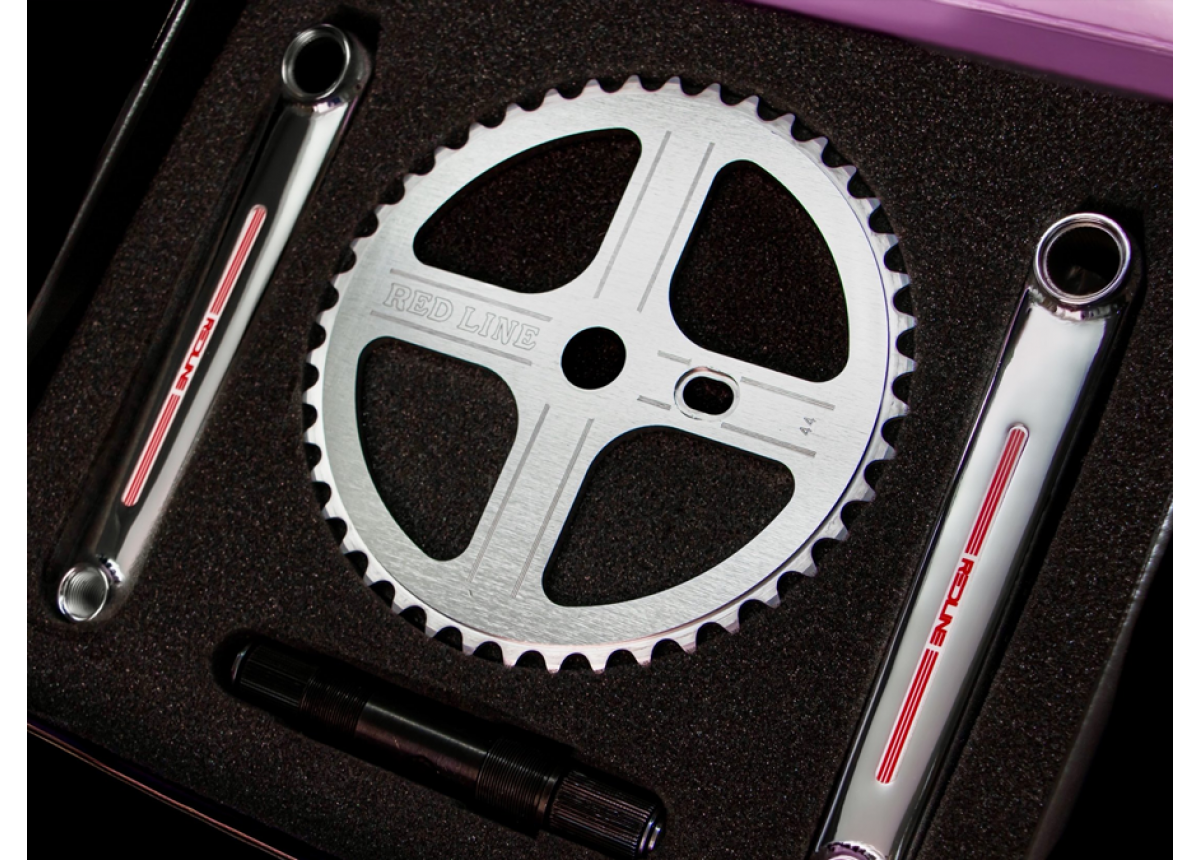

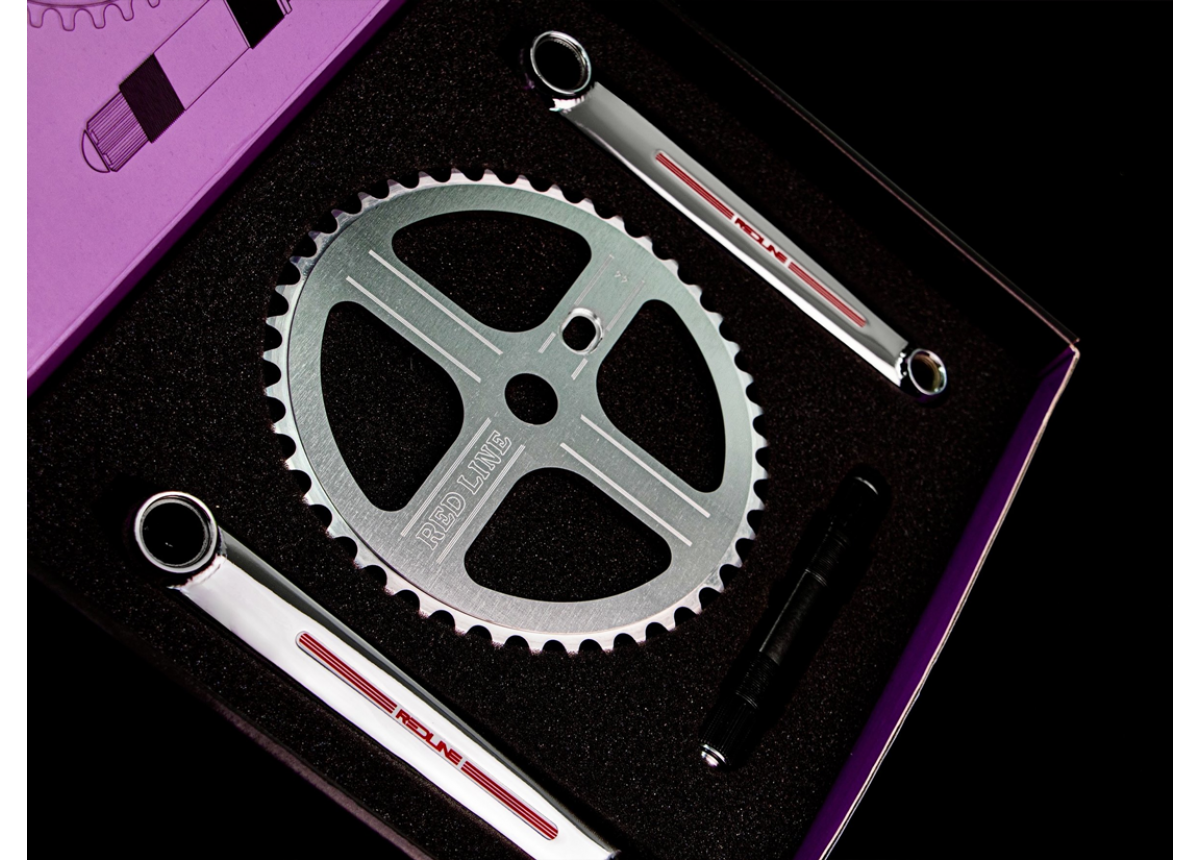

Redline Crank Set-vintage-flight 401 PINCHLESS-180MM-CH 180 MM SP:19 MM

The Redline Flight Crank was the power transfer centre of choice for just about every pro BMX Racer and Freestyle rider in the 1980s, establishing a standard for performance and aesthetics that remained unrivalled through the 1980s. By virtue of its reputation and the endorsement of the pro ranks, the Flight Crank became the weapon of choice of every lawn-mowing, car-detailing, paper-delivering, BMX-committed kid of the generation. If you ran “Flights” on your bike at the track, in jam circles, on vert, or on street-riding missions, you were well set in the reliability and credibility ranks among those "who knew." To this day, the Redline Flight Crank stands up as an example of genuine and timeless bicycle industry innovation.

In 1980, the Redline 401 Series Flight Crank, as we know it, was introduced following a period of development that saw prototypes and samples fall short of the demands of the emerging BMX racing scene.

For approximately 18 months, Redline manufactured the 401 Series Flight crank without a pinch bolt fixture at the spindle interface. The arm and spindle connected through a 6-spline broach; however, the significant levels of generated torque transferred through this crucial connection led to the 6 spline interface loosening and ultimately failing. However, the "Pinchless" version of the Redline Flight crank equipped the Redline Prolines bikes of Redline racers Stu Thomsen and Greg Hill. Freestyle riders, including Bob Haro, notably used pinchless Flights on his Torker LPX and 1982 Haro Freestyler. For the sake of nostalgia, we started looking at options to recreate this version of the crank more reliably to enable collectors and riders to complete bikes from this era with authentic choices, although with an improved and more reliable connection. Here, we introduce a crankset largely built to the Pinchless Flight Crank standards, although with an upgraded 48-spline spindle. Once installed, visually you'd never know the difference.

The crank arm is formed from 1.125” swaged 4130 chromoly steel tubing, with decal pockets stamped into both sides and a single pinch bolt installation system.
