• Giant 2026 Revolt 1

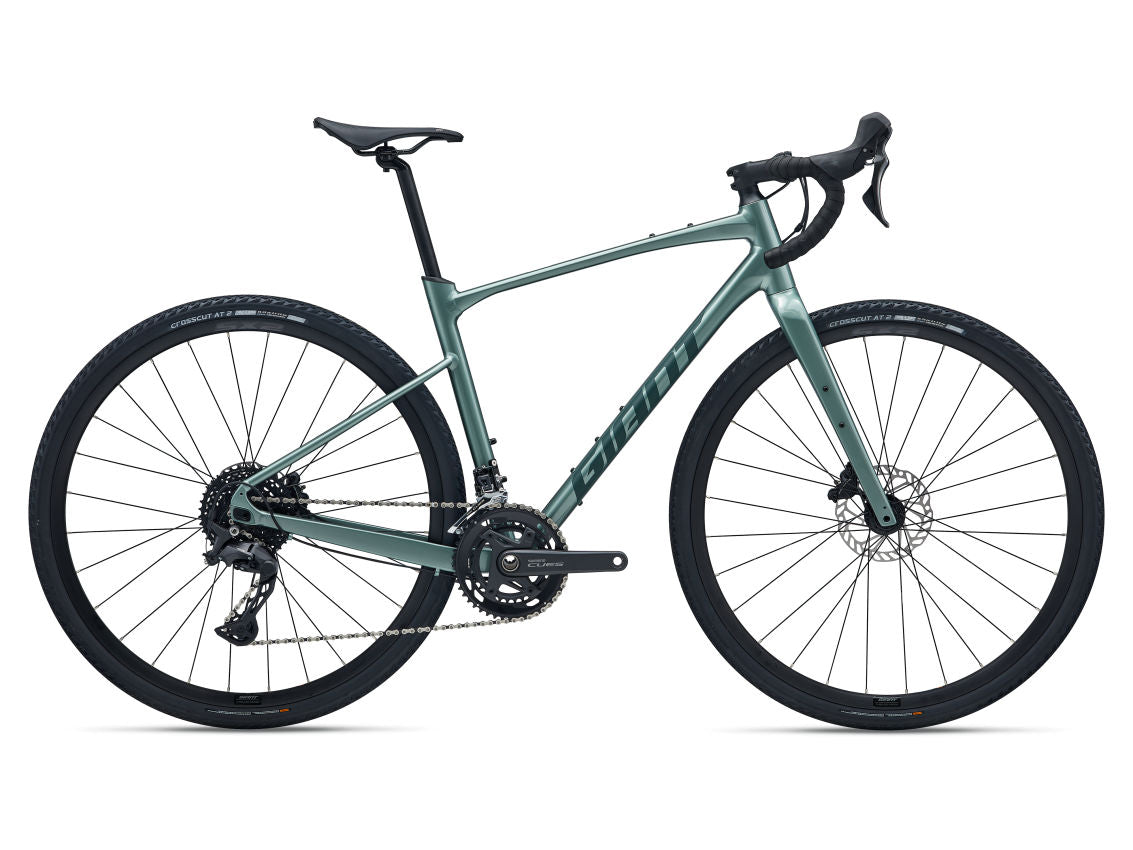

Giant 2026 Revolt 1

$2,199.00 $2,499.00
Colour
Size
Loading locations...

RIDE ROADS, GRAVEL OR DIRT WITH THIS VERSATILE ALUMINIUM ALL-ROUNDER. A COMPOSITE FORK GIVES IT A SMOOTH RIDE, AND A FLIP CHIP LETS YOU ADJUST WHEELBASE AND TYRE CLEARANCE.

Key Performance Factors

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53 mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9 mm round or dropper post.

TECHS & FEATURES

×

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

×

D-FUSE TECHNOLOGY

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.absorbing road shocks and vibrations so you can ride further, faster.

READ MORE

×

FLIP CHIP - DROPOUT

Allows riders to quickly adjust the geometry and rear-wheel tyre clearance with eccentric, offset two-position hardware in the rear wheel dropouts.

READ MORE

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
ASEAT TUBE LENGTH (mm)
430
450
470
490
510
530
BSEAT TUBE ANGLE
74.0°
73.5°
73.5°
73.0°
73.0°
73.0°
CTOP TUBE LENGTH (mm)
540
550
560
575
585
600
DHEAD TUBE LENGTH (mm)
125
135
150
165
180
195
EHEAD TUBE ANGLE
70.0°
71.0°
71.5°
72.0°
72.0°
72.0°
FFORK RAKE (mm)
50
50
50
50
50
50
GTRAIL (mm)
78
82
72
68
65
68
HWHEELBASE (mm)
1029
1039
1035
1040
1056
1071
ICHAIN STAY LENGTH (mm)
430
440
440
430
435
435
JBOTTOM BRACKET DROP (mm)
80
81
81
81
81
81
KSTACK (mm)
556
570
586
602
616
630
LREACH (mm)
381
381
387
391
397
407
MSTAND OVER HEIGHT (mm)
717
724
741
759
786
810
OSTEM LENGTH (mm)
50
60
70
80
80
90
PCRANK LENGTH (mm)
170
170
172.5
172.5
175
175
QWHEEL SIZE
700x42C
700x42C
700x42C
700x42C
700x42C
700x42C
SIZESXS, S, M, M/L, L, XL
COLOURSAlpine Green
FRAMEALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
FORKAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
HANDLEBARGiant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
GRIPSCork tape with gel
STEMGiant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
SEATPOSTGiant D-Fuse, alloy, 14mm offset
SADDLEGiant Grit
PEDALSN/A
SHIFTERSShimano CUES U6030, 2x10
FRONT DERAILLEURShimano CUES U6030
REAR DERAILLEURShimano Cues U6020, Shadow+
BRAKESShimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
BRAKE LEVERSShimano CUES U6030 hydraulic
CASSETTEShimano CS-LG300, 11x39
CHAINKMC X11
CRANKSETShimano Cues U6030-2, 32-46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
BOTTOM BRACKETShimano, threaded
RIMSGiant S-X2 Disc wheelset, alloy
HUBSGiant alloy, 12mm thru-axle
SPOKESStainless
TYRESGiant CrossCut AT 2, 700x38c, tubeless
EXTRASTubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
MAX TYRE CLEARANCE53mm
WEIGHTThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
