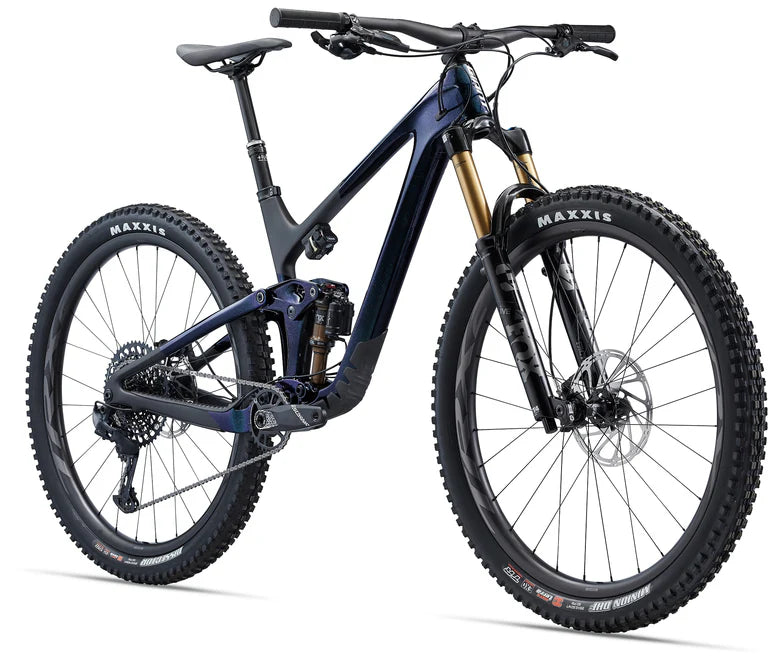

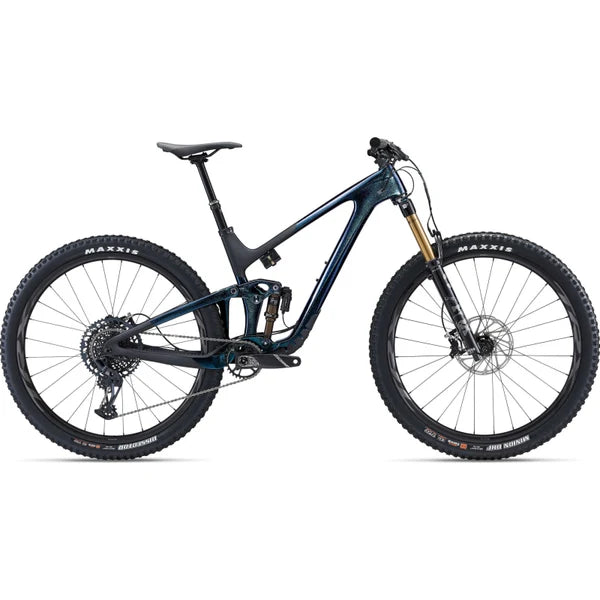

Giant Trance X Advanced Pro 29 1

$4,949.00 $8,999.00
Colour
Size
Loading locations...

FROM FAST, ROWDY DESCENTS TO TECHNICAL TERRAIN, THIS PROGRESSIVE TRAIL BIKE GIVES YOU ACTIVE SUSPENSION, ADJUSTABLE FRAME GEOMETRY, AND EVERYTHING YOU NEED TO UP YOUR SINGLETRACK GAME.



KEY PERFORMANCE FACTORS



29er confidence and control

29-inch wheels optimised to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tyres.



Progressive suspension

Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.



Adjustable geometry

A flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for fast, open terrain, or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.



TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.

×

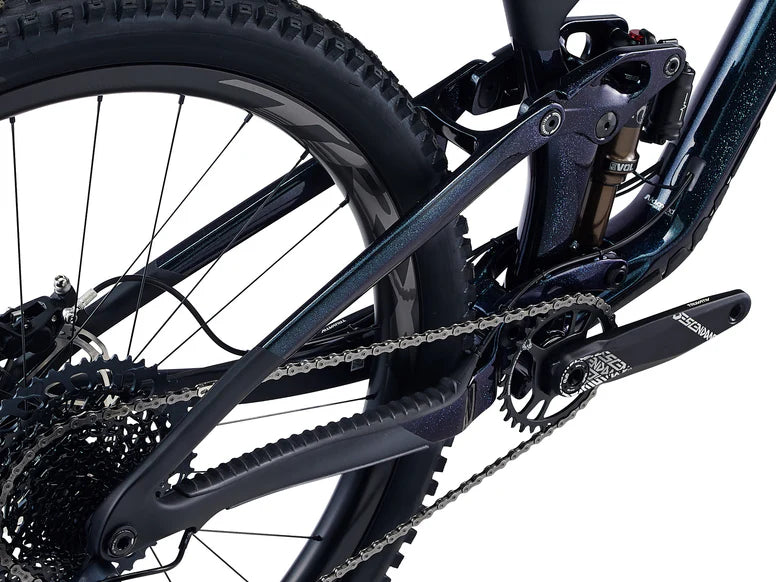

MAESTRO SUSPENSION TECHNOLOGY

Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

READ MORE

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
LOW HIGH
M
LOW HIGH
L
LOW HIGH
XL
LOW HIGH
A SEAT TUBE LENGTH (mm)
430
430
465
496
B SEAT TUBE ANGLE
77.2° 77.9°
77.2° 77.9°
77.2° 77.9°
77.2° 77.9°
C TOP TUBE LENGTH (mm)
566 564
597 595
629 627
656 654
D HEAD TUBE LENGTH (mm)
95
105
110
120
E HEAD TUBE ANGLE
65.5° 66.2°
65.5° 66.2°
65.5° 66.2°
65.5° 66.2°
F FORK RAKE (mm)
44
44
44
44
G TRAIL (mm)
125.1 119.5
125.1 119.5
125.1 119.7
125.1 119.5
H WHEELBASE (mm)
1173
1205
1239
1268
I CHAIN STAY LENGTH (mm)
438
438
438
438
J BOTTOM BRACKET DROP (mm)
40
40
40
40
K STACK (mm)
617
621
631
640
L REACH (mm)
426
456
486
510
M STAND OVER HEIGHT (mm)
729
729
752
760
O STEM LENGTH (mm)
40
40
50
50
P CRANK LENGTH (mm)
165
170
170
170
Q WHEEL SIZE
29"
29"
29"
29"
GRIPS
Giant Tactal Pro Single

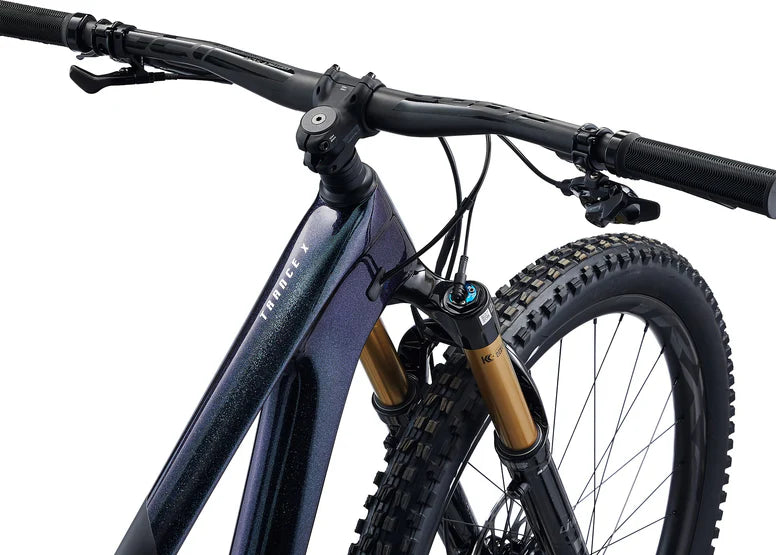

HANDLEBAR
Giant Contact SLR TR35, composite, 35mm
SADDLE
Giant Romero SL
SEATPOST
TranzX travel-adjustable dropper, remote
STEM
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
BOTTOM BRACKET
SRAM DUB, press fit
BRAKE LEVERS
SRAM G2 RSC
BRAKES
SRAM G2 RSC, hydraulic
BRAKES ROTOR
SRAM CenterLine rotors [F]200mm, [R]180mm

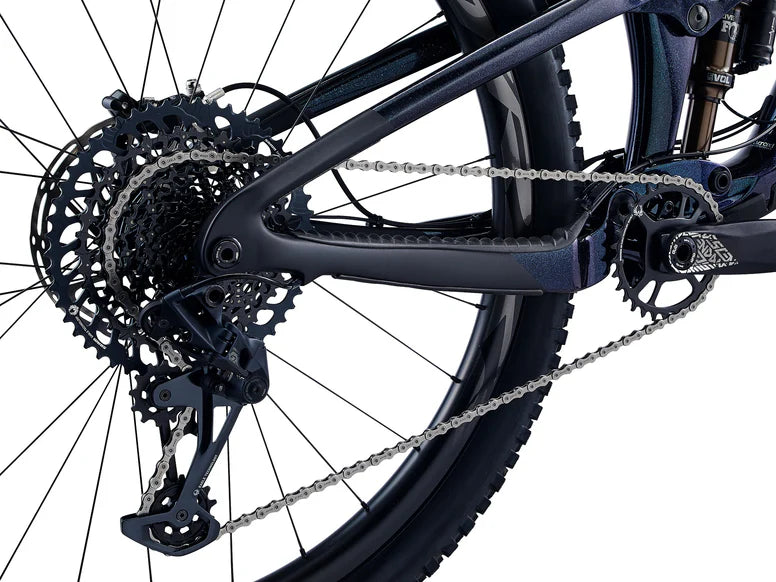

CASSETTE
SRAM XG-1275, 10x52
CHAIN
SRAM NX Eagle
CRANKSET
TruVativ Descendent 6k Eagle, 30t S:165mm, M:170mm, L:170mm, XL:170mm
REAR DERAILLEUR
SRAM GX Eagle
SHIFTERS
SRAM GX Eagle, 1x12

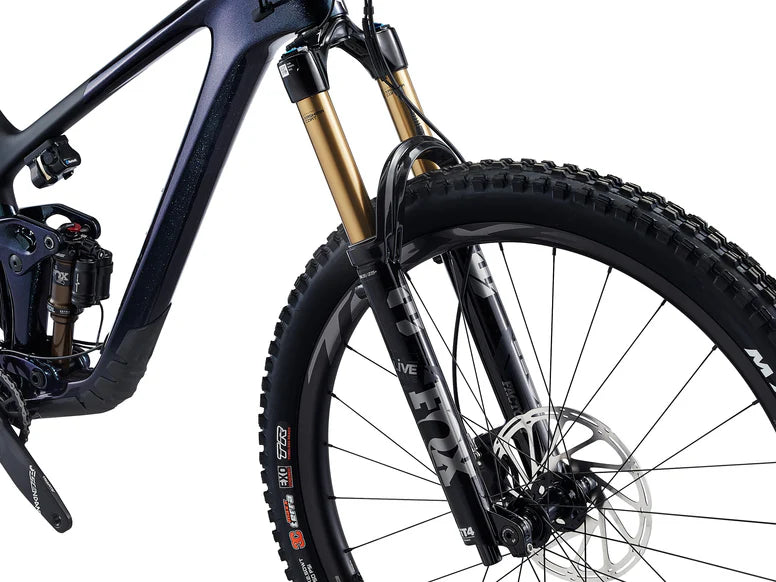

FORK
Fox 36 Factory Live Valve, FIT4 damper, 44mm offset, 150mm, 15x110 Kabolt X, custom tuned for Giant
FRAME
Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip, 12x148mm thru-axle
SHOCK
Fox Factory Live, custom tuned for Giant
EXTRAS
Tubeless prepared, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector
FRONT TYRE
Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR
HUBS
Giant TRX 2 Carbon 29 WheelSystem
REAR TYRE
Maxxis Dissector 29x2.4 WT, 60 TPI, 3C Max Terra, EXO, TR
RIMS
Giant TRX 2 Carbon 29 WheelSystem
SPOKES
Giant TRX 2 Carbon 29 WheelSystem
