Liv Tempt 1 27.5

$1,199.00 ~~$1,399.00~~

Colour

Black Diamond

Size

XSMALL SMALL

Product variants

Loading locations...

techs & features

geometry

specs

Modern MTB Design

Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*selected models)

Off-Road Control

The new geometry is optimised for confident trail riding, with two wheel size options (27.5 or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tyres (up to 2.4 inches) for traction and grip on technical terrain.

Light and Durable

The all-new ALUXX aluminium frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.

TECHS & FEATURES

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS (27.5”)

S (27.5”)

XS (27.5”)

S (27.5”)

ASEAT TUBE LENGTH (mm)

330

365

BSEAT POST INSERTION DEPTH (mm)

280

310

CSEAT TUBE ANGLE

74.0°

DTOP TUBE LENGTH (mm)

538

558

EHEAD TUBE LENGTH (mm)

FHEAD TUBE ANGLE

67.0°

GFORK RAKE (mm)

HTRAIL (mm)

105.2

IWHEELBASE (mm)

1080

1101

JCHAIN STAY LENGTH (mm)

440

KBOTTOM BRACKET DROP (mm)

LSTACK (mm)

548

553

MREACH (mm)

381

400

NSTAND OVER HEIGHT (mm)

680

689

OSTEM LENGTH (mm)

PCRANK LENGTH (mm)

165

QWHEEL SIZE

27.5”

SIZES

XS, S

COLOURS

Black Diamond

FRAME

ALUXX-grade aluminium, disc

FORK

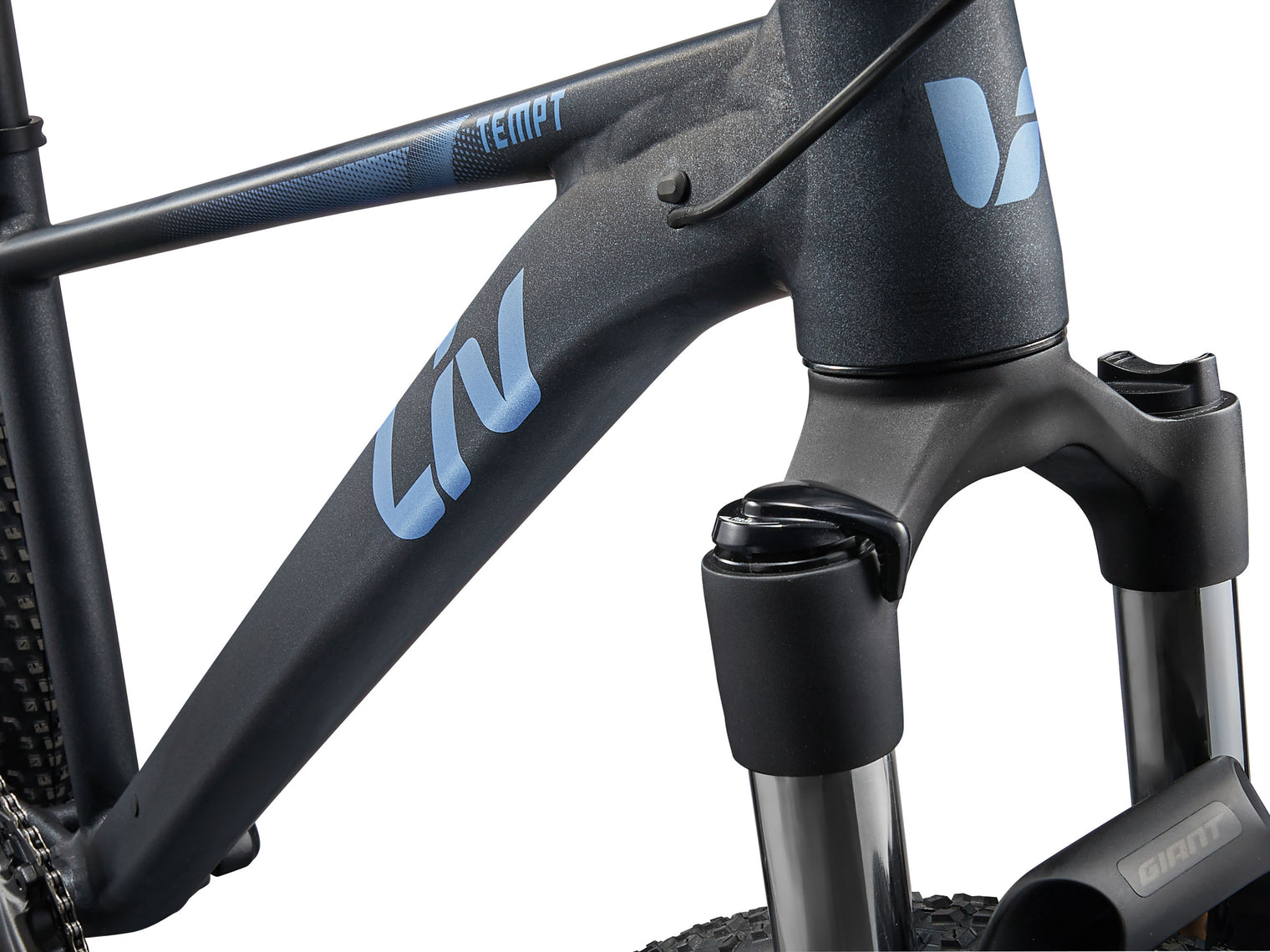

SXC32-3 RL, coil spring, Boost 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29)

SHOCK

N/A

HANDLEBAR

Giant Connect Trail, 31.8mm

GRIPS

Giant Sole-O

STEM

Giant Sport, 7-degree XS: 40mm (27.5) S: 40mm (27.5) / 40mm (29) M: 50mm (29)

SEATPOST

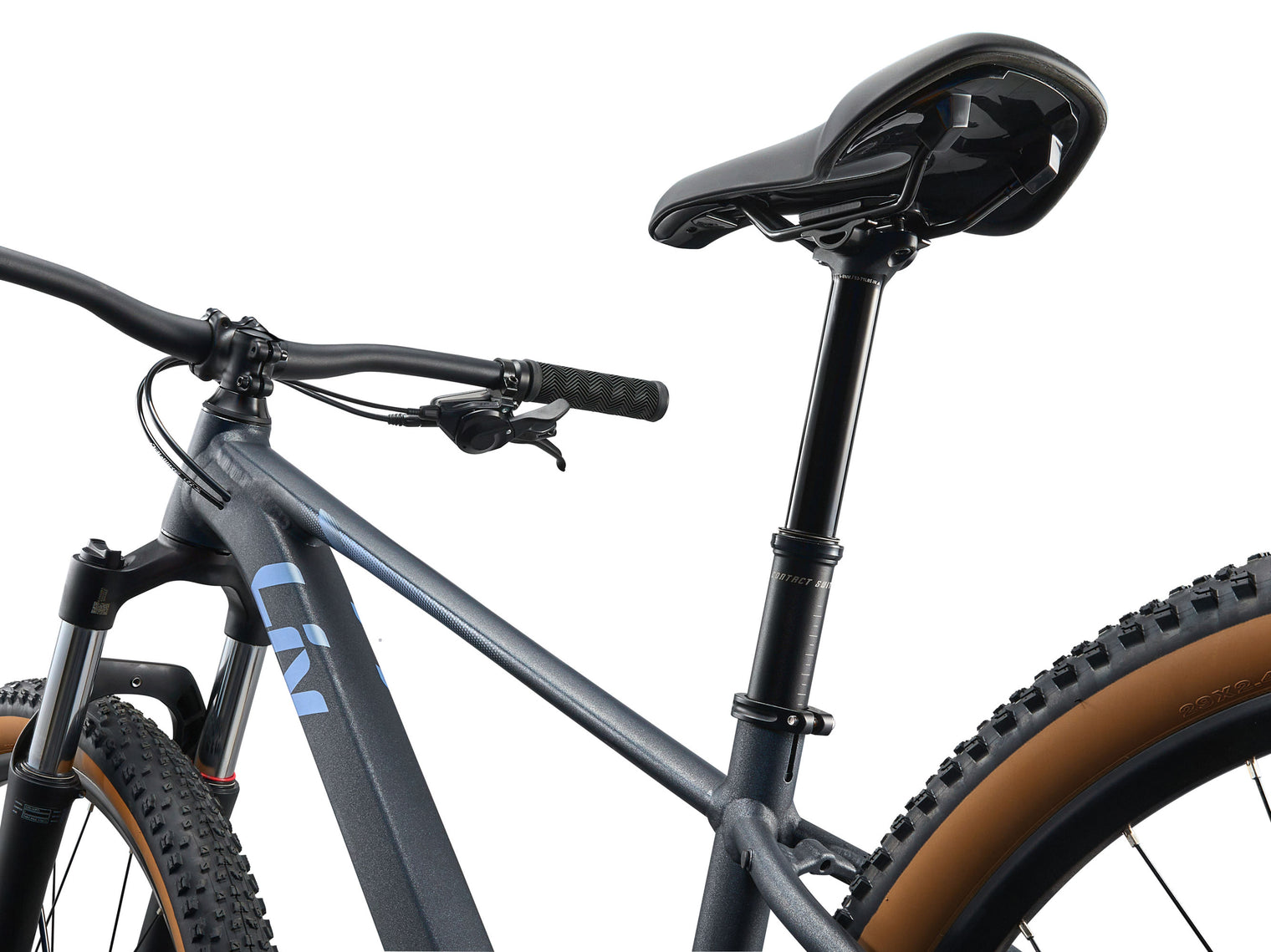

Giant Contact Switch Core dropper, remote XS: 100mm travel / 30.9 x 350mm (27.5") S: 100mm travel / 30.9 x 350mm (27.5") S: 125mm travel / 30.9 x 400mm (29) M: 125mm travel / 30.9 x 400mm (29)

SADDLE

Liv ErgoContact Trail

PEDALS

MTB caged

SHIFTERS

Shimano CUES, SL-6000, 1x10

FRONT DERAILLEUR

N/A

REAR DERAILLEUR

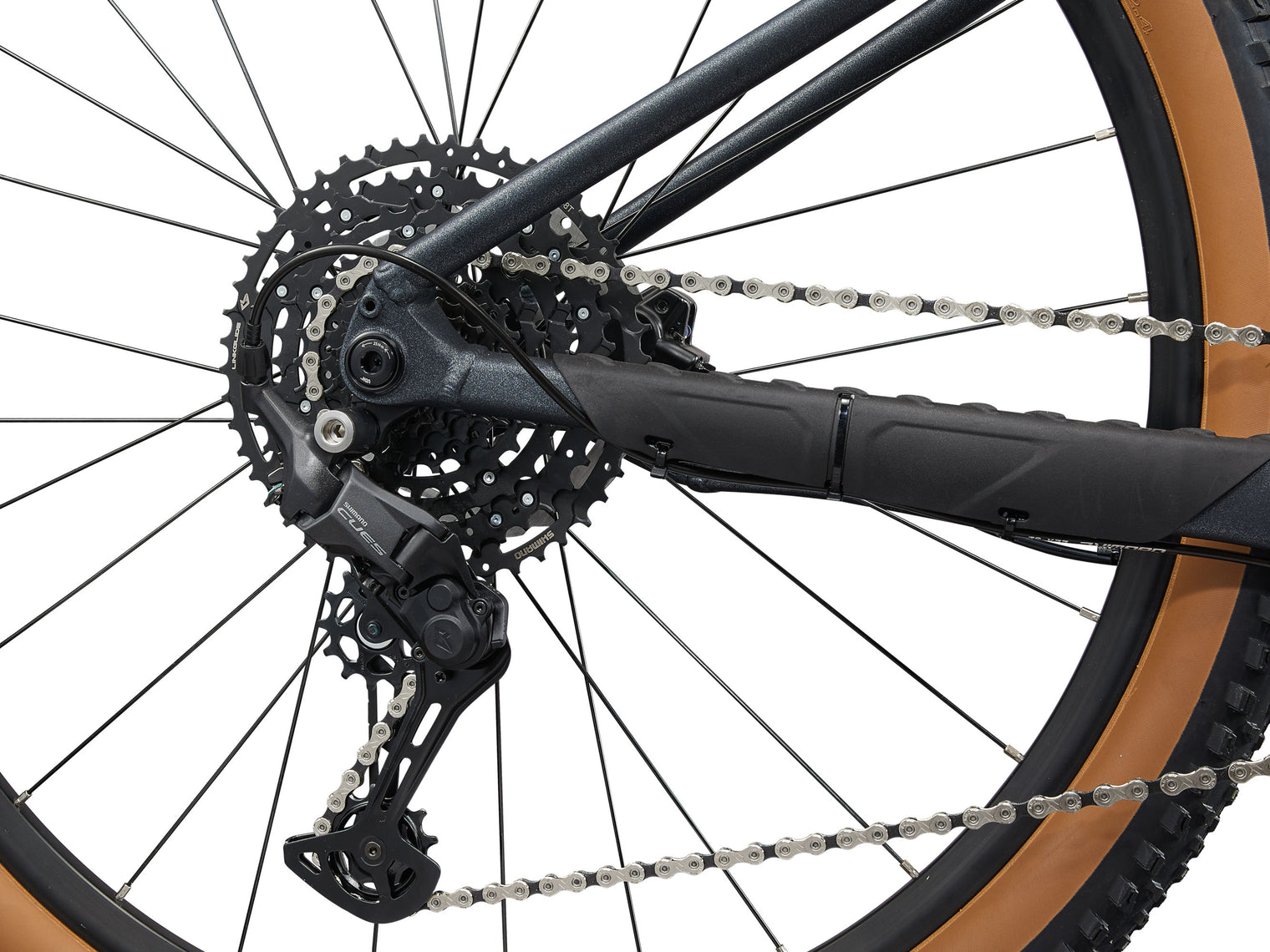

Shimano CUES, U6000, Shadow+

BRAKES

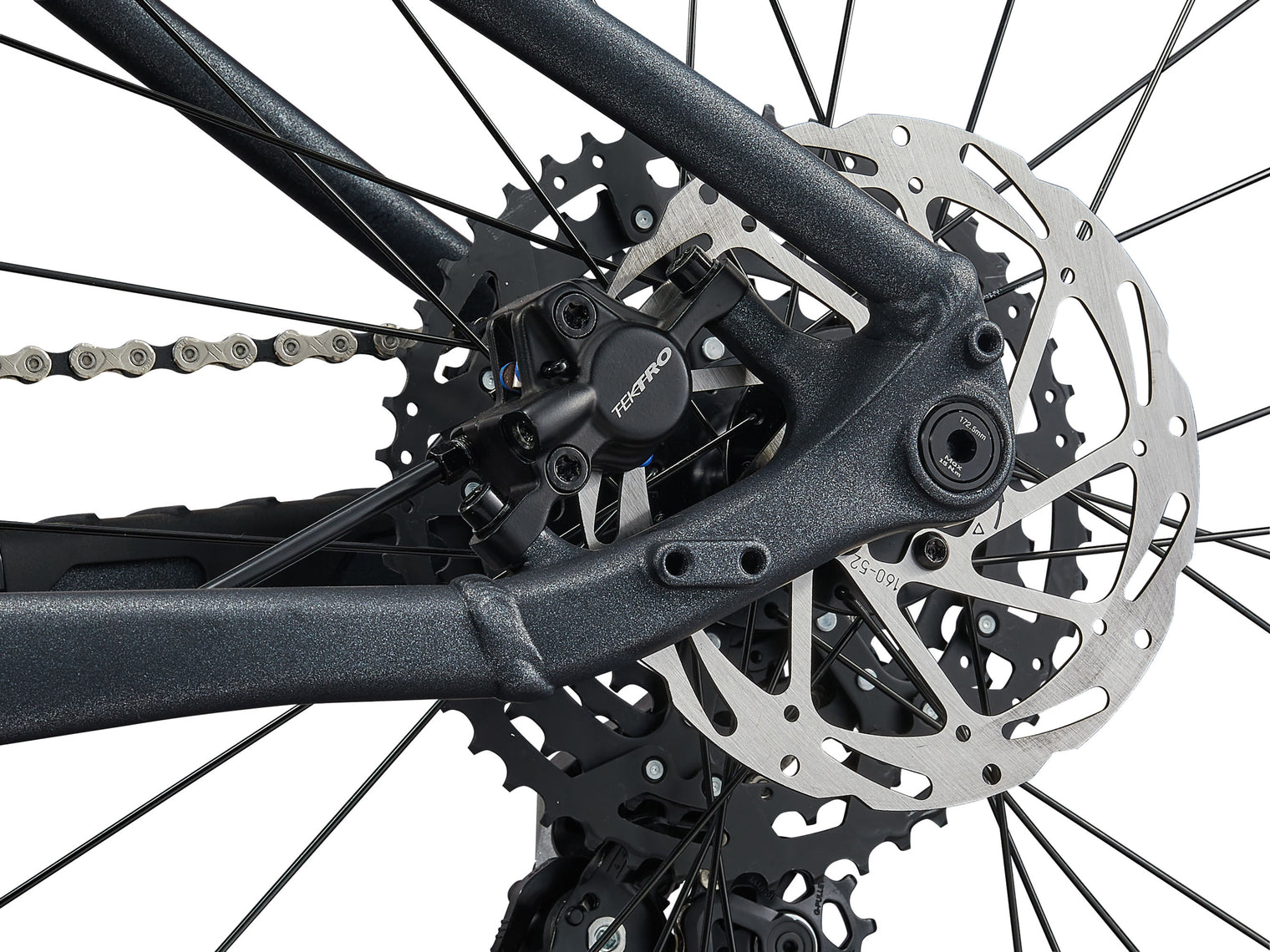

Tektro TKD149, hydraulic, Tektro rotors [F]180mm, [R]160mm

BRAKE LEVERS

Tektro TKD143

CASSETTE

Shimano CUES CS-LG300, 11x48

CHAIN

KMC X11

CRANKSET

ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29)

BOTTOM BRACKET

Cartridge

RIMS

Giant GX03V 29 or 27.5, alloy, double wall

HUBS

Alloy, sealed

SPOKES

Stainless, 14g

TYRES

Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead

EXTRAS

2.4" max tyre size, 32t max chainring size

WEIGHT

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
