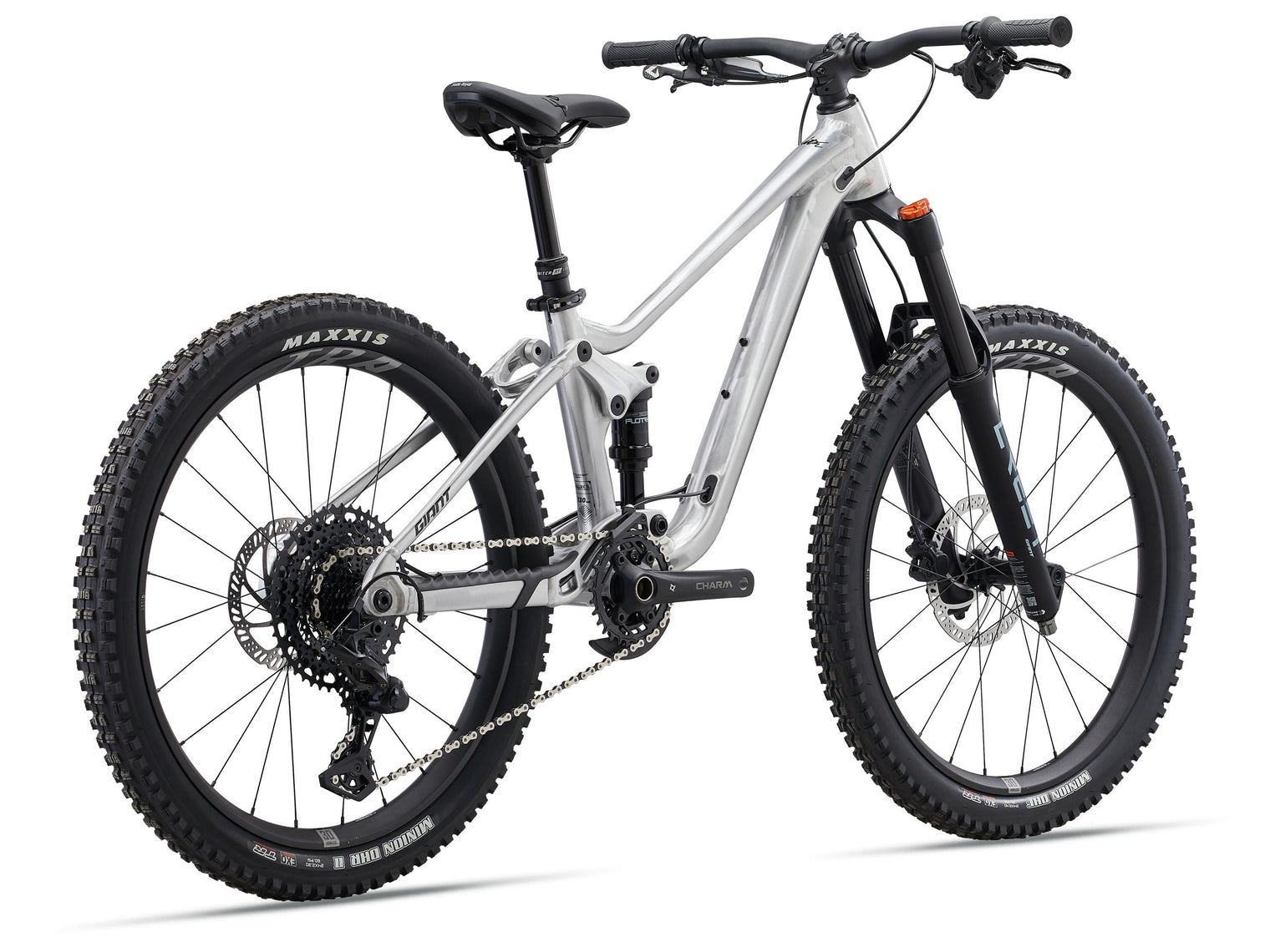

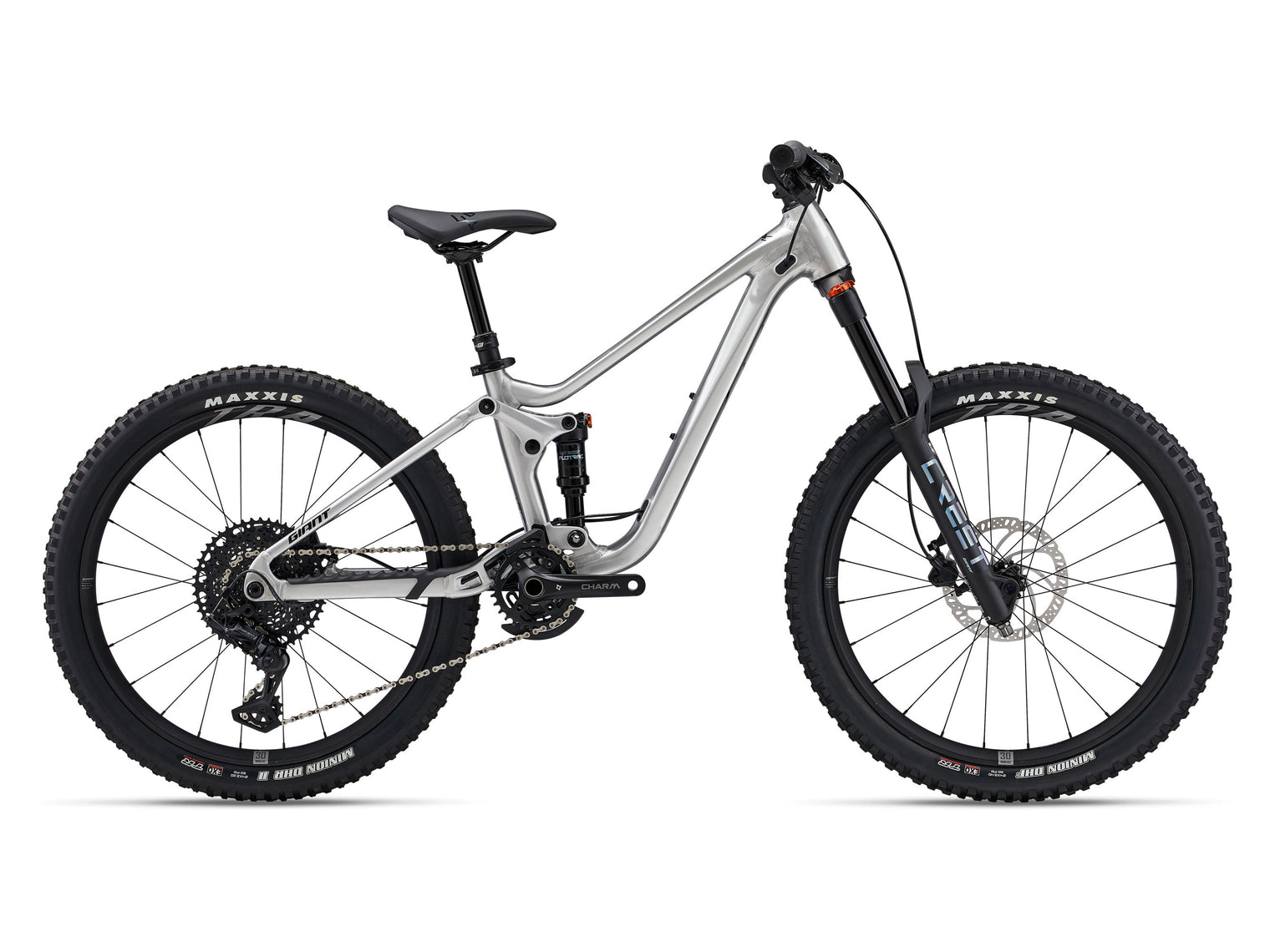

Giant Faith 24

$3,599.00
Colour
Size
Loading locations...

SMALL BUT MIGHTY, THIS HIGHLY CAPABLE NEW TRAIL BIKE IS MADE FOR LITTLE RIPPERS WITH BIG AMBITIONS. WITH A LIGHTWEIGHT ALLOY FRAME, 24-INCH WHEELS, AND YOUTH-TUNED SUSPENSION, IT BALANCES EFFICIENT CLIMBING, LOADS OF TRACTION, AND CONFIDENT HANDLING TO HELP YOUNG RIDERS TAKE IT TO THE NEXT LEVEL.

KEY PERFORMANCE FACTORS

YOUTH-TUNED SUSPENSION

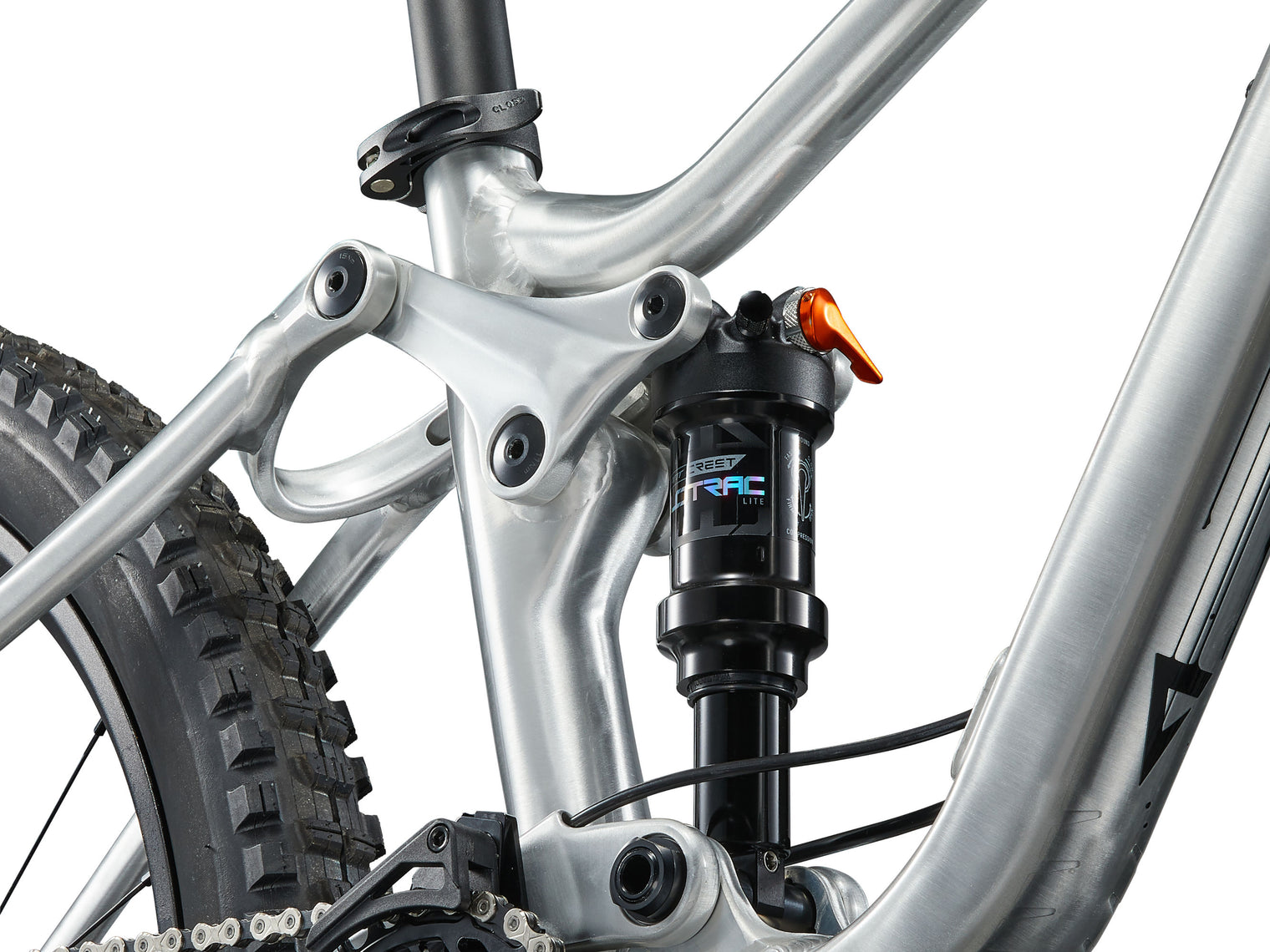

FlexPoint rear suspension with a Crest FloTrac Lite shock delivers 130mm of smooth travel tuned for lighter riders. Up front, the 140mm Crest TR Elite fork handles rocks, roots, and ruts. Front and rear suspension both have minimal activating force, giving young riders smooth control and confidence on technical trails.

AGILE AND EFFICIENT

An ALUXX SL aluminium frameset with youth-specific trail geometry combines quality lightweight components to minimise weight and help riders tackle challenging terrain. A new 24-inch TRA WheelSystem borrows proven technology for improved climbing and quicker acceleration.

OFF-ROAD CONTROL

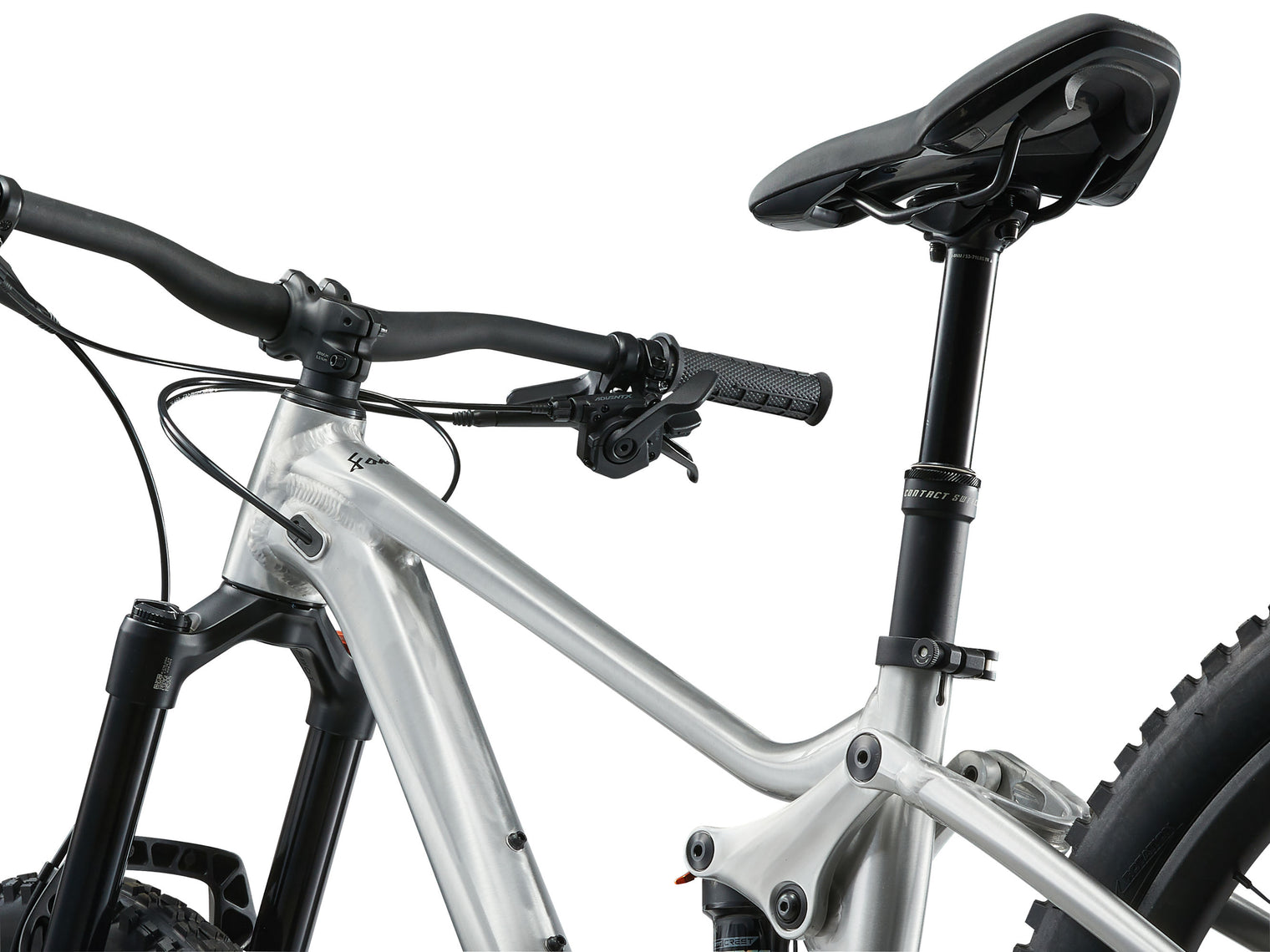

Giant TRA WheelSystem features WideGuard technology, resulting in lighter, stronger rims so riders can run lower tyre pressures for better traction without the risk of punctures or rim damage. The youth-specific 24-inch wheels help smaller riders manoeuvre technical trails, while a dropper seatpost makes it easier to optimise riding position when climbing or descending.

TECHS & FEATURES

×

ALUXX SL ALUMINIUM TECHNOLOGY

This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.

×

FLEXPOINT SUSPENSION TECHNOLOGY

A proven “single-pivot” design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.

READ MORE

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

ONE SIZE
ONE SIZE
ASEAT TUBE LENGTH (mm)
320
BSEAT TUBE ANGLE
77.0°
CTOP TUBE LENGTH (mm)
500
DHEAD TUBE LENGTH (mm)
105
EHEAD TUBE ANGLE
64.5°
FFORK RAKE (mm)
30
GTRAIL (mm)
119.2
HWHEELBASE (mm)
1054.1
ICHAIN STAY LENGTH (mm)
390
JBOTTOM BRACKET DROP (mm)
10
KSTACK (mm)
534.6
LREACH (mm)
376.6
MSTAND OVER HEIGHT (mm)
641
NSTEM LENGTH (mm)
40
OCRANK LENGTH (mm)
140
PWHEEL SIZE
24"
COLOURS
Raw Aluminium
FRAME
ALUXX SL-Grade aluminium front and rear triangles, 130mm FlexPoint suspension, UDH hanger, 12x148mm thru-axle
FORK
Crest TR Elite Lite, FloTune damper / FloTune TR Lite damper, 140mm, Boost 15x110mm
SHOCK
Crest, FloTrac Lite, trunnion mount
HANDLEBAR
Giant Contact TR, 31.8mm
GRIPS
Giant Tactal Pro Lite
STEM
Giant Contact, 8 degree, 40mm
SEATPOST
Contact Switch AT Lite, 100mm
SADDLE
Giant Jr
PEDALS
Giant Pinner Comp Lite
SHIFTERS
microSHIFT Advent X Trail, 1x10
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
microSHIFT Advent X RD-M6205AM
BRAKES
Tektro HD-J285, hydraulic [F]180mm, [R]160mm rotors
BRAKE LEVERS
Tektro HD-J285
CASSETTE
microSHIFT Advent X G-series, 11x48
CHAIN
KMC X10
CRANKSET
ProWheel Charm, 30t, 140mm
BOTTOM BRACKET
Praxis, press fit
RIMS
Giant TRA hookless, tubeless ready alloy, 30mm inner width
HUBS
[F] Giant alloy, DBL, six-bolt; [R] TRA HE, DBL, 72t pawl driver, 6 bolt
SPOKES
Sapim Laser
TYRES
[F] Maxxis Minion DHF 24x2.4", 60 TPI; [R] Maxxis Minion DHR II 24x2.3"
EXTRAS
Giant 1x chain guide
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
