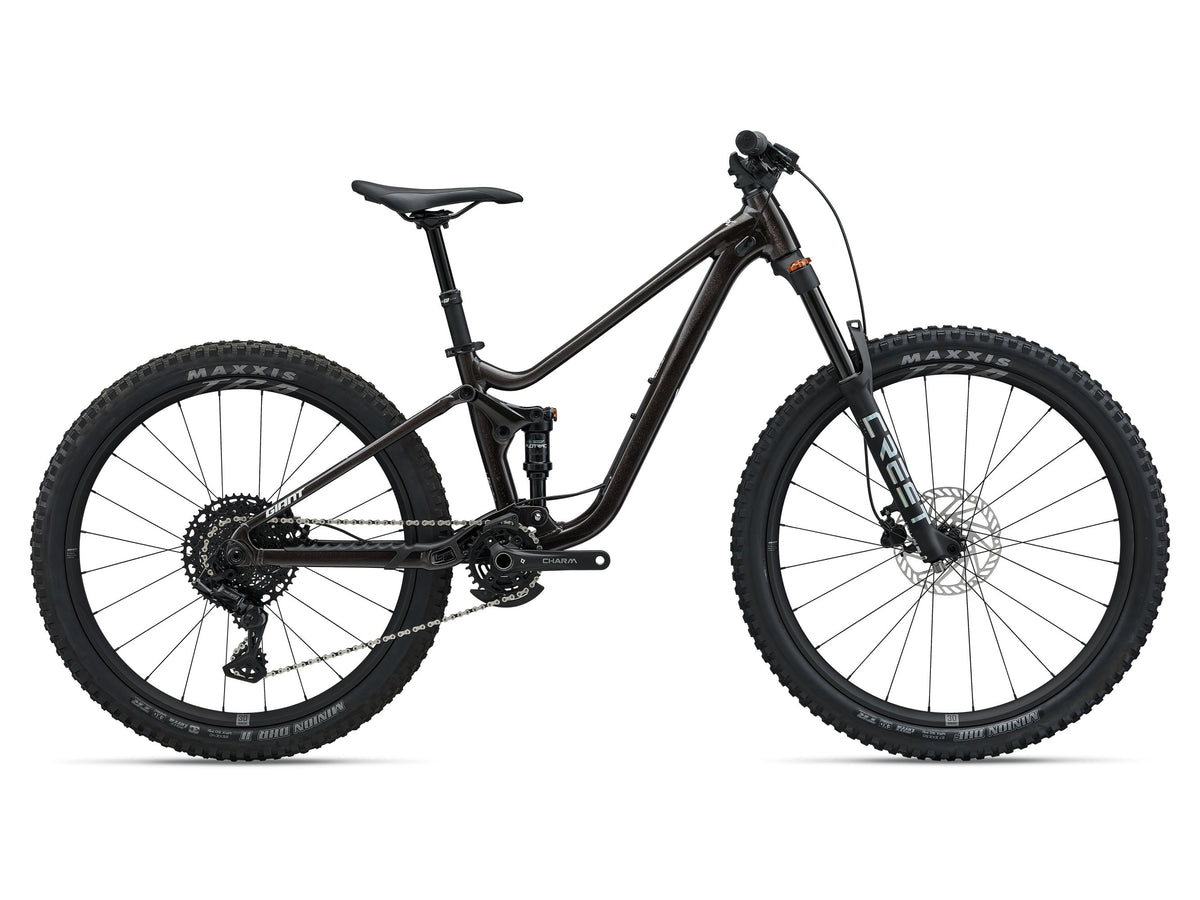

Giant 2027 Giant Faith

$3,599.00
Colour
Size
Loading locations...

Small but mighty, this highly capable trail bike is for little rippers with big ambitions. Its lightweight alloy frame, high-performance wheels, and youth-tuned suspension balance efficient climbing, loads of traction, and confident handling to help young trail riders take it to the next level.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

One Size
145 cm 165 cm
Giant Faith 2027 Bike Geometry Diagram
ONE SIZE
A SEAT TUBE LENGTH (mm)
350
A1 SEAT POST INSERTION DEPTH (mm)
285
B SEAT TUBE ANGLE
77.0°
C TOP TUBE LENGTH (mm)
545
D HEAD TUBE LENGTH (mm)
105
E HEAD TUBE ANGLE
64.5°
F FORK RAKE (mm)
41
G TRAIL (mm)
123
H WHEELBASE (mm)
1148
I CHAIN STAY LENGTH (mm)
425
J BOTTOM BRACKET DROP (mm)
10
K STACK (mm)
585
L REACH (mm)
410
M STAND OVER HEIGHT (mm)
676
O STEM LENGTH (mm)
40
P CRANK LENGTH (mm)
155
Sizes
One size
Colours
Obsidian Pulse
Frame
ALUXX SL-Grade Aluminium front and rear triangles, 135mm FlexPoint suspension, UDH, 12x148mm thru-axle
Fork
Crest SL FloTune Lite, FloTune TR Lite damper, 140mm, Boost, 15x110mm thru-axle
Shock
Crest, FloTrac Lite, trunnion mount
Handlebar
Giant Contact TR, alloy, 31.8mm, 20mm rise
Grips
Giant Tactal Pro Lite
Stem
Giant Contact, 8-degree, 40mm
Seatpost
Giant Switch AT Lite, 100mm travel
Saddle
Giant Romero
Pedals
Giant Pinner Comp Lite
Shifters
microSHIFT Advent X Trail, 1x10
Front Derailleur
N/A
Rear Derailleur
microSHIFT Advent X, RD-M6205AM
Brakes
Tektro HD-J2820, hydraulic [F]180mm, [R]160mm rotors
Brake Levers
Tektro HD-J2820
Cassette
MicroSHIFT Advent X, G-Series, 11x48
Chain
KMC X10
Crankset
Prowheel Charm, 30t, 155mm
Bottom Bracket
Press Fit
Rims
Giant TRA Hookless Tubeless ready Alloy Fr: 27.5", Rr: 26", 30mm inner width
Hubs
[F] Giant TRA MTB Alloy Hub, 6 Bolt, 24H [R] Giant TRX MTB Alloy Hub, Shimano HG Drive Body Pawl Driver (Pawl 36x2 T), 24H
Spokes
Sapim Laser
Tyres
[F] Maxxis Minion DHF 27.5x2.5 WT, MaxxTerra, EXO, TR [R] Maxxis Minion DHR II 26x2.4 WT, MaxxTerra, 3C, EXO, TR tubeless
Extras
Giant 1x chain guide
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
KEY PERFORMANCE FACTORS
YOUTH-TUNED SUSPENSION

FlexPoint rear suspension with a Giant Crest FloTrac Lite shock delivers 135mm of smooth travel tuned specifically for lighter weight riders. Up front, the 140mm Giant Crest SL FloTune Lite fork handles rocks, roots and ruts. Front and rear suspension both have minimal activation force, giving young riders smooth control and confidence on technical trails.

AGILE AND EFFICIENT

An ALUXX SL aluminium frameset with youth-specific trail geometry is combined with quality lightweight components to minimise weight and help young riders tackle challenging terrain. A new TRA WheelSystem (27.5-inch front/26-inch rear) borrows key technologies from the proven adult TRA WheelSystem for improved climbing capabilities and quicker acceleration.

OFF-ROAD CONTROL

TRA WheelSystem with WideGuard technology results in lighter, stronger rims so riders can run lower tyre pressures for better traction without the risk of tyre punctures or rim damage. The mixed wheel setup combines the agile handling of the 26-inch rear wheel with the improved rollover capabilities of the 27.5-inch front, while a dropper seatpost makes it easy to optimise riding position while climbing or descending.
