• Giant 2027 Giant Faith 24

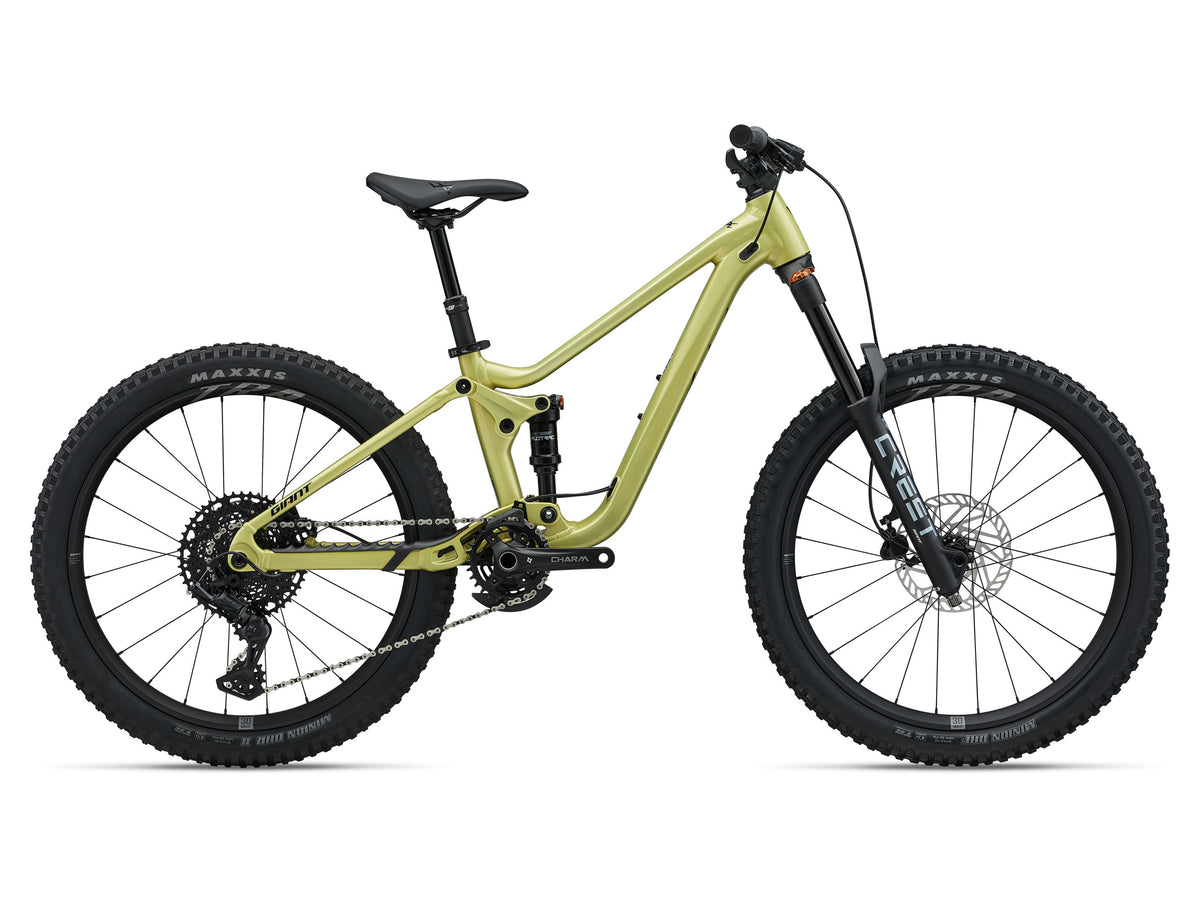

Giant 2027 Giant Faith 24

$3,599.00
Colour
Size
Loading locations...

Small but mighty, this highly capable trail bike is made for little rippers with big ambitions. With a lightweight alloy frame, 24-inch wheels, and youth-tuned suspension, it balances efficient climbing, loads of traction, and confident handling to help young riders take it to the next level.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

One Size
130 cm 150 cm
Giant Faith 24 2027 Geometry Diagram
ONE SIZE
A SEAT TUBE LENGTH (mm)
320
A1 SEAT POST INSERTION DEPTH (mm)
258
B SEAT TUBE ANGLE
77.0°
C TOP TUBE LENGTH (mm)
500
D HEAD TUBE LENGTH (mm)
105
E HEAD TUBE ANGLE
64.5°
F FORK RAKE (mm)
30
G TRAIL (mm)
119.2
H WHEELBASE (mm)
1054
I CHAIN STAY LENGTH (mm)
390
J BOTTOM BRACKET DROP (mm)
K STACK (mm)
525
L REACH (mm)
377
M STAND OVER HEIGHT (mm)
641
O STEM LENGTH (mm)
40
P CRANK LENGTH (mm)
140
Sizes
One size
Colours
Cyber Lime
Frame
ALUXX SL-Grade Aluminium front and rear triangles, 130mm FlexPoint suspension, UDH, 12x148mm thru-axle
Fork
Crest TR Elite Lite, FloTune damper, FloTune TR Lite damper, 140mm, Boost, 15x110mm thru-axle
Shock
Crest, FloTrac Lite, trunnion mount
Handlebar
Giant Contact TR, alloy, 31.8mm, 20mm rise
Grips
Giant Tactal Pro Lite
Stem
Giant Contact, 8-degree, 40mm
Seatpost
Giant Switch AT Lite, 100mm travel
Saddle
Giant Jr
Shifters
microSHIFT Advent X Trail, 1x10
Front Derailleur
N/A
Rear Derailleur
microSHIFT Advent X, RD-M6205AM
Brakes
Tektro HD-J2820, hydraulic [F]180mm, [R]160mm rotors
Brake Levers
Tektro HD-J2820
Cassette
MicroSHIFT Advent X, G-Series, 11x48
Chain
KMC X10
Crankset
ProWheel CHARM, 30t, 140m
Bottom Bracket
Press Fit
Rims
Giant TRA Hookless Tubeless ready Alloy, 24" 30mm inner width
Hubs
[F] Giant TRA MTB Alloy Hub, 6 Bolt, 24H [R] Giant TRX MTB Alloy Hub, Shimano HG Drive Body Pawl Driver (Pawl 36x2 T), 24H
Spokes
Sapim Laser
Tyres
[F] Maxxis Minion DHF, EXO, 24x2.4", [R] Maxxis Minion DHR II, EXO, 24x2.3"
Extras
Giant 1x chain guide
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
KEY PERFORMANCE FACTORS
YOUTH-TUNED SUSPENSION

FlexPoint rear suspension with a Crest FloTrac Lite shock delivers 130mm of smooth travel tuned specifically for lighter weight riders. Up front, the 140mm Crest TR Elite fork handles rocks, roots and ruts. Front and rear suspension both have minimal activating force, giving young riders smooth control and confidence on technical trails.

AGILE AND EFFICIENT

An ALUXX SL aluminium frameset with youth-specific trail geometry is combined with quality lightweight components to minimise weight and help young riders tackle challenging terrain. A new 24-inch TRA WheelSystem borrows key technologies from the proven adult TRA WheelSystem for improved climbing capabilities and quicker acceleration.

OFF-ROAD CONTROL

Giant TRA WheelSystem features WideGuard technology, resulting in lighter, stronger rims so riders can run lower tyre pressures for better traction without the risk of tyre punctures or rim damage. The youth-specific 24-inch wheels help smaller riders manoeuvre and tackle technical trails, while a dropper seatpost makes it easy to optimise riding position while climbing or descending.
