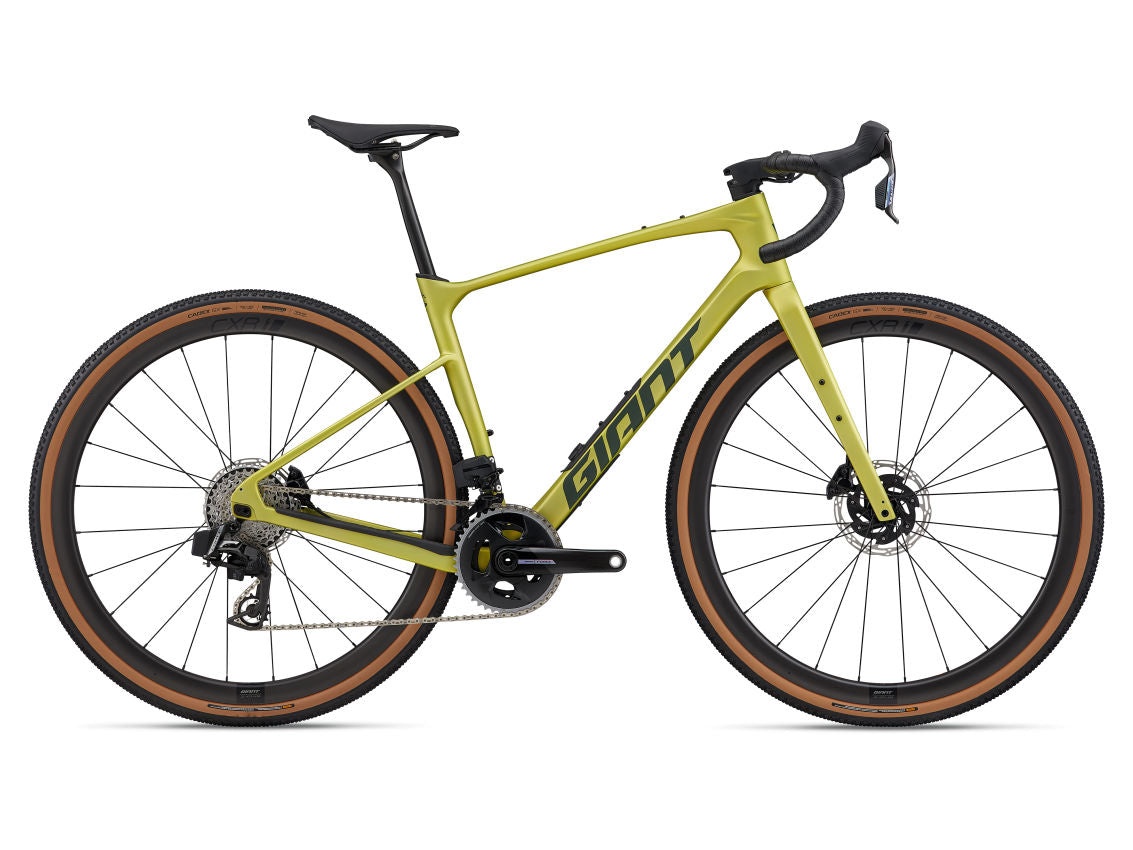

• Giant Revolt Advanced Pro 0 MY26

Giant Revolt Advanced Pro 0 MY26

$7,499.00 $8,799.00
Colour
Size
Loading locations...

GRAVEL CRUSHER

Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.

Key Performance Factors

Fast and versatile

Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

Tuned compliance

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimising fatigue over long distances.

Smart integration

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, moulded chainstay and down tube protection help defend the frame against impacts and quell noise.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

D-FUSE TECHNOLOGY

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.absorbing road shocks and vibrations so you can ride further, faster.

READ MORE

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

×

FLIP CHIP - DROPOUT

Allows riders to quickly adjust the geometry and rear-wheel tyre clearance with eccentric, offset two-position hardware in the rear wheel dropouts.

READ MORE

×

COMPACT ROAD DESIGN

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

×

MEGADRIVE

A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.

×

POWERCORE

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
ASEAT TUBE LENGTH (mm)
430
450
470
490
510
530
BSEAT TUBE ANGLE
74.0°
73.5°
73.5°
73.0°
73.0°
73.0°
CTOP TUBE LENGTH (mm)
540
550
560
575
585
600
DHEAD TUBE LENGTH (mm)
125
135
150
165
180
195
EHEAD TUBE ANGLE
70.0°
71.0°
71.5°
72.0°
72.0°
72.0°
FFORK RAKE (mm)
50
50
50
50
50
50
GTRAIL (mm)
78
82
72
68
65
68
HWHEELBASE (mm)
1024
1034
1020
1036
1041
1056
ICHAIN STAY LENGTH (mm)
425
435
435
425
435
435
JBOTTOM BRACKET DROP (mm)
80
81
80
81
80
81
KSTACK (mm)
523
547
574
597
616
630
LREACH (mm)
380
384
386
391
397
407
MSTAND OVER HEIGHT (mm)
681
708
748
770
791
814
OSTEM LENGTH (mm)
50
60
70
80
80
90
PCRANK LENGTH (mm)
170
170
172.5
172.5
175
175
SIZES
XS, S, M, M/L, L, XL
COLOURS
Cyber Lime
FRAME
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
FORK
Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
HANDLEBAR
Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
GRIPS
Stratus Lite 3.0
STEM
Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
SEATPOST
Giant D-Fuse SLR, composite, -5/+15mm offset
SADDLE
Giant Grit SL
PEDALS
N/A
SHIFTERS
SRAM Force AXS E1, 2x12
FRONT DERAILLEUR
SRAM Force AXS D2
REAR DERAILLEUR
SRAM Force AXS E1
BRAKES
SRAM Force AXS HRD, ED-Force-E1, SRAM PaceLine X rotors [F]160mm, [R]160mm
BRAKE LEVERS
SRAM Force AXS E1 hydraulic
CASSETTE
SRAM Force E1, 12-speed, 10x36
CHAIN
SRAM Force E1
CRANKSET
SRAM Force D2 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
BOTTOM BRACKET
SRAM DUB, press fit
RIMS
Giant CXR 1 WheelSystem, [F] 35mm, [R] 35mm
HUBS
[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
SPOKES
Sapim CX-Ray
TIRES
CADEX GX, 700x40c, tubeless
EXTRAS
Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
MAX TYRE CLEARANCE
53mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
