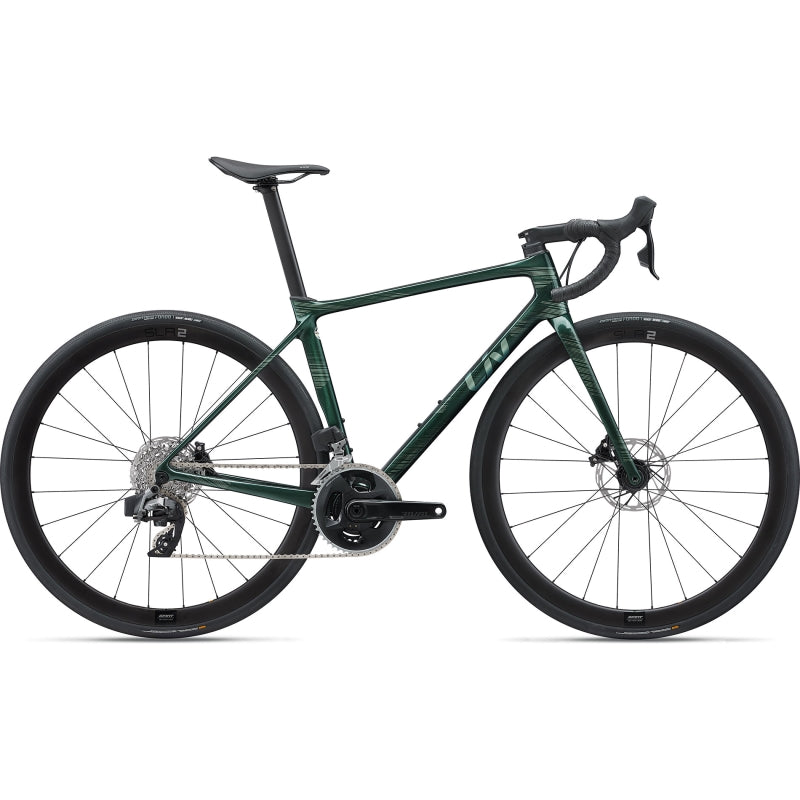

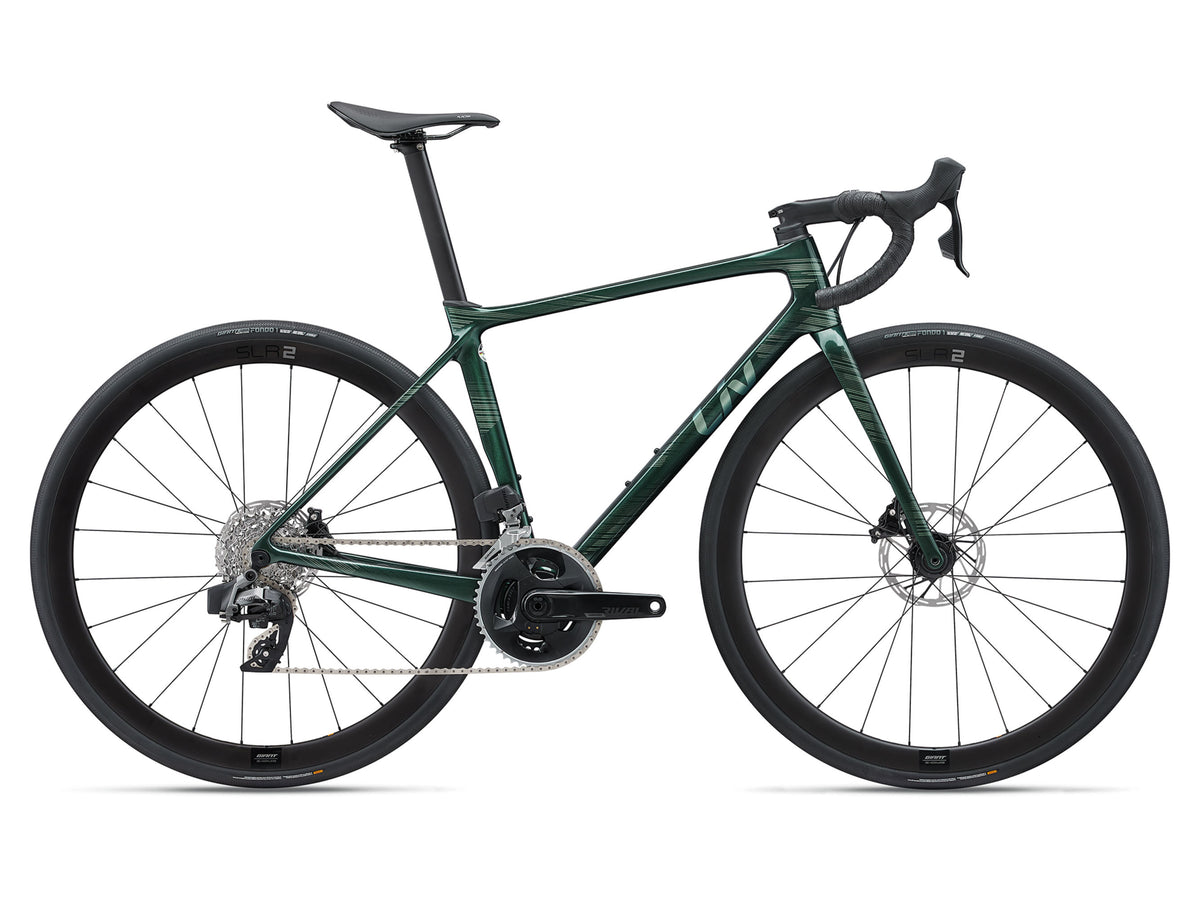

Liv Langma Advanced Pro 1 Disc AR 2024

$6,799.00

Colour

Kelp Forest

Size

LARGE

Product variants

Loading locations...

geometry

specs

highlights

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

A SEAT TUBE LENGTH (mm)

420

450

480

510

B SEAT TUBE ANGLE

75.0°

74.5°

74.0°

73.5°

C TOP TUBE LENGTH (mm)

508

524

540

555

D HEAD TUBE LENGTH (mm)

120

135

155

175

E HEAD TUBE ANGLE

71.0°

72.0°

72.5°

F FORK RAKE (mm)

G TRAIL (mm)

67.8

61.4

58.2

H WHEELBASE (mm)

973

977

984

996

I CHAIN STAY LENGTH (mm)

405

J BOTTOM BRACKET DROP (mm)

K STACK (mm)

517

532

553

569

L REACH (mm)

370

377

382

386

M STAND OVER HEIGHT (mm)

700

730

760

790

O STEM LENGTH (mm)

100

110

P CRANK LENGTH (mm)

165

170

172.5

Q WHEEL SIZE

700C

Sizes

XS, S, M, L

Colours

Kelp Forest

Frame

Advanced-grade composite, 12x142mm thru-axle, disc

Fork

Advanced-grade composite, full-composite OverDrive 2 steerer, 12x100mm, disc

Shock

N/A

Handlebar

Liv Contact SLR XS:36cm, S:38cm, M:40cm, L:42cm

Grips

Liv All Condition

Stem

Giant Contact SL XS:80mm, S:90mm, M:100mm, L:110mm

Seatpost

Giant Variant, composite, -5/+15mm offset

Saddle

Liv Alacra SL

Pedals

N/A

Shifters

SRAM Rival eTap AXS

Front Derailleur

SRAM Rival eTap AXS

Rear Derailleur

SRAM Rival eTap AXS

Brakes

SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm

Brake Levers

SRAM Rival eTap AXS hydraulic

Cassette

SRAM Rival, 12-speed, 10x36

Chain

SRAM Rival D1

Crankset

SRAM Rival D1 DUB, 33/46 with Power Halo power meter XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm

Bottom Bracket

SRAM DUB, press fit

Rims

Giant SLR 2 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm

Hubs

[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle

Spokes

Sapim Sprint

Tyres

Giant Gavia Fondo 1, tubeless, 700x28c (32mm), folding

Extras

Computer mount, tubeless prepared, 32mm max tyre size

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Key Performance Factors

Faster acceleration

The heart of the Langma Advanced Pro is a super-light Advanced-grade composite frameset, delivering a powerful stiffness-to-weight ratio for explosive acceleration. Updated truncated ellipse tubing reduces wind drag and boosts sprinting efficiency.

Better handling

Integrated, flat-mount disc brakes deliver the confidence to carry speed into corners and navigate variable weather conditions. The Langma also accommodates tyres up to 32mm, so you can customise your set-up for the road ahead.

Vibration cancelling

The all-new tubeless Giant SLR 36 Disc WheelSystem reduces drag, while the adjustable Variant Composite Seatpost provides superior compliance, so you get a responsive ride that practically skims over rough roads.
