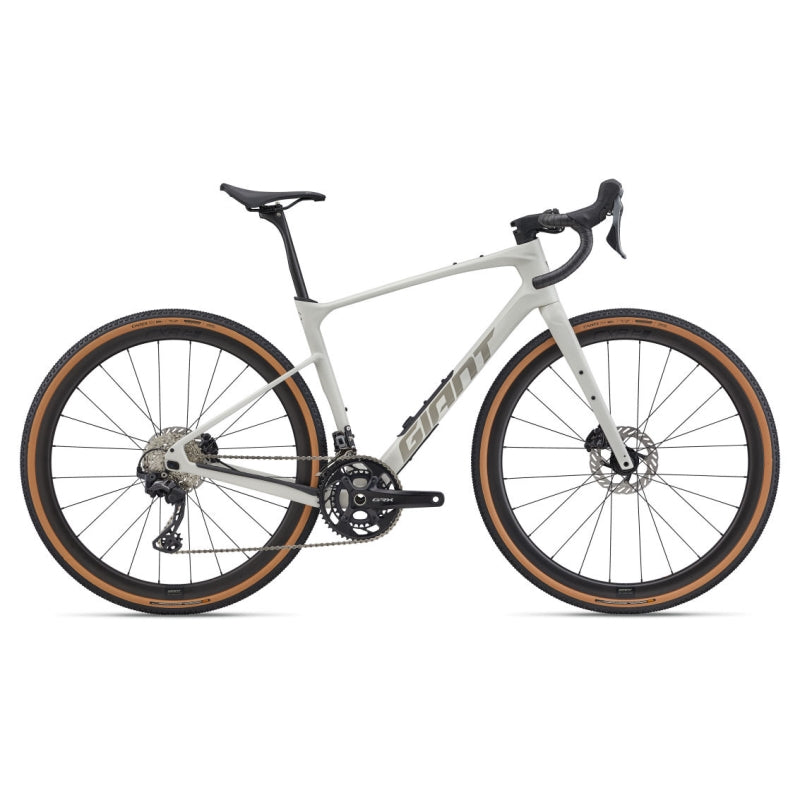

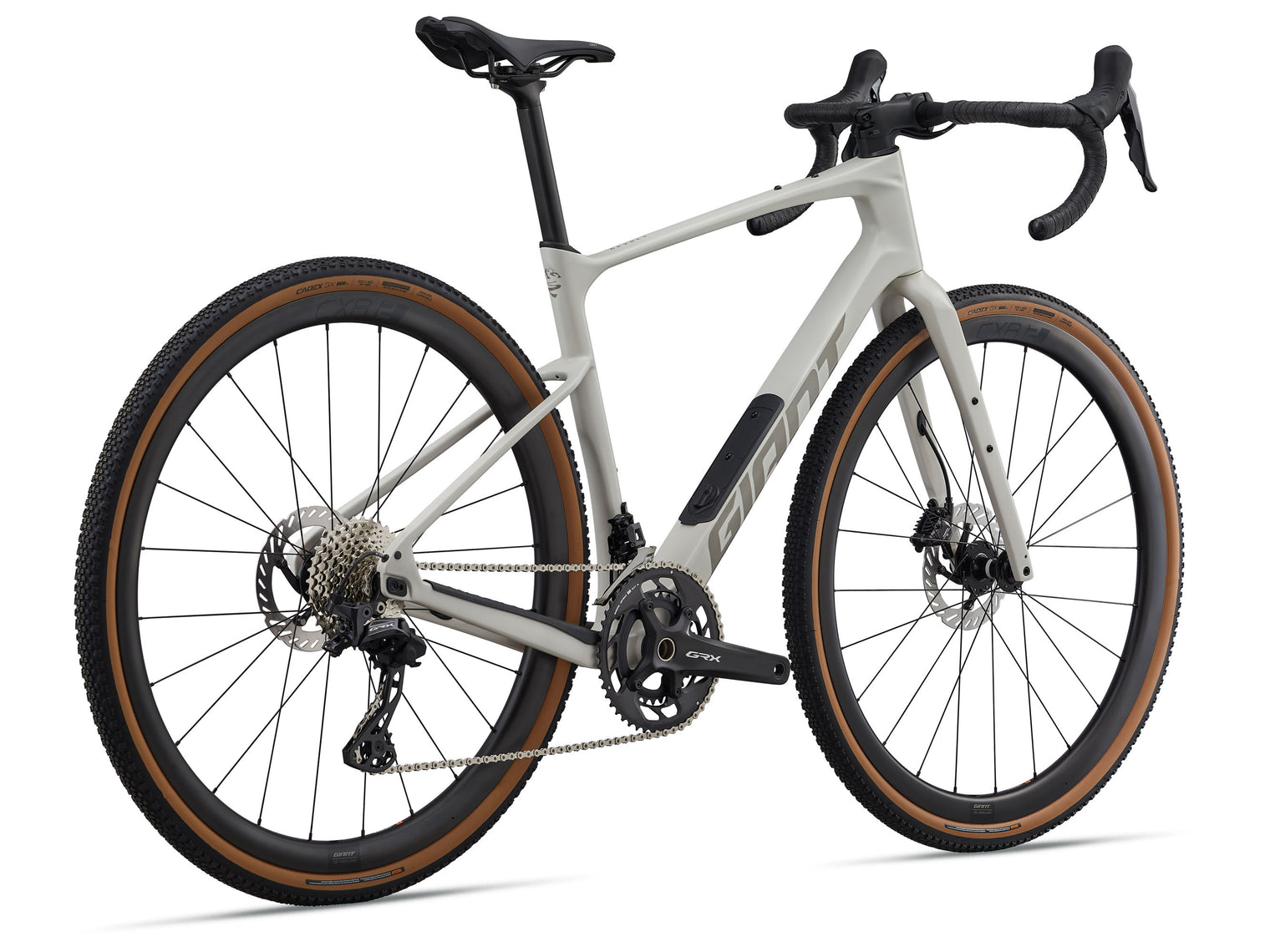

Giant Revolt Advanced 0 MY26

$4,749.00 $5,199.00
Colour
Size
Loading locations...

Rough roads, gravel, or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

KEY PERFORMANCE FACTORS

Fast and Light

The Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach, and a steeper head tube angle for improved acceleration and climbing efficiency.

Tuned Compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost system work together to add compliance without sacrificing stiffness while cornering, sprinting, or climbing.

Adaptable to the Terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post. (*On select models)

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

D-FUSE TECHNOLOGY

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.absorbing road shocks and vibrations so you can ride further, faster.

READ MORE

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
ASEAT TUBE LENGTH (mm)
430
450
470
490
510
530
BSEAT TUBE ANGLE
74.0°
73.5°
73.5°
73.0°
73.0°
73.0°
CTOP TUBE LENGTH (mm)
540
550
560
575
585
600
DHEAD TUBE LENGTH (mm)
125
135
155
165
180
195
EHEAD TUBE ANGLE
70.0°
71.0°
71.5°
72.0°
72.0°
72.0°
FFORK RAKE (mm)
50
50
50
50
50
50
GTRAIL (mm)
78
82
72
75
65
65
HWHEELBASE (mm)
1024
1034
1020
1030
1036
1066
ICHAIN STAY LENGTH (mm)
425
425
425
425
425
435
JBOTTOM BRACKET DROP (mm)
80
81
80
80
81
80
KSTACK (mm)
556
570
586
602
616
630
LREACH (mm)
381
381
387
391
397
407
MSTAND OVER HEIGHT (mm)
724
731
740
757
791
814
OSTEM LENGTH (mm)
50
60
70
80
80
90
PCRANK LENGTH (mm)
170
170
172.5
172.5
175
175
QWHEEL SIZE
700C
700C
700C
700C
700C
700C
COLOURS
Snow Drift
FRAME
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
FORK
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
SHOCK
N/A
HANDLEBAR
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
GRIPS
Stratus Lite 3.0
STEM
Giant Contact Aerolight XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
SEATPOST
Giant D-Fuse, composite, -5/+15mm offset
SADDLE
Giant Grit
PEDALS
N/A
SHIFTERS
Shimano GRX RX-820, 2x12
FRONT DERAILLEUR
Shimano GRX RX-820
REAR DERAILLEUR
Shimano GRX RX-820
BRAKES
Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
BRAKE LEVERS
Shimano GRX RX-820 hydraulic
CASSETTE
Shimano CS-HG710, 12-speed, 11x36
CHAIN
KMC X12L-1
CRANKSET
Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
BOTTOM BRACKET
Shimano, press fit
RIMS
Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
HUBS
[F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
SPOKES
Sapim Sprint
TIRES
CADEX GX, 700x40c, tubeless
EXTRAS
Tubeless prepared, 53mm max tyre size in ‘long’ flip chip position, 45mm max tyre size in ‘short’ flip chip position, in-frame storage bag
MAX TIRE CLEARANCE
53mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
