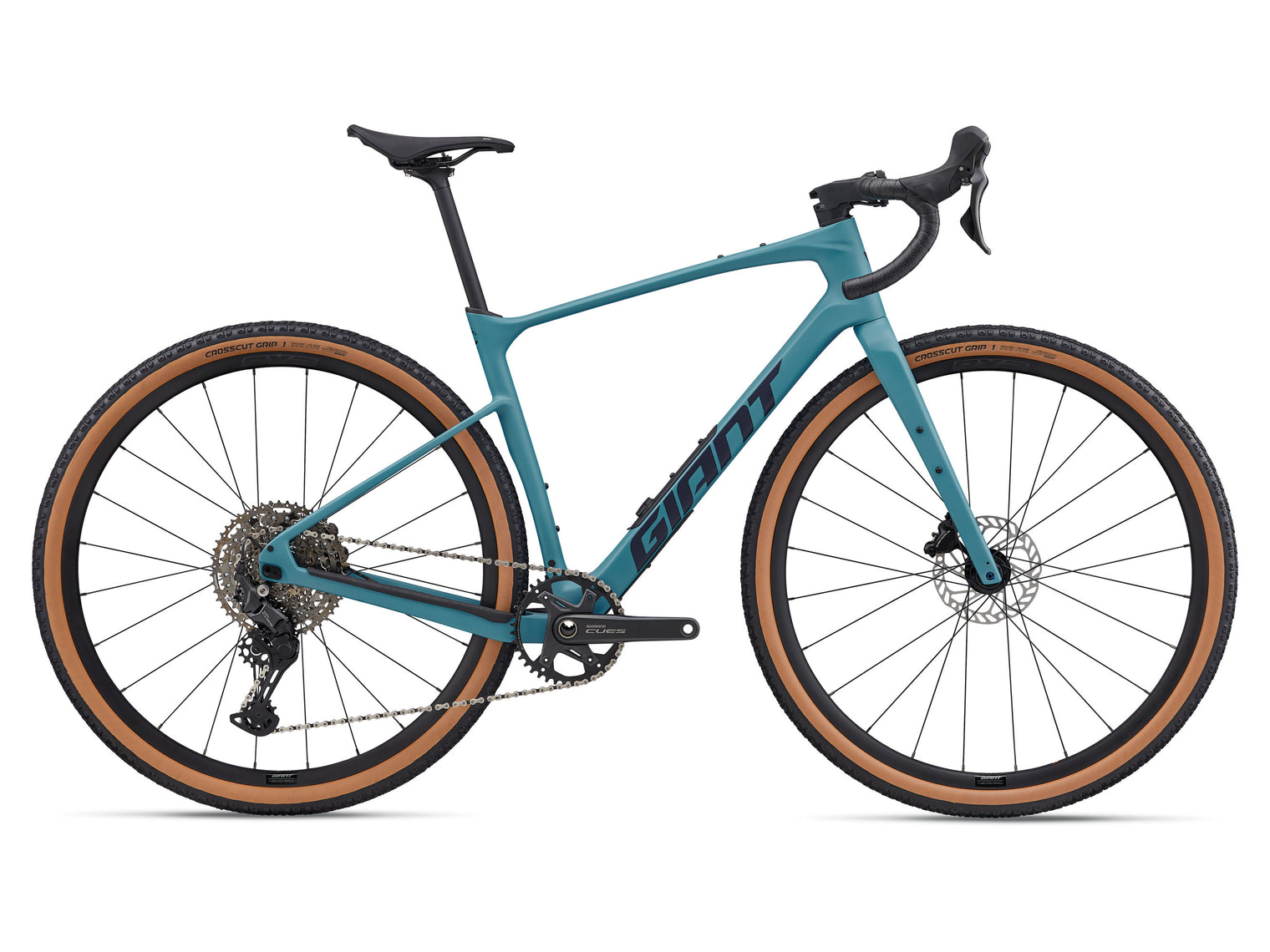

Giant Revolt Advanced 3 MY26

$2,799.00 $3,199.00
Colour
Size
Loading locations...

ROUGH ROADS, GRAVEL OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. THE LIGHTWEIGHT, SMOOTH-RIDING COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.

Key Performance Factors

Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53 mm. You can also choose the included D-Fuse seatpost* for maximum compliance, or switch to a 30.9 mm round or dropper post.
*On select models

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

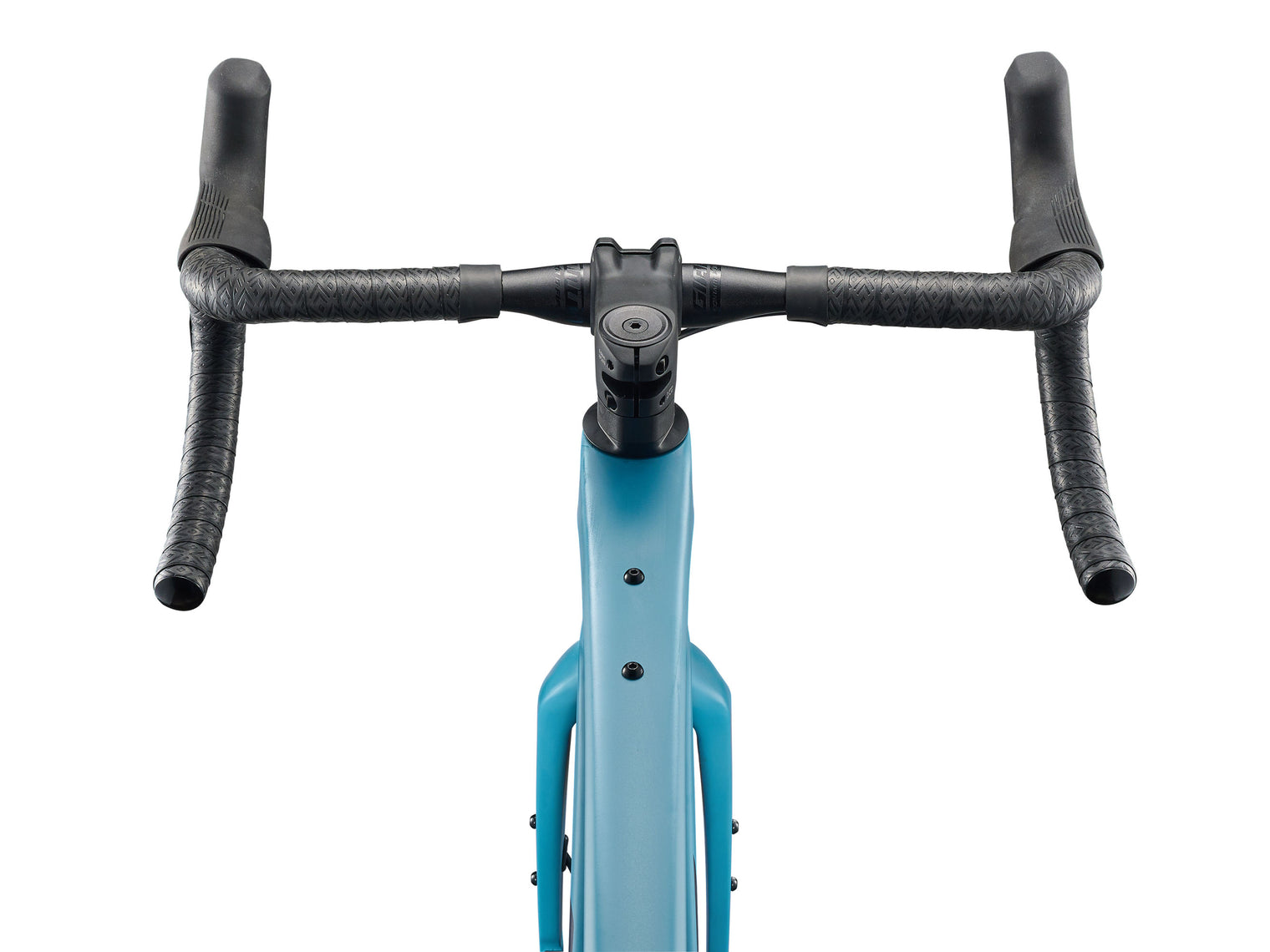

D-FUSE TECHNOLOGY

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.absorbing road shocks and vibrations so you can ride further, faster.

READ MORE

×

OVERDRIVE

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
ASEAT TUBE LENGTH (mm)
430
450
470
490
510
530
BSEAT TUBE ANGLE
74.0°
73.5°
73.5°
73.0°
73.0°
73.0°
CTOP TUBE LENGTH (mm)
540
550
560
575
585
600
DHEAD TUBE LENGTH (mm)
125
135
150
165
180
195
EHEAD TUBE ANGLE
70.0°
71.0°
71.5°
72.0°
72.0°
72.0°
FFORK RAKE (mm)
50
50
50
50
50
50
GTRAIL (mm)
78
82
72
68
65
68
HWHEELBASE (mm)
1024
1034
1020
1036
1041
1056
ICHAIN STAY LENGTH (mm)
425
435
435
425
435
435
JBOTTOM BRACKET DROP (mm)
80
81
80
81
80
81
KSTACK (mm)
523
547
574
597
616
630
LREACH (mm)
380
384
386
391
397
407
MSTAND OVER HEIGHT (mm)
681
708
748
770
791
814
OSTEM LENGTH (mm)
50
60
70
80
80
90
PCRANK LENGTH (mm)
170
170
172.5
172.5
175
175
SIZESXS, S, M, M/L, L, XL
COLOURSAquarium
FRAMEAdvanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
FORKAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
SHOCKN/A
HANDLEBARGiant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
GRIPSStratus Lite 3.0
STEMGiant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
SEATPOSTGiant D-Fuse, composite, 14mm offset
SADDLEGiant Grit
PEDALSN/A
SHIFTERSShimano CUES U6030, 1x11
FRONT DERAILLEURN/A
REAR DERAILLEURShimano Cues U6000, Shadow+
BRAKESShimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
BRAKE LEVERSShimano CUES U6030 hydraulic
CASSETTEShimano CS-LG400, 11x50
CHAINKMC X11
CRANKSETShimano Cues U6030, 42 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
BOTTOM BRACKETShimano, press fit
RIMSGiant P-X2 Disc wheelset, alloy
HUBSGiant alloy, 12mm thru-axle
SPOKESSapim
TYRESGiant Crosscut Grip, 700x45c, tubeless
EXTRASTubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
MAX TYRE CLEARANCE53mm
WEIGHTThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
