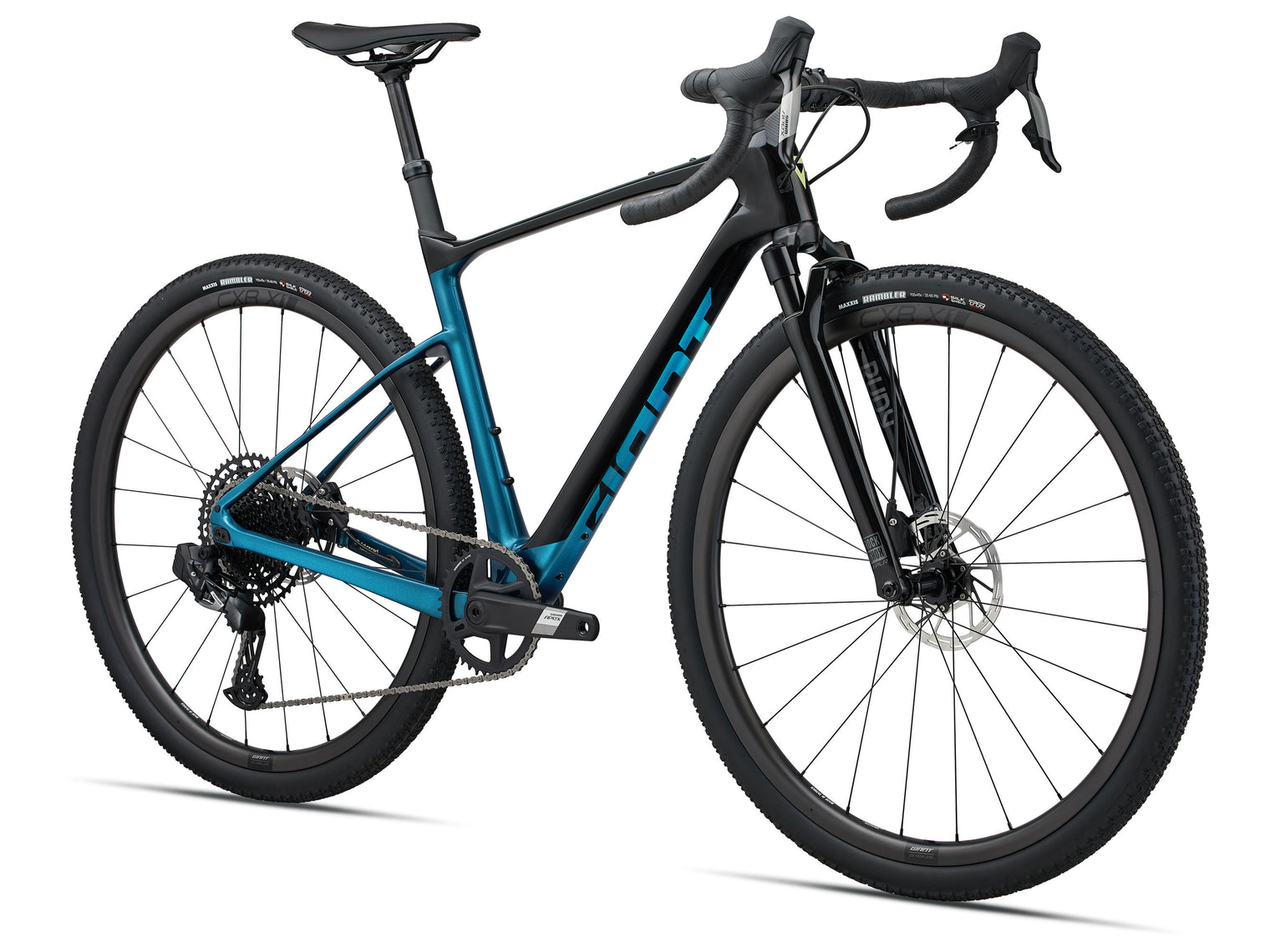

Giant Revolt X Advanced Pro 2

$3,899.00 $5,999.00
Colour
Size
Loading locations...

WASHBOARD DESCENTS, SKETCHY DIRT, GRAVEL AND ROCKS OF ALL SHAPES AND SIZES. YOU NEVER KNOW WHAT YOU'LL GET ON A GRAVEL RIDE. THIS COMPOSITE GRAVEL MACHINE HAS FRONT SUSPENSION AND ENGINEERED COMPLIANCE TO HELP YOU FLOAT THROUGH IT ALL WITH SPEED AND CONTROL.




KEY PERFORMANCE FACTORS



Smooth control


Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.


Tuned compliance


Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.


Adaptable to the terrain


A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

D-FUSE SEATPOST

The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

×

OVERDRIVE

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
A SEAT TUBE LENGTH (mm)
430
450
470
490
510
530
B SEAT TUBE ANGLE
74.0°
73.5°
73.5°
73.0°
73.0°
73.0°
C TOP TUBE LENGTH (mm)
543
553
560
575
585
600
D HEAD TUBE LENGTH (mm)
90
100
115
130
145
160
E HEAD TUBE ANGLE
70.5°
71.0°
71.5°
72.0°
72.0°
72.0°
F FORK RAKE (mm)
50
50
50
50
50
50
G TRAIL (mm)
80.3
76.9
73.5
70.1
70.1
70.1
H WHEELBASE (mm)
1023
1024
1026
1031
1041
1057
I CHAIN STAY LENGTH (mm)
425
425
425
425
425
425
J BOTTOM BRACKET DROP (mm)
68
68
68
68
68
68
K STACK (mm)
549
560
576
592
607
621
L REACH (mm)
386
387
389
393
399
410
M STAND OVER HEIGHT (mm)
720
736
755
772
790
808
O STEM LENGTH (mm)
50
60
70
80
80
90
P CRANK LENGTH (mm)
170
170
172.5
172.5
175
175
Q WHEEL SIZE
700C
700x 42C
700x 42C
700x 42C
700x 42C
700x 42C
HANDLEBAR
Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
SADDLE
Giant Approach SL
SEATPOST
Post Moderne, dropper, 30.9mm with 25mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
STEM
Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
BOTTOM BRACKET
SRAM DUB, press fit
BRAKE LEVERS
SRAM Apex AXS hydraulic, left lever dropper switch
BRAKES
SRAM hydraulic
BRAKES ROTOR
SRAM PaceLine rotors [F]160mm, [R]160mm
CASSETTE
SRAM PG-1230, 12-speed, 11x50
CHAIN
SRAM NX Eagle
CRANKSET
SRAM Apex D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
FRONT DERAILLEUR
N/A
REAR DERAILLEUR

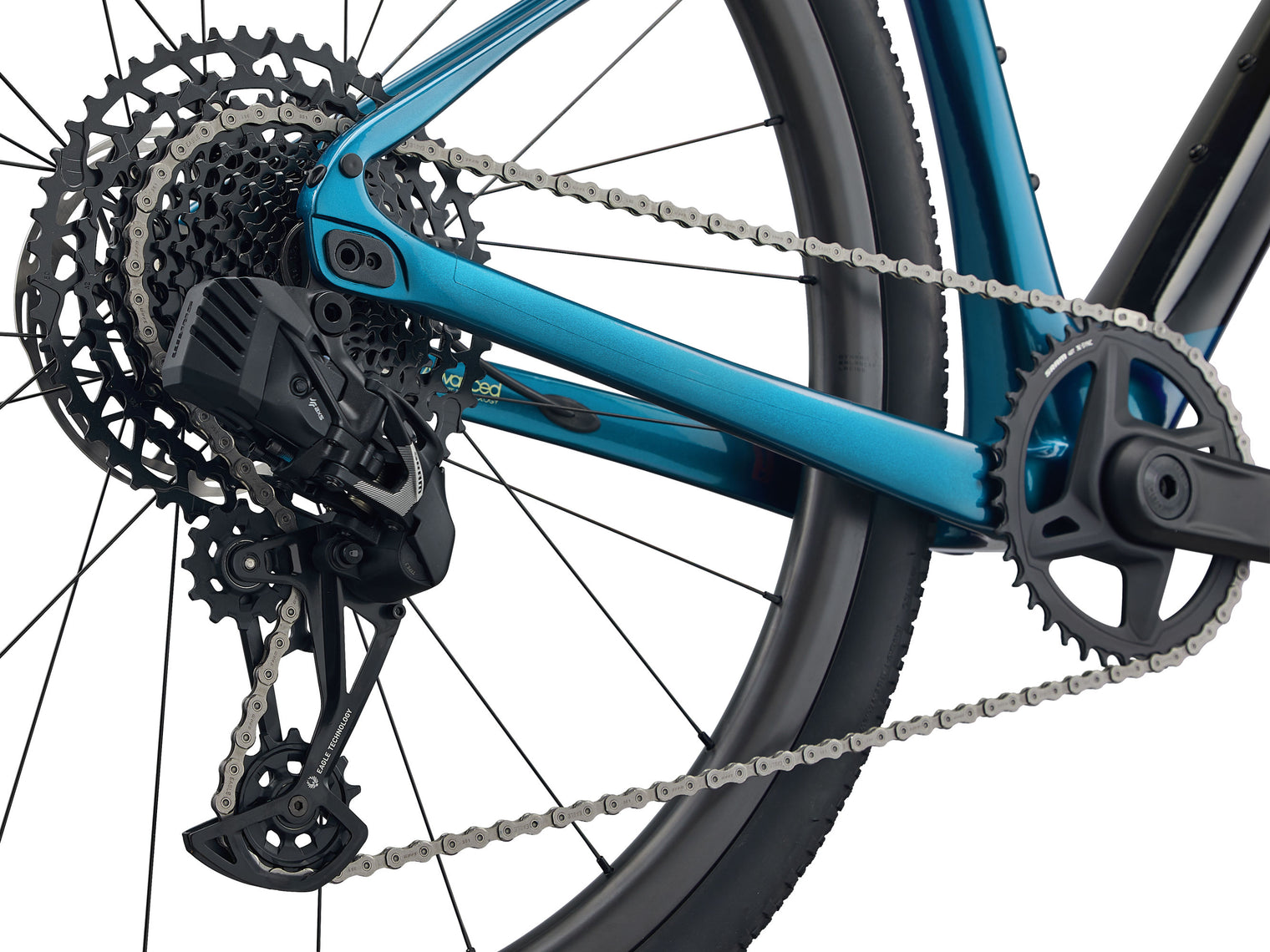

SRAM X1 Eagle AXS
SHIFTERS
SRAM Apex eTap AXS, 1x12
FORK

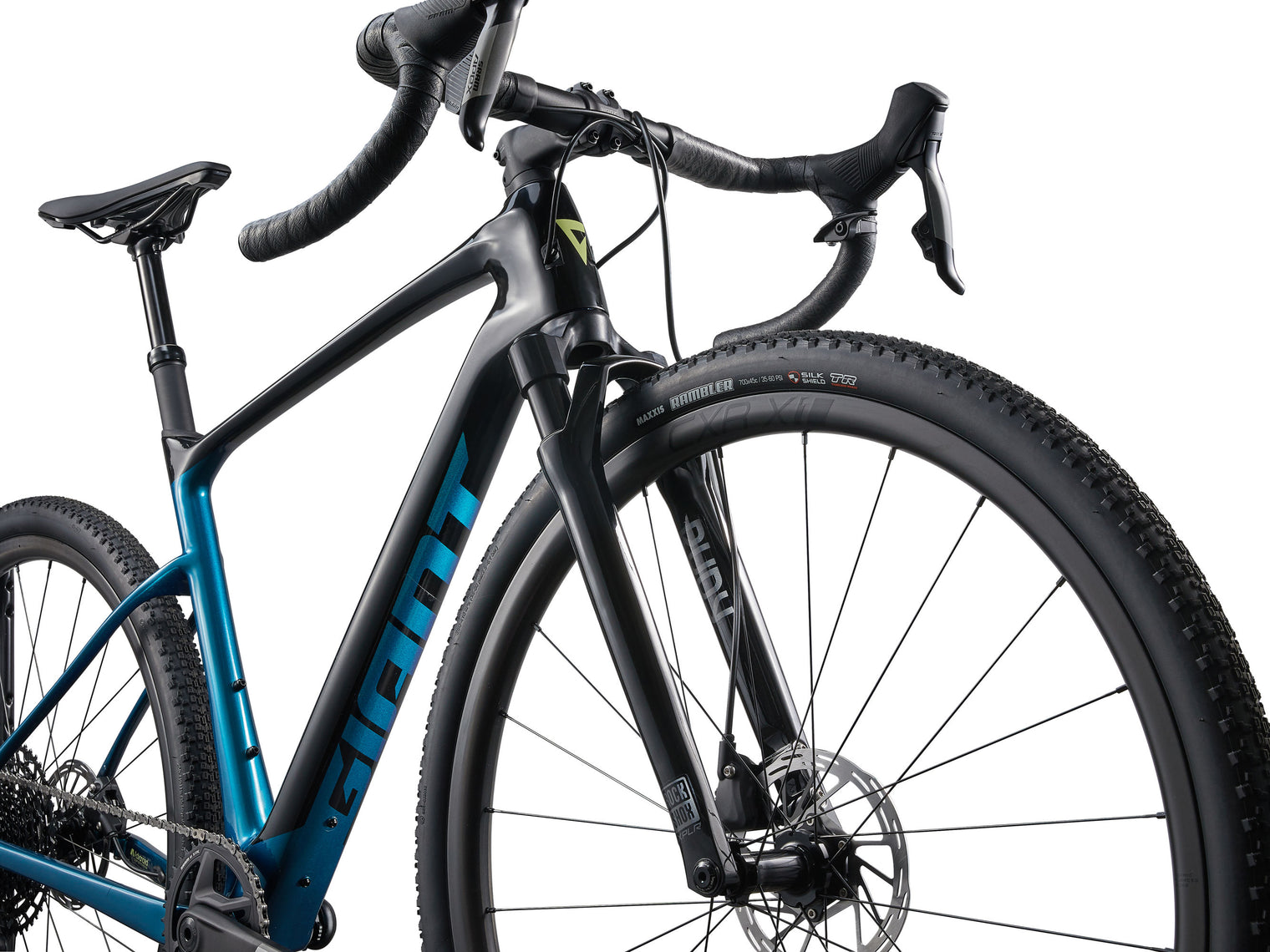

RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
FRAME
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
EXTRAS
Tubeless prepared, 53mm max tyre size in long flip chip position, 45mm max tyre size in short flip chip position
FRONT HUB
Giant CXR X alloy, CenterLock, 12mm thru-axle
REAR HUB
Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle
RIMS
Giant CXR 1 X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
SPOKES
Sapim CX-Ray
TYRES
Maxxis Rambler, 700x45c, tubeless
